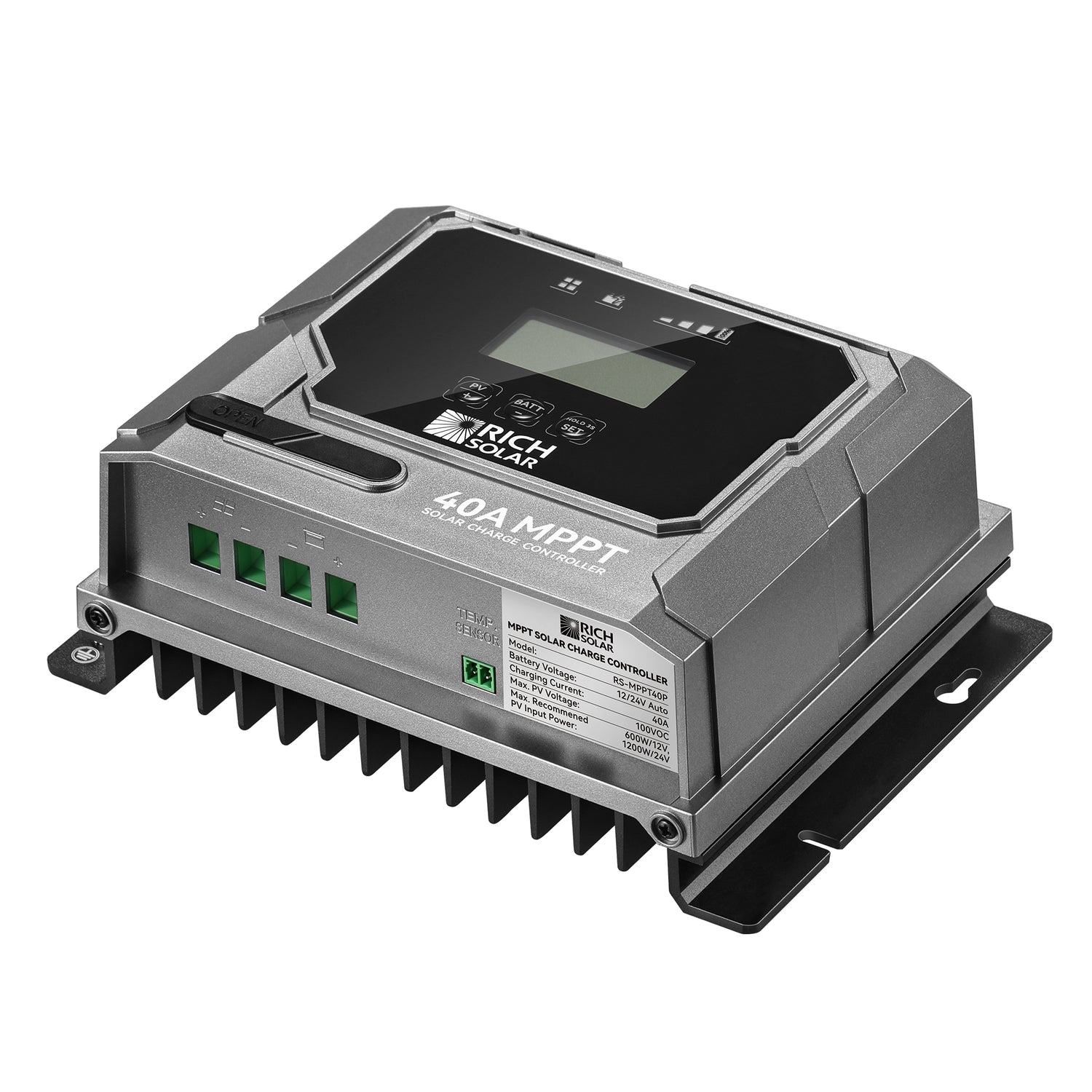

1 / 8Hover to zoom · click to enlargeBRAVO 40 - 40 Amp MPPT Solar Charge Controller
Ships from Rich Solar's U.S. warehouse
- Free shipping, no minimumTo the lower 48 states and Washington, D.C.
- Authorized Rich Solar dealerFull manufacturer warranty and support.
- 2-year warrantyProrated, backed by Rich Solar.
- 30-day returnsOn new, unused items.
Shipping & handling
- Orders are processed within 1–3 business days.
- Parcel items typically arrive 3–7 business days after shipping. Freight items (panels, batteries, inverters and kits) typically arrive 5–14 business days after shipping.
- Rich Solar and SunGoldPower products ship free to the lower 48 states and Washington, D.C., with no minimum. Lensun shipping is based on weight and shown at checkout.
- Freight deliveries need an appointment and a signature, and are delivered curbside.
Returns & refunds
Request a return within 30 days of delivery. Items must be new, unused, not installed, and in their original packaging.
- Contact us first for a Return Merchandise Authorization (RMA). Returns sent without one are refused.
- For a change-of-mind return, you pay return shipping and a 15% restocking fee is deducted from your refund.
- Damaged on arrival? Report it within 3 business days of delivery and we arrange a replacement or full refund.
Warranty
Rich Solar's warranty page covers MPPT charge controllers for 2 years on a prorated schedule: full coverage in year 1 and 50% in year 2.
Need help choosing?
Not sure this fits your system? Email support@sunenergydepot.com with what you want to power, or use the chat in the corner, and we will help you choose.
A 40-amp, 12V/24V MPPT charge controller with built-in Bluetooth
The BRAVO 40 is Rich Solar's 40-amp MPPT charge controller for 12V and 24V batteries. It detects system voltage automatically, accepts up to 100V open-circuit voltage and is rated at more than 99.5% MPPT tracking efficiency.
Built-in Bluetooth links it to a smartphone app, and the LCD shows solar input and battery status. It supports eight lead-acid and lithium battery types plus custom settings, and Rich Solar recommends up to 600W of solar at 12V or 1,200W at 24V.
Efficient solar charging
The BRAVO 40 uses a true MPPT algorithm with multi-peak detection to keep tracking well in changing sun or partial shade.
- More than 99.5% MPPT tracking efficiency
- Up to 98% charge conversion efficiency
- Recommended PV: 600W at 12V, 1,200W at 24V
Flexible system compatibility
It detects a 12V or 24V system automatically and accepts up to 100V open-circuit voltage from the solar array.
- 12V/24V auto-detection
- 100V max PV open-circuit voltage
- Crystal, GEL, AGM, flooded, calcium, LCO, LFP and LTO batteries
- Custom charge parameter settings
Smart monitoring
Built-in Bluetooth lets you check real-time charging status from a smartphone app.

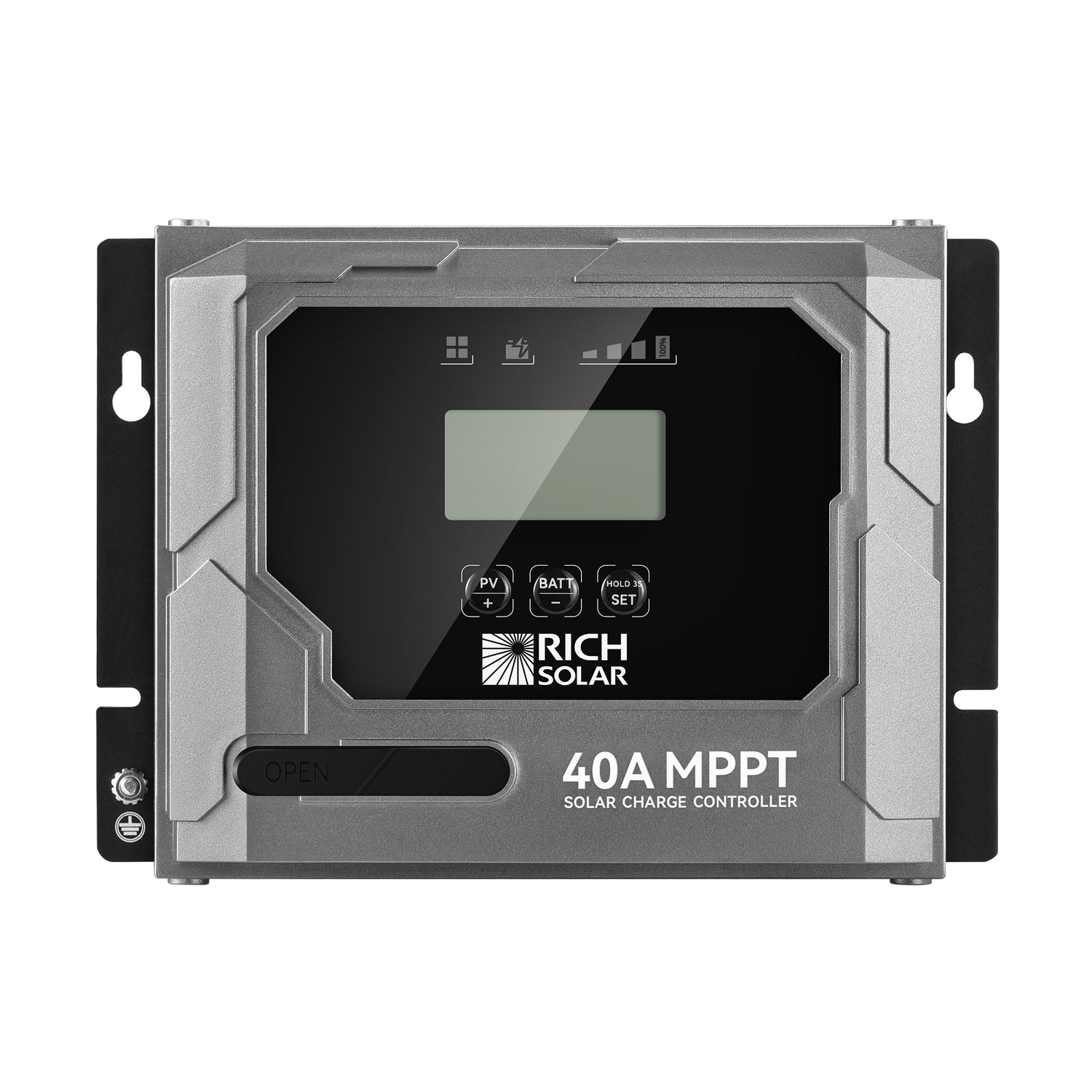

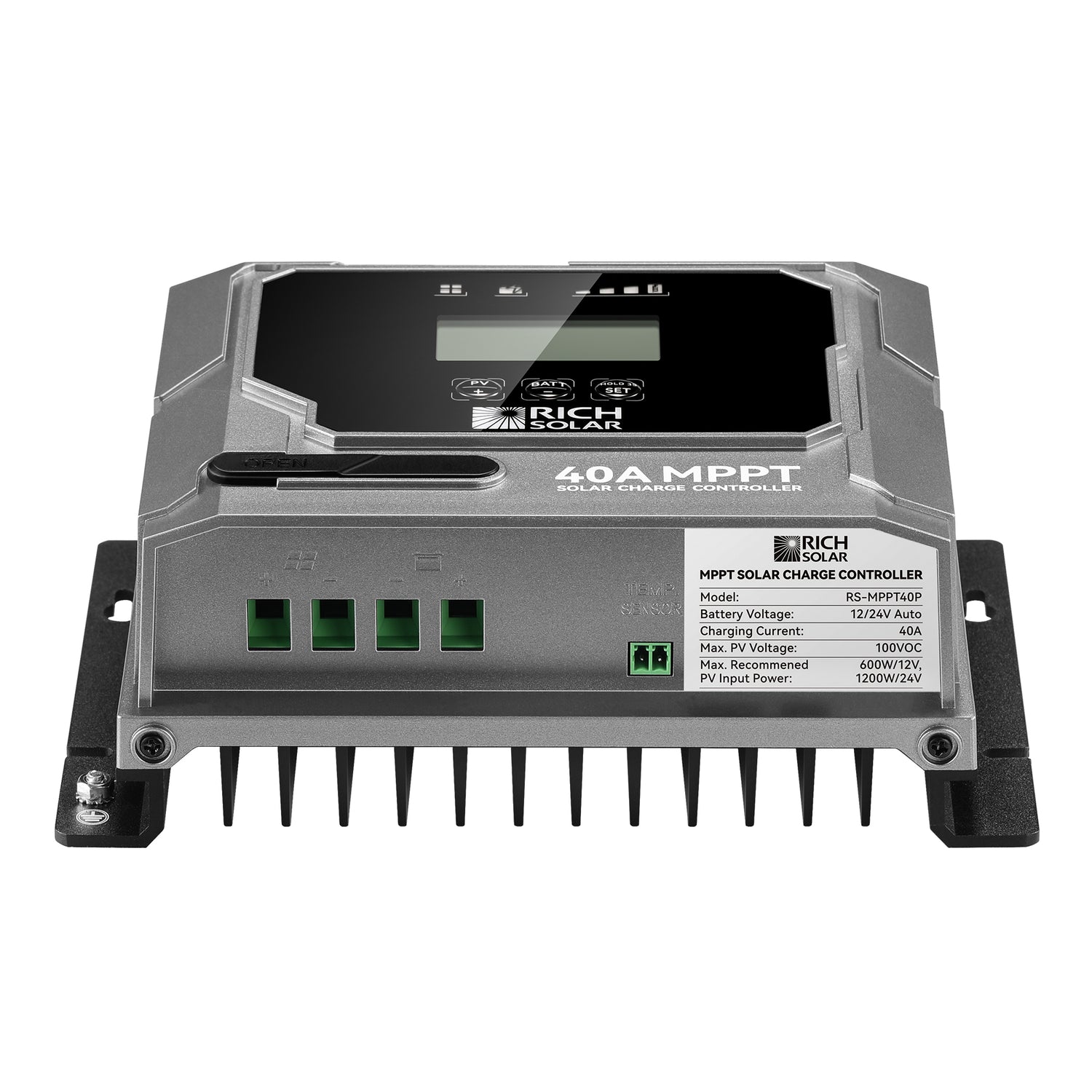

- LCD shows solar input, battery status and system settings
- LED bar and transparent window indicators
- Charging data storage
- Optional remote meter and battery temperature sensor
Comprehensive reliability
Electronic protection and a conformal-coated circuit board help the BRAVO 40 hold up in demanding environments.
- Certified to UL 1741, FCC, CE and RoHS standards
- Over-voltage and reverse-discharge protection
- Deep-discharge battery recovery/restart function
- Rubber-masked connector protection, common negative ground
Specs, images and product claims on this page come from Rich Solar's BRAVO 40 product page and June 2025 spec sheet. Last checked Oct 30, 2026.
Specifications
From Rich Solar's published specifications for model RS-MPPT40P.
PV input
| Max PV open-circuit voltage | 100V DC |
|---|---|
| Max PV charging current | 40A |
| Recommended PV input power | 600W @ 12V / 1,200W @ 24V |
| Charging technology | MPPT with multi-peak detection |
| MPPT tracking efficiency | >99.5% |
| Charge conversion efficiency | Up to 98% |
Battery & charging
| Nominal system voltage | 12V/24V auto-detect |
|---|---|
| Rated charge current | 40A |
| Lead-acid battery types | GEL, AGM, WET, Crystal, Calcium |
| Lithium battery types | LiFePO₄ (LFP), LTO, LCO |
| Custom settings | Custom charge parameters |
| Battery recovery | Deep-discharge battery recovery/restart function |
| Temperature sensor | Optional external battery temperature sensor |
Protection & features
| Electronic protection | Over-voltage, reverse discharge |
|---|---|
| Grounding | Common negative |
| Circuit board | Conformal coated |
| Connectors | Rubber-masked connector protection |
| Display | LCD with LED bar and transparent window indicators |
| Bluetooth | Built in |
| Data | Charging data storage |
Physical & certification
| Dimensions (L × W × H) | 7.7 × 5.5 × 2.9 in (195 × 142 × 74 mm) |
|---|---|
| Net weight | 2.58 lb (1.17 kg) |
| Package dimensions | 10 × 7 × 5 in |
| Gross weight | 4 lb |

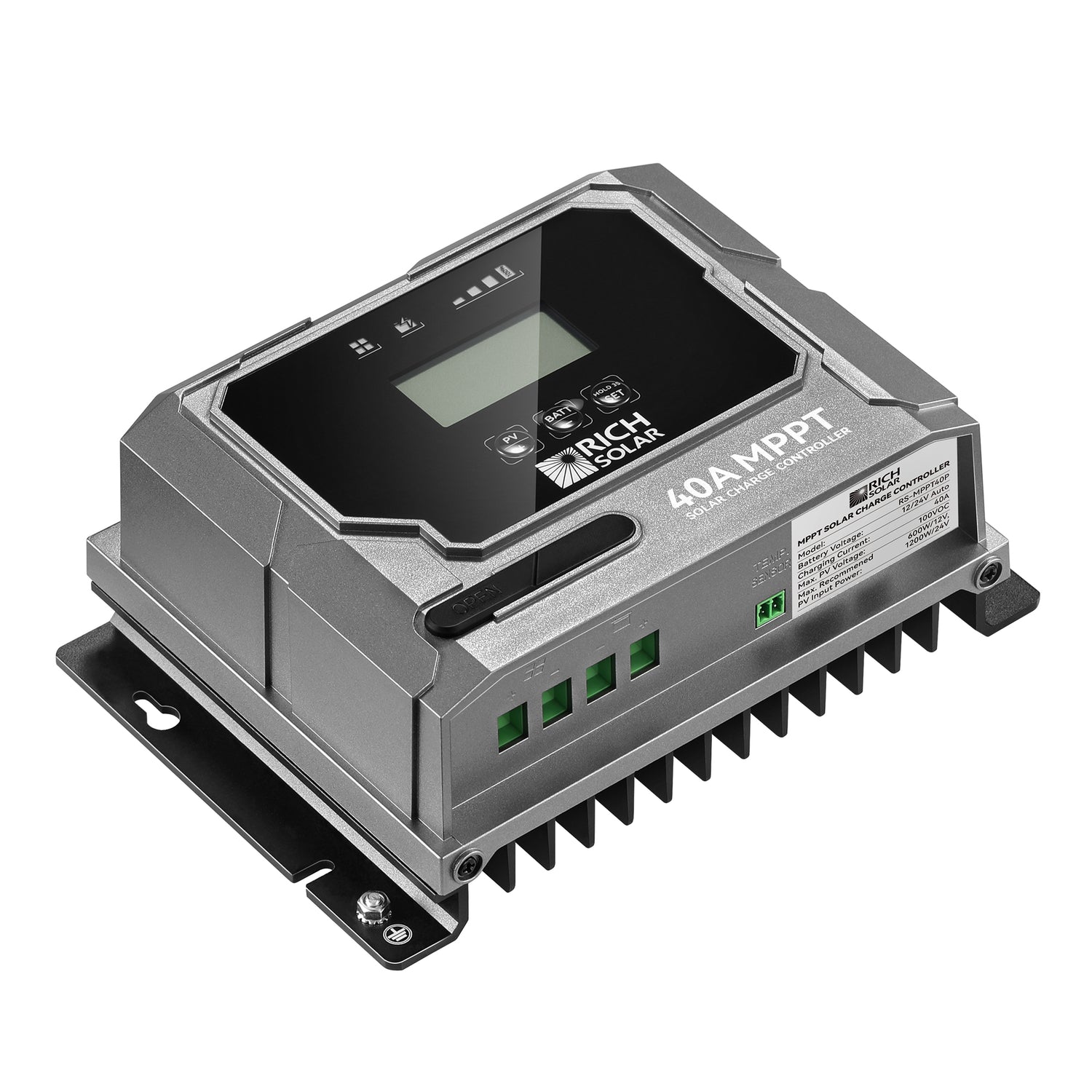

| Housing color | Black / grey |
| Protection rating | IP43 (PCBA), IP22 (connectors) |
| Certification | ETL listed to UL 1741 and CSA C22.2 No. 107.1; FCC, CE, RoHS |
| Warranty | 2-year (prorated) |
| Model / SKU | RS-MPPT40P |

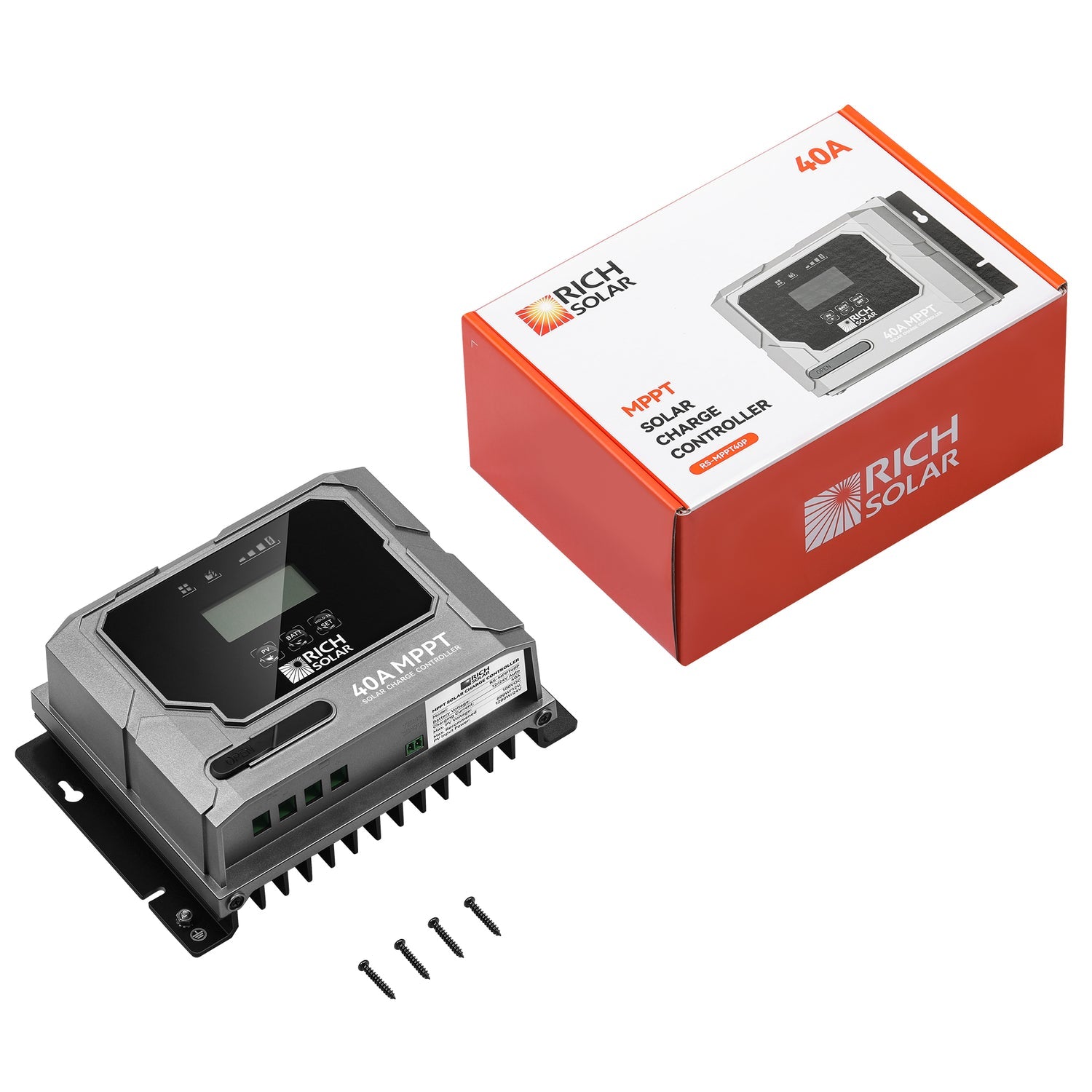

What's in the box
