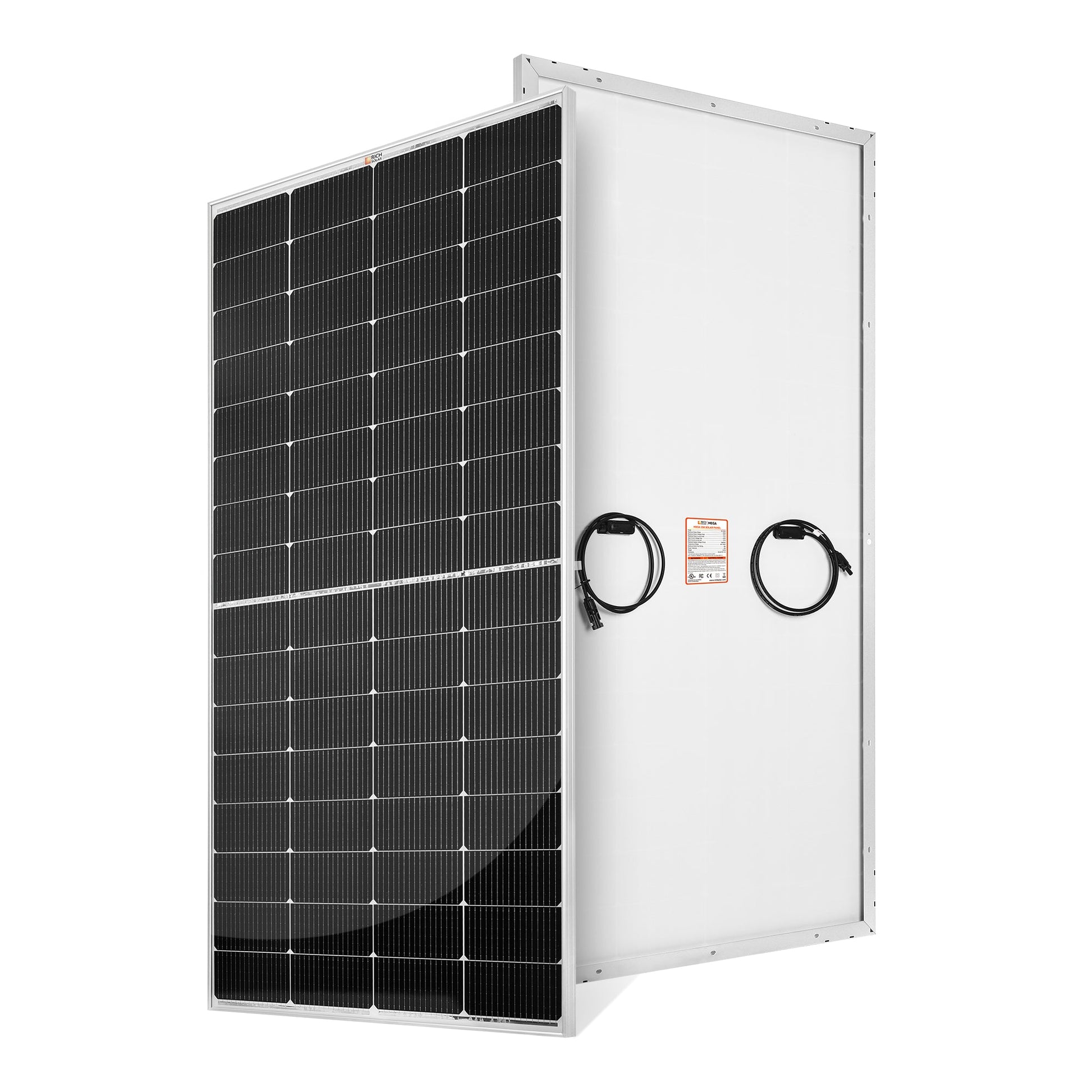

MEGA 250 - 250 Watt Solar Panel

MEGA 250 - 250 Watt Solar Panel

$239.99
$299.99 $239.99
Sale Sold out
Shipping calculated at checkout.

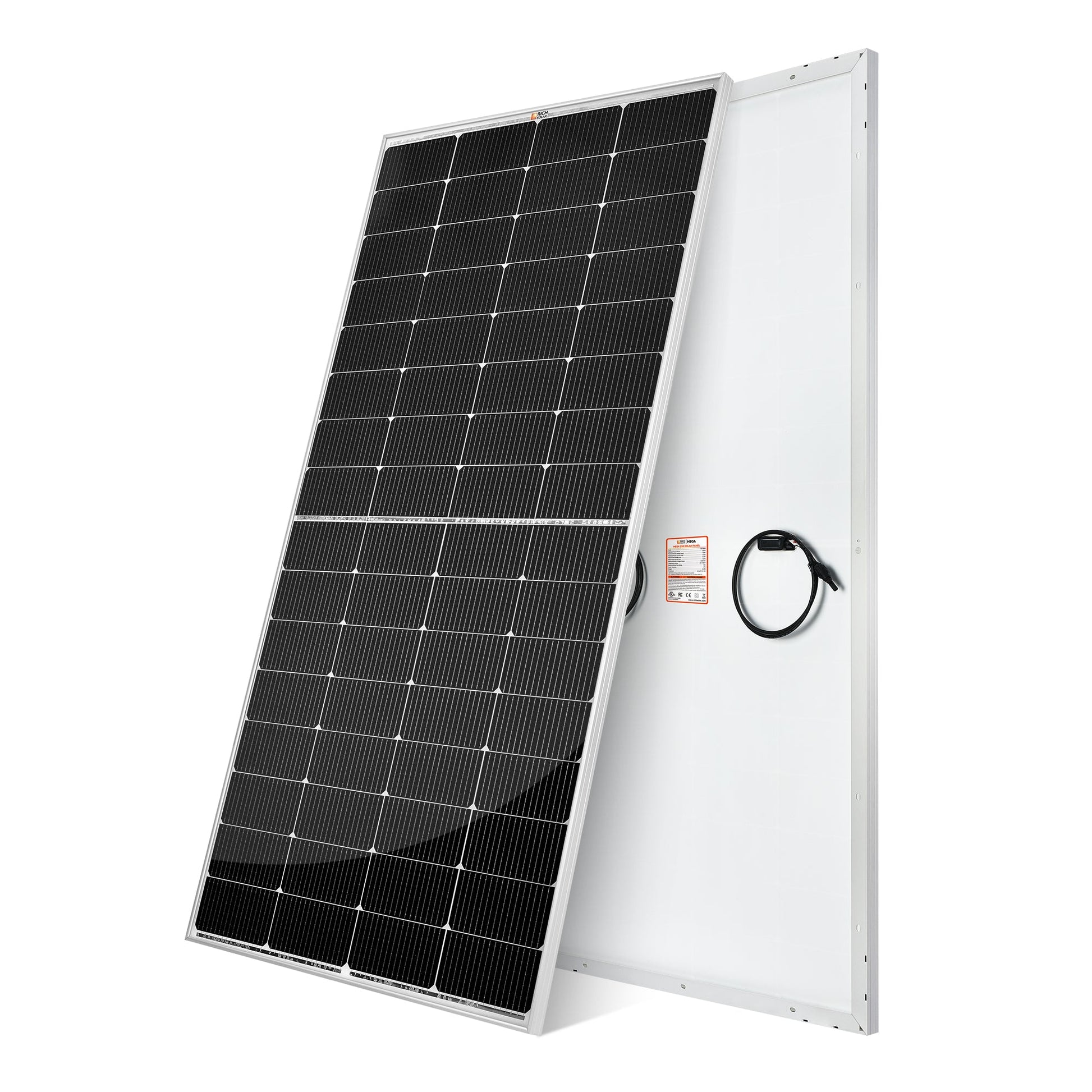

At 250 watts from a single 12-volt panel, the MEGA 250 is built for people running real loads off-grid — a cabin, a shed workshop, a liveaboard boat. Sixty-four N-Type TOPCon cells and a 1500V system rating mean it scales into larger strings without a second thought.

Why this panel

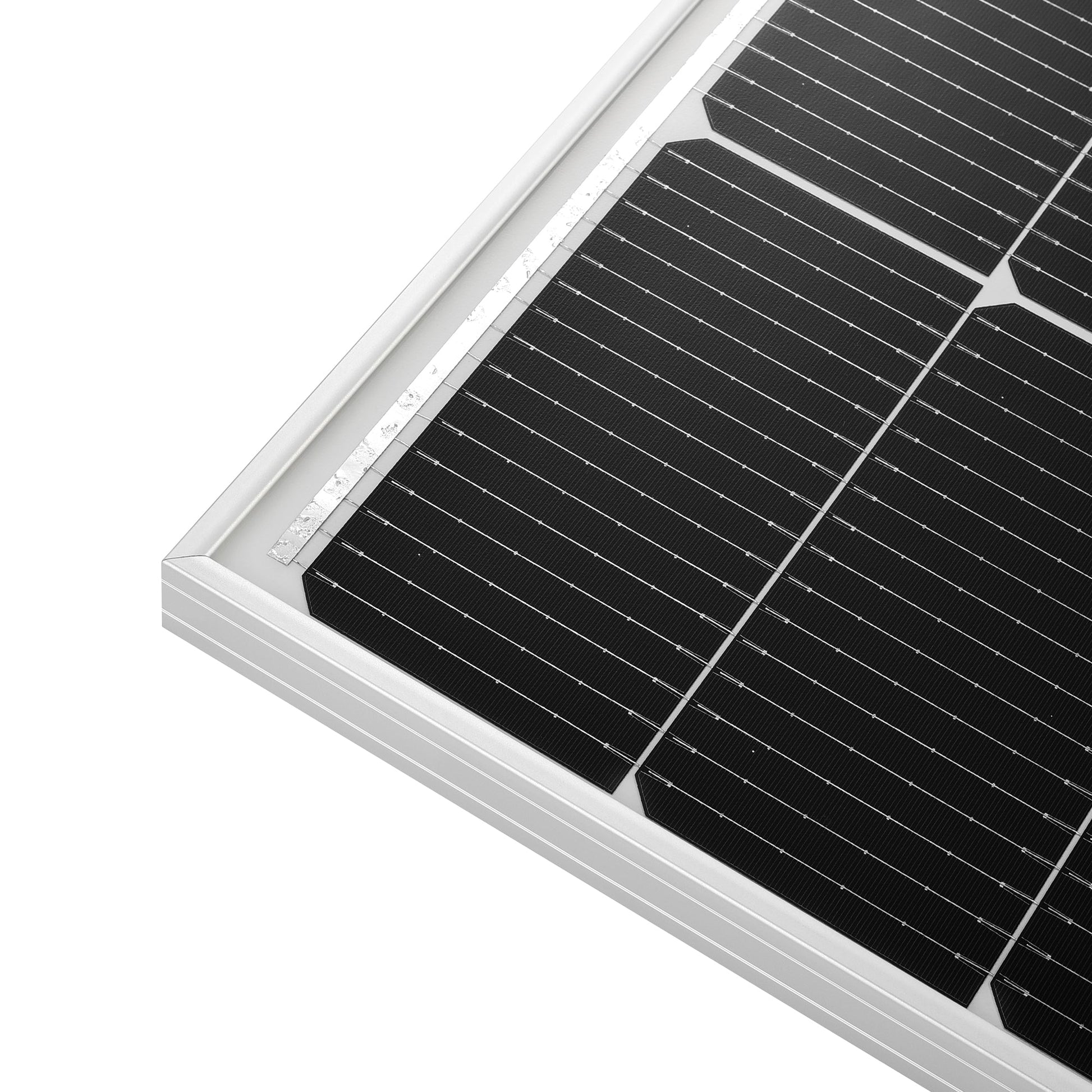

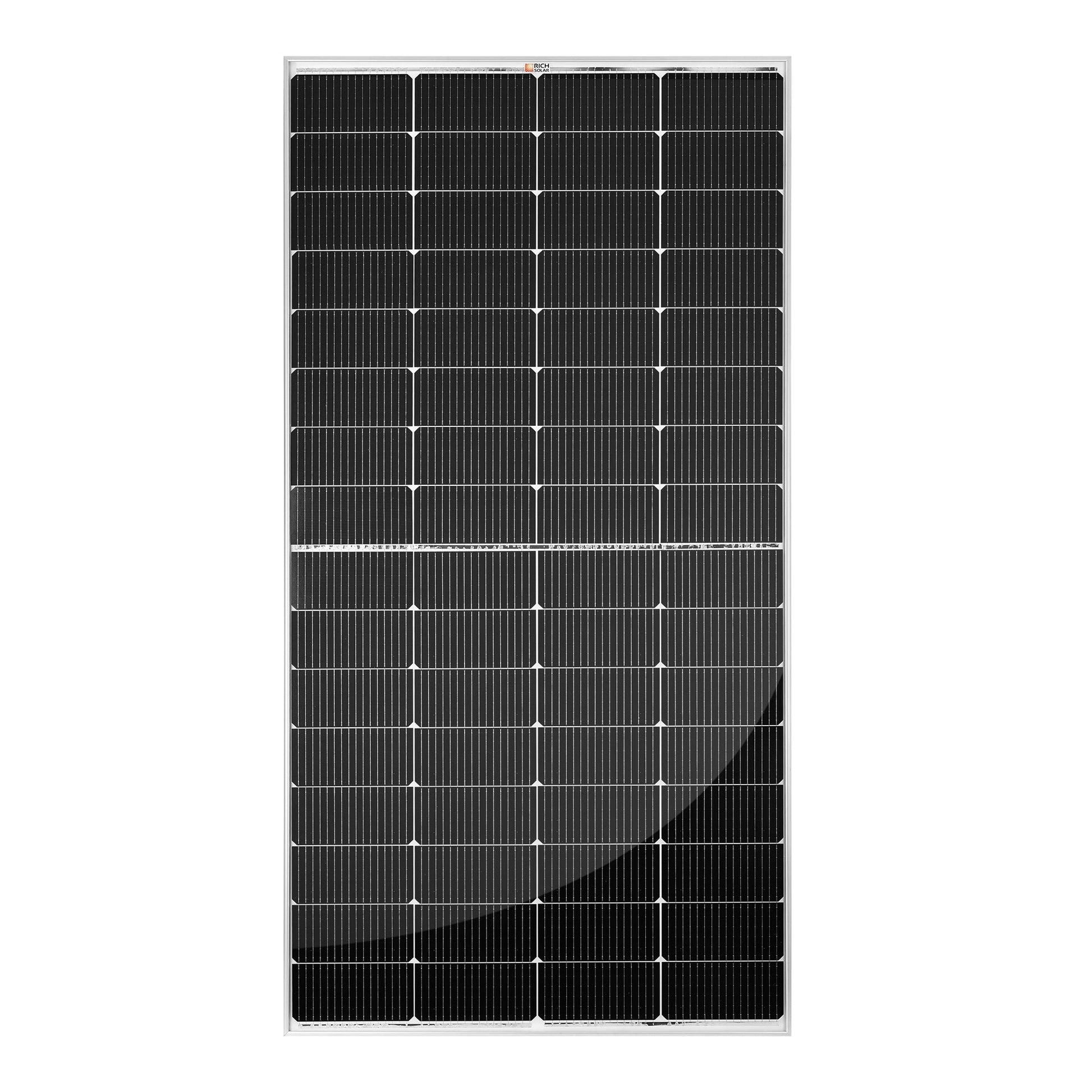

  • 16-busbar N-Type TOPCon cells reaching up to 25.1% efficiency
  • A 64-cell layout delivers a reliable 250W with 0 to +5W tolerance
  • 1500VDC maximum system voltage — room to build longer strings
  • Strong output on overcast days and through dawn and dusk
  • 3.2 mm anti-reflective tempered glass for light capture and durability
  • Rated for 5400 Pa snow and 2400 Pa wind loading
  • PID-resistant and 100% EL-inspected against microcracks
  • Tested for UV exposure, thermal cycling, and humidity freeze
  • Certified to UL 61730, IEC 61215, and CSA C22.2

Mounting and wiring

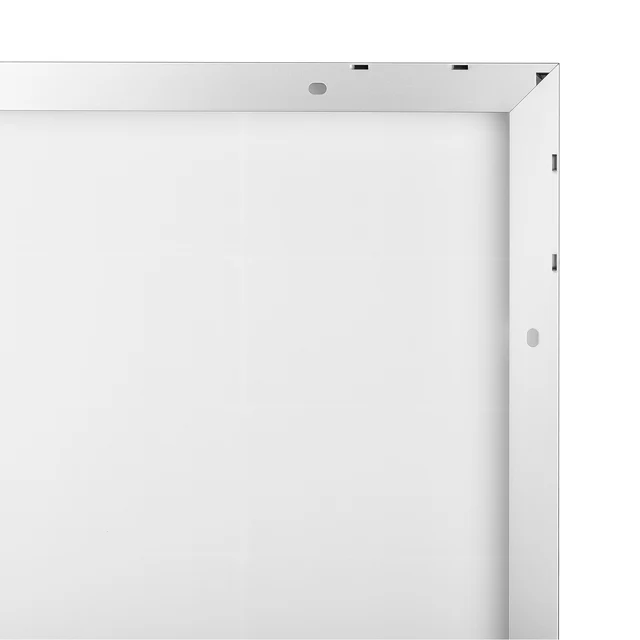

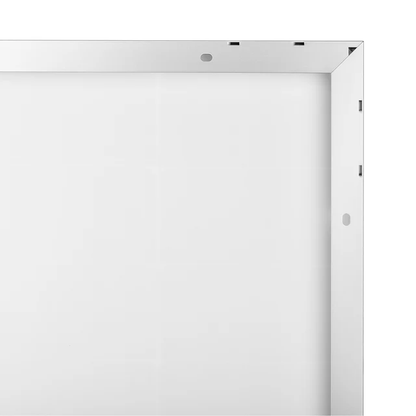

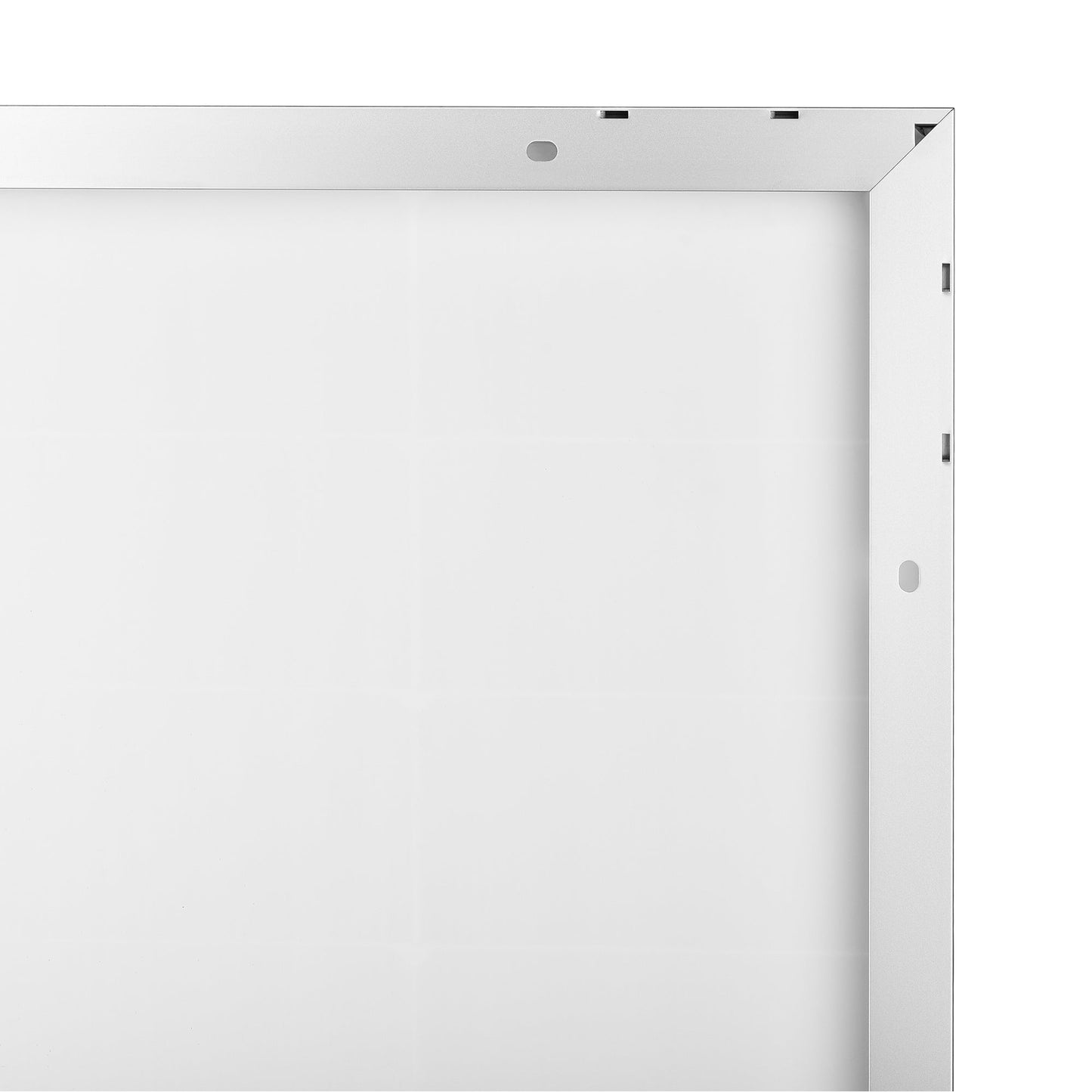

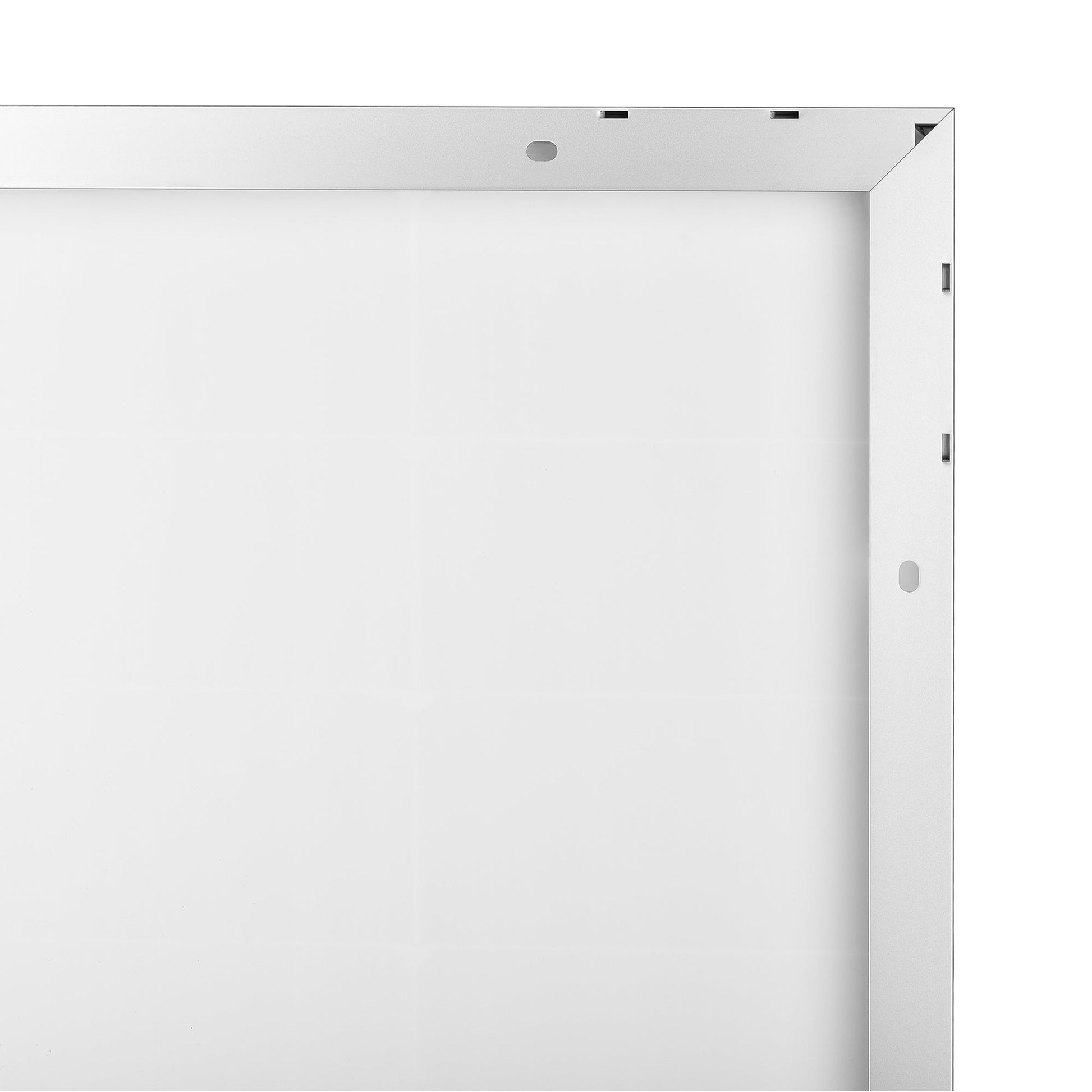

  • Anodized aluminum frame — lightweight, rigid, corrosion-resistant
  • Fourteen pre-drilled holes for Z-brackets, tilt mounts, pole, or ground racking

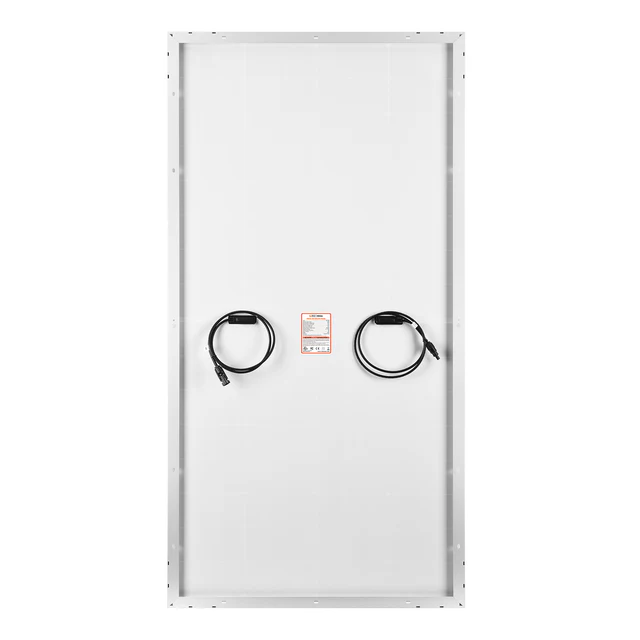

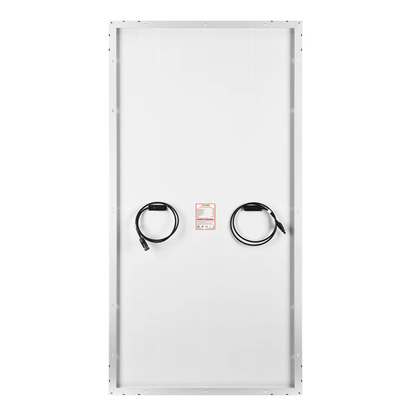

  • Four-foot 12 AWG MC4 leads pre-attached

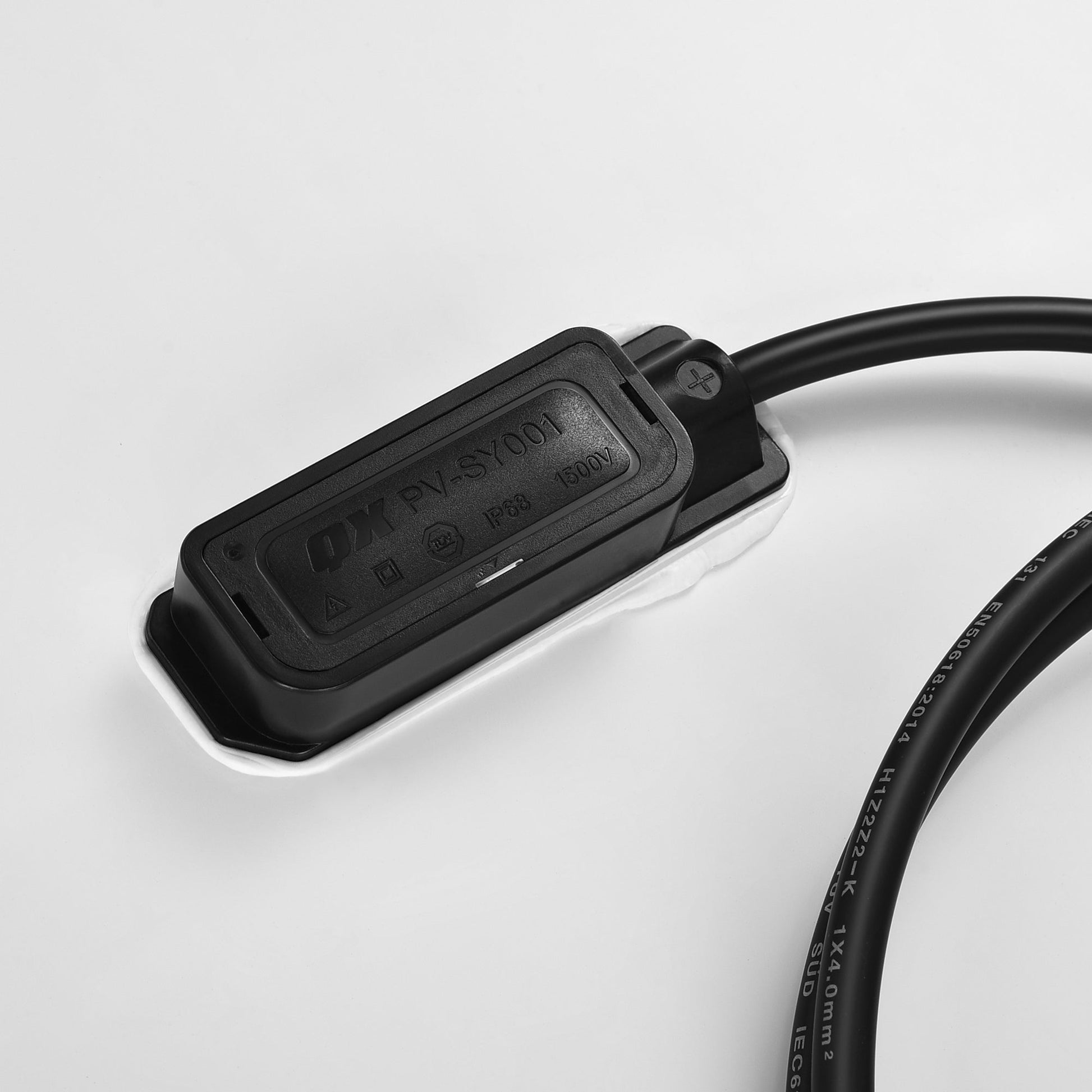

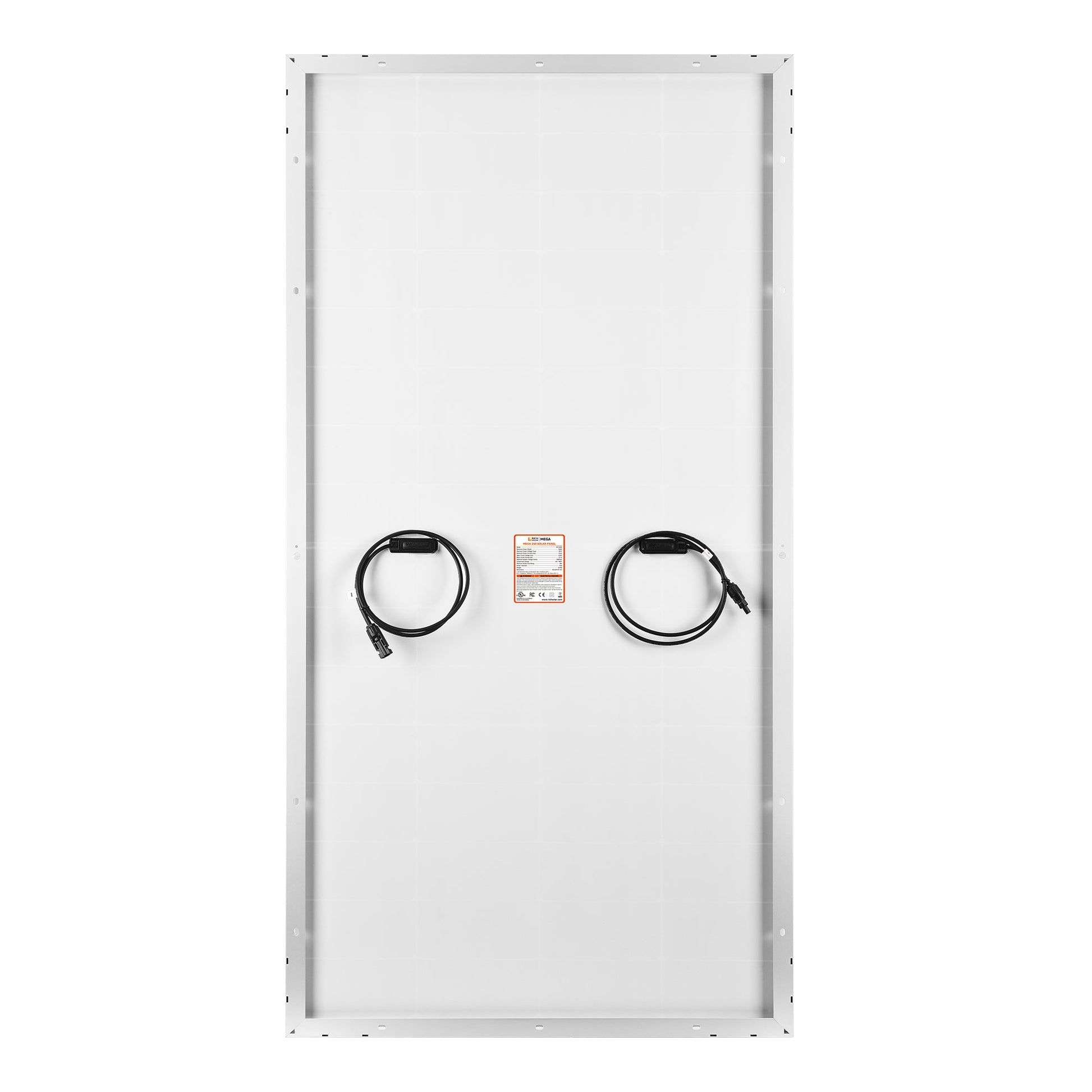

  • IP68-rated junction box — a step above the IP67 used on the smaller MEGA panels
  • Compatible with both on-grid and off-grid inverters

Warranty

  • 25-year power output warranty
  • 10-year workmanship warranty
View full details

Let's get into the details.

What's Included

  • 1x MEGA 250 250 Watt Solar Panel
  • Pre-attached panel leads (pair): 12 AWG, 4 ft each
  • IP68-rated waterproof junction box (built in)
  • IP67-rated waterproof MC4 solar connectors

Technical Specifications

  • Maximum Power (Pmax): 250W
  • Maximum Power Voltage (Vmp): 18.9V
  • Maximum Power Current (Imp): 13.2A
  • Open Circuit Voltage (Voc): 22.8V
  • Short Circuit Current (Isc): 13.7A
  • Maximum System Voltage (Vmax): 1500VDC

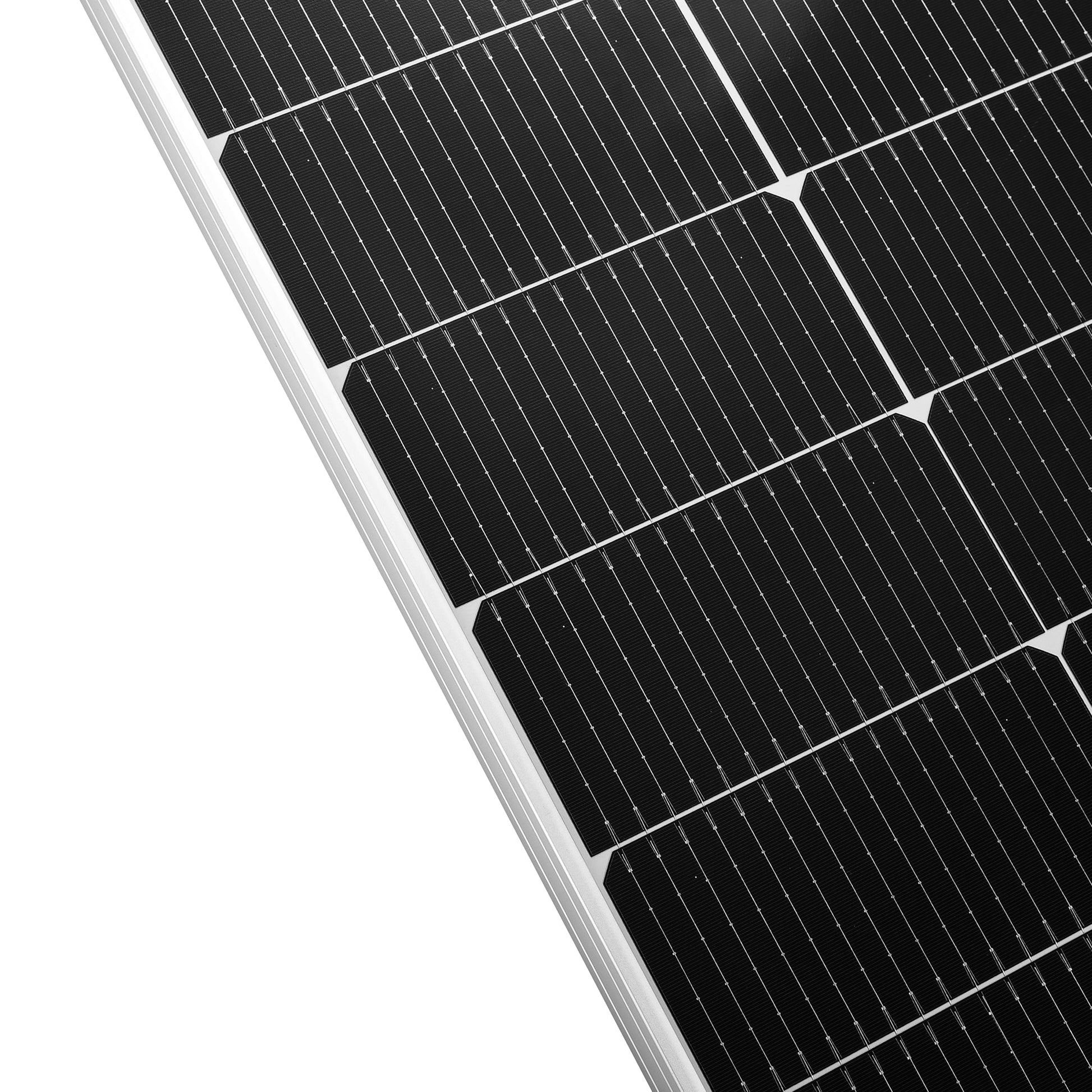

  • Cell Type: 16-busbar N-Type TOPCon, up to 25.1% efficiency
  • Operating Temperature: -40°F to +185°F
  • Panel Weight: 26.9 lb

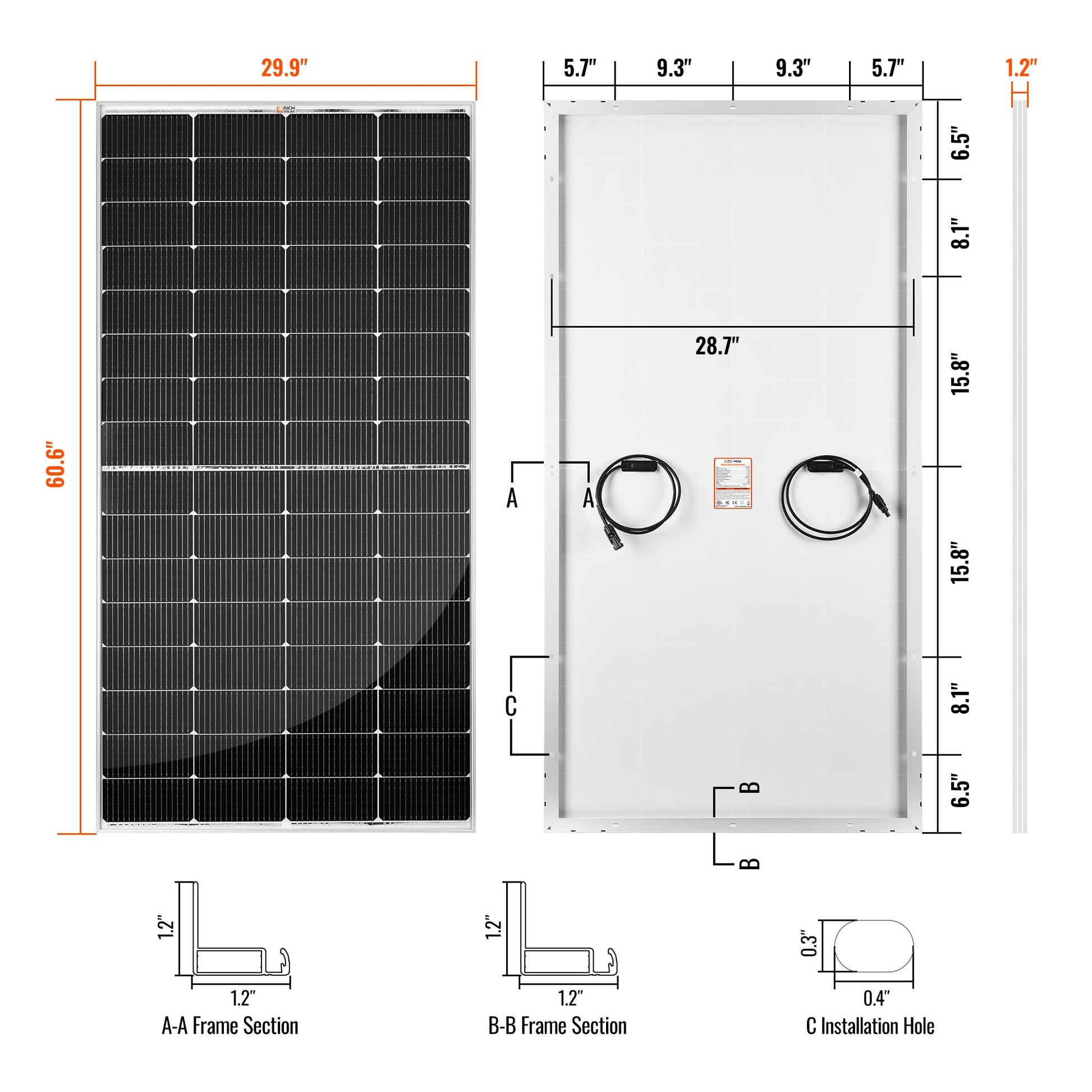

  • Dimensions: 60.6 x 29.9 x 1.2 in

Ideal Applications

  • Cabins & Tiny Homes
  • Sheds & Workshops
  • Boats & Liveaboards
  • RVs & Motorhomes
  • Off-Grid Power Systems
  • Larger Multi-Panel Arrays

Shipping Details

  • Shipping Locations: Orders ship primarily within the United States and Canada. Contact us for international shipping availability.
  • Processing Time: Orders are processed within 3–5 business days.
  • Delivery Time: Most orders arrive within 6–10 business days after processing. Delays may occur due to carrier or logistical issues.
  • Free Shipping: Complimentary shipping is available within the contiguous United States. Additional fees may apply for remote areas ($50–$200).
  • Carriers Used: Major carriers including DHL, FedEx, UPS, USPS, and regional freight partners. Expedited shipping may be available at additional cost.
  • Freight Orders: Delivery appointments and signatures may be required.
  • Address Changes: Shipping addresses cannot be modified once the order has shipped.
  • Damaged Shipments: If your order arrives damaged, contact the carrier immediately to file a claim and retain all packaging materials.
  • Important Notes: Orders require a valid street address. Expedited shipping cannot be delivered to PO Boxes. Shipments cannot be rerouted once
