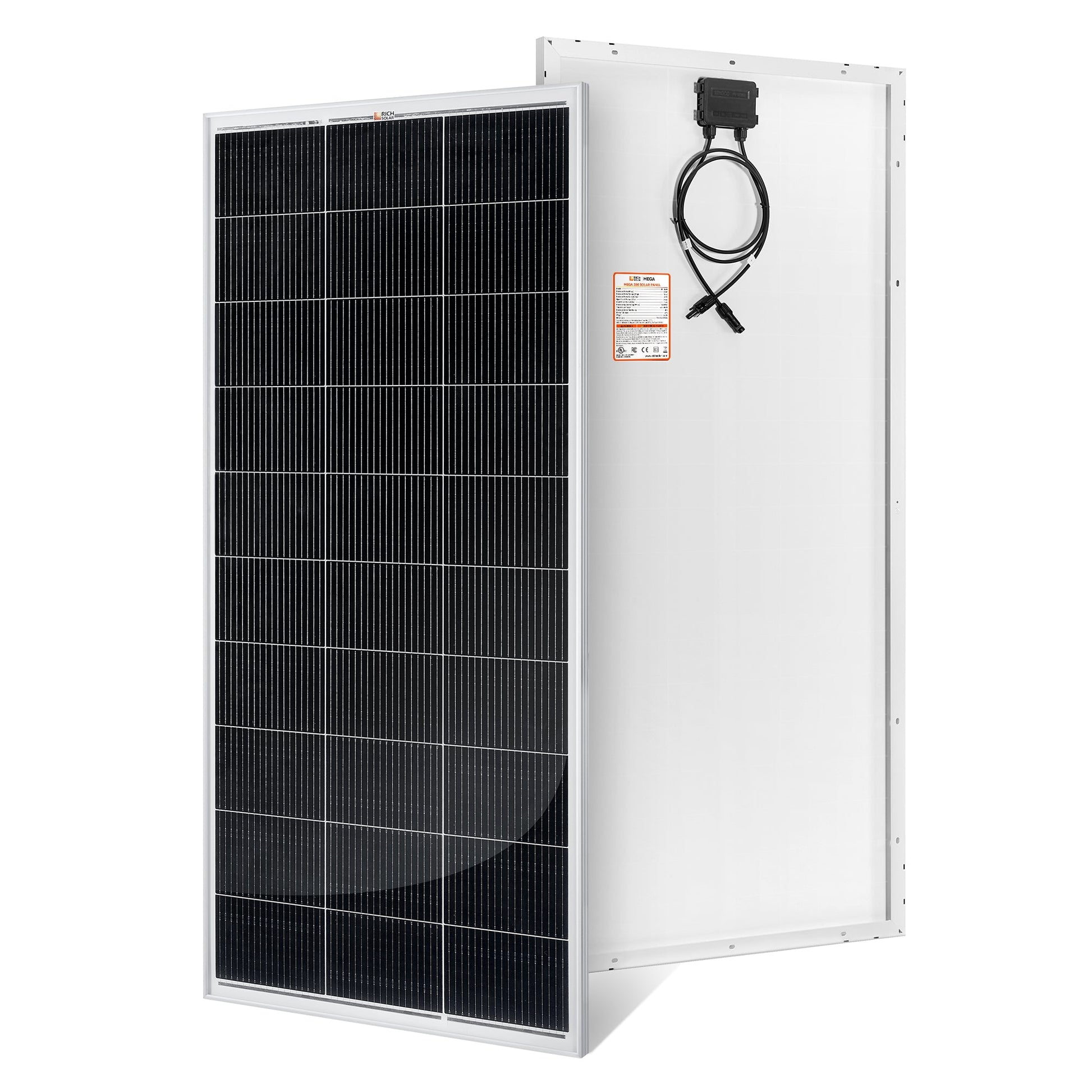

• MEGA 200 200 Watt Solar Panel front view
  • MEGA 200 200 Watt Solar Panel angled view
  • MEGA 200 200 Watt Solar Panel detail

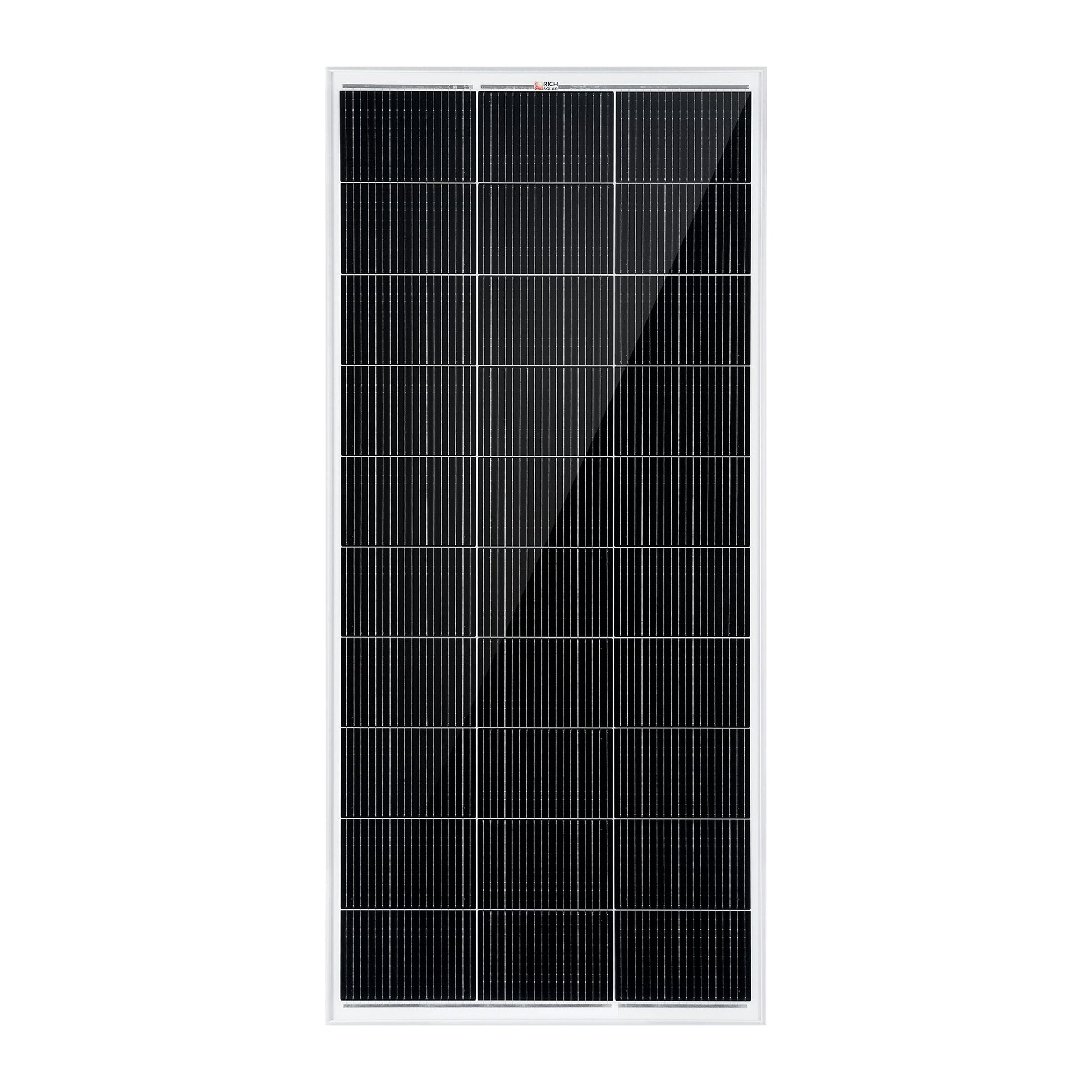

  • MEGA 200 200 Watt Solar Panel cells

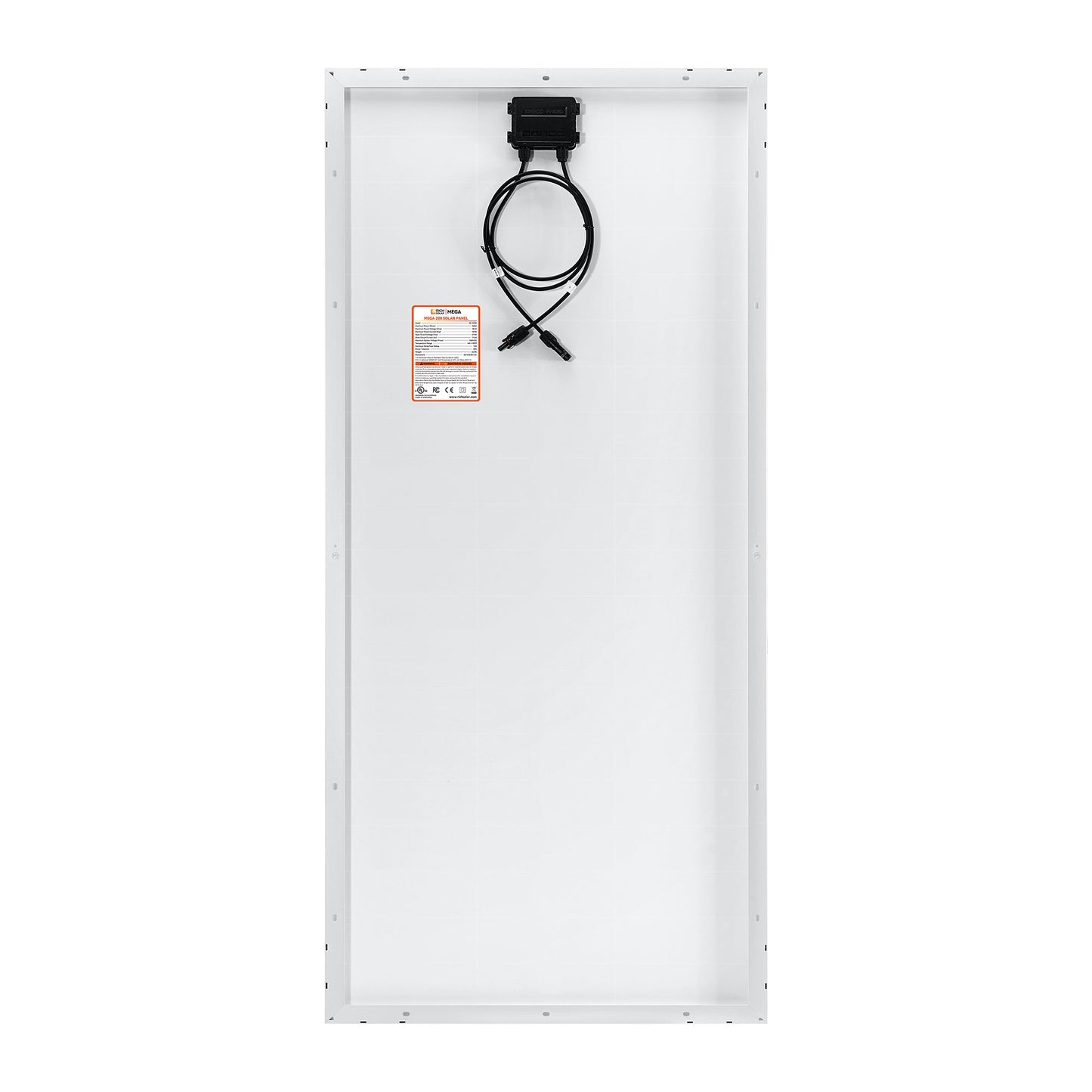

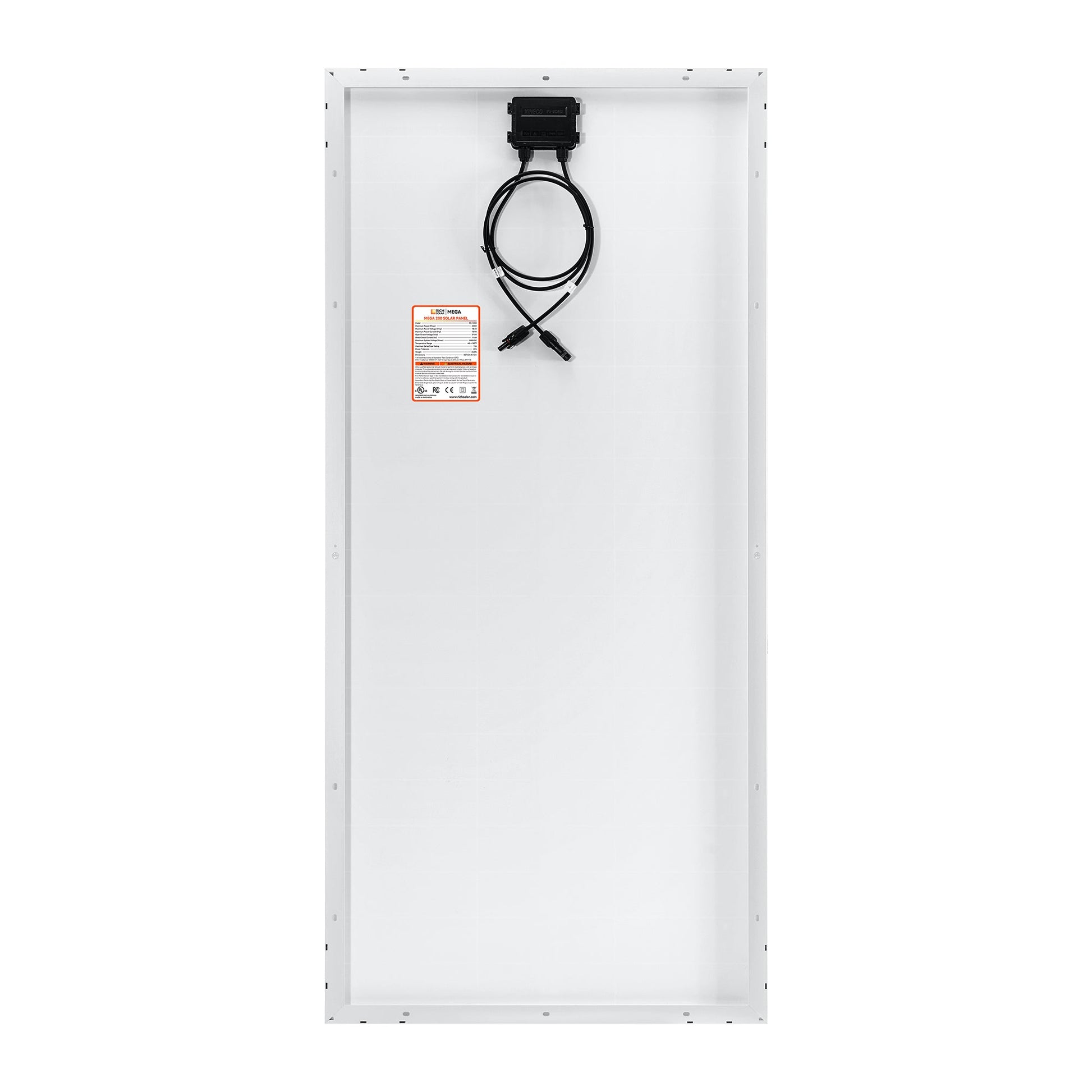

  • MEGA 200 200 Watt Solar Panel junction box

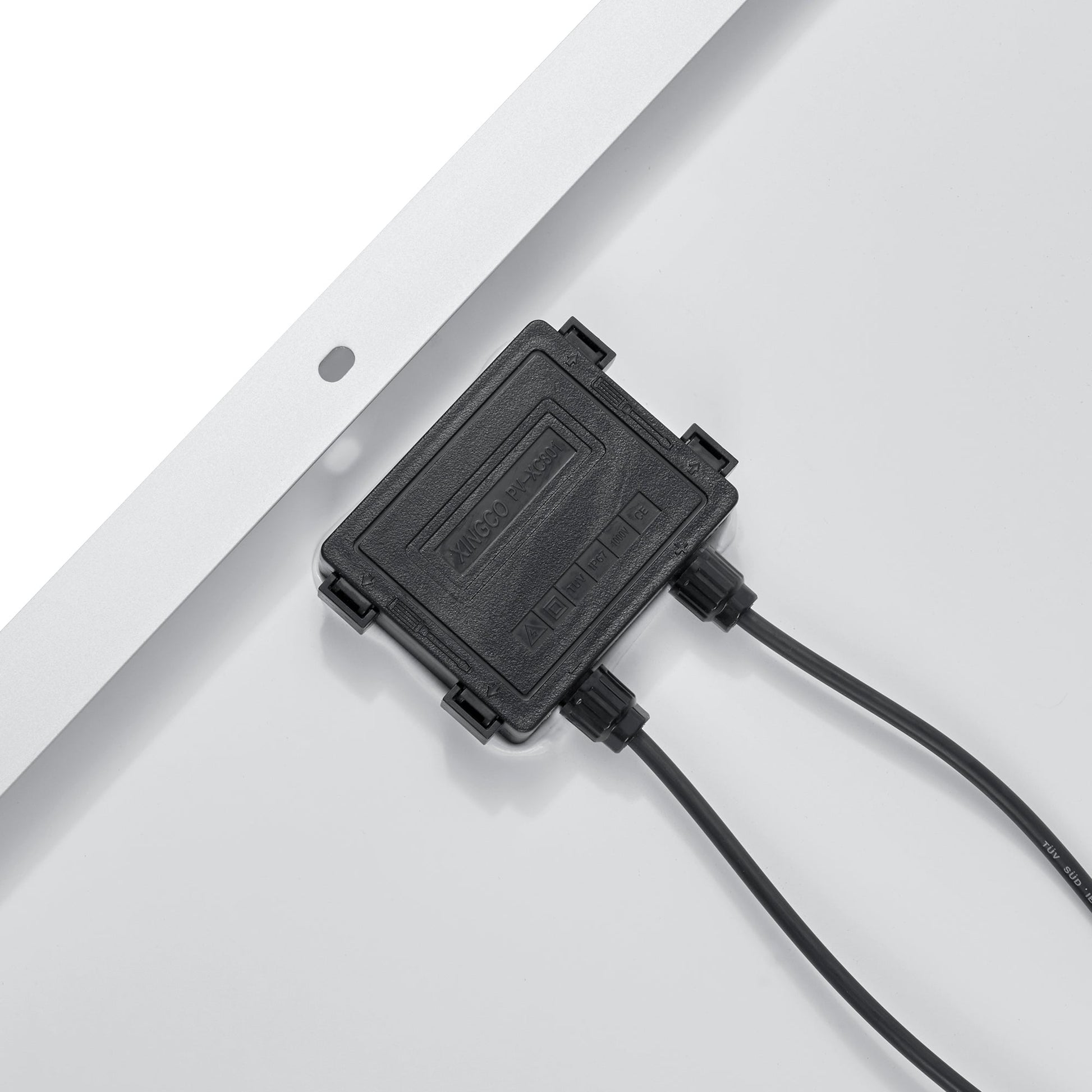

  • MEGA 200 200 Watt Solar Panel frame
  • MEGA 200 200 Watt Solar Panel dimensions

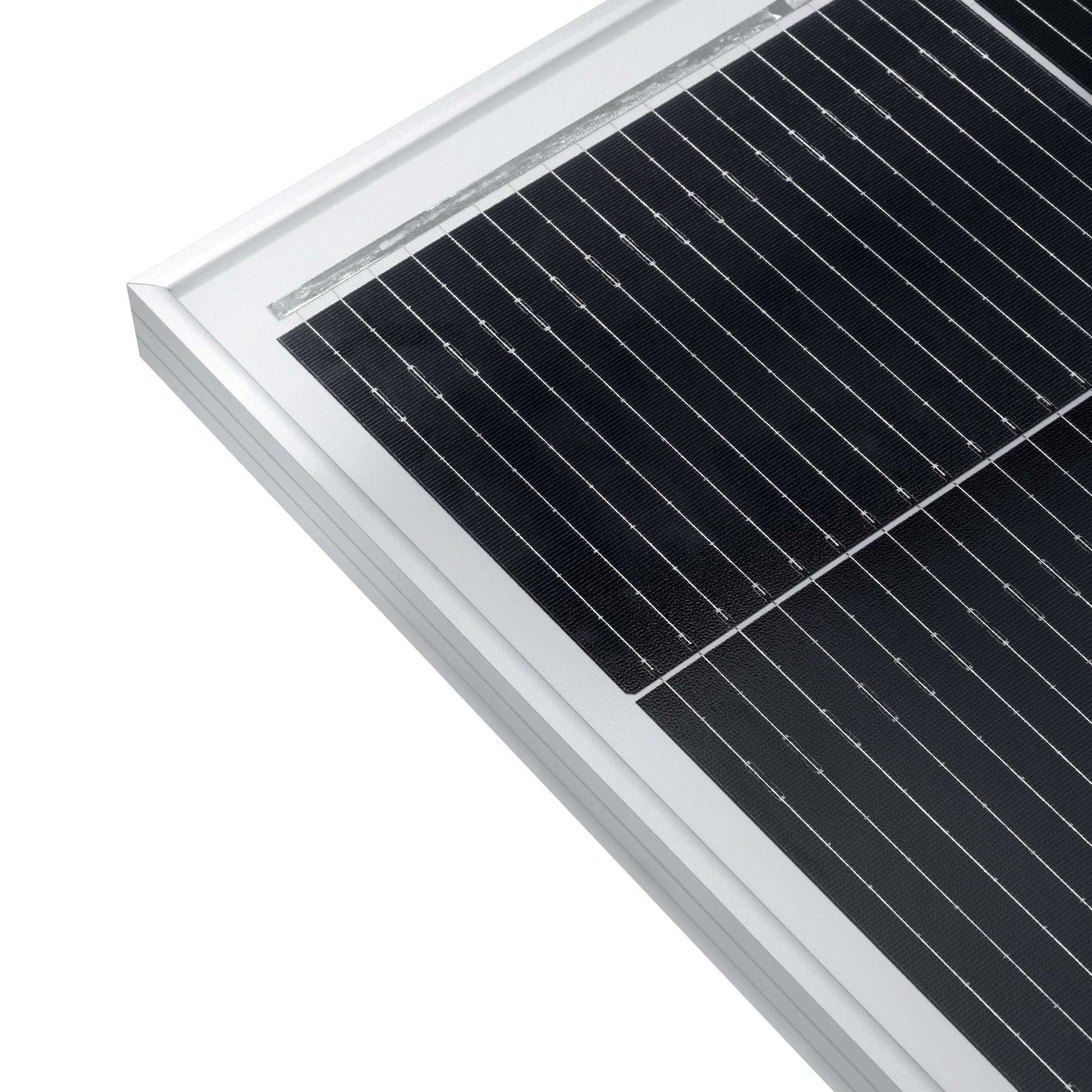

  • MEGA 200 200 Watt Solar Panel mounted
  • MEGA 200 200 Watt Solar Panel installation
  • MEGA 200 200 Watt Solar Panel in use
  • MEGA 200 200 Watt Solar Panel array
1 19

MEGA 200 - 200 Watt Solar Panel

MEGA 200 - 200 Watt Solar Panel

$191.99
$239.99 $191.99
Sale Sold out
Shipping calculated at checkout.

The MEGA 200 is the panel to reach for when you're building a system rather than topping up a battery. Two hundred watts from a single 12-volt panel means fewer modules on the roof, fewer connections to seal, and less wiring to chase down later.

Why this panel

  • 18-busbar N-Type TOPCon cells reaching up to 25.3% efficiency
  • Delivers a reliable 200W with 0 to +5W tolerance — never below rated
  • Holds useful output on overcast days and through early morning and late afternoon
  • 3.2 mm anti-reflective tempered glass for light capture and weather resistance
  • Rated for 5400 Pa snow and 2400 Pa wind loading
  • PID-resistant and double EL-inspected to catch microcracks before shipping
  • Tested for UV exposure, thermal cycling, and humidity freeze
  • Certified to UL 61730, IEC 61215, and CSA C22.2

Mounting and wiring

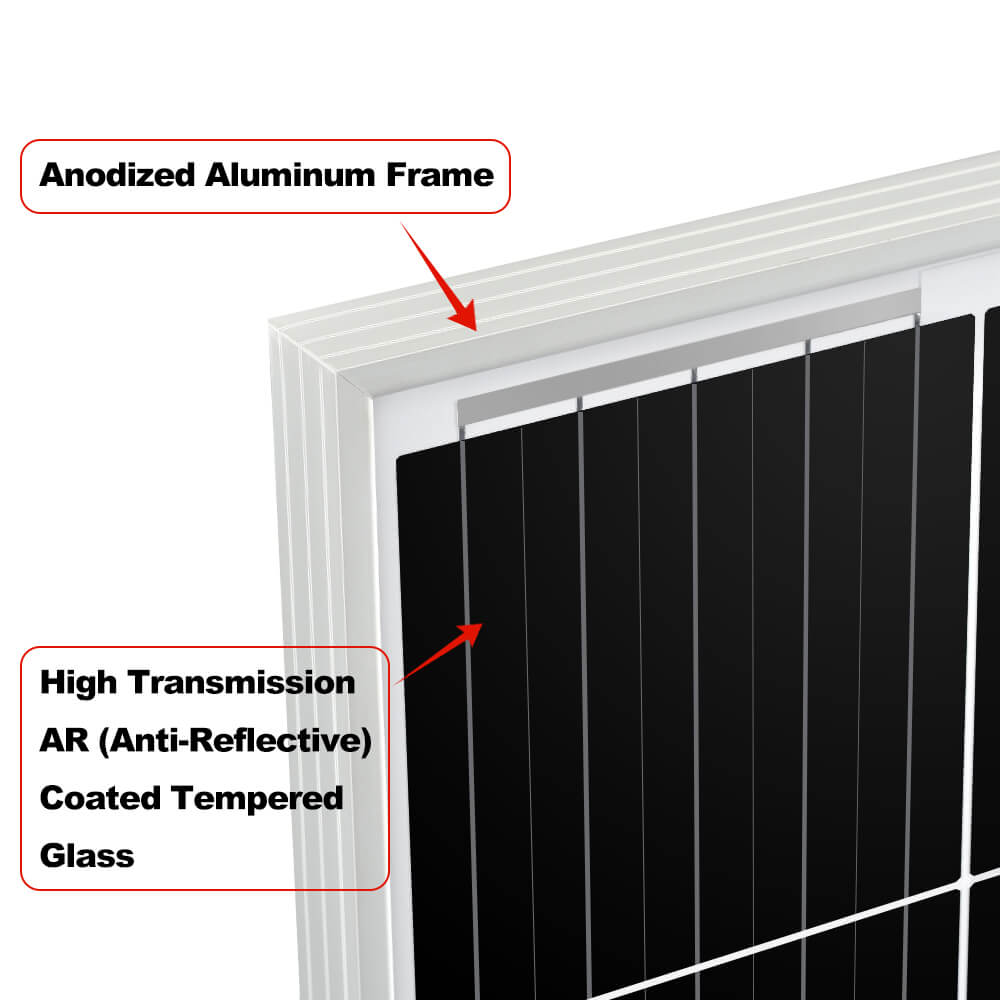

  • Anodized aluminum frame — lightweight, rigid, corrosion-resistant
  • Fourteen pre-drilled holes for Z-brackets, tilt mounts, pole, or ground racking
  • Three-foot 12 AWG MC4 leads pre-attached
  • Compatible with both on-grid and off-grid inverters

Warranty

  • 25-year limited power output warranty
  • 10-year workmanship warranty
View full details

Let's get into the details.

What's Included

  • 1x MEGA 200 200 Watt Solar Panel
  • Pre-attached panel leads (pair): 12 AWG, 3 ft each

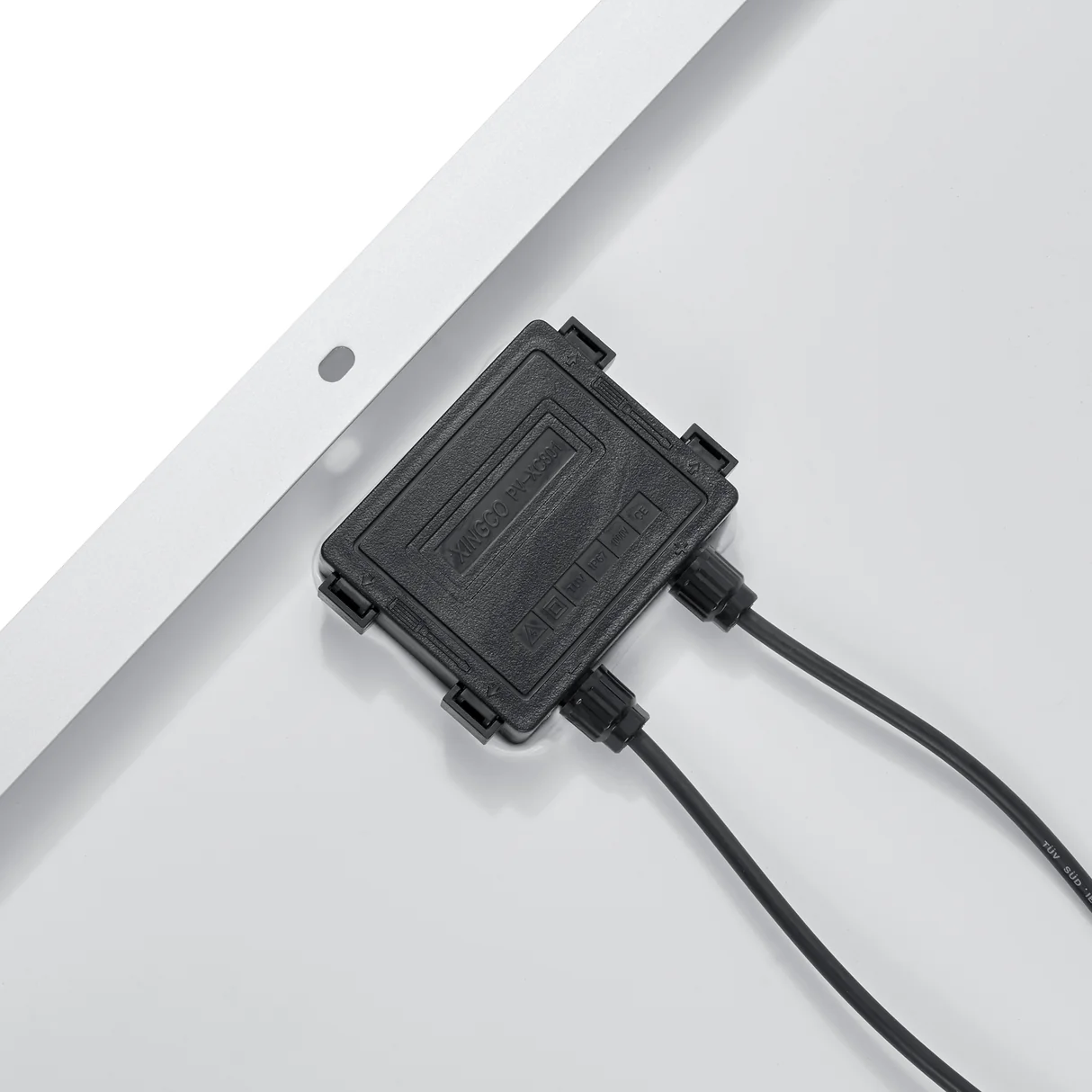

  • IP67-rated waterproof junction box (built in)

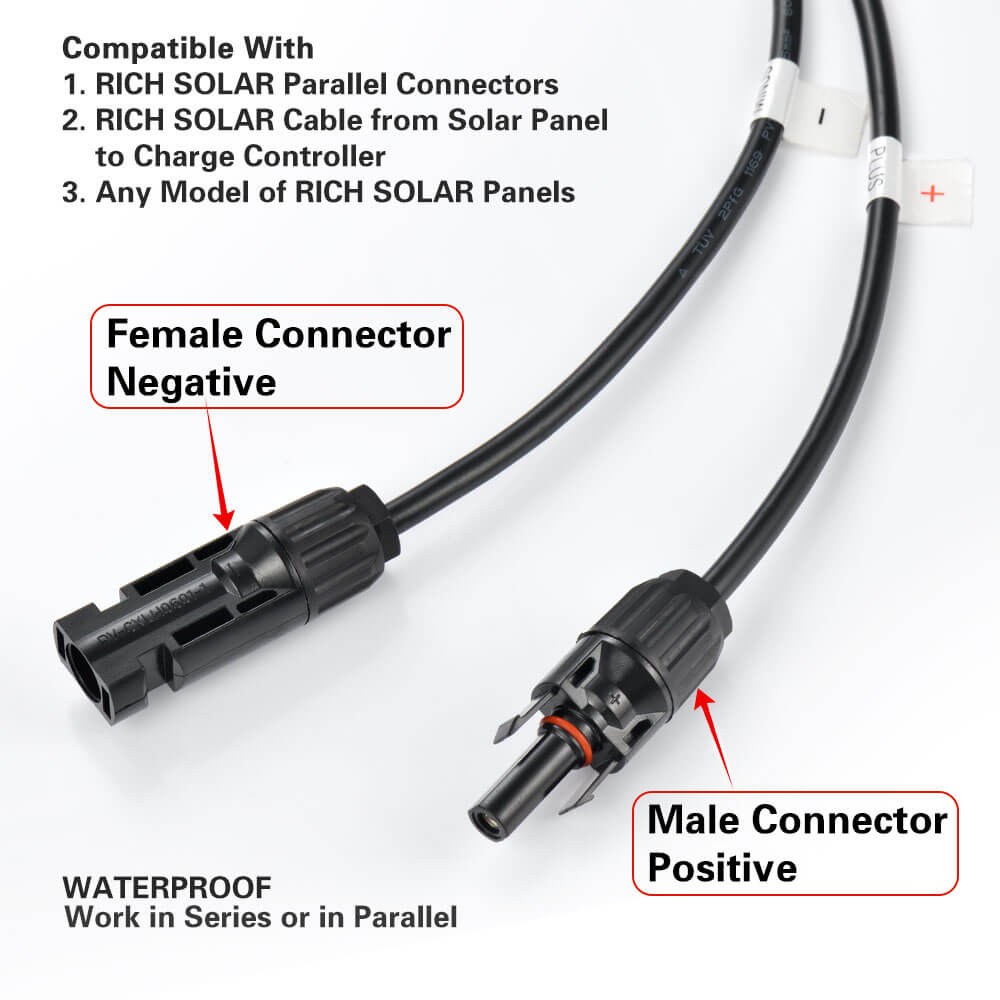

  • IP67-rated waterproof MC4 solar connectors

Technical Specifications

  • Maximum Power (Pmax): 200W
  • Maximum Power Voltage (Vmp): 18.4V
  • Maximum Power Current (Imp): 10.9A
  • Open Circuit Voltage (Voc): 21.8V
  • Short Circuit Current (Isc): 11.6A
  • Maximum Series Fuse Rating: 15A

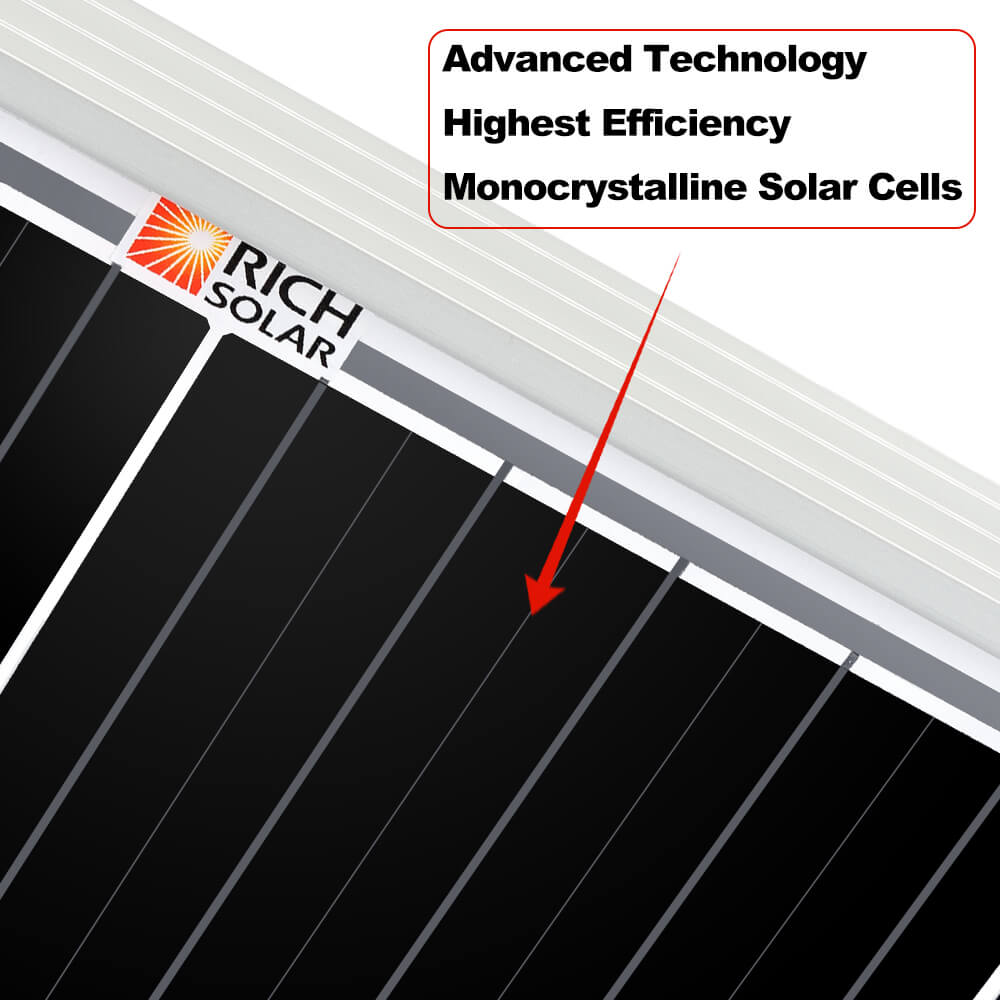

  • Cell Type: 18-busbar N-Type TOPCon, up to 25.3% efficiency
  • Operating Temperature: -40°F to +185°F
  • Panel Weight: 24 lb

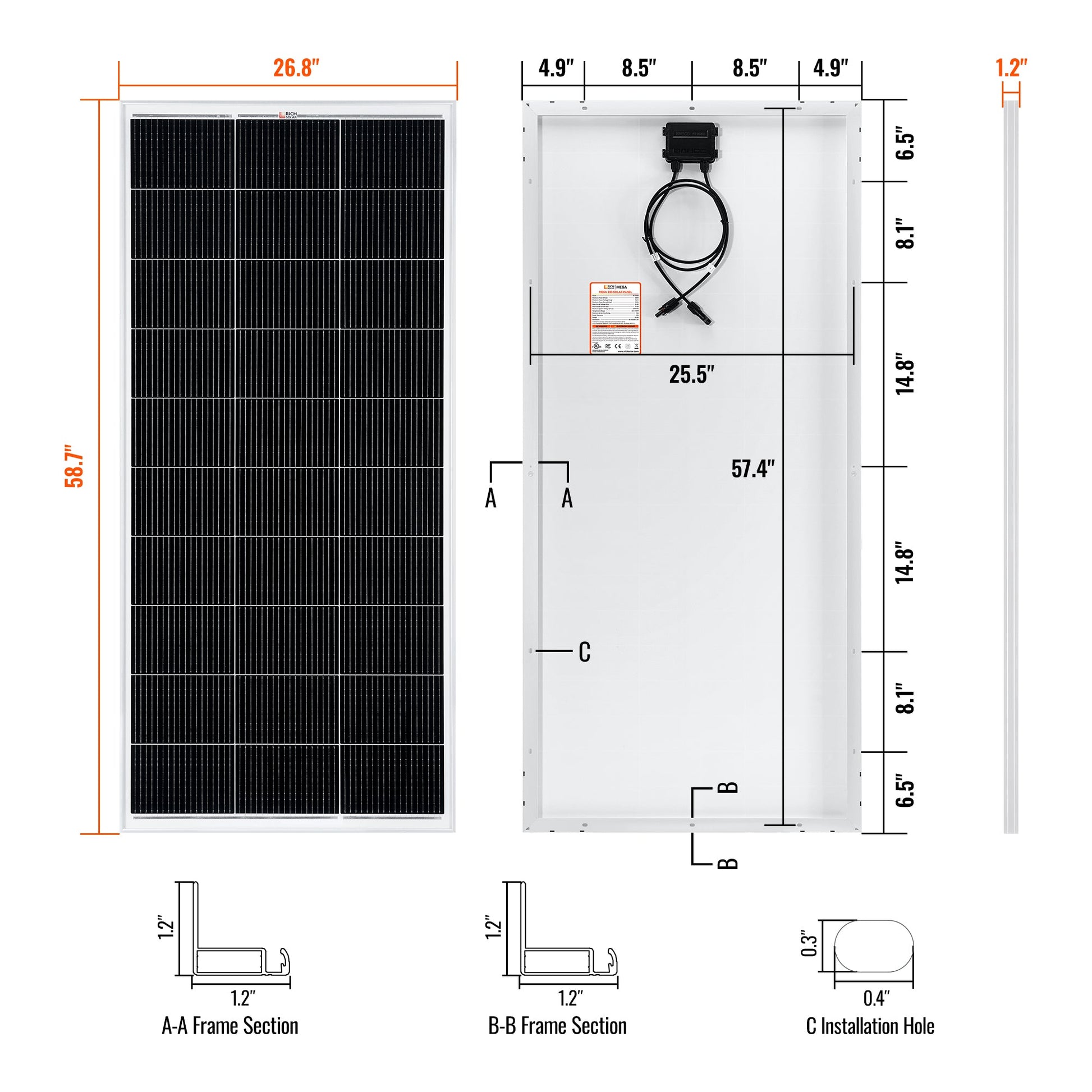

  • Dimensions: 58.7 x 26.8 x 1.2 in

Ideal Applications

  • RVs & Motorhomes
  • Cabins & Tiny Homes
  • Boats & Marine
  • Off-Grid Power Systems
  • Multi-Panel Solar Arrays
  • DIY Solar Builds

Shipping Details

  • Shipping Locations: Orders ship primarily within the United States and Canada. Contact us for international shipping availability.
  • Processing Time: Orders are processed within 3–5 business days.
  • Delivery Time: Most orders arrive within 6–10 business days after processing. Delays may occur due to carrier or logistical issues.
  • Free Shipping: Complimentary shipping is available within the contiguous United States. Additional fees may apply for remote areas ($50–$200).
  • Carriers Used: Major carriers including DHL, FedEx, UPS, USPS, and regional freight partners. Expedited shipping may be available at additional cost.
  • Freight Orders: Delivery appointments and signatures may be required.
  • Address Changes: Shipping addresses cannot be modified once the order has shipped.
  • Damaged Shipments: If your order arrives damaged, contact the carrier immediately to file a claim and retain all packaging materials.
  • Important Notes: Orders require a valid street address. Expedited shipping cannot be delivered to PO Boxes. Shipments cannot be rerouted once
