A 5kW, 120V off-grid solar kit for cabins and mid-sized homes

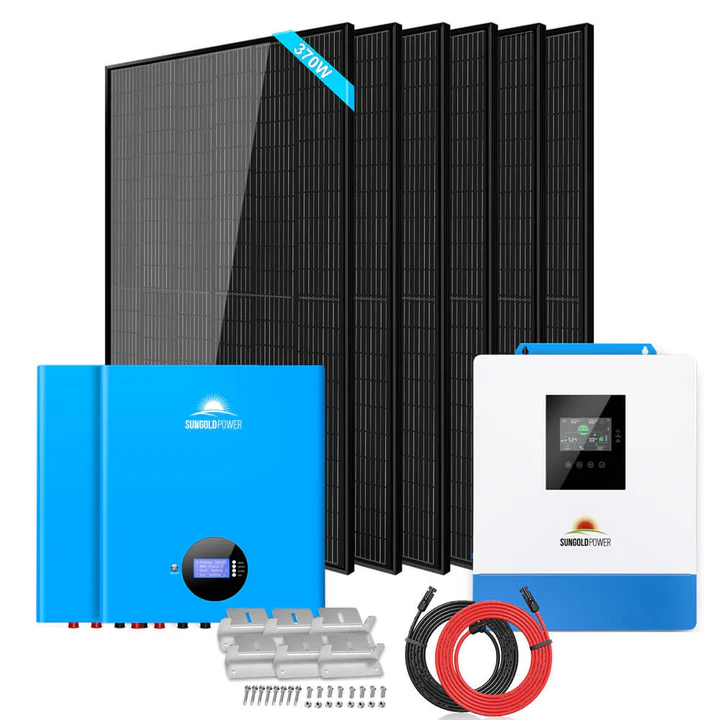

The SGM-5K10M is SunGoldPower's 5000W, 48V off-grid solar kit with 120V output. It combines a 5000W pure sine wave inverter with Wi-Fi monitoring, two 51.2V 100Ah wall-mounted LiFePO4 batteries (10.24kWh) and six 370W monocrystalline panels (2,220W).
SunGoldPower sizes it for mid-sized off-grid homes and remote cabins. Mounting Z-brackets, breakers and cables are included, and the system can grow: up to six identical inverters can run in parallel for 120V, 240V split-phase or 208V three-phase output, and more batteries and panels can be added.
A complete 5kW off-grid system
SunGoldPower pairs a 5000W 48V inverter with 10.24kWh of lithium storage and six 370W panels for mid-sized off-grid homes and remote cabins.
- 2,220W solar array (6 × 370W)
- Mounting Z-brackets, breakers and cables included
- Add batteries and panels later to expand

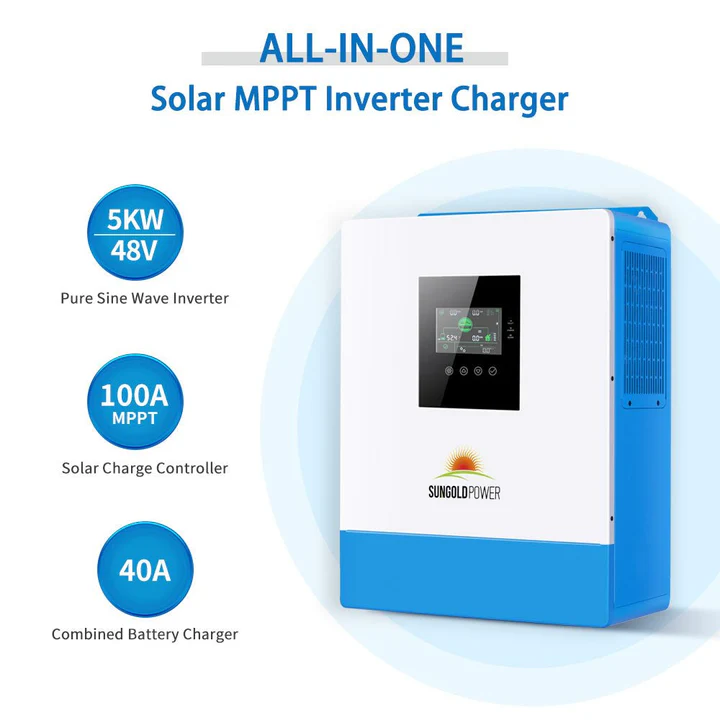

5000W pure sine wave inverter with Wi-Fi
The all-in-one inverter combines a 120V pure sine wave output, an MPPT solar charger and an AC charger.
- 10,000VA peak power, 120V output
- Up to 5,500W PV input, 500V max open-circuit voltage
- Up to 100A battery charging
- Up to 6 units in parallel: 120V, 240V or 208V

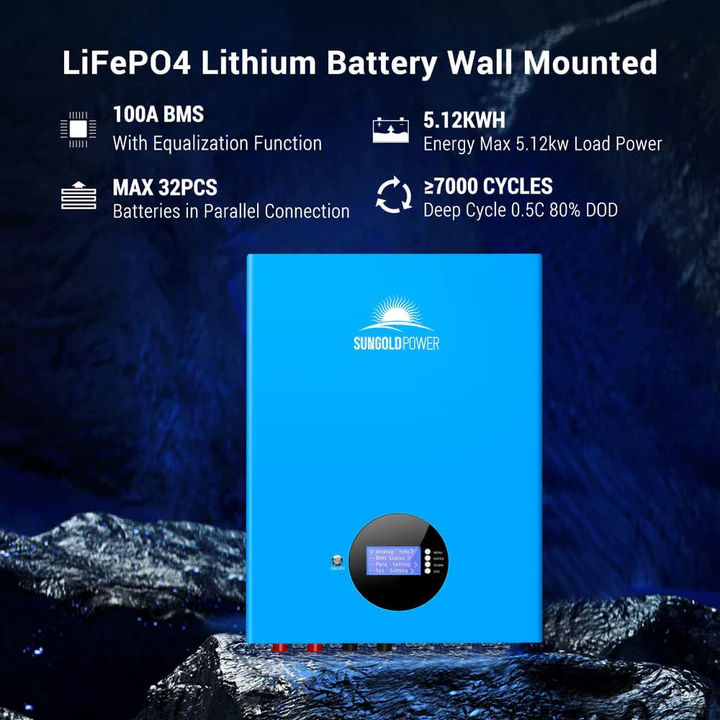

Two wall-mounted LiFePO4 batteries
Two SG48100M 51.2V 100Ah batteries store 10.24kWh and talk to the inverter over RS232, RS485 or CAN.
- 5.12kWh per battery
- 7,000+ cycle life
- 10-year battery warranty

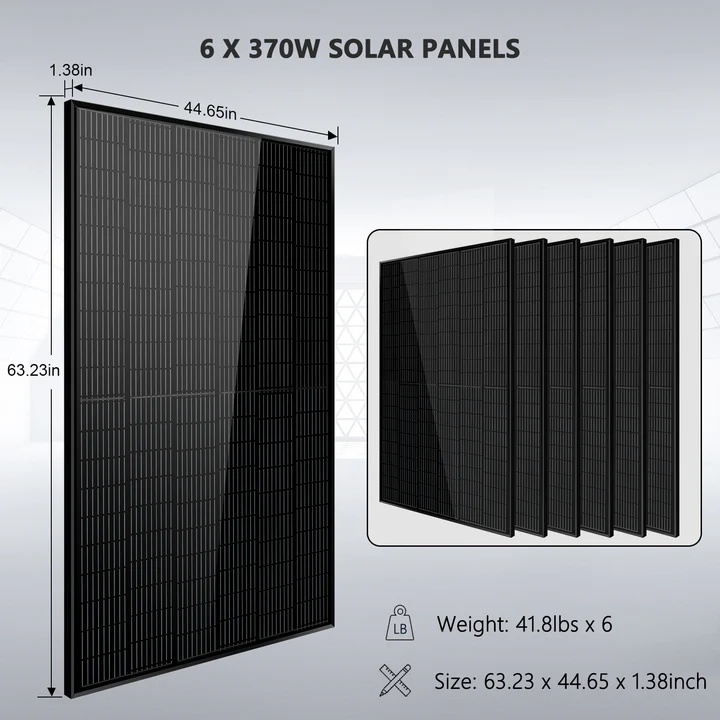

Six 370W monocrystalline panels
The SG370WM panels reach 20.31% module efficiency and use an IP68 junction box.
- UL61730 and CEC listed
- 12-year material and workmanship warranty
- 25-year performance warranty
Specs, images and product claims on this page come from SunGoldPower's SGM-5K10M kit page, component manuals and data sheets. Last checked Oct 30, 2026.
Specifications
From SunGoldPower's published specifications for model SGM-5K10M.
System
| Continuous output | 5000W |
|---|---|
| AC output | 120V, 50/60Hz |
| DC system voltage | 48V |
| Solar array | 2,220W (6 × 370W) |
| Battery storage | 10.24kWh (2 × 51.2V 100Ah LiFePO4) |
| Max solar input | 5,500W |
| Monitoring | Wi-Fi app |
Inverter
| Model | SPH5048P, 5000W 48V |
|---|---|
| Peak power | 10,000VA |
| Waveform | Pure sine wave |
| Max PV open-circuit voltage | 500V |
| MPPT voltage range | 120–450V |
| Max PV input current | 22A |
| Max charge current | 100A (solar + AC) |
| Max efficiency | 92% (MPPT 99.9%) |
| Transfer time | 10ms typical |
| Parallel | Up to 6 units |
| Dimensions / weight | 17.6 × 13.8 × 5.2 in, 28.66 lb |
| Certifications | CE (IEC62109-1), FCC, UL1741 |
Battery
| Model | SG48100M wall-mounted LiFePO4 (× 2) |
|---|---|
| Per battery | 51.2V, 100Ah, 5.12kWh |
| Max continuous charge current | 100A |
| Discharge cut-off voltage | 43.2V |
| Cycle life | ≥ 7,000 |
| Communication | RS232 / RS485 / CAN |
| Dimensions | 23 × 16.5 × 6 in |
Solar panels
| Model | SG370WM mono (× 6) |
|---|---|
| Max power | 370W (±3%) |
| Vmp / Imp | 33.2V / 11.15A |
| Voc / Isc | 40.17V / 11.81A |
| Module efficiency | 20.31% |
| Dimensions / weight | 63.23 × 44.65 × 1.38 in, 41.8 lb |
| Certifications | UL61730, CEC listed |
| Warranty | Inverter 3-year; batteries 10-year; panels 12-year workmanship, 25-year performance |
| Model / SKU | SGM-5K10M |
