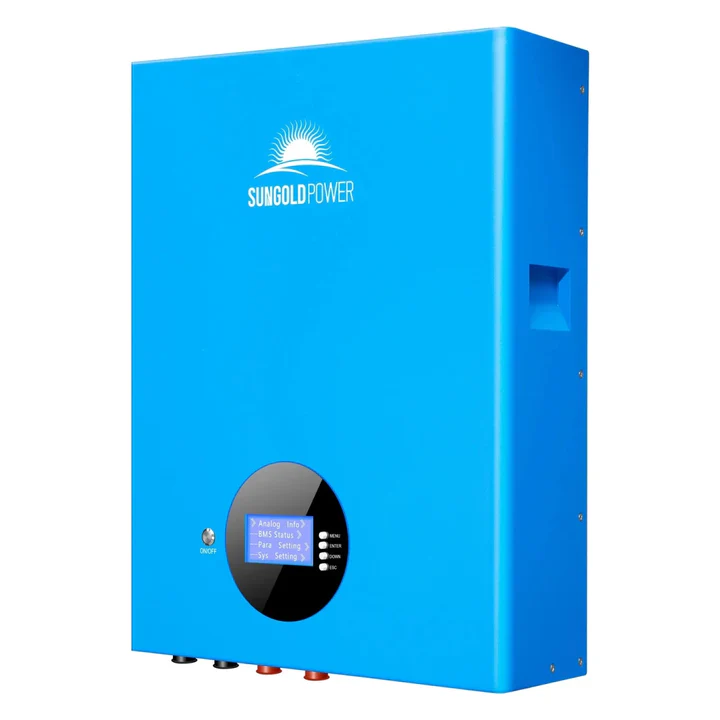

A 51.2-volt, 5.12kWh wall-mounted battery for home solar storage

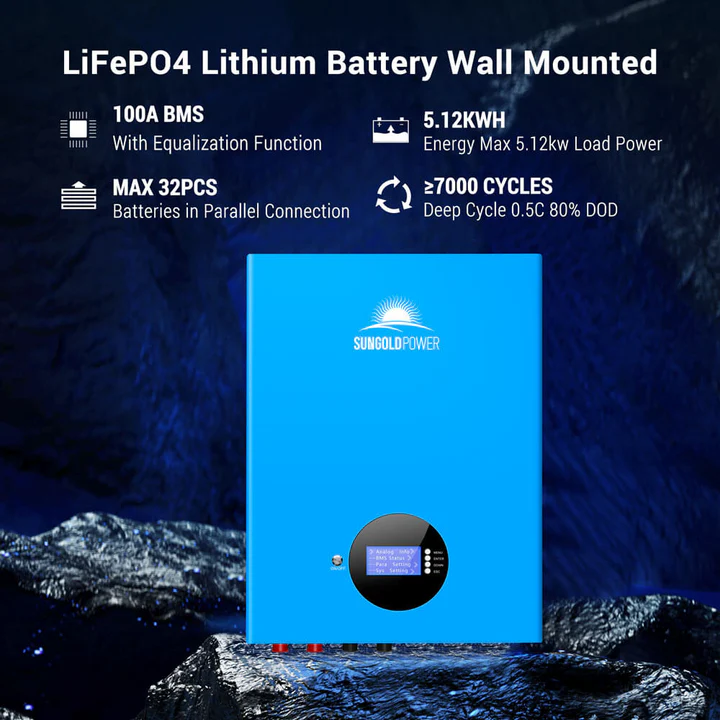

The SG48100M is SunGoldPower's 51.2V 100Ah wall-mounted LiFePO4 battery. It stores 5.12kWh, is rated for 7,000+ cycles with a 15-year design life, and comes with a 10-year warranty and UL1973 certification.
The BMS communicates over RS232, RS485 and CAN and works with most inverters, including SunGoldPower, Growatt, Deye and Victron. Up to 63 batteries can run in parallel, and the built-in LCD shows voltage and state of charge.
Built-in LCD display
The LCD shows battery voltage and state of charge, with menus for analog info, BMS status, parameter and system settings.
Intelligent BMS
The battery management system monitors cell voltage, current and temperature and protects against overcharge, deep discharge, overload, overheating and short circuit.
- Plastic parts rated UL94 V-0
- Anti-theft sensor function
Up to 63 batteries in parallel
The modular design scales to 63 units in parallel, up to 322.56kWh, and the BMS talks to most inverters on the market.
- RS232, RS485 and CAN communication
- Works with SunGoldPower, Growatt, Deye, Victron and more
7,000+ cycles and a 10-year warranty
Automotive LFP cells are rated for 7,000+ cycles, with a 15-year design life.
- UL1973 battery pack
- CE and UN38.3
Wall-mounted home solar storage
Store solar energy and use it when you need it, or keep it ready as backup power for home and small commercial systems.
- Charge during the day, discharge at peak times
Specs, images and product claims on this page come from SunGoldPower's SG48100M product page and data sheet. Last checked Oct 30, 2026.
Specifications
From SunGoldPower's published specifications for model SG48100M.
Battery
| Battery type | LiFePO4 |
|---|---|
| Nominal voltage | 51.2V |
| Rated capacity | 100Ah |
| Nominal energy | 5.12kWh |
| Cycle life | ≥ 7,000 |
| Design life | 15 years |
| SOC working range | 0–100% |
Charge & discharge
| Recommended charging voltage | 54.5V |
|---|---|
| Charging limit voltage | 57.6V |
| Discharge cut-off voltage | 43.2V |
| Standard charge / discharge current | 50A |
| Max continuous charge current | 100A |
| Max continuous discharge current | 100A |
| Charge cut-off current | 5A |
Environment
| Charging temperature | 32°F to 113°F |
|---|---|
| Discharging temperature | -4°F to 140°F |
| Storage temperature | 14°F to 113°F |
| Humidity | ≤ 95% |
| Thermal management | Natural heat dissipation |
| Ingress protection | IP20 |
Physical & certification

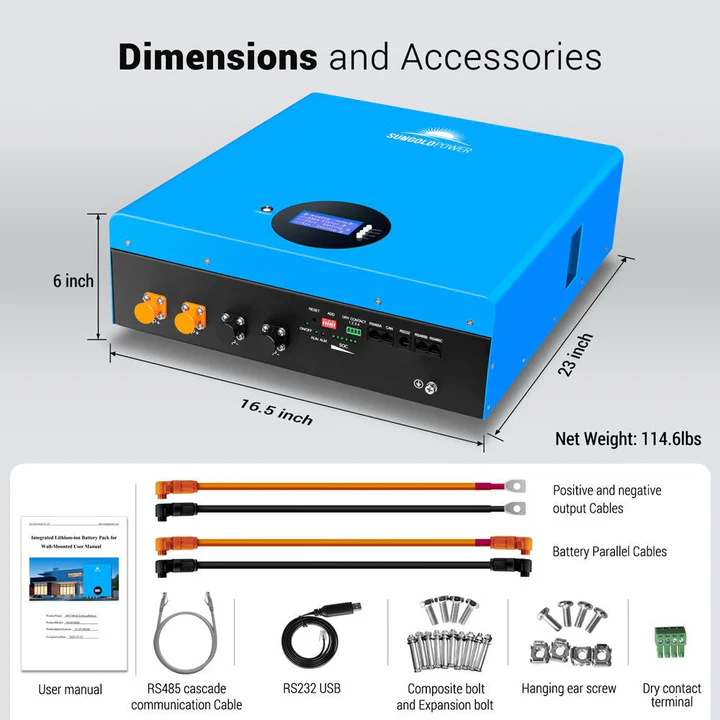

| Dimensions | 23 × 16.5 × 6 in |
|---|---|
| Weight | 114.6 lb |
| Mounting | Wall-mounted |
| Display | LCD |
| Communication | RS232 / RS485 / CAN |
| Parallel | Up to 63 batteries |
| Certifications | UL1973, CE, UN38.3 |
| Warranty | 10-year |
| Model / SKU | SG48100M |
