Rich Solar

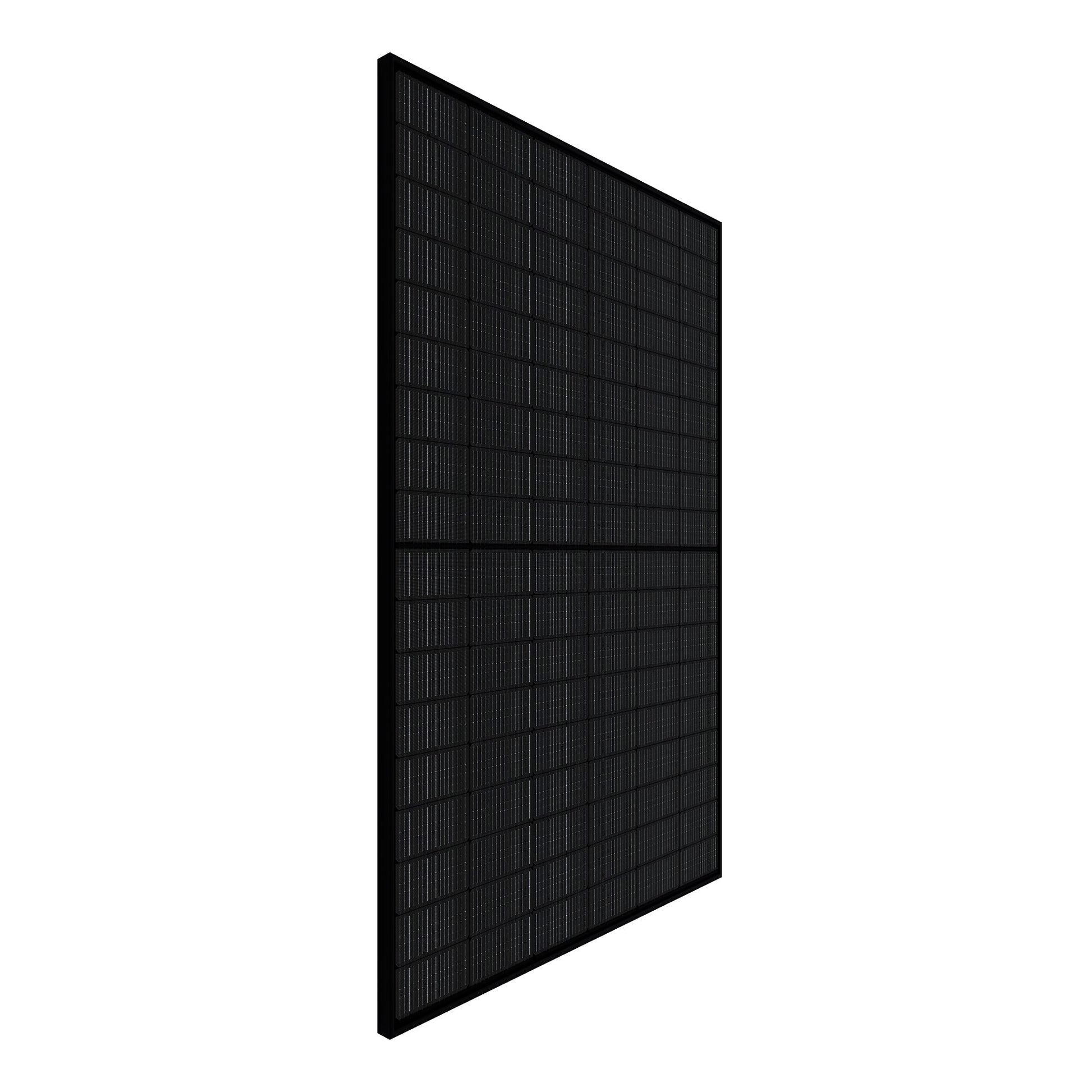

MEGA 430 BIFACIAL - 430W Bifacial N-Type Solar Panel
$2,319.99$2,899.99 MSRP
Save $580.00 (20%)
430W max power24V nominal25.1% max cell efficiencyUp to 25% rear-side gain50.9 lb67.8 × 44.7 × 1.2 in
Ships from Rich Solar's U.S. warehouse
- Free shipping, no minimumTo the lower 48 states and Washington, D.C.
- Authorized Rich Solar dealerFull manufacturer warranty and support.
- 25-year output warrantyBacked by Rich Solar.
- 30-day returnsOn new, unused items.
Shipping & handling
- Orders are processed within 1–3 business days.
- Parcel items typically arrive 3–7 business days after shipping. Freight items (panels, batteries, inverters and kits) typically arrive 5–14 business days after shipping.
- Rich Solar and SunGoldPower products ship free to the lower 48 states and Washington, D.C., with no minimum. Lensun shipping is based on weight and shown at checkout.
- Freight deliveries need an appointment and a signature, and are delivered curbside.
Returns & refunds
Request a return within 30 days of delivery. Items must be new, unused, not installed, and in their original packaging.
- Contact us first for a Return Merchandise Authorization (RMA). Returns sent without one are refused.
- For a change-of-mind return, you pay return shipping and a 15% restocking fee is deducted from your refund.
- Damaged on arrival? Report it within 3 business days of delivery and we arrange a replacement or full refund.
Warranty
Rich Solar's warranty page covers rigid MEGA panels with a 25-year power output warranty and a 10-year workmanship warranty, prorated after the first three years.
Need help choosing?
Not sure this fits your system? Email support@sunenergydepot.com with what you want to power, or use the chat in the corner, and we will help you choose.
Overview

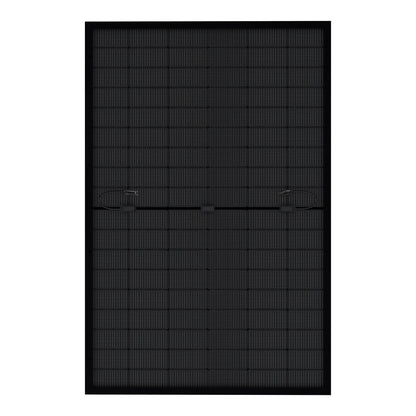

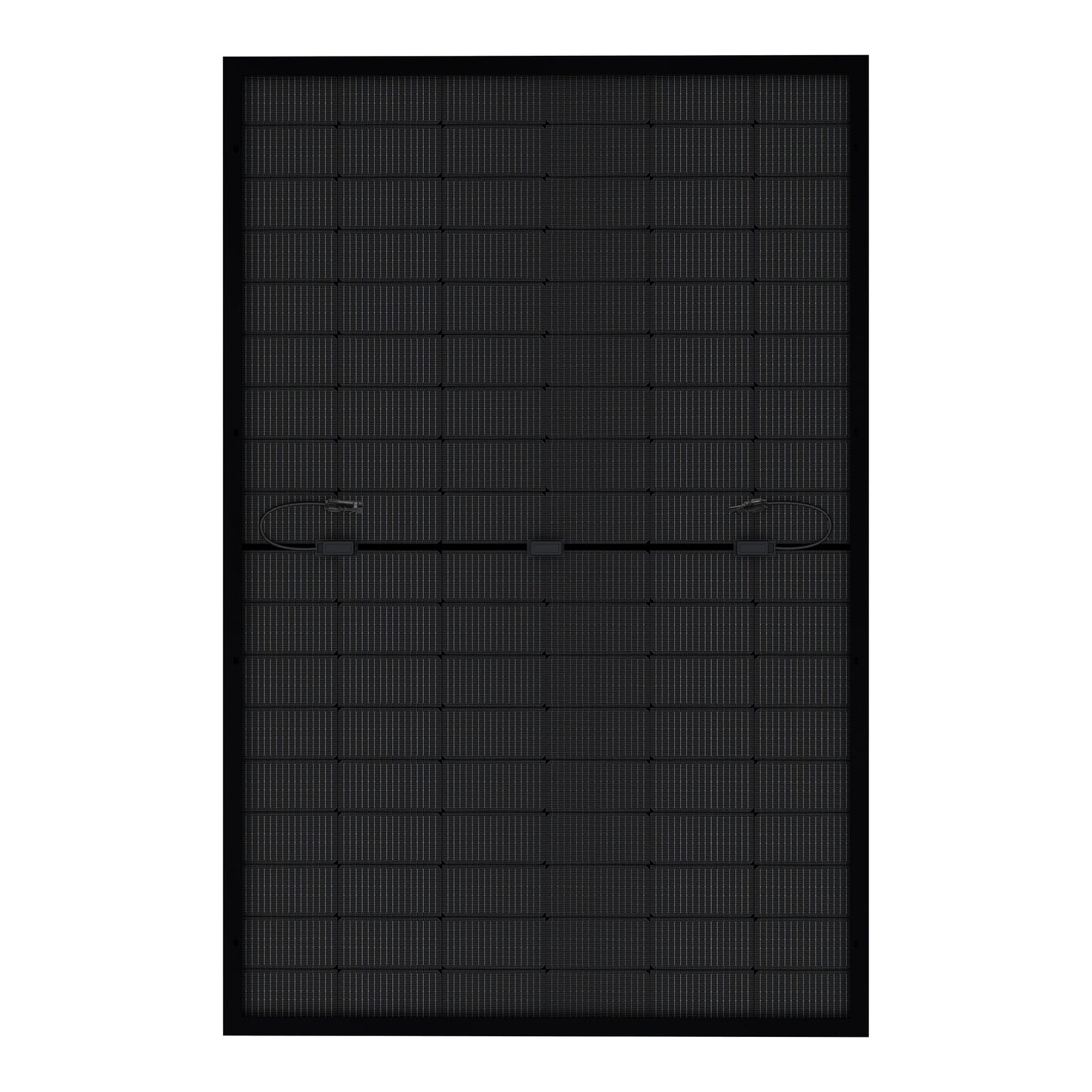

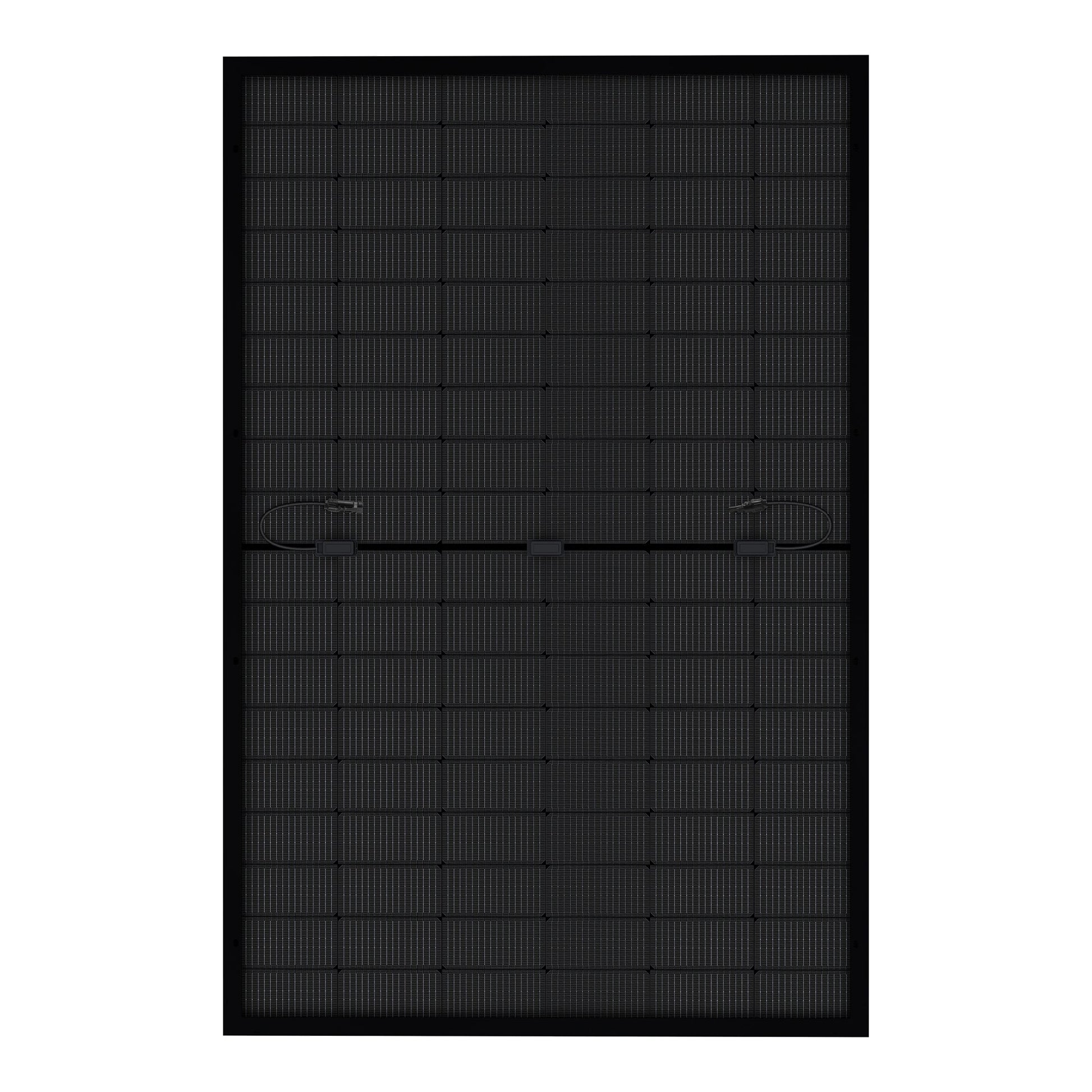

A 24-volt, 430-watt bifacial panel for grid-tie and off-grid arrays
The MEGA 430 BIFACIAL is Rich Solar's 430-watt, 24-volt bifacial panel. Its 108 N-Type TOPCon cells with 14 busbars reach up to 25.1% cell efficiency, and the back side adds up to 25% more power depending on the albedo of the surface below.

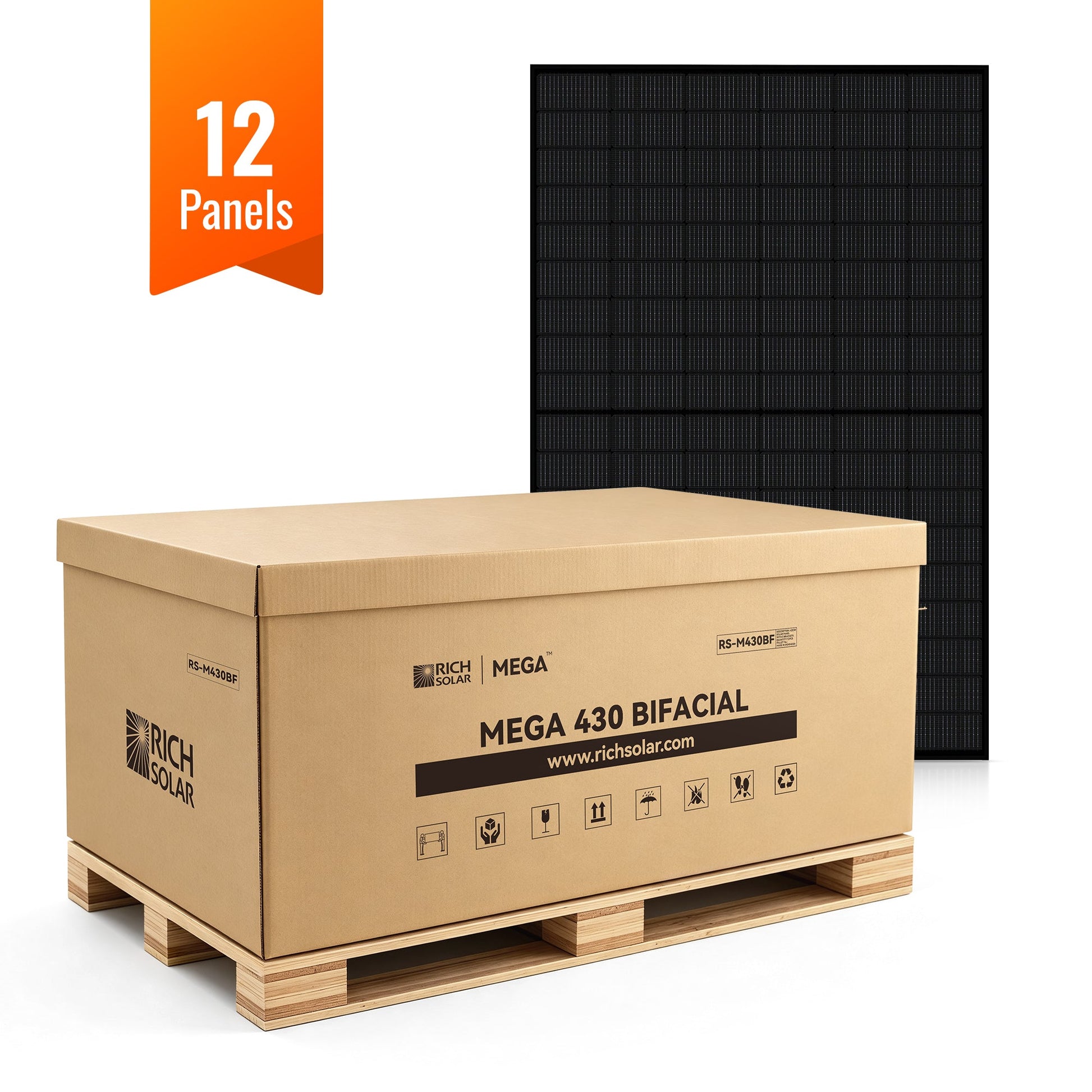

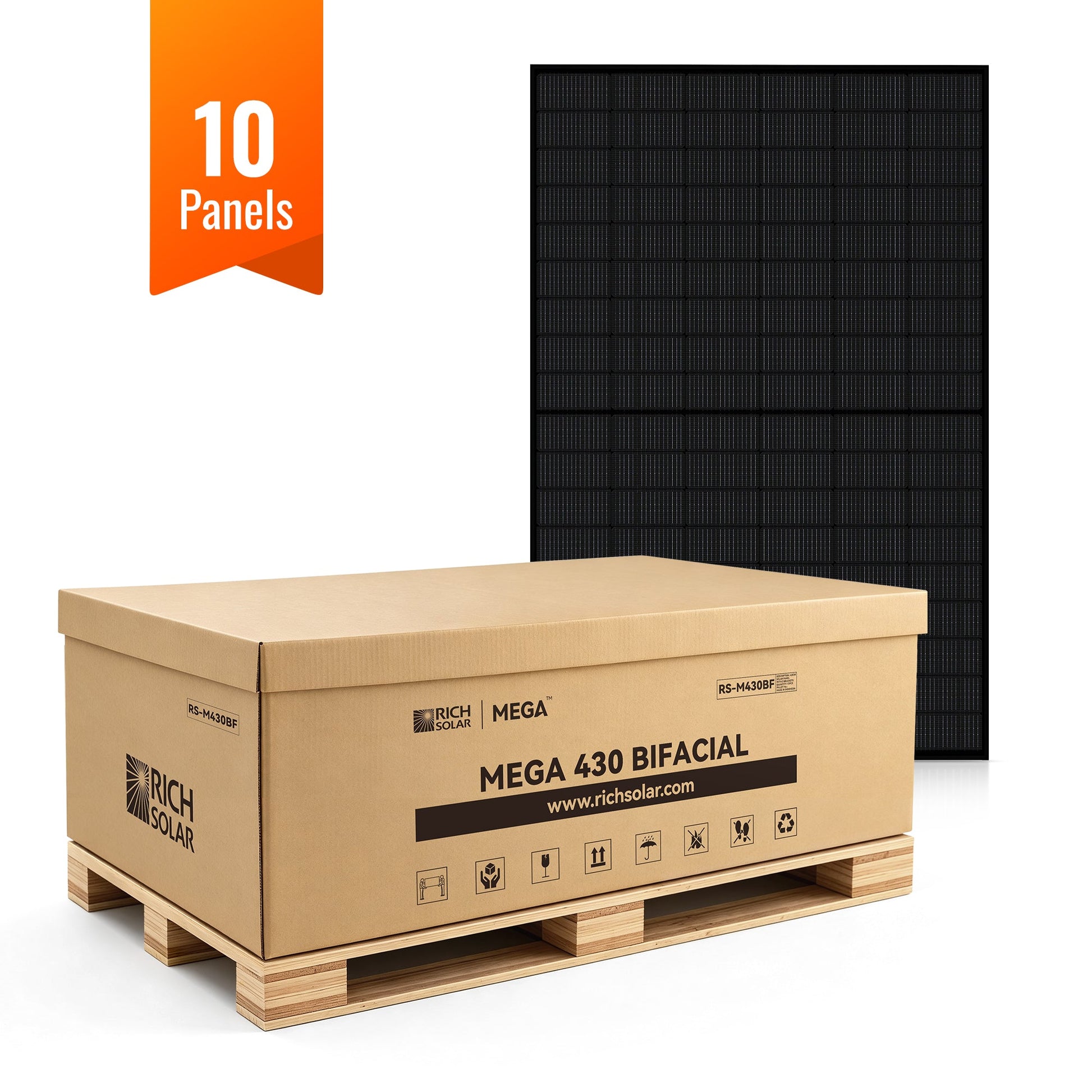

It has 2.0 mm tempered glass on the front and rear, is rated for a 1500VDC maximum system voltage and works with on-grid and off-grid inverters. The anodized aluminum frame has 12 pre-drilled holes for Z-bracket, tilt, pole or ground mounts. Rich Solar ships it by pallet only, and we offer packs of 8, 10 or 12 panels.
Off-GridGrid-TieCommercial
430WMaximum power output
25.1%Maximum cell efficiency
0 to +5WPositive power tolerance
ULCertified (certificate in Documents)
Efficiency
Maximum efficiency
N-Type TOPCon multi-busbar cells improve light trapping and current collection, reaching up to 25.1% cell efficiency.
- Highly transparent, AR-coated 2.0 mm tempered front glass
- Strong output on cloudy days, mornings and evenings
- Low temperature coefficient of Pmax: -0.30%/°C
Installation
Easy installation
Plug-and-play solar connectors support both series and parallel configurations.
- Lightweight, corrosion-resistant anodized aluminum frame
- 12 pre-drilled holes for Z-brackets, tilt, pole or ground mounts
- Works with mainstream optimizers, inverters and mounting systems
Reliability
Proven reliability
Non-destructive cell cutting helps minimize micro-cracks, and the panel is PID-resistant and 100% EL-inspected.
- Load rated to 5,400 Pa front and 2,400 Pa rear
- Built for salt, ammonia, sand, heat and high humidity
Bifacial
High energy yield
The back side generates up to 25% additional power, depending on the albedo of the surface below.
- Excellent IAM and low-light performance, third-party validated
- Design optimizes output under inter-row shading

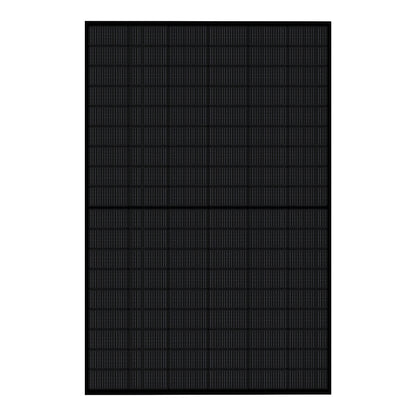

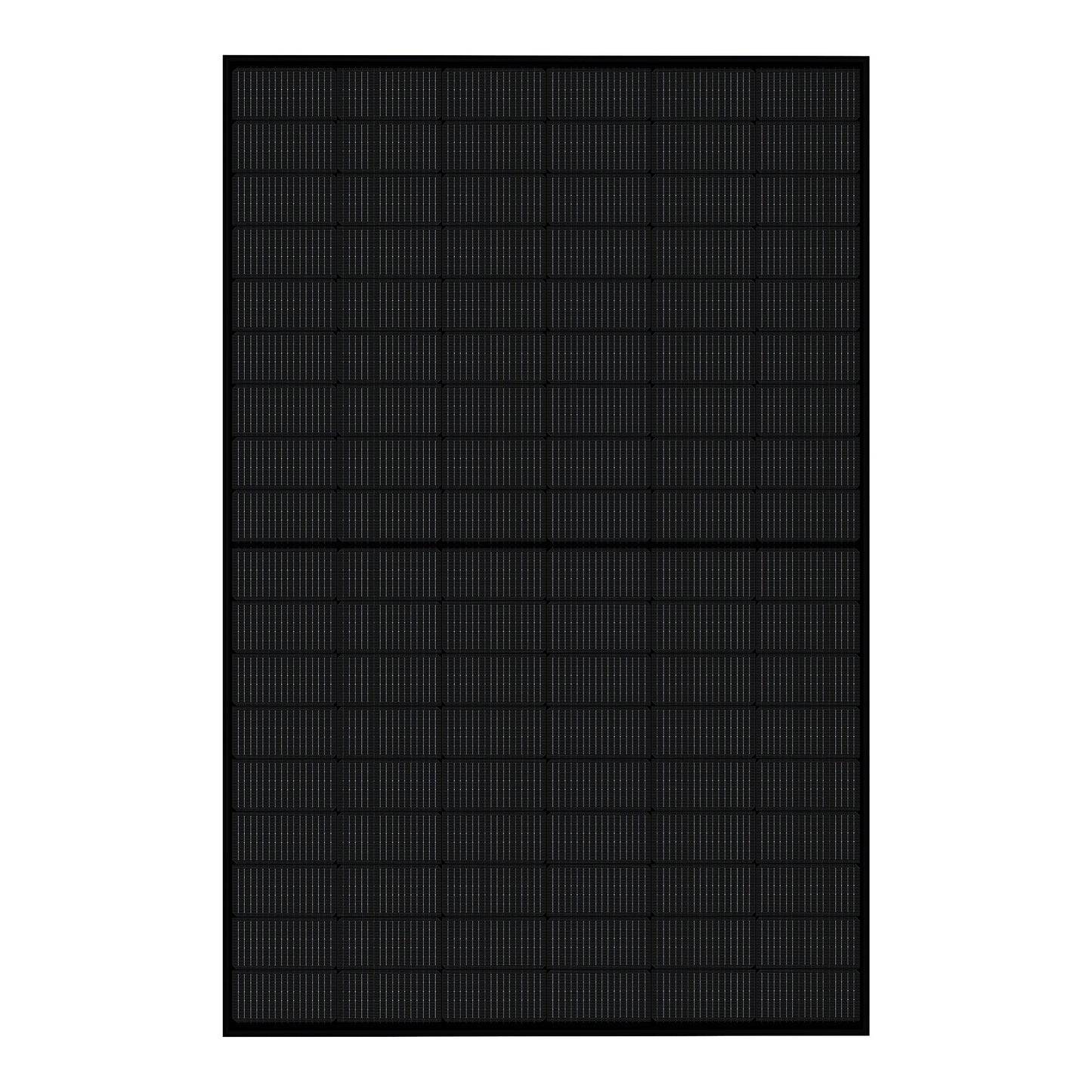

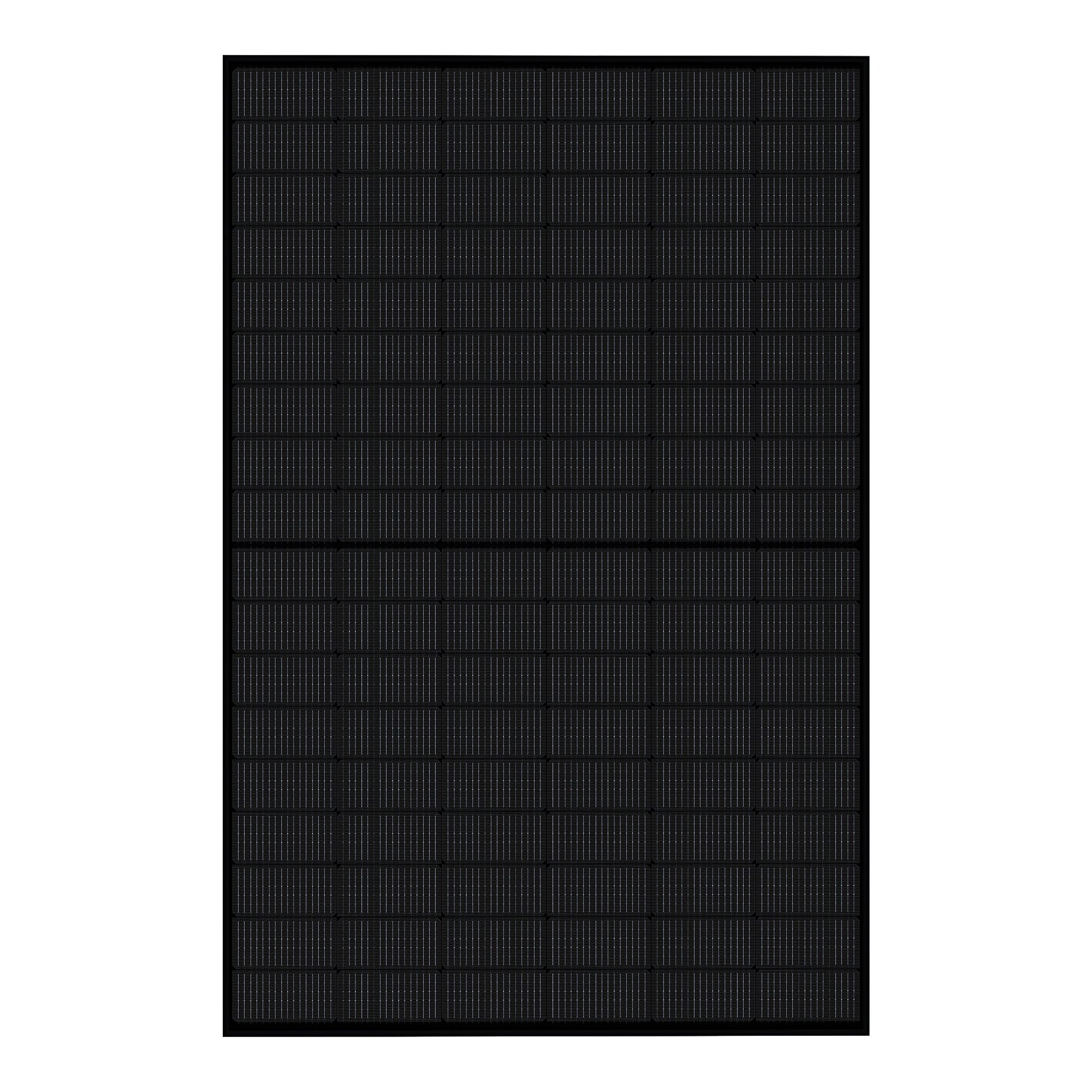

- 2.0 mm tempered glass on the front and rear
Specs, images and product claims on this page come from Rich Solar's MEGA 430 BIFACIAL product page and July 2026 spec sheet. Last checked Oct 30, 2026.
Specifications
From Rich Solar's published specifications for model RS-M430BF-8.
Electrical
| Maximum power (Pmax) | 430W |
|---|---|
| Power tolerance | 0 to +5W |
| Max power voltage (Vmp) | 31.9V |
| Max power current (Imp) | 13.5A |
| Open circuit voltage (Voc) | 37.4V |
| Short circuit current (Isc) | 14.7A |
| Maximum series fuse rating | 30A |
| Module efficiency | 22.0% |
| Maximum system voltage | 1500 VDC |
| Rear-side power gain | Up to 25%, depending on albedo |
Cells & temperature
| Cell type | N-Type TOPCon, 14 busbars |
|---|---|
| Maximum cell efficiency | 25.1% |
| Cells | 108 (6 × 9 × 2) |
| Cell size | 7.2 × 3.6 in (182 × 91 mm) |
| Temp. coefficient of Pmax | -0.30%/°C |
| Temp. coefficient of Voc | -0.25%/°C |
| Temp. coefficient of Isc | 0.043%/°C |
| NMOT | 44°C ± 2°C |
| Operating temperature | -40°F to 185°F |
Physical
| Dimensions | 67.8 × 44.7 × 1.2 in (1722 × 1134 × 30 mm) |
|---|---|
| Weight | 50.9 lb (23.1 kg) |
| Glass | 2.0 mm + 2.0 mm tempered glass (front and rear), AR-coated front |
| Frame | Anodized aluminum alloy |
| Mounting | 12 pre-drilled mounting holes |
| Junction box | IP68, 3 diodes |
| Cable | 12 AWG (4.0 mm²), 47.2 in (1200 mm) |
| Connector | Solar connectors, IP67 |
Durability & warranty
| Load resistance | 5,400 Pa (front) / 2,400 Pa (rear) |
|---|---|
| Certification | UL 61730, IEC 61215, CSA C22.2 (UL file E547316) |
| Shipping | Pallet only |
| Warranty | 25-year power output, 10-year workmanship (prorated) |
| Model / SKU | RS-M430BF |
What's in the box
Package contents as listed by Rich Solar.
1×
MEGA 430 BIFACIAL solar panelModel RS-M430BF, 430W 24V, per panel (packs of 8, 10 or 12 ship on a pallet)
+
Attached panel leads (pair)12 AWG (4.0 mm²), 47.2 in (1200 mm), IP67 solar connectors
+
IP68 junction boxBuilt in, 3 diodes
