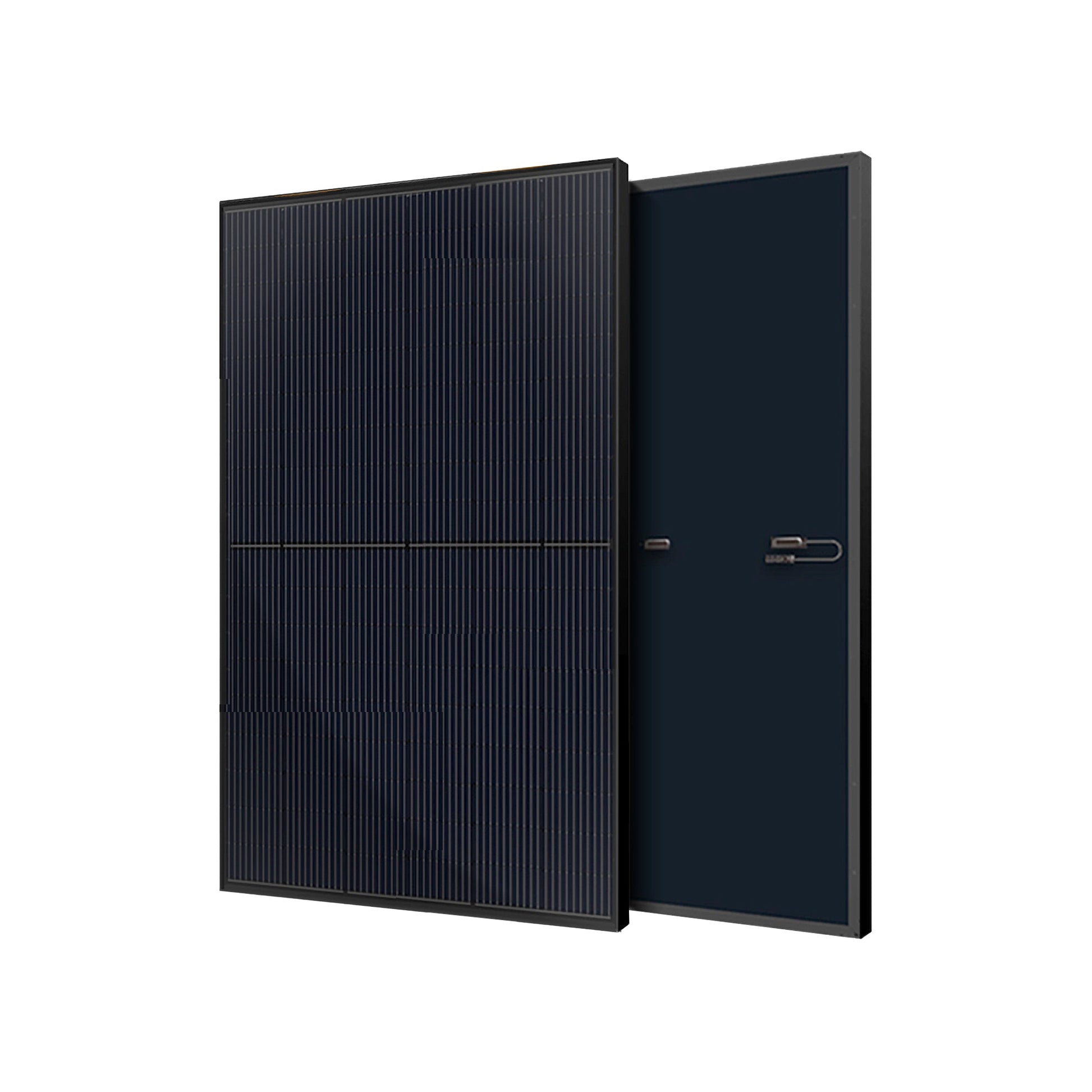

MEGA 410 - 410 Watt Solar Panel

Pallet shipping only

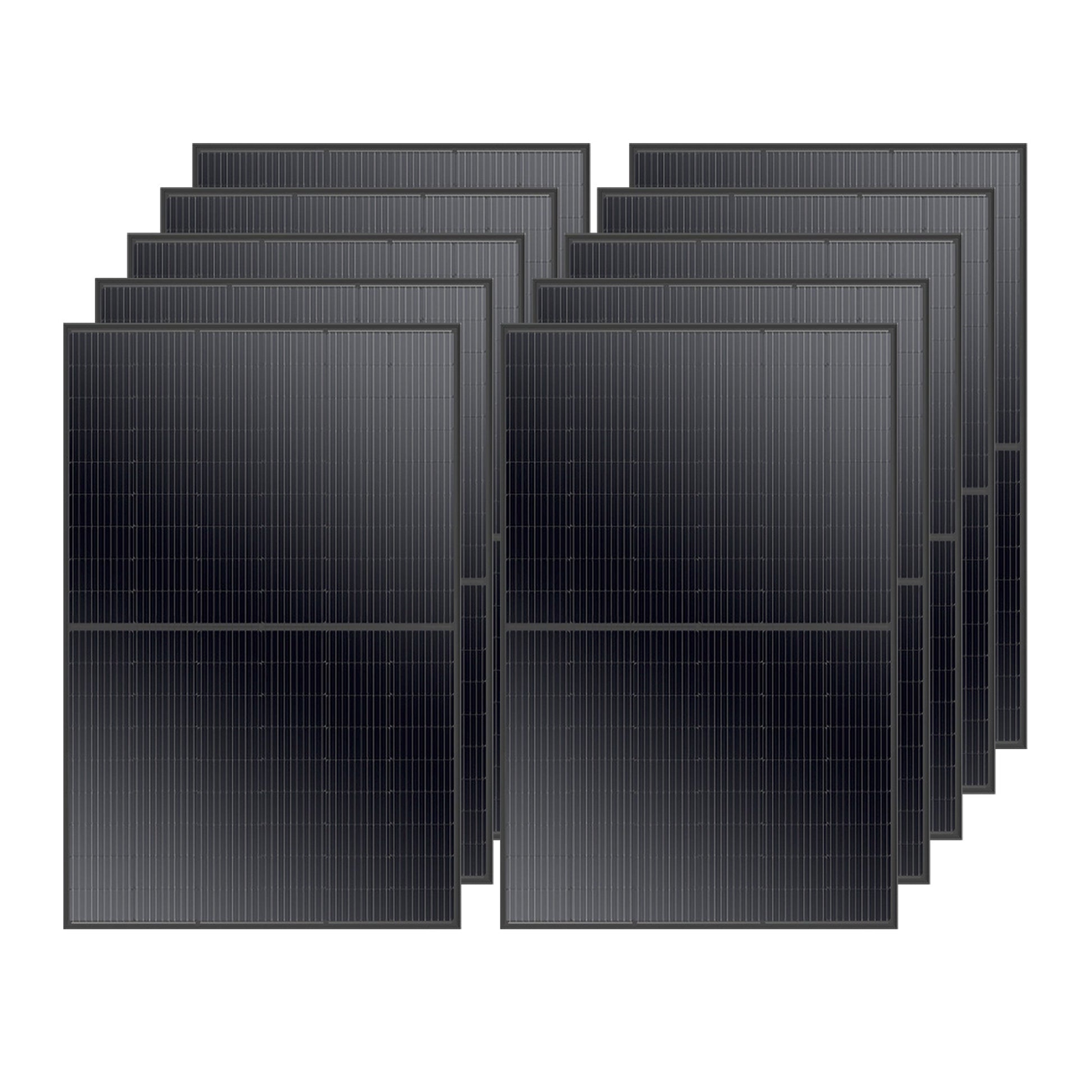

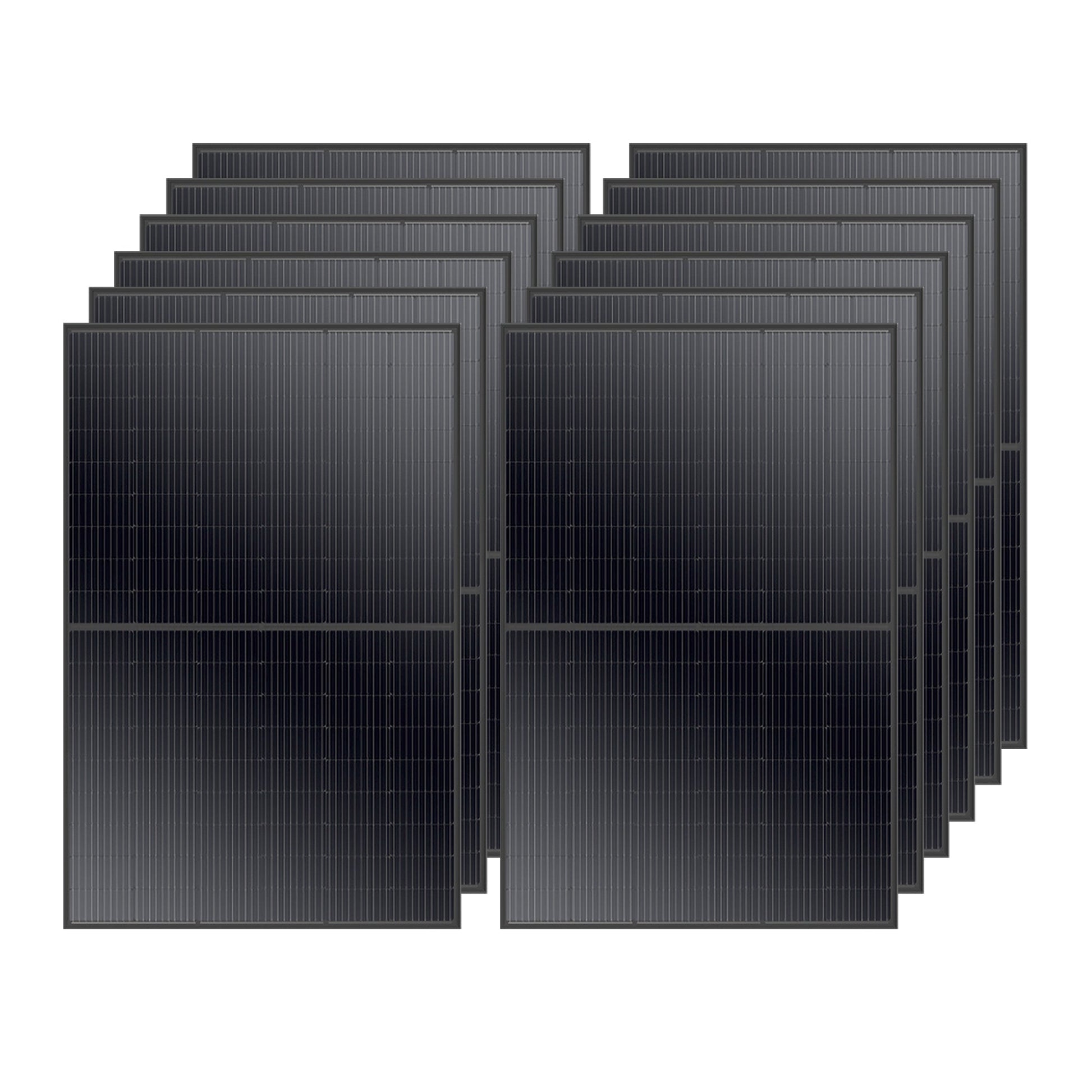

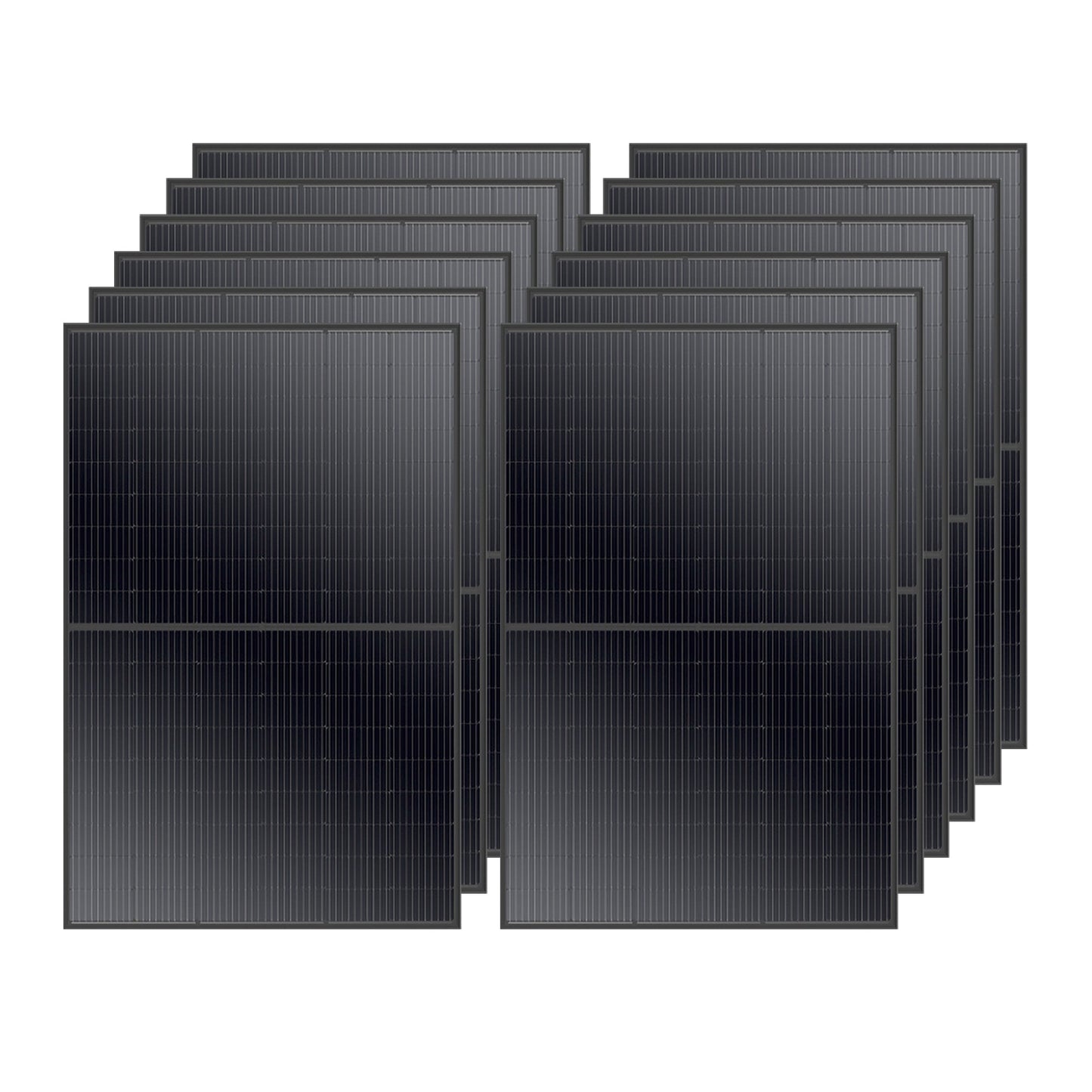

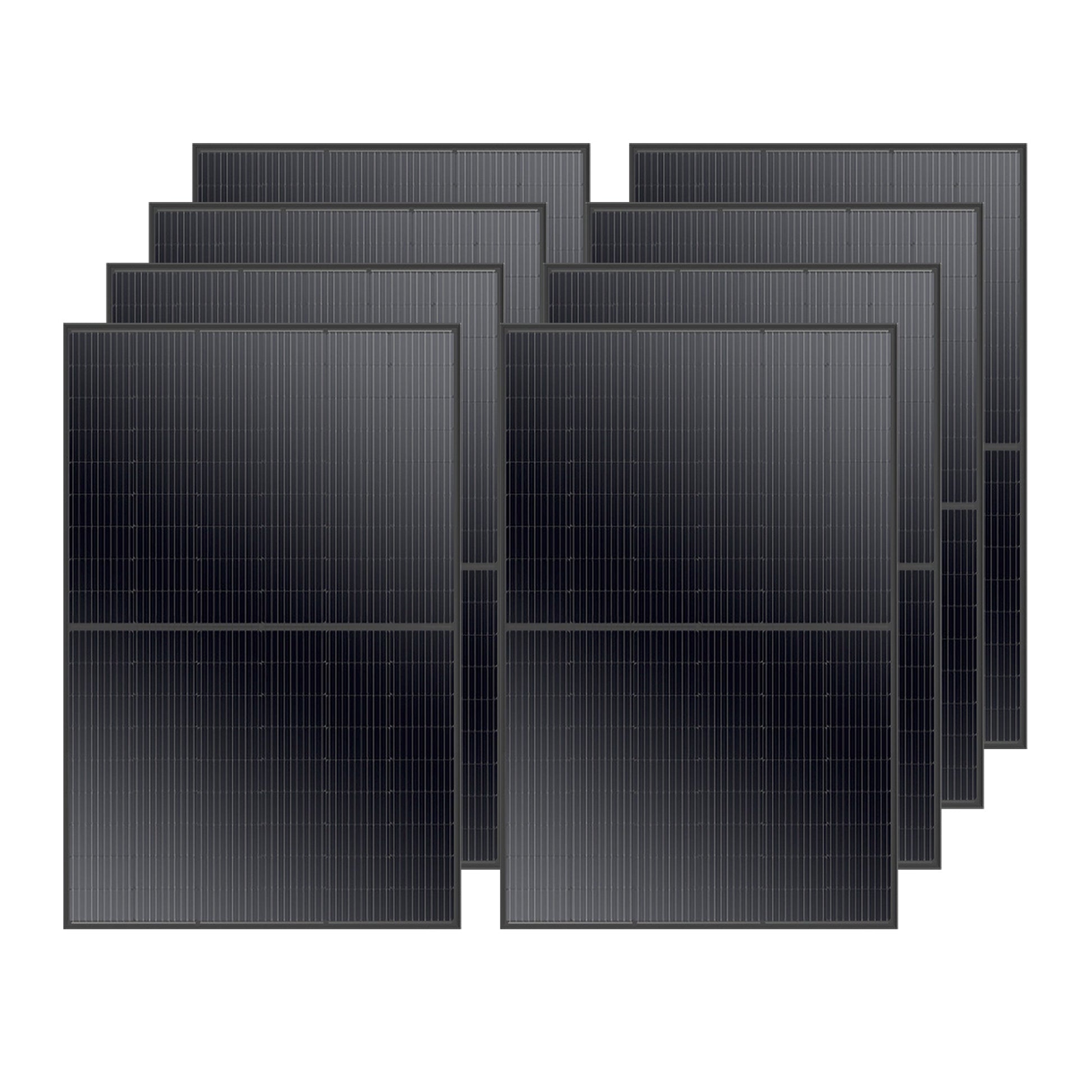

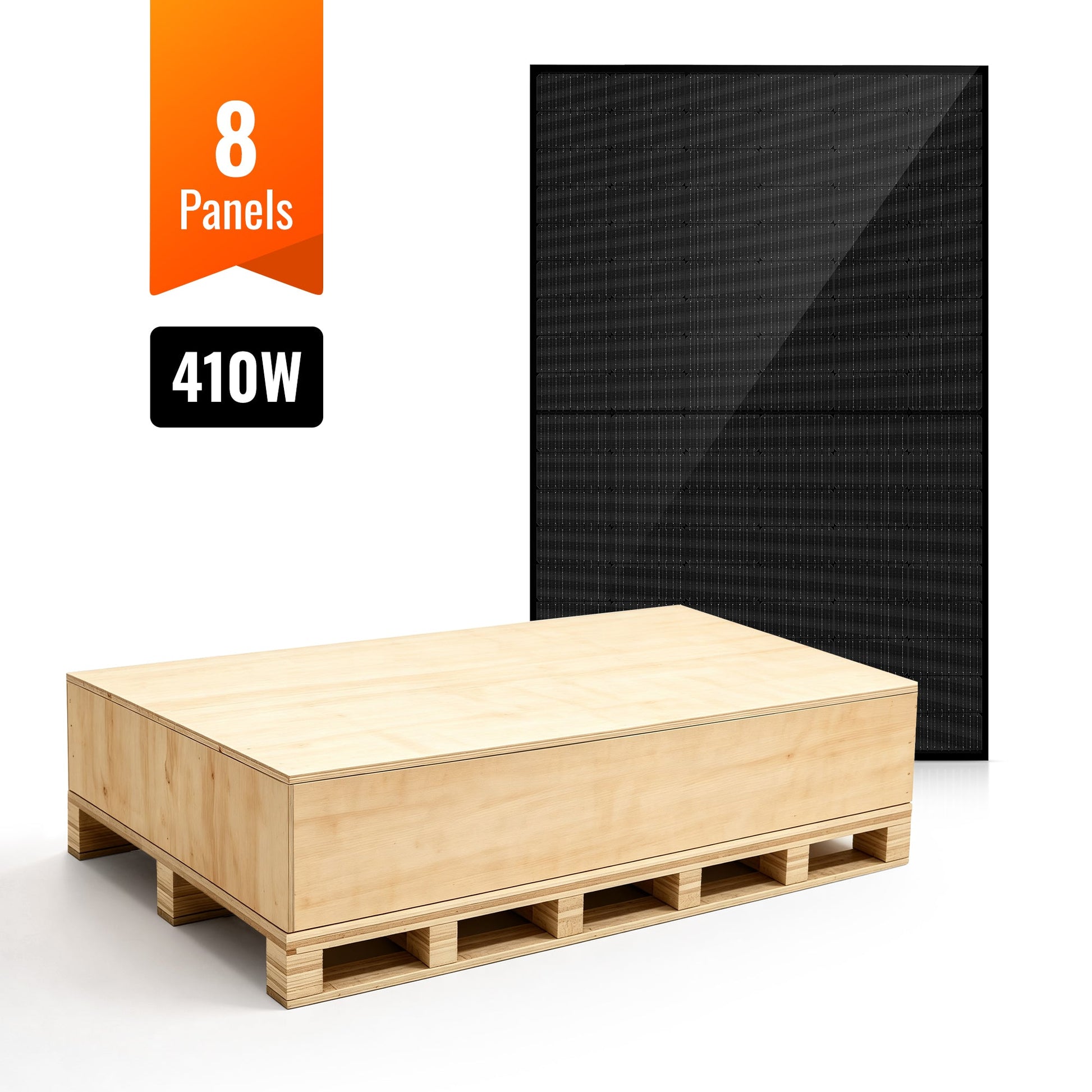

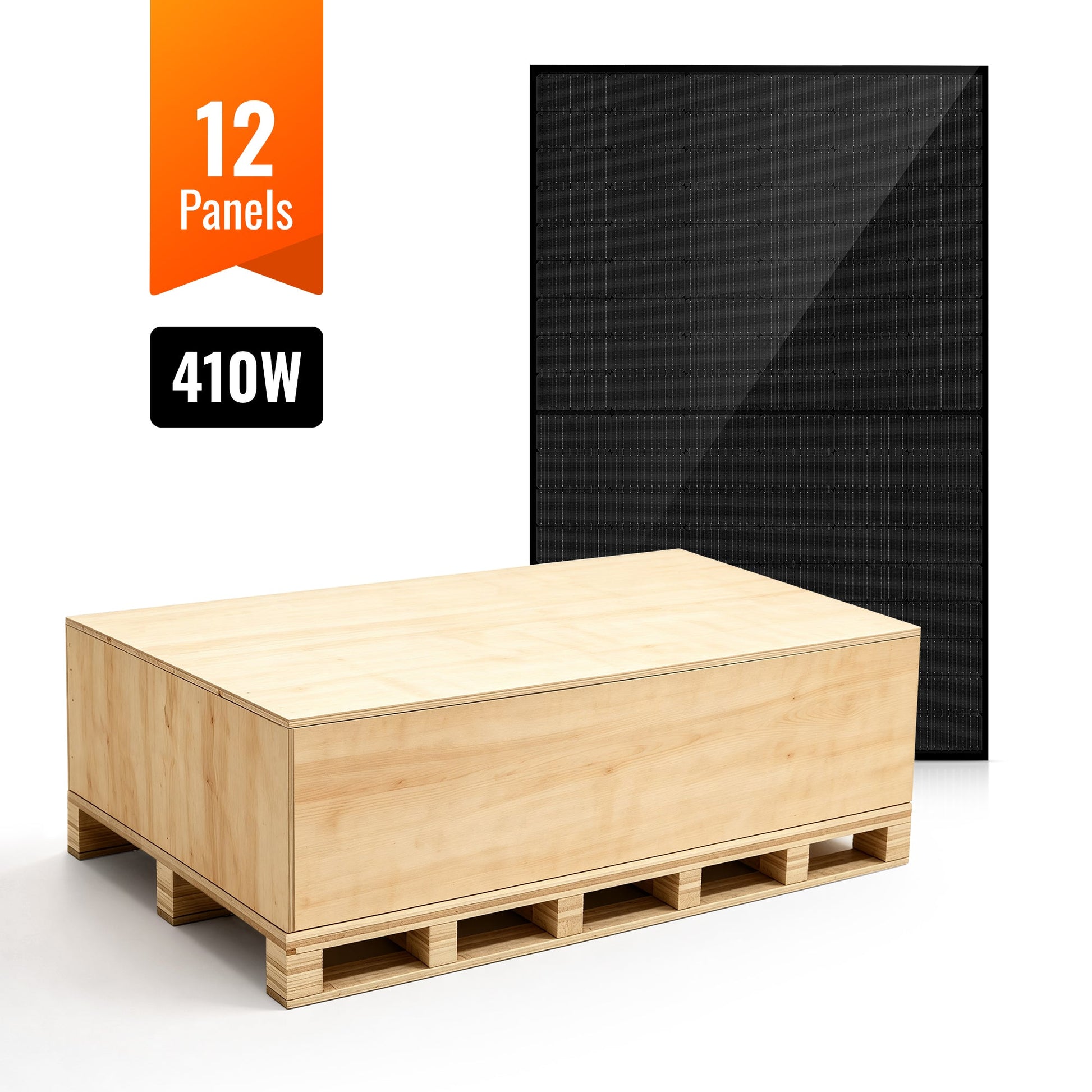

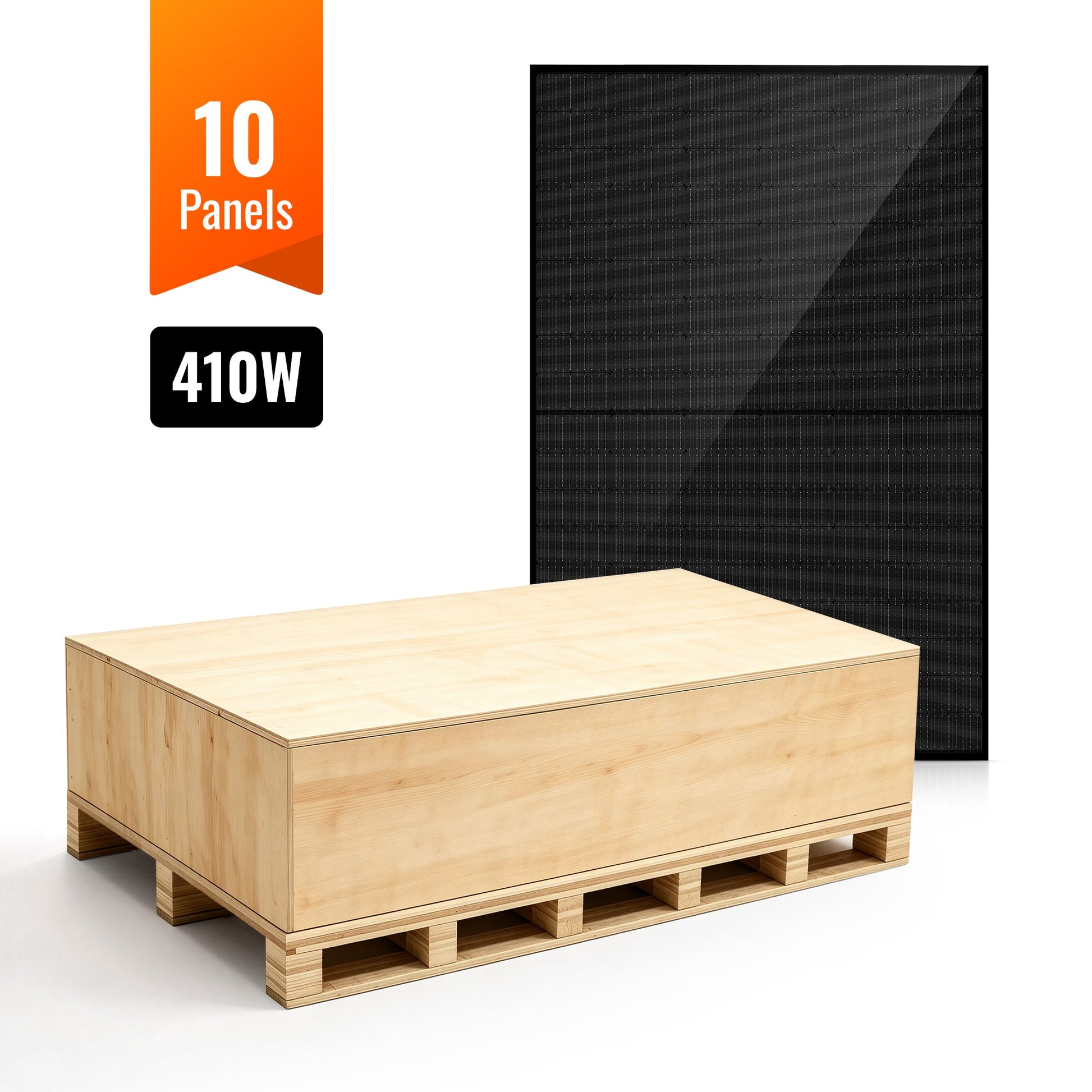

The MEGA 410 is the highest-output panel in the standard MEGA line — 410 watts each, shipped 8, 10, or 12 to a pallet. Physically identical to the MEGA 400 but binned a step higher, so you get 120 extra watts per 12-panel pallet from the same roof area and the same racking. For quantities outside these pallet sizes, get in touch.

Why this panel

• 24V panel suited to grid-tie and off-grid builds
• 10-busbar monocrystalline cells reaching up to 23.2% efficiency
• A 108-cell layout delivers a reliable 410W with 0 to +5W tolerance
• 1500VDC maximum system voltage for long strings
• Strong low-light output on cloudy days and at dawn and dusk
• 3.2 mm anti-reflective tempered glass for light capture and durability
• Rated for 5400 Pa snow and 2400 Pa wind loading
• PID-resistant and 100% EL-inspected against microcracks
• Tested for UV exposure, thermal cycling, and humidity freeze
• Certified to UL 61730, IEC 61215, and CSA C22.2

Mounting and wiring

• Anodized aluminum frame — strong and corrosion-resistant
• Eight pre-drilled holes for Z-brackets, tilt mounts, pole, or ground racking

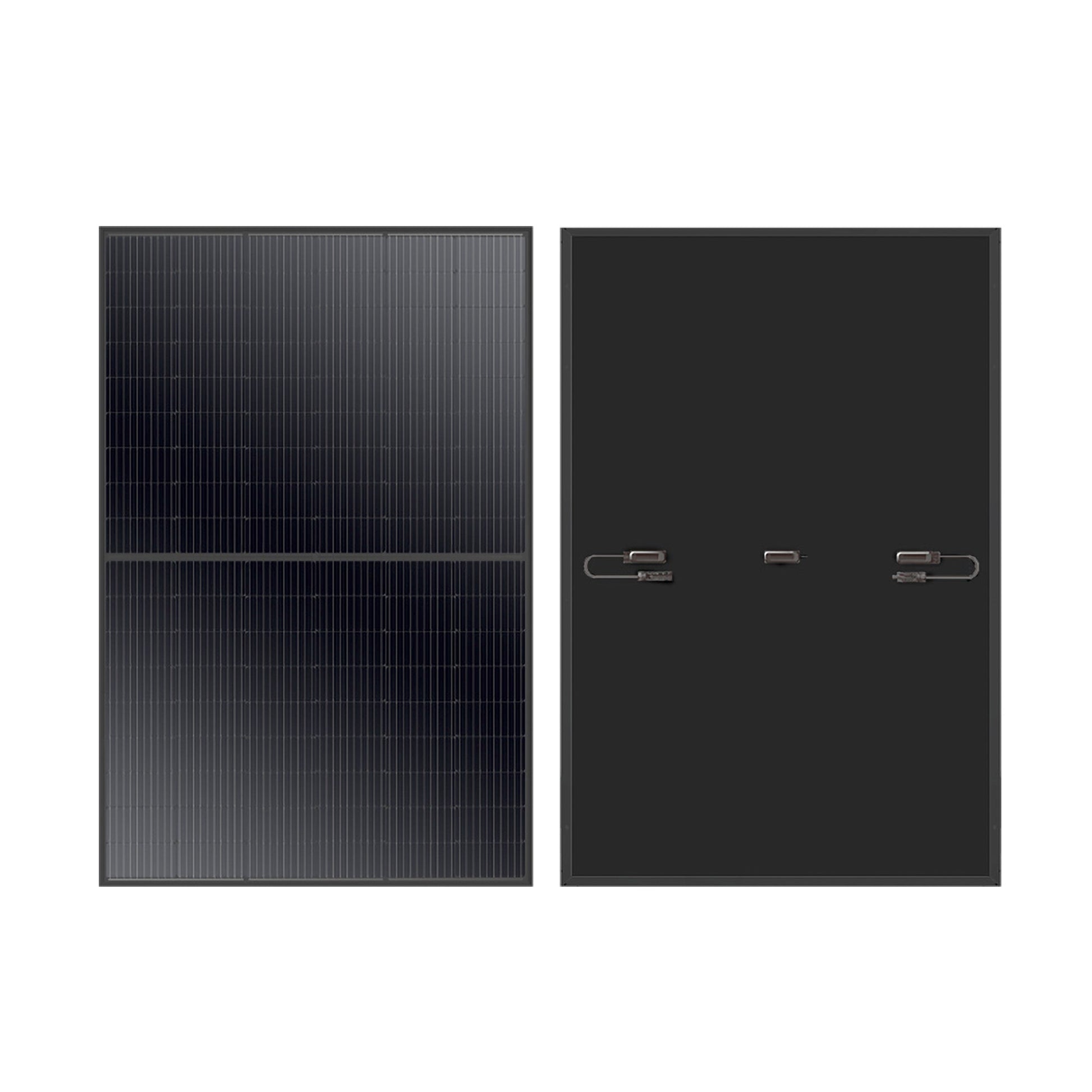

• Four-foot 12 AWG MC4 leads pre-attached
• IP68-rated waterproof junction box
• Compatible with both on-grid and off-grid inverters

Warranty

• 25-year limited power output warranty
• 10-year workmanship warranty
