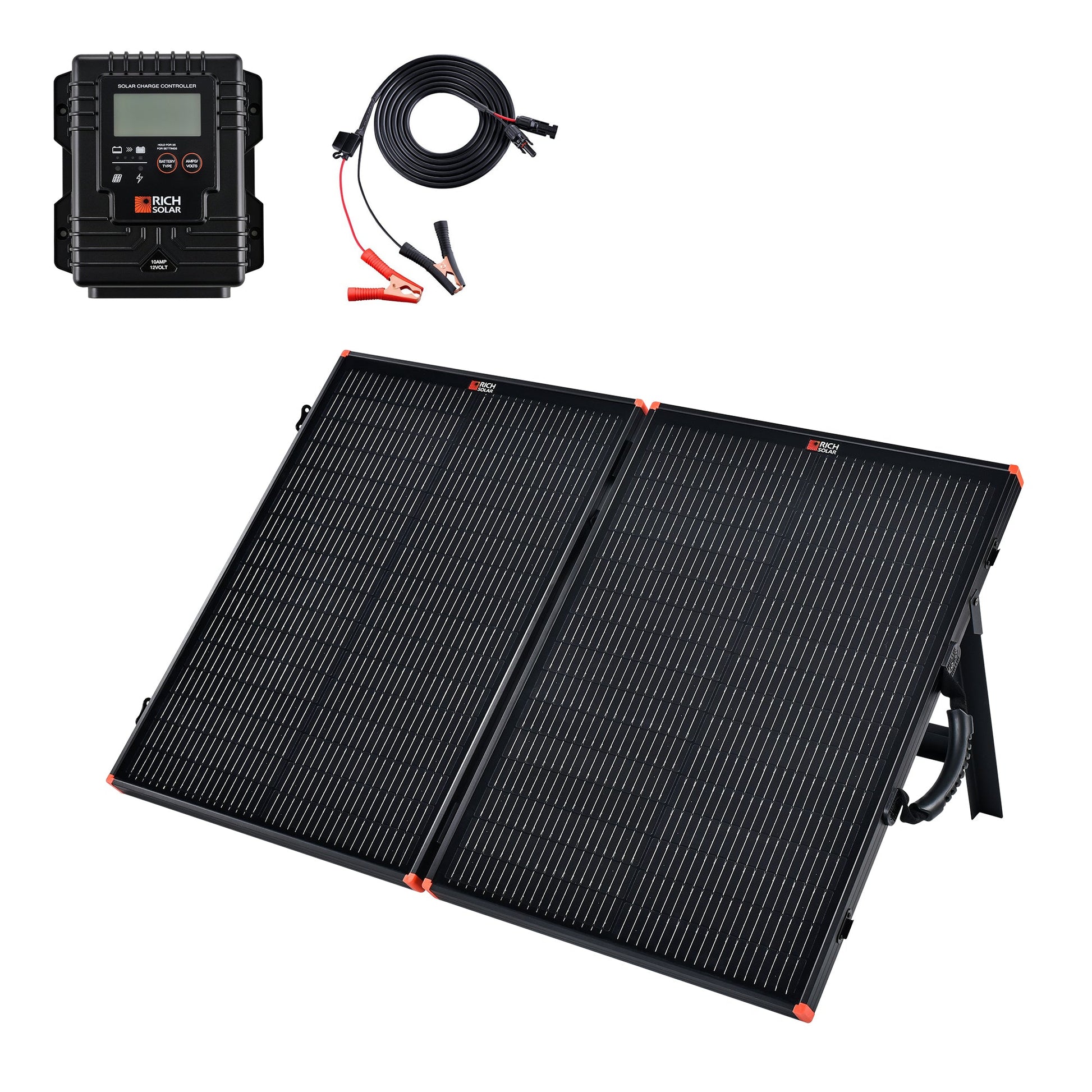

MEGA 100 Portable Briefcase Charging Kit - 100 Watt 12 Volt Portable Solar Panel Kit

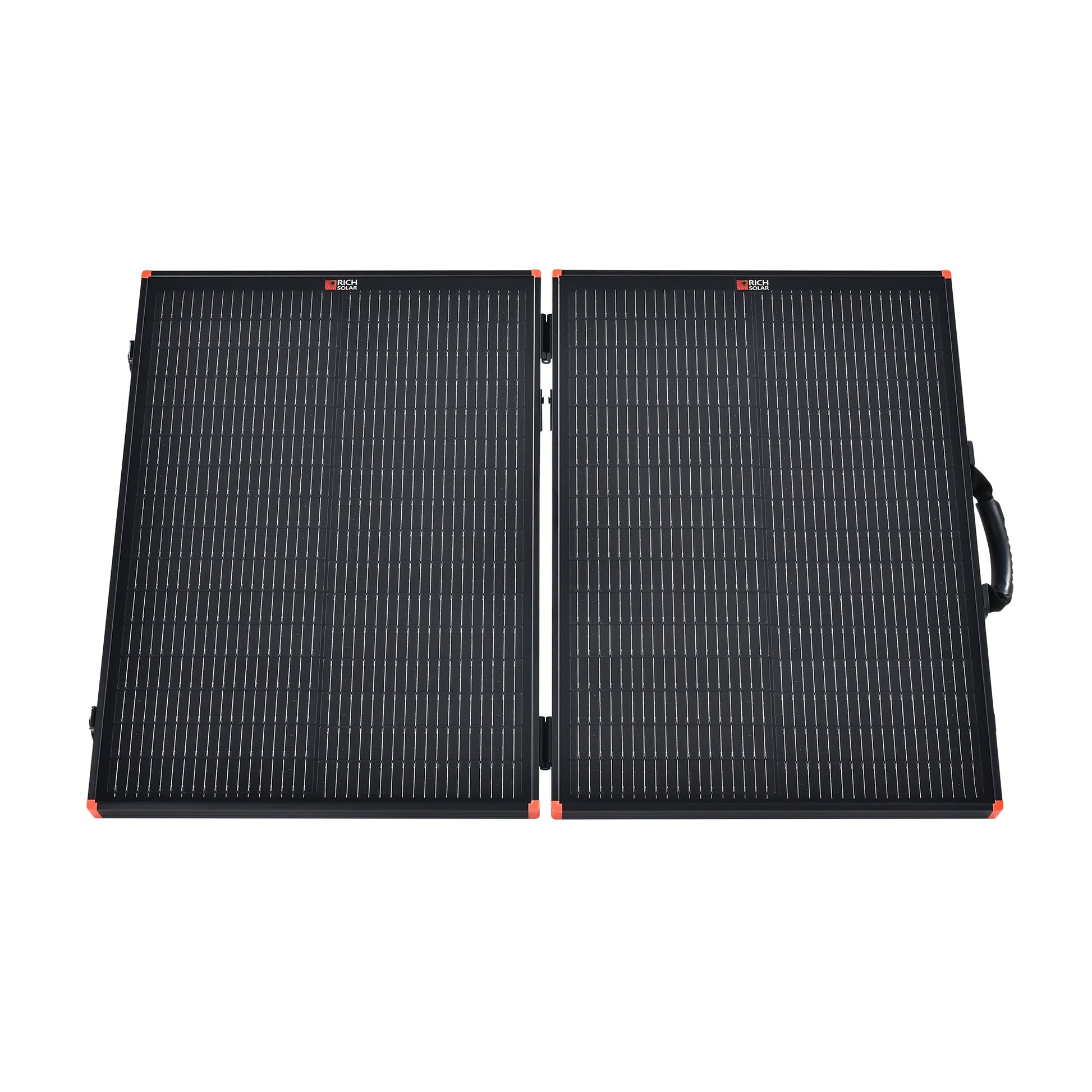

This is the MEGA 100 briefcase panel with a waterproof 10A charge controller already wired to it. If you are charging a 12V battery directly, that controller is the part you would otherwise have to buy separately, and it is what separates this kit from the panel-only version. Unfold it, set the kickstands, clip the leads to the battery, and it works.

Why this kit

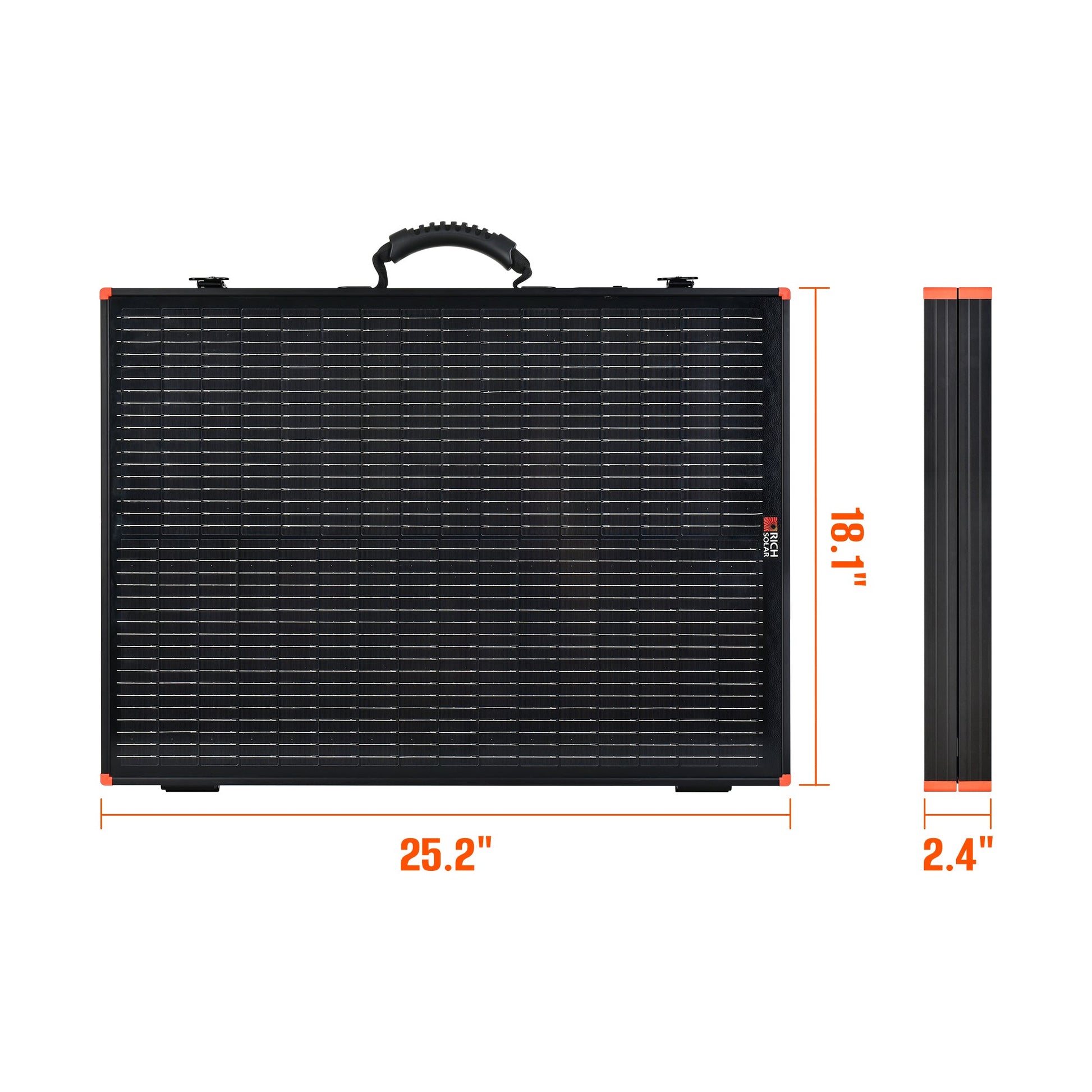

• 100 watts from monocrystalline cells rated up to 23.2% efficiency, folding down to 25.2 x 18.1 x 2.4 in for storage.

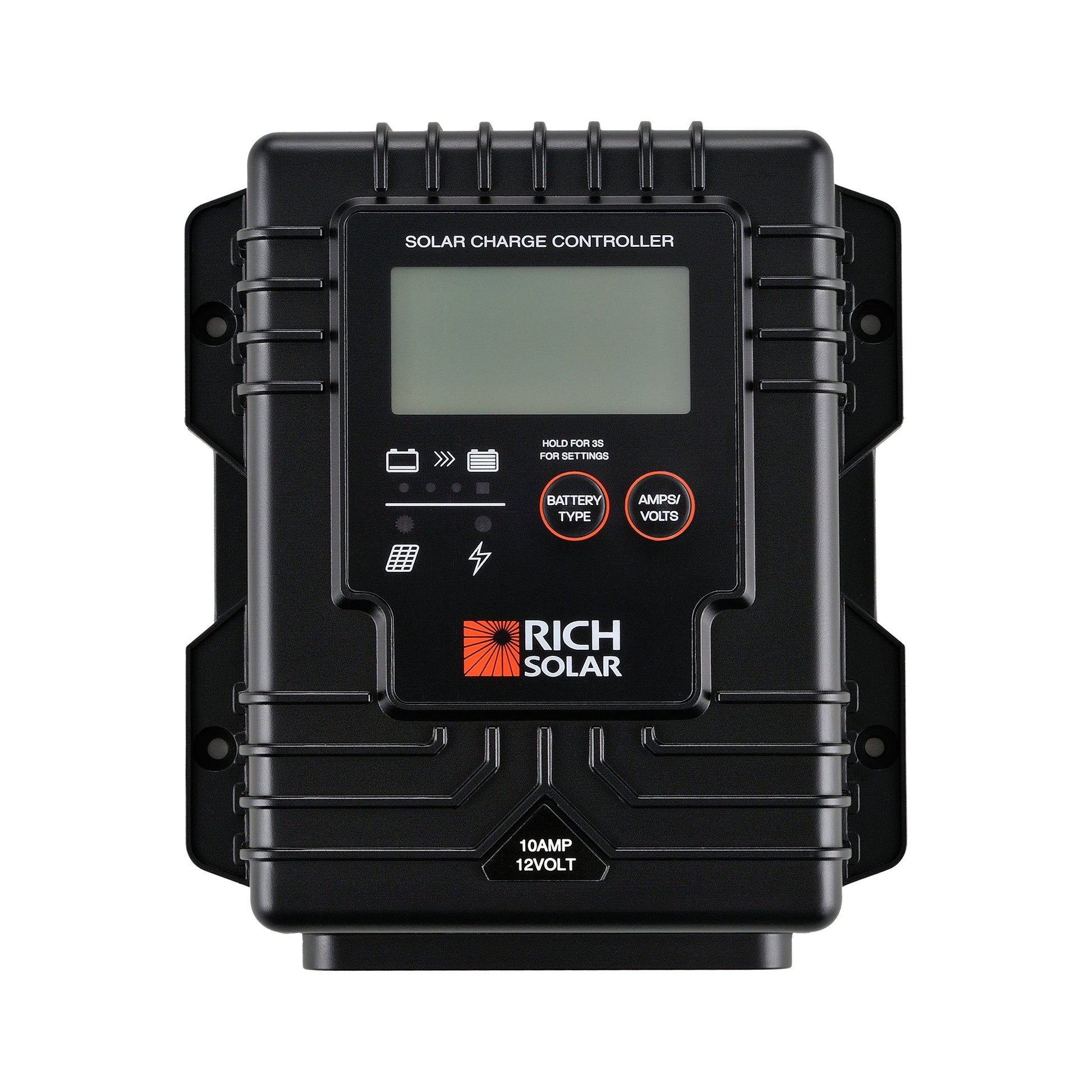

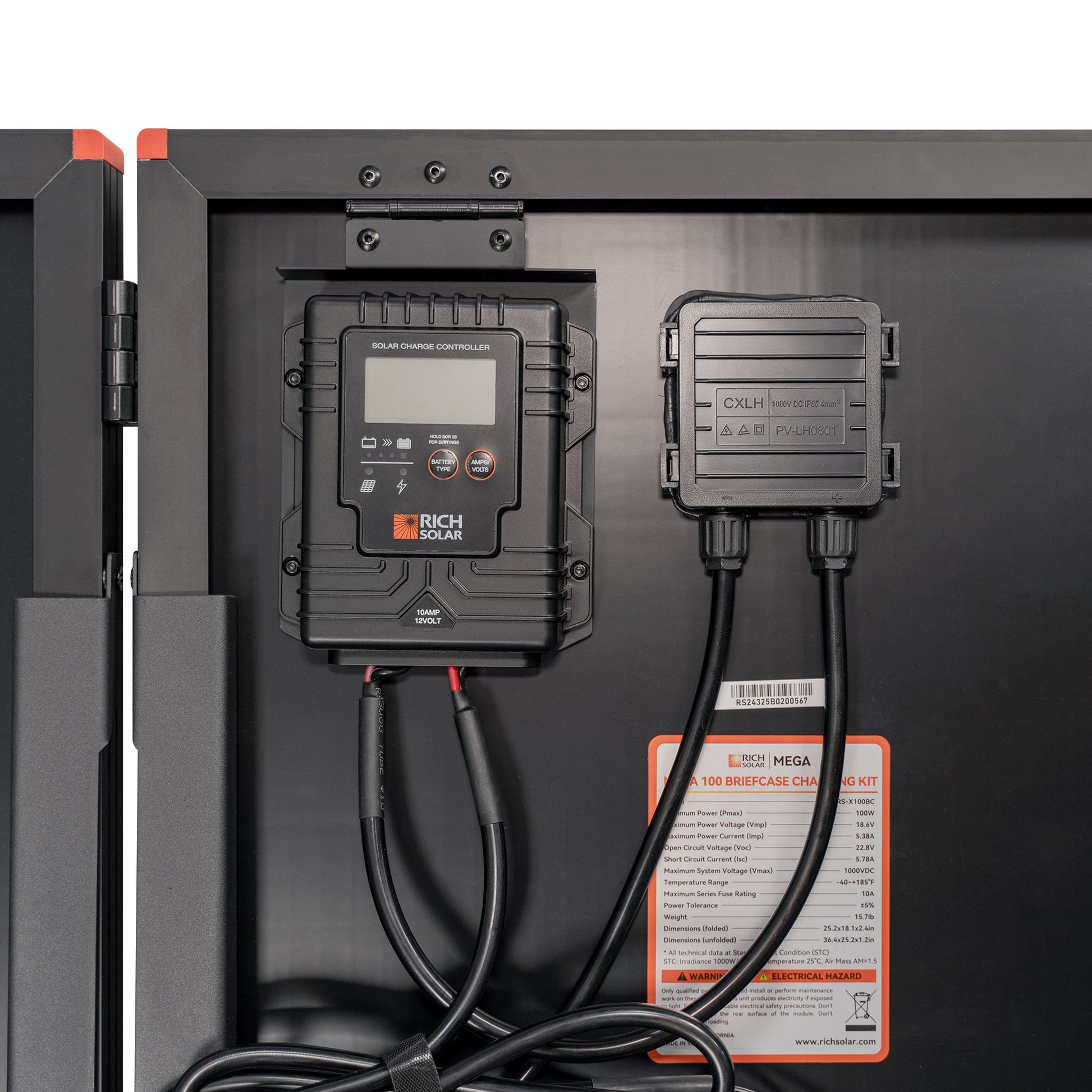

• The included 10A PWM controller is potted and weatherproof, so it can live outside with the panel rather than needing a dry mounting spot.
• 18.6V at maximum power and 5.38A, which suits a single 12V battery. For a bank larger than about 100Ah, plan on more than one panel.
• Tempered glass over an aluminum frame with corner guards, rated IP67 against rain.

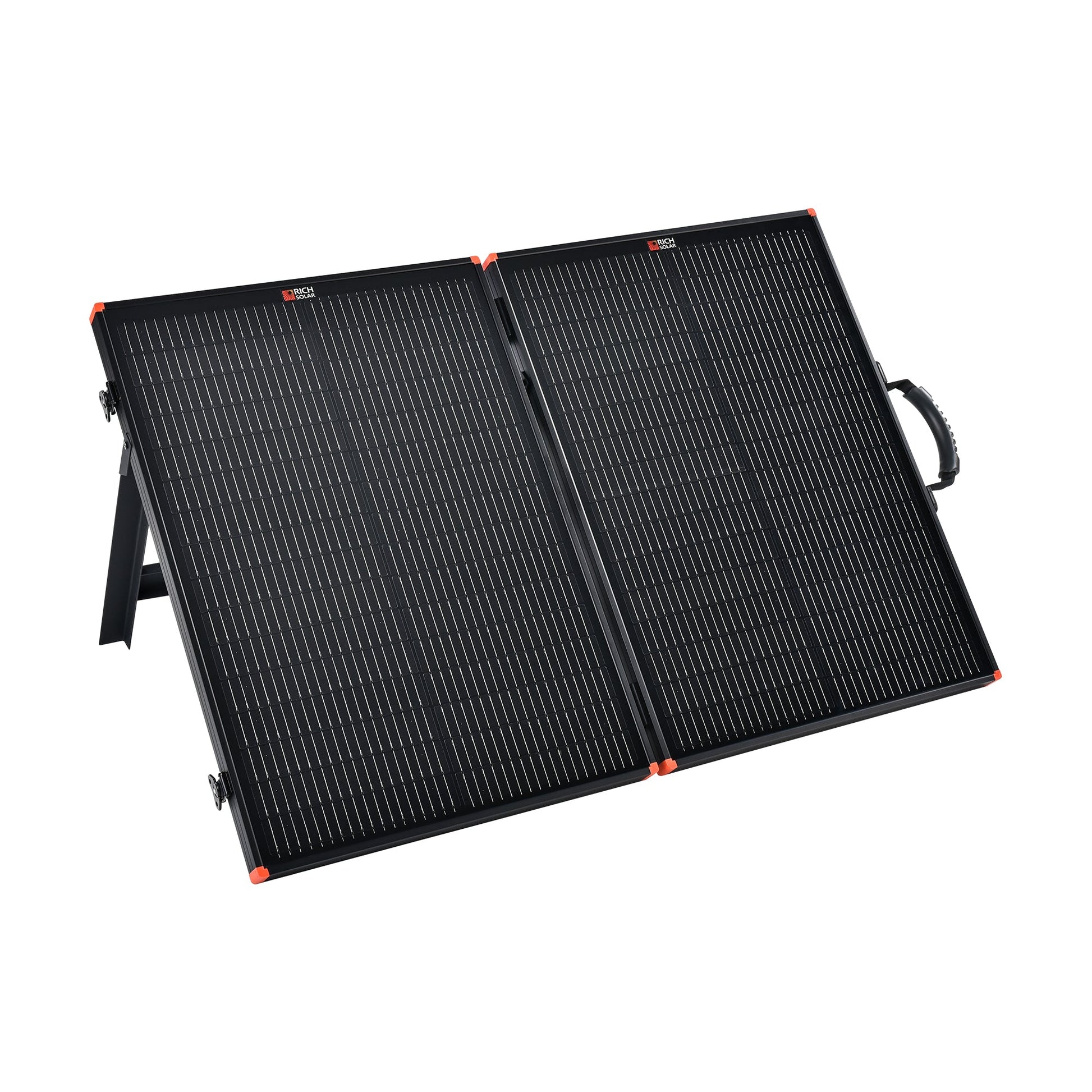

• Integrated kickstands let you angle the panel at the sun instead of laying it flat, which matters a great deal in winter and at higher latitudes.

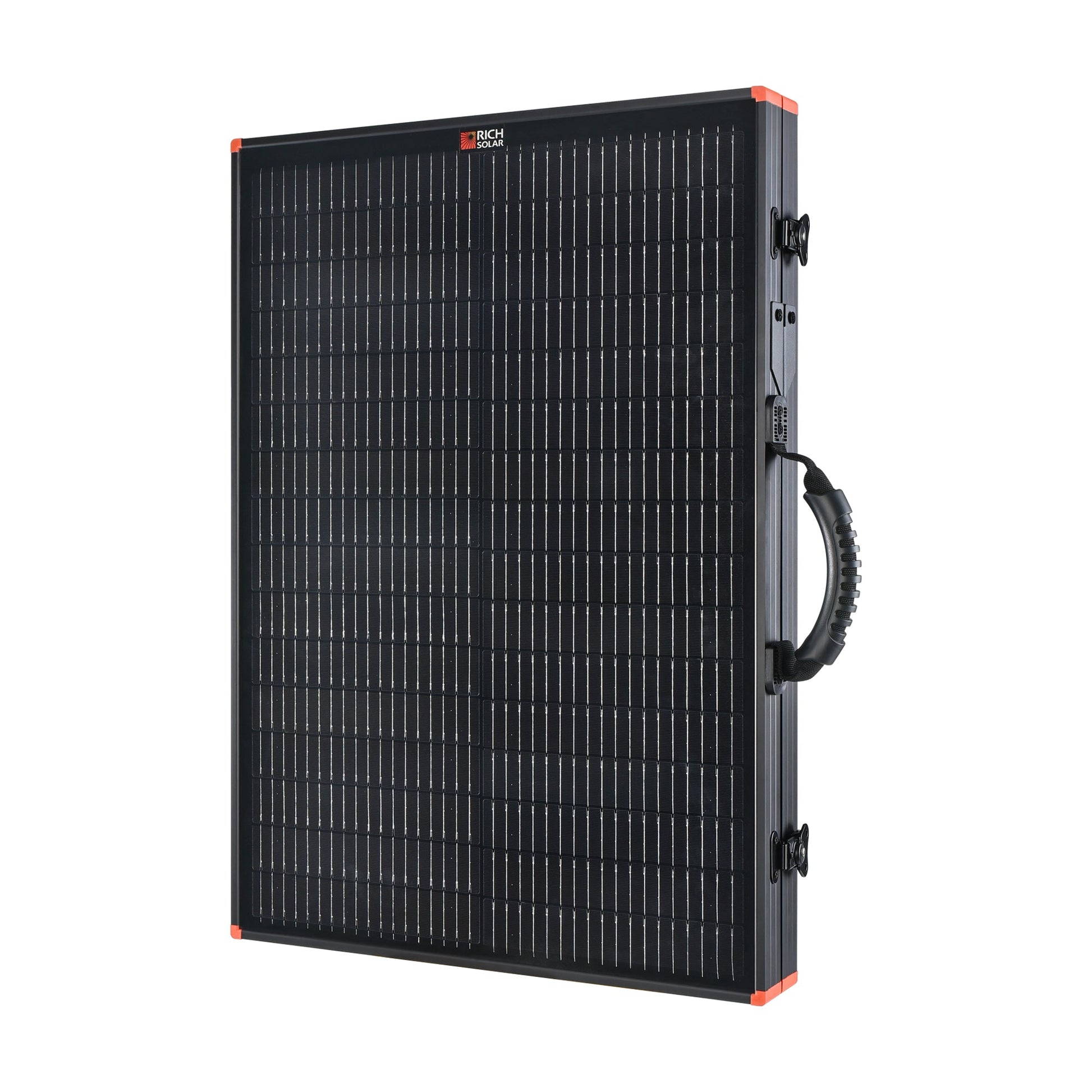

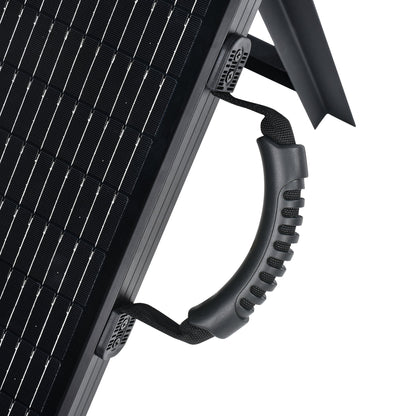

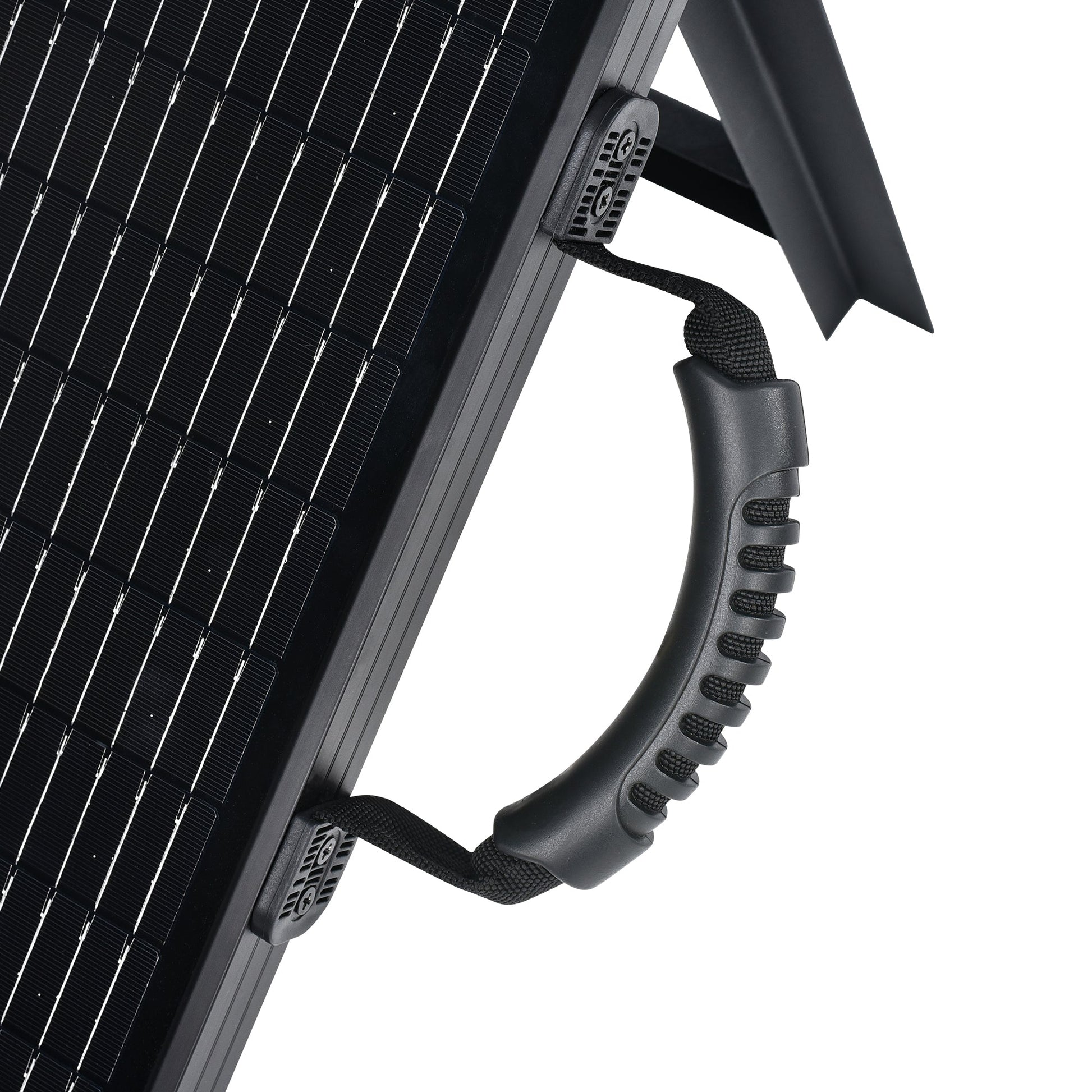

• A carrying handle and 15.7 lb total weight make it a one-hand carry from vehicle to campsite.
• If you already own a charge controller or you are feeding a power station with its own MPPT input, the panel-only MEGA 100 Portable Briefcase costs less and does the same job.

Setup

• Unfold, extend the kickstands, and aim the face at the sun. Re-aim every few hours for best output.

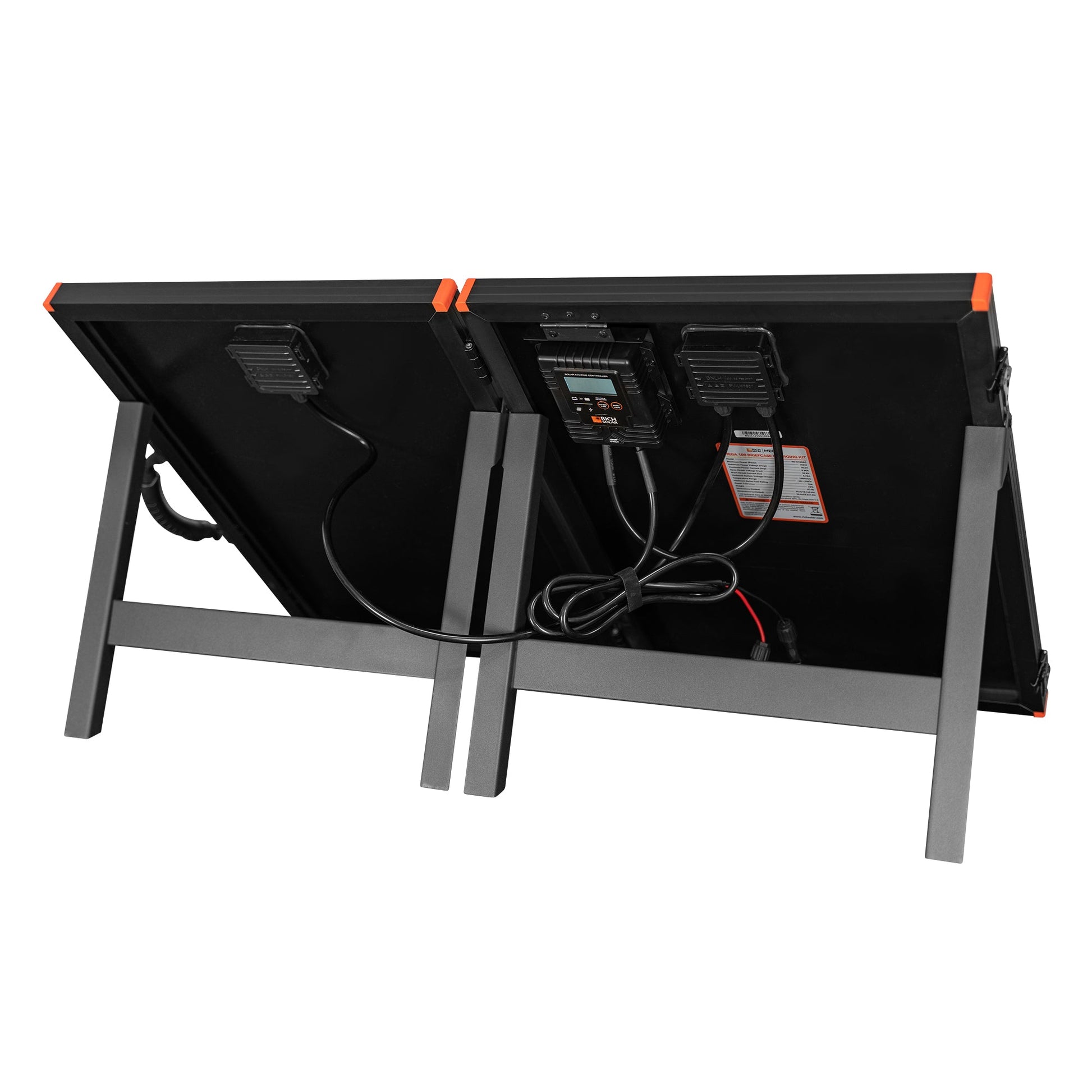

• Five-foot 12 AWG leads with MC4 connectors run from panel to controller.
• Controller output connects to a 12V lead-acid, AGM or lithium battery. Check your lithium BMS charge profile before connecting.
• Fold flat and stow when you break camp; the frame protects the glass but the panel is not meant to be walked on.

Warranty

• 25 years on rated power output.
• 10 years on materials and workmanship.
