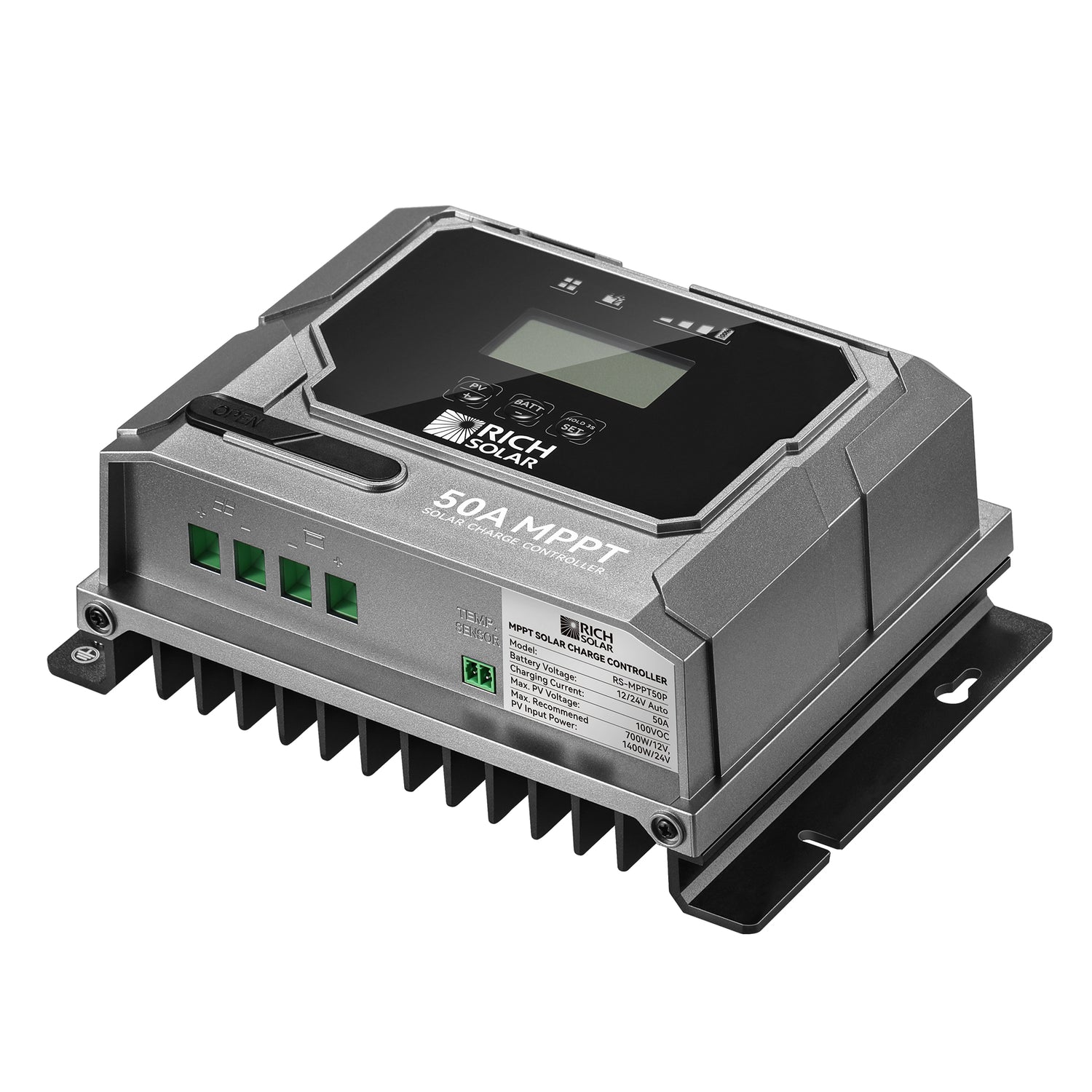

A 50-amp, 12V/24V MPPT charge controller with built-in Bluetooth
The BRAVO 50 is Rich Solar's 50-amp MPPT charge controller for 12V and 24V batteries. It detects system voltage automatically, accepts up to 100V open-circuit voltage and is rated at more than 99.5% MPPT tracking efficiency.
Built-in Bluetooth links it to a smartphone app, and the LCD shows solar input and battery status. It supports eight lead-acid and lithium battery types plus custom settings, and Rich Solar recommends up to 700W of solar at 12V or 1,400W at 24V.
Efficient solar charging
The BRAVO 50 uses a true MPPT algorithm with multi-peak detection to keep tracking well in changing sun or partial shade.
- More than 99.5% MPPT tracking efficiency
- Up to 98% charge conversion efficiency
- Recommended PV: 700W at 12V, 1,400W at 24V
Flexible system compatibility
It detects a 12V or 24V system automatically and accepts up to 100V open-circuit voltage from the solar array.
- 12V/24V auto-detection
- 100V max PV open-circuit voltage
- Crystal, GEL, AGM, flooded, calcium, LCO, LFP and LTO batteries
- Custom charge parameter settings
Smart monitoring
Built-in Bluetooth lets you check real-time charging status from a smartphone app.

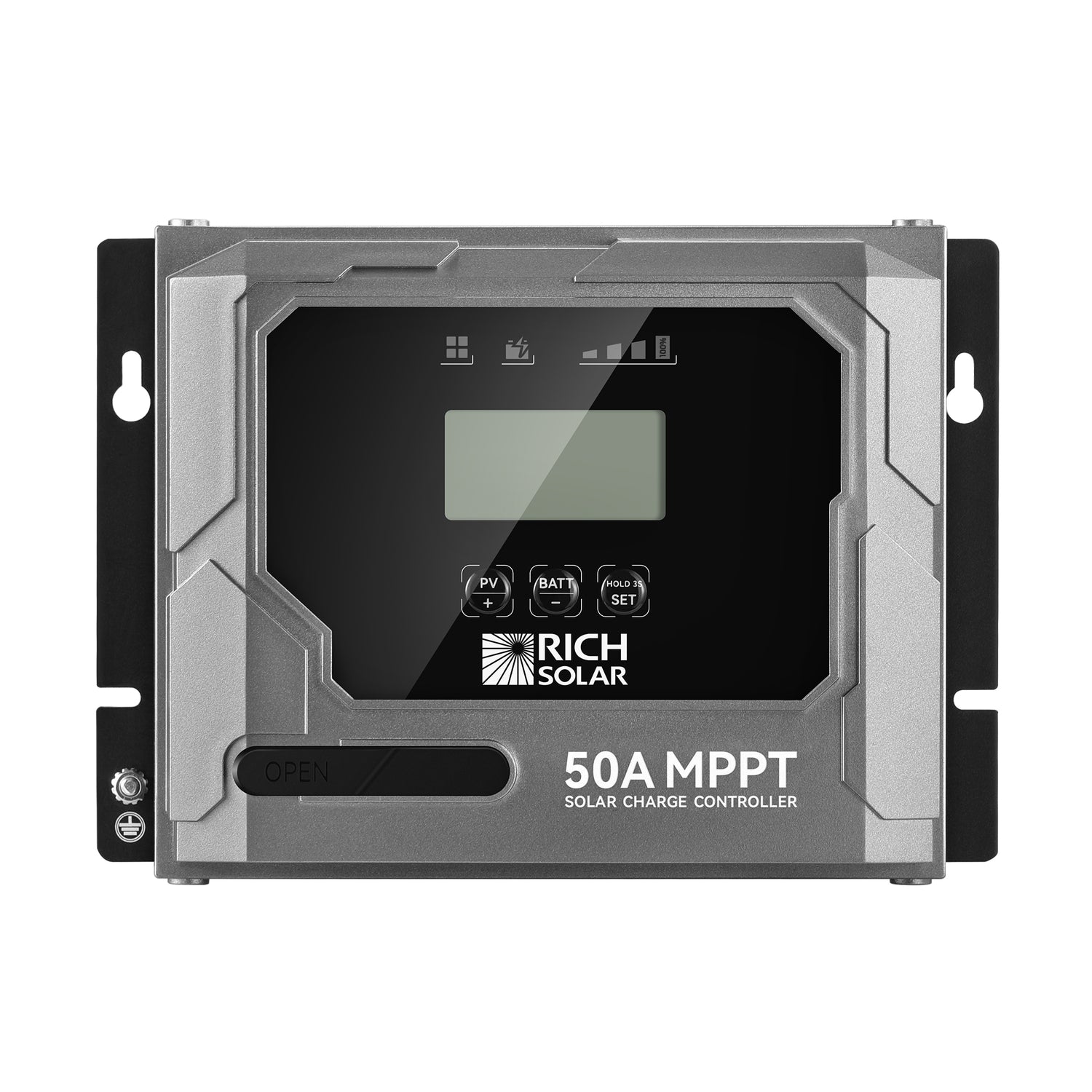

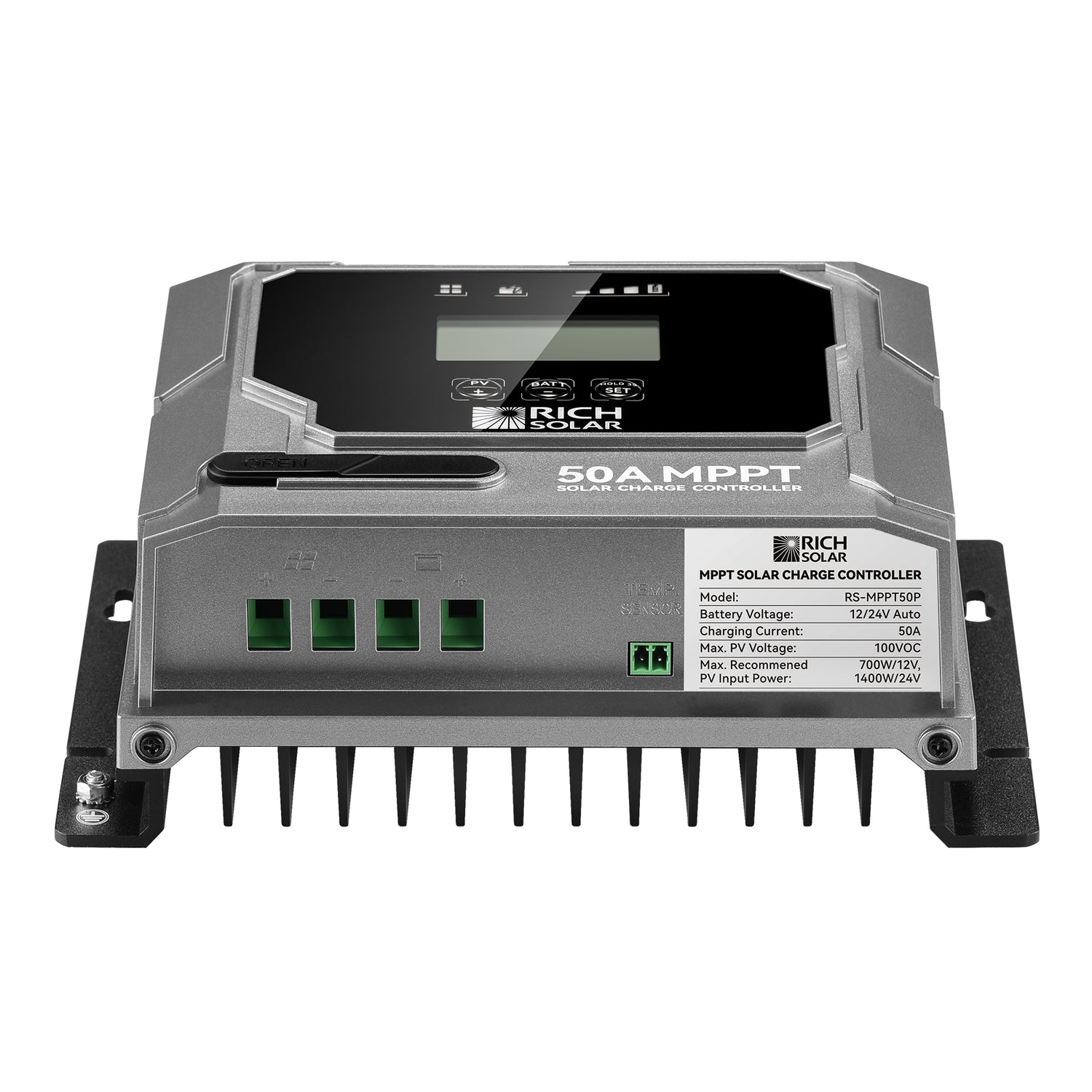

- LCD shows solar input, battery status and system settings
- LED bar and transparent window indicators
- Charging data storage
- Optional remote meter and battery temperature sensor
Comprehensive reliability
Electronic protection and a conformal-coated circuit board help the BRAVO 50 hold up in demanding environments.
- Over-voltage and reverse-discharge protection
- Common negative ground design
- Deep-discharge battery recovery/restart function
- Rubber-masked connector protection
Specs, images and product claims on this page come from Rich Solar's BRAVO 50 product page and June 2025 spec sheet. Last checked Oct 30, 2026.
Specifications
From Rich Solar's published specifications for model RS-MPPT50P.
PV input
| Max PV open-circuit voltage | 100V DC |
|---|---|
| Max PV charging current | 50A |
| Recommended PV input power | 700W @ 12V / 1,400W @ 24V |
| Charging technology | MPPT with multi-peak detection |
| MPPT tracking efficiency | >99.5% |
| Charge conversion efficiency | Up to 98% |
Battery & charging
| Nominal system voltage | 12V/24V auto-detect |
|---|---|
| Rated charge current | 50A |
| Lead-acid battery types | GEL, AGM, WET, Crystal, Calcium |
| Lithium battery types | LiFePO₄ (LFP), LTO, LCO |
| Custom settings | Custom charge parameters |
| Battery recovery | Deep-discharge battery recovery/restart function |
| Temperature sensor | Optional external battery temperature sensor |
Protection & features
| Electronic protection | Over-voltage, reverse discharge |
|---|---|
| Grounding | Common negative |
| Circuit board | Conformal coated |
| Connectors | Rubber-masked connector protection |
| Display | LCD with LED bar and transparent window indicators |
| Bluetooth | Built in |
| Data | Charging data storage |
Physical & certification
| Dimensions (L × W × H) | 7.7 × 5.5 × 2.9 in (195 × 140 × 74 mm) |
|---|---|
| Net weight | 3.09 lb (1.40 kg) |

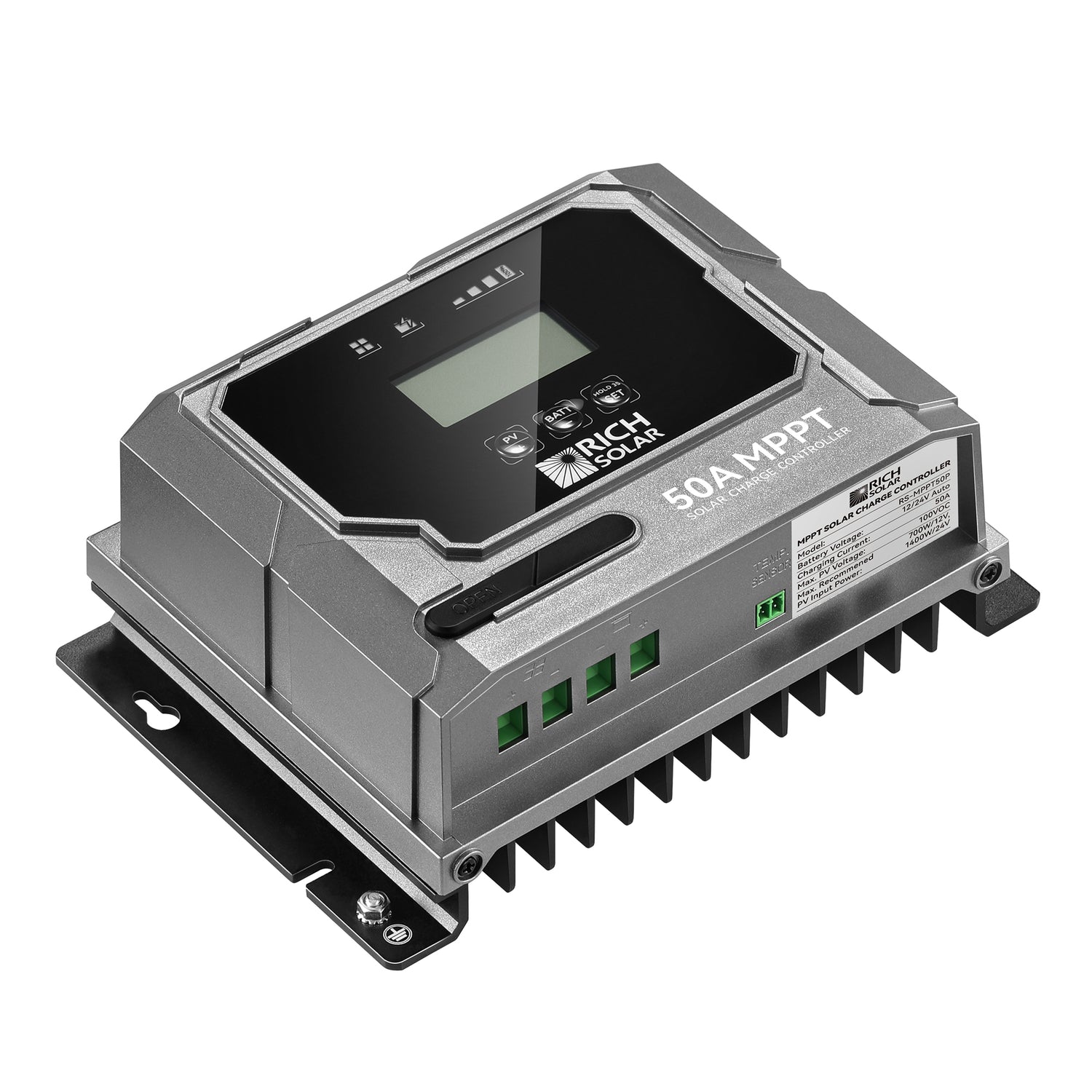

| Housing color | Black / grey |
| Protection rating | IP43 (PCBA), IP22 (connectors) |
| Warranty | 2-year (prorated) |
| Model / SKU | RS-MPPT50P |

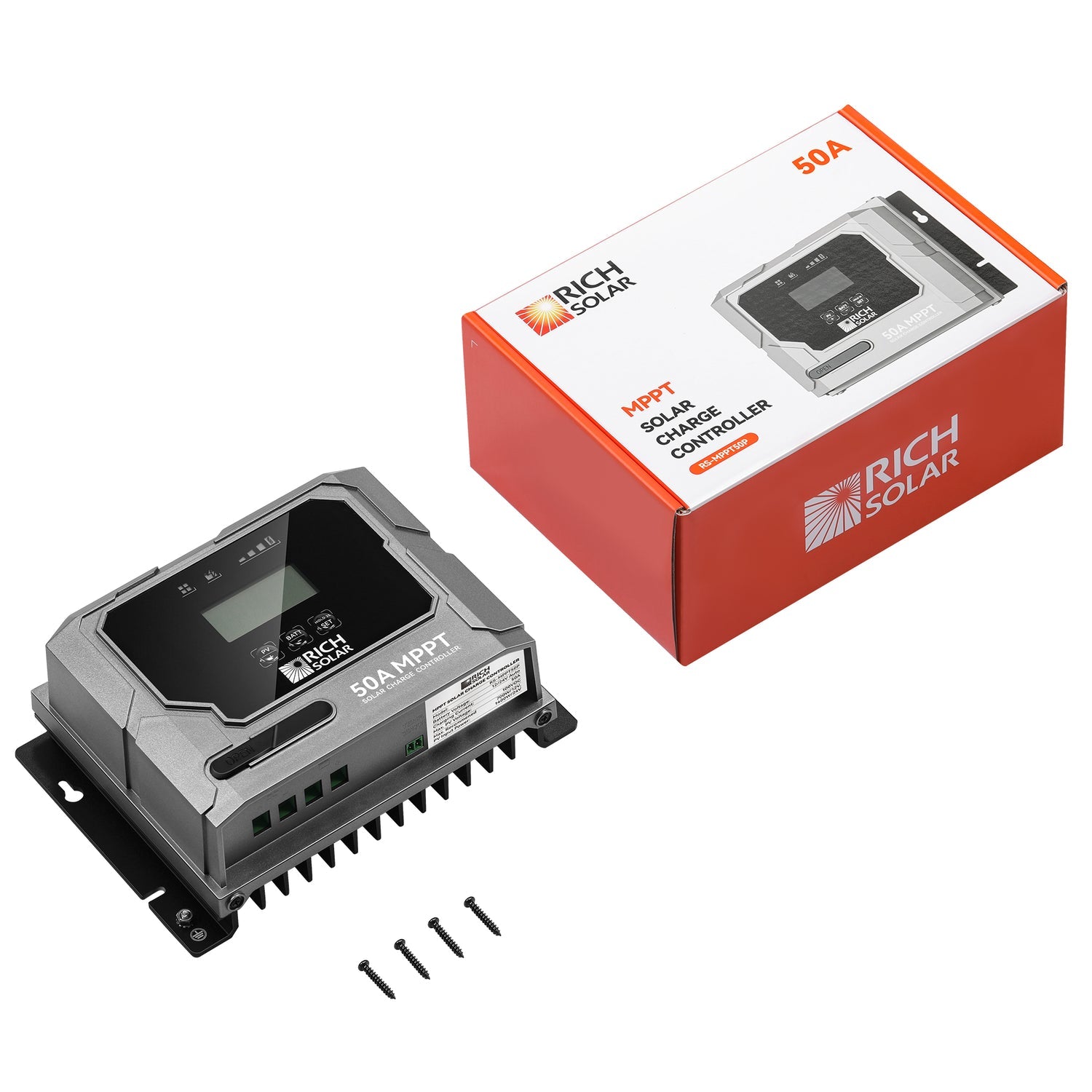

What's in the box
