A 30-amp, 12V/24V MPPT charge controller with built-in Bluetooth
The BRAVO 30 is Rich Solar's 30-amp MPPT charge controller for 12V and 24V batteries. It detects system voltage automatically, accepts up to 100V open-circuit voltage and is rated at 99.5% or better MPPT tracking efficiency.
Built-in Bluetooth connects to the RICH SOLAR app, and the LCD shows solar input and battery status. It charges lithium and lead-acid batteries, mounts indoors on a vertical surface, and Rich Solar recommends up to 500W of solar at 12V or 1,000W at 24V.
Efficient solar charging
The BRAVO 30's MPPT algorithm with multi-peak tracking harvests more solar energy as sunlight changes or panels are partly shaded.
- 99.5% or better MPPT tracking efficiency
- Up to 98% charge conversion efficiency
- Recommended PV: 500W at 12V, 1,000W at 24V
Flexible system compatibility
It detects a 12V or 24V system automatically and accepts up to 100V open-circuit voltage from the solar array.
- 12V/24V auto-detection
- 100V max PV open-circuit voltage
- Crystal, GEL, AGM, flooded, calcium, LCO, LFP and LTO batteries
- Custom profile for user-defined battery settings
Smart monitoring
Built-in Bluetooth shows real-time charging status in the RICH SOLAR app.
- LCD shows solar input, battery voltage/current, capacity and SOC
- Multi-stage charging for lead-acid and lithium batteries
- Optional remote meter and battery temperature sensor
Comprehensive reliability
Electronic protection and a conformal-coated circuit board help the BRAVO 30 hold up in demanding environments.
- Certified to UL 1741, FCC, CE and RoHS standards
- Over/under-charge, reverse polarity, short-circuit, thermal protection
- Conformal-coated circuit board with common-negative design
Specs, images and product claims on this page come from Rich Solar's BRAVO 30 product page and August 2026 spec sheet. Last checked Oct 30, 2026.
Specifications
From Rich Solar's published specifications for model RS-MPPT30P.
PV input
| Max PV open-circuit voltage | 100V DC |
|---|---|
| Max PV input current | 30A |
| Solar input voltage range | 8–100V DC |
| MPPT voltage range | 15–72V DC |
| Recommended PV power | 500W @ 12V / 1,000W @ 24V |
| MPPT tracking efficiency | ≥99.5% |
| Conversion efficiency | Up to 98% |
Battery & charging
| Nominal system voltage | 12V/24V auto-detect |
|---|---|
| Rated charge current | 30A |
| Battery types | LCO, LFP, LTO, Crystal, Gel, AGM, Flooded, Calcium, Custom |
| Charging algorithm | 5-stage (lead-acid), 4-stage (lithium) |
| Absorption voltage @ 77°F (12V) | LFP 14.2V, AGM 14.4V, Flooded 14.7V |
| Float voltage @ 77°F (12V) | 13.6V |
| Equalization (Flooded/Calcium only) | 15.5V |
| Temperature compensation | -24mV/°C |
Protection & features
| Built-in protection | Over-charge, under-charge, reverse polarity, short circuit, over-temperature |
|---|---|
| Lithium override | Activates deeply discharged or BMS-protected lithium packs |
| Display | LCD: solar input, battery voltage/current, capacity, SOC |
| Bluetooth | Built in, RICH SOLAR app |

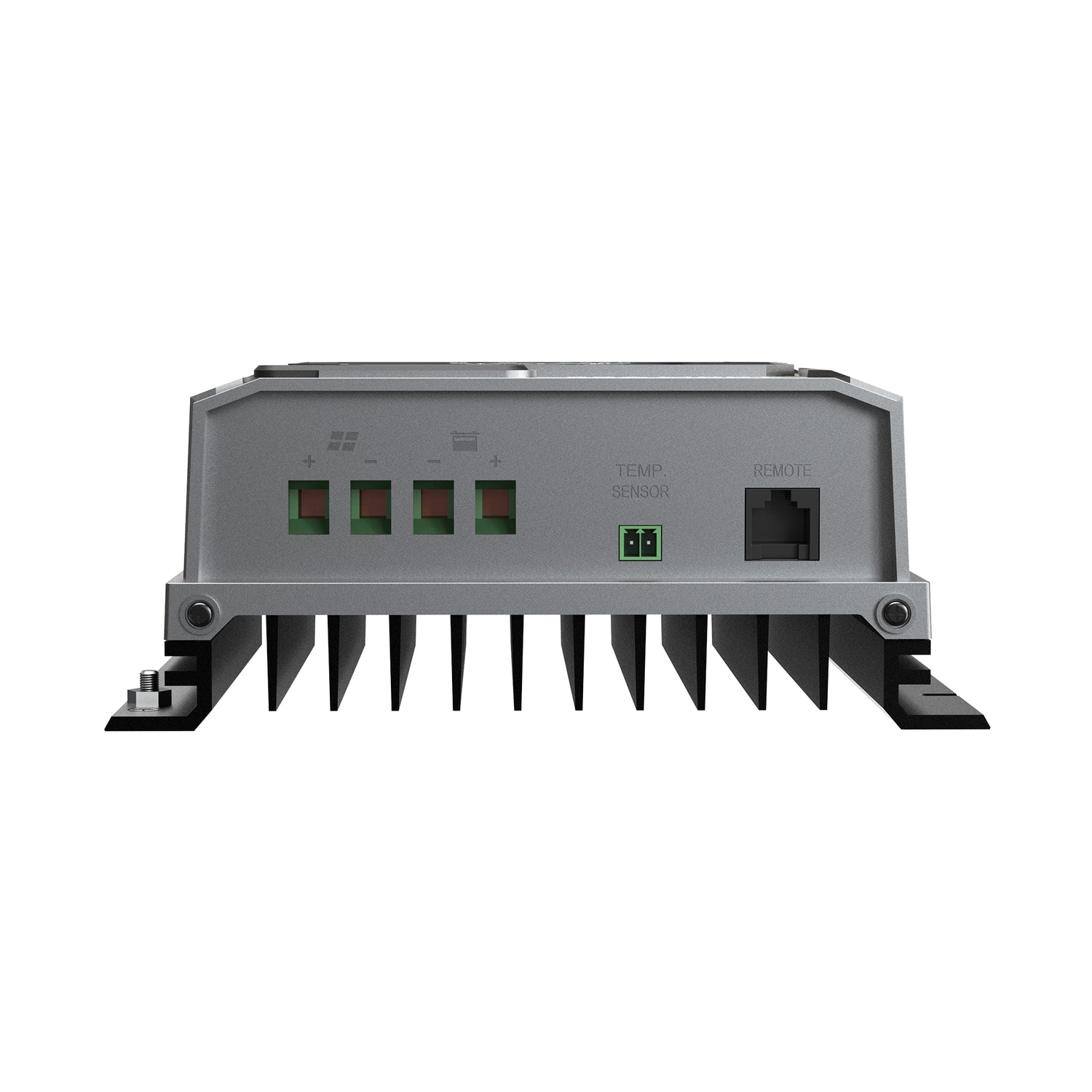

| Terminals | Rated 50A connector |
| Optional accessories | Remote meter, external temperature sensor |
| Circuit board | Conformal coated, common-negative design |
Physical & certification
| Dimensions (L × W × H) | 7.0 × 5.5 × 2.9 in |
|---|---|
| Net weight | 1.8 lb |
| Package dimensions | 10 × 7 × 5 in |
| Gross weight | 4 lb |
| Protection rating | IP43 (PCBA), IP22 (connectors) |

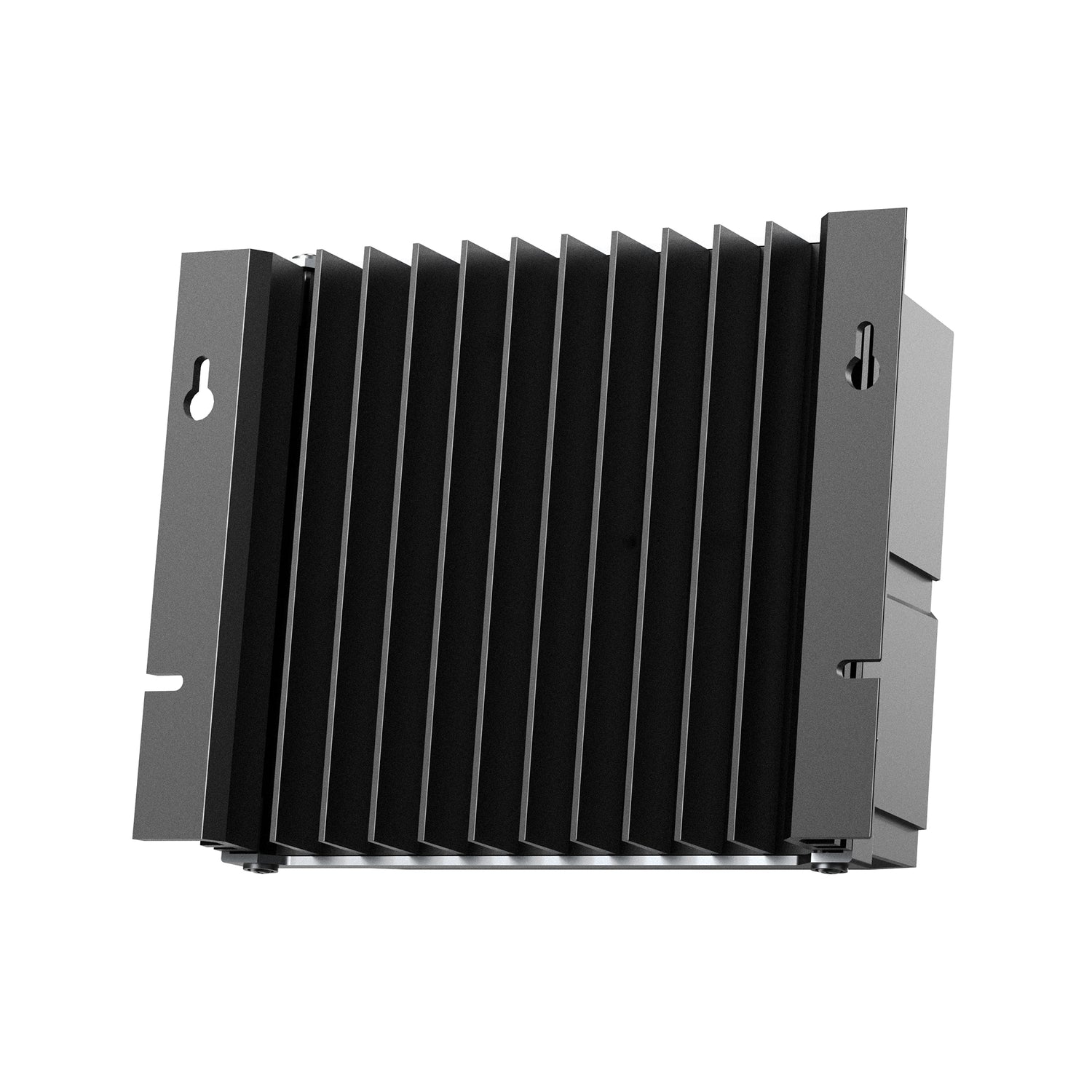

| Mounting | Indoor, vertical surface |
| Operating temperature | -13°F to 122°F |
| Certification | ETL listed to UL 1741 and CSA C22.2 No. 107.1; FCC, CE, RoHS |
| Warranty | 2-year (prorated) |
| Model / SKU | RS-MPPT30PB / RS-MPPT30P |

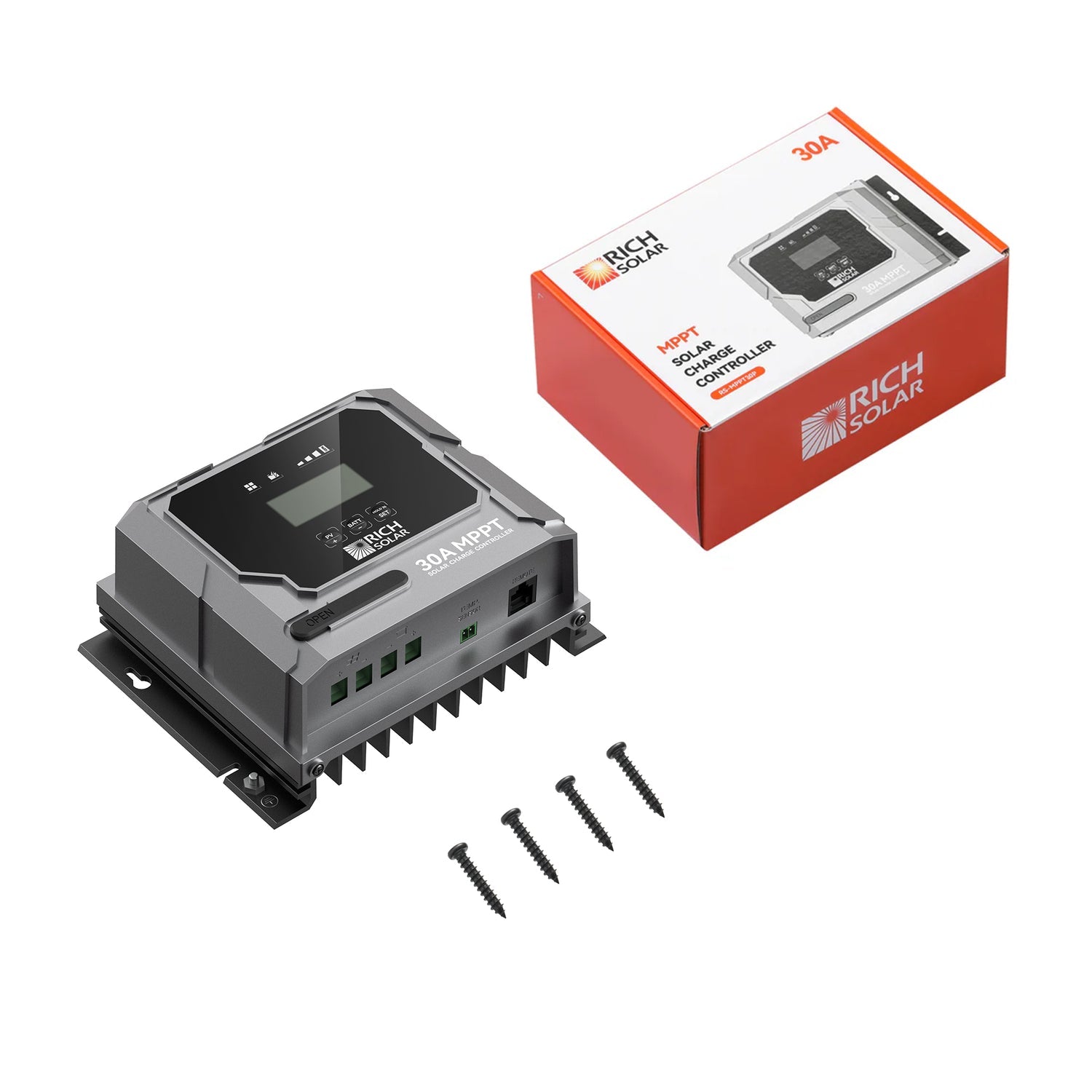

What's in the box
