A 48-volt, 100Ah server rack battery for home and off-grid storage
The ALPHA 5 is Rich Solar's 48V 100Ah LiFePO₄ server rack battery. Each module stores 4,800Wh and supports up to 100A of charge and discharge current, with less than 3% self-discharge per month.

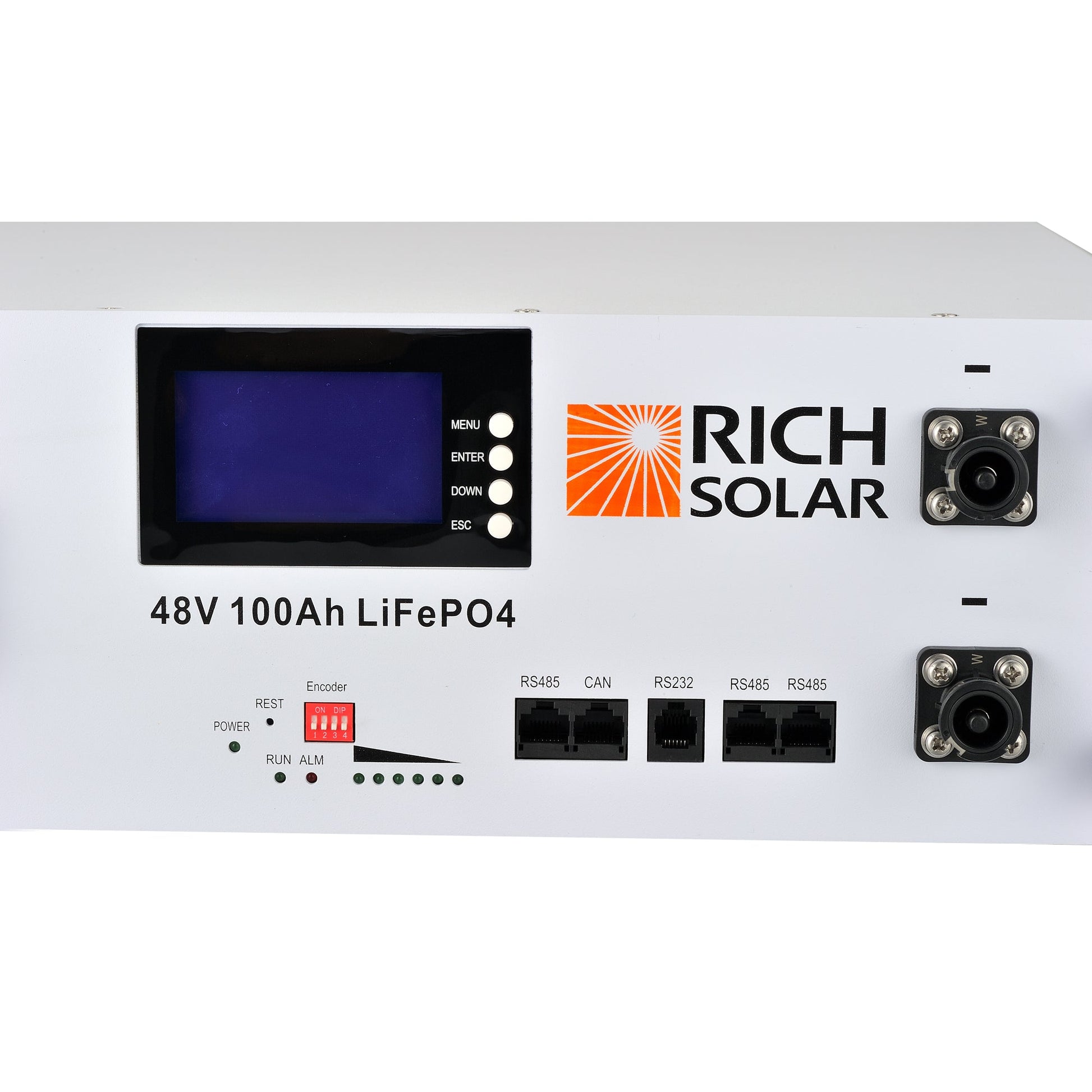

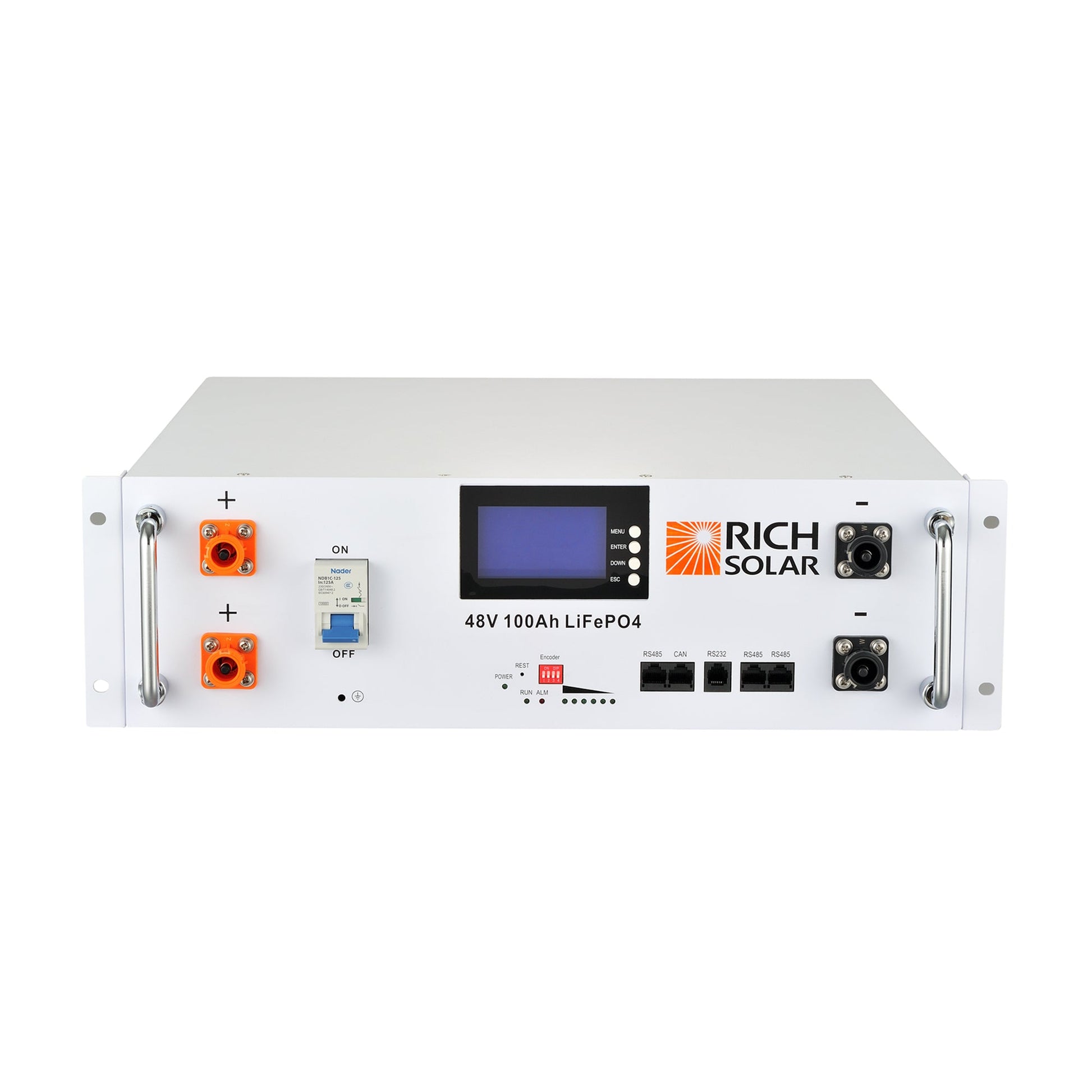

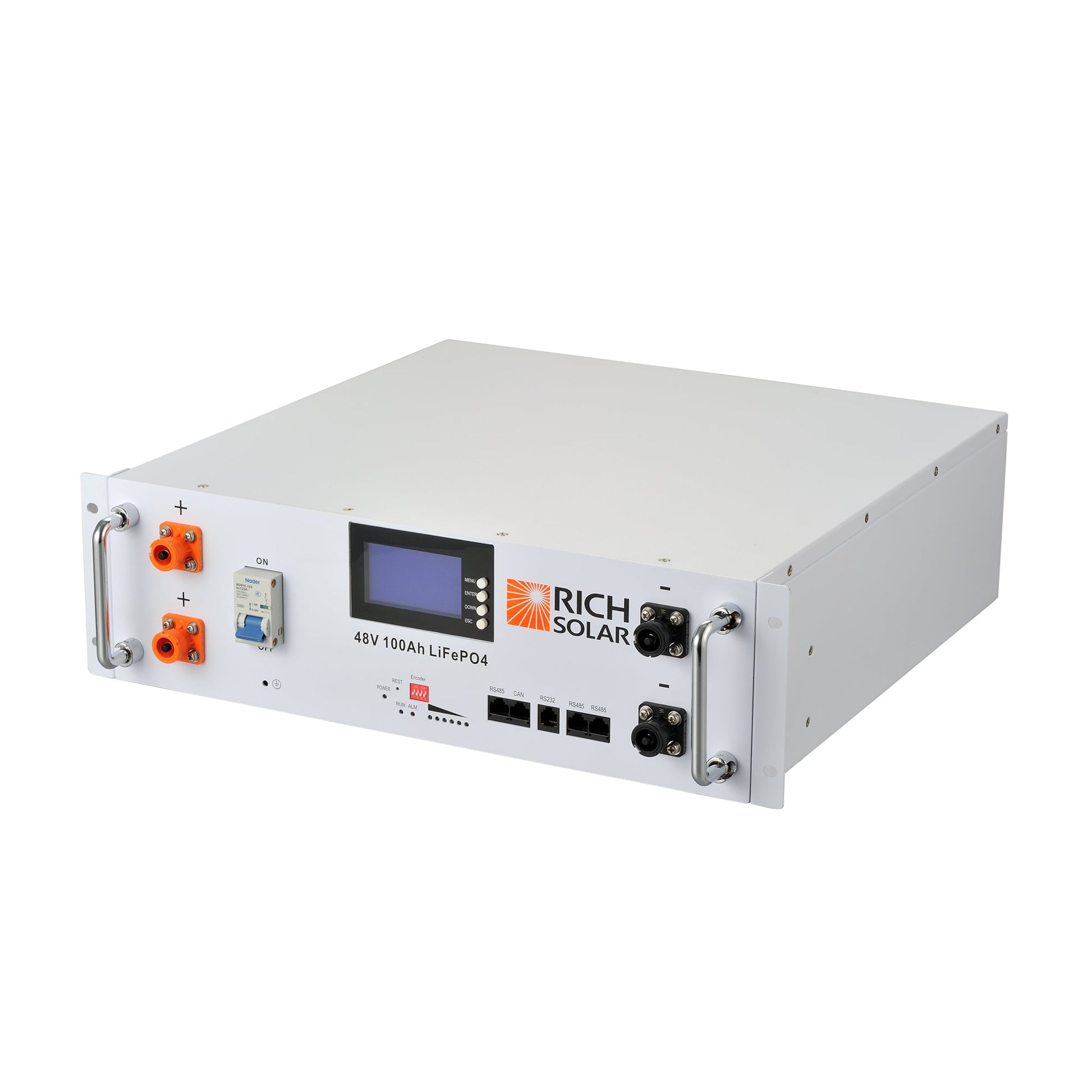

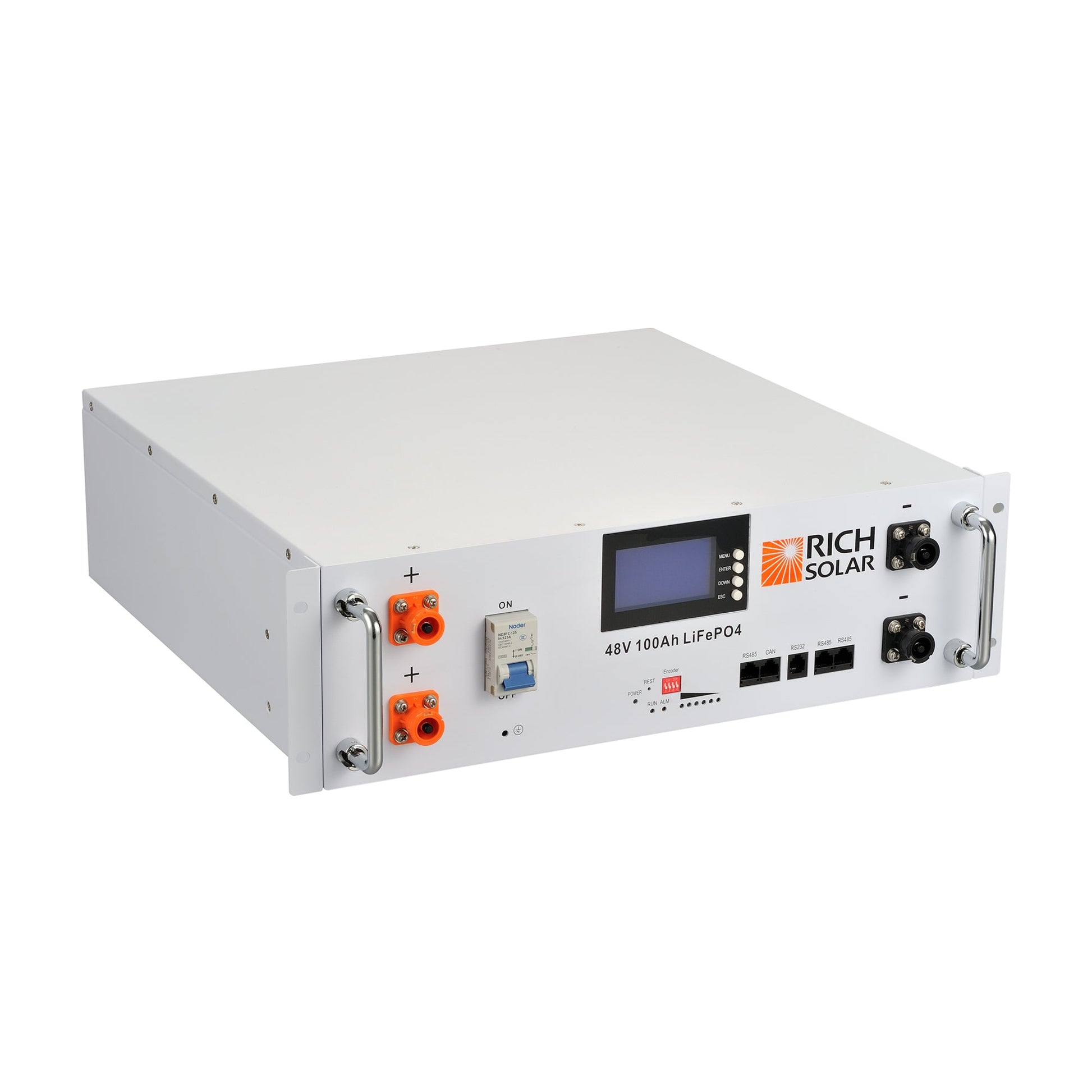

A built-in smart BMS protects against overcharge, over-discharge, overcurrent, short circuits and temperature extremes. The front panel has an LCD display, a DC circuit breaker and RS485, RS232 and CAN ports for inverter communication, and batteries can be connected in parallel for residential, commercial and off-grid storage.
High-performance LiFePO₄ cells
Grade A LiFePO₄ cells give each 48V module 4,800Wh of storage.
- 100Ah rated capacity (95Ah minimum)
- Less than 3% self-discharge per month
Intelligent battery management
A built-in smart BMS protects against overcharge, over-discharge, overcurrent, short circuits and temperature extremes.
- LCD display on the front panel

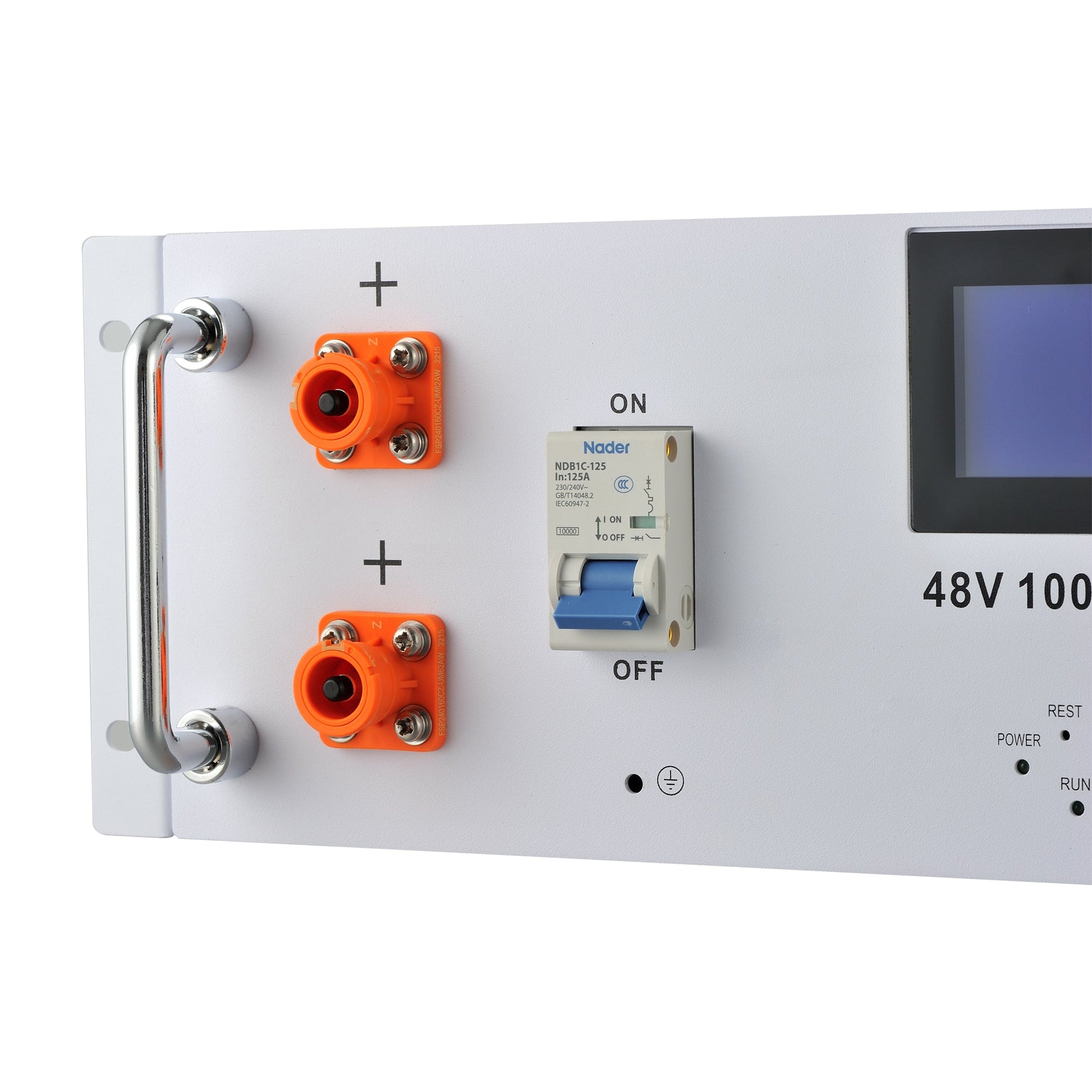

- DC circuit breaker and start switch
- Charging stops below 32°F and above 149°F
Flexible system integration

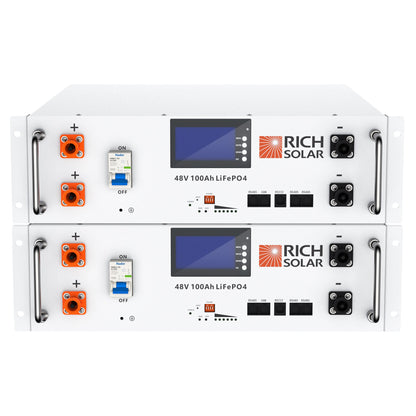

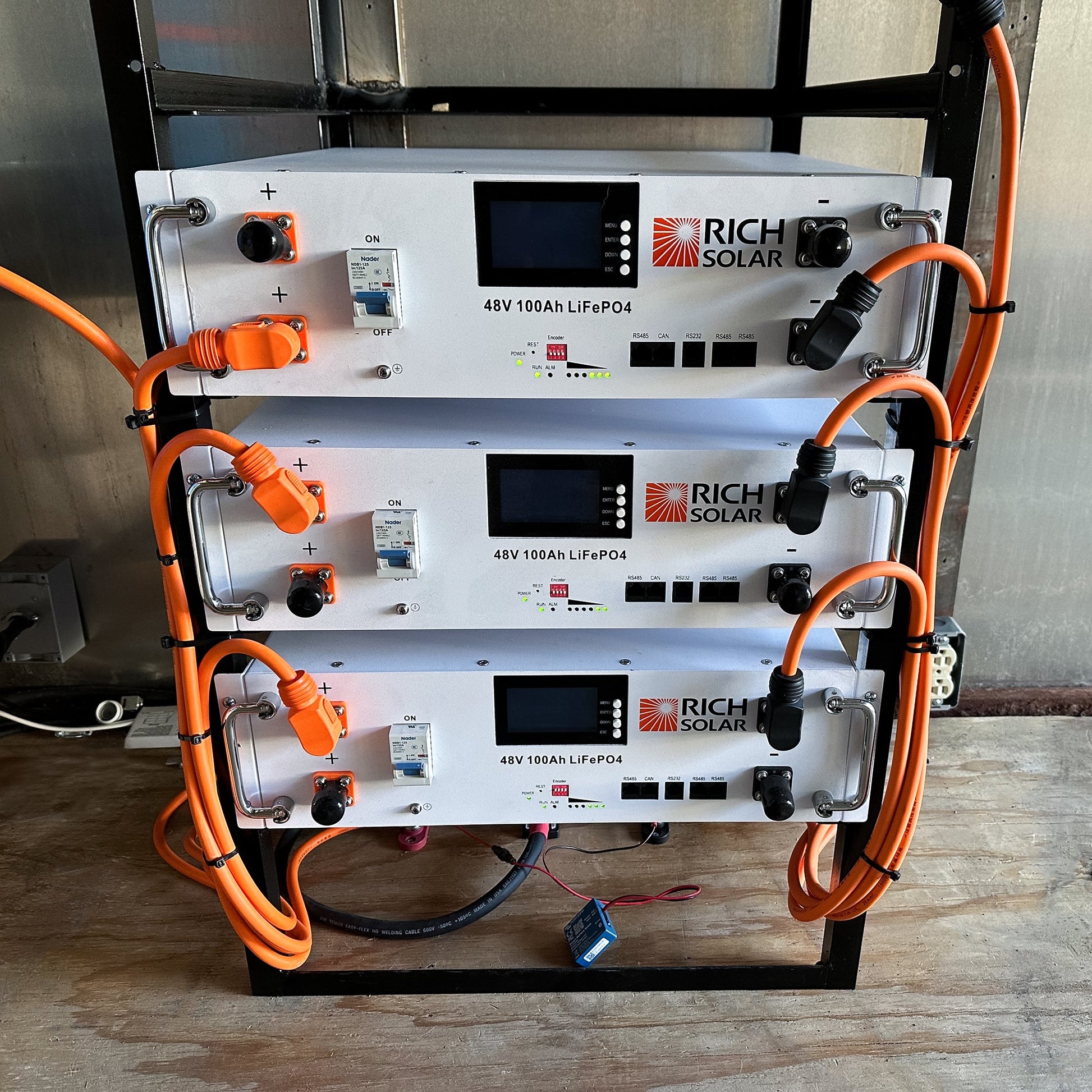

Connect batteries in parallel for more capacity, with RS485, RS232 and CAN ports for inverter communication.
- 1 ft RS485 communication cable included
- Parallel cables included with each battery
- Supports multiple inverter protocols
Rugged and reliable design
A sheet-metal case sized for rack-mounted installations, with a 20-year design life per Rich Solar.
- 19.0 × 17.7 × 5.2 in, 92.6 lb
- IP21 rated
- UN 38.3 and MSDS certified
Specs, images and product claims on this page come from Rich Solar's ALPHA 5 product page and spec sheet. Last checked Oct 30, 2026.
Specifications
From Rich Solar's published specifications for model RS-B4811.
Battery
| Nominal voltage | 48V |
|---|---|
| Rated capacity | 100Ah (25°C, 0.3C) |
| Minimum capacity | 95Ah |
| Nominal energy | 4,800Wh |
| Cell chemistry | LiFePO₄, 15S1P |
| Cycle life | ≥4,000 (25°C, 0.2C/0.2C, 80% DoD) |
| Self-discharge | <3% per month |
| Internal resistance | ≤30mΩ |
Charge & discharge
| Charge voltage | 52.5V |
|---|---|
| Discharge cutoff voltage | 39V |
| Rated charge current | ≤30A |
| Max charge current | 100A |
| Max discharge current | 100A |
| Parallel expansion | Yes |
| Communication | RS485 / RS232 / CAN |
| Inverter compatibility | Supports multiple protocol options |
Environment
| Charge temperature | 32°F to 113°F |
|---|---|
| Discharge temperature | -4°F to 122°F |
| Storage temperature | -4°F to 122°F |
| BMS charging temperature protection | Below 32°F (0°C), above 149°F (65°C) |
| BMS discharge temperature protection | Below -4°F (-20°C), above 158°F (70°C) |
| Internal heating | No |
| Ingress protection | IP21 |
Physical & certification
| Dimensions | 19.0 × 17.7 × 5.2 in (483 × 450 × 133 mm) |
|---|---|
| Weight | 92.6 lb (42 kg) |
| Package dimensions | 22 × 21 × 10 in |
| Case | Sheet metal shell |
| Display | LCD |
| Circuit breaker | Yes, DC circuit breaker |
| Certifications | UN 38.3, MSDS |
| Warranty | 5-year (prorated) |
| Model / SKU | RS-B4811 (1 battery) |
