An adjustable solar panel tilt mount for roofs and flat surfaces

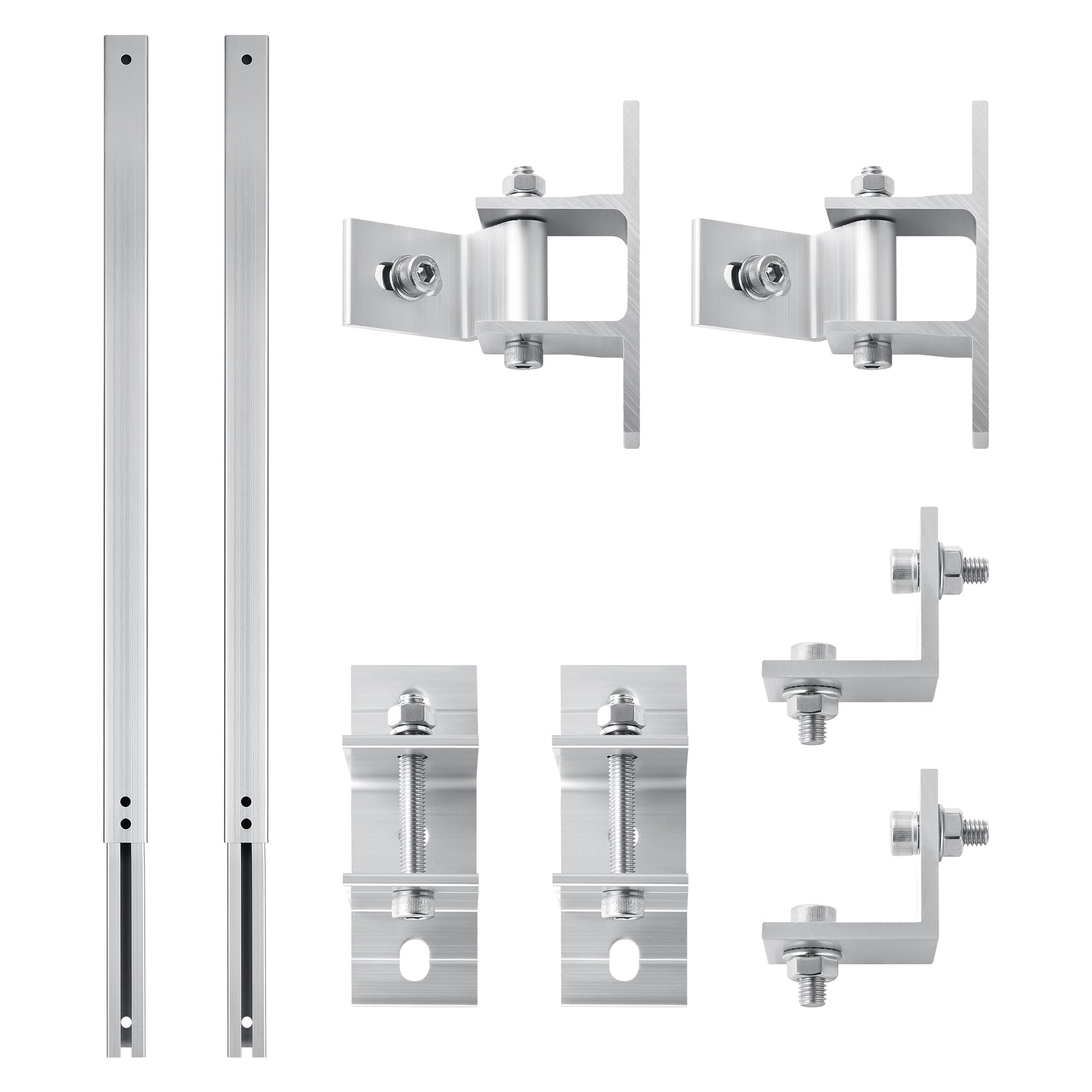

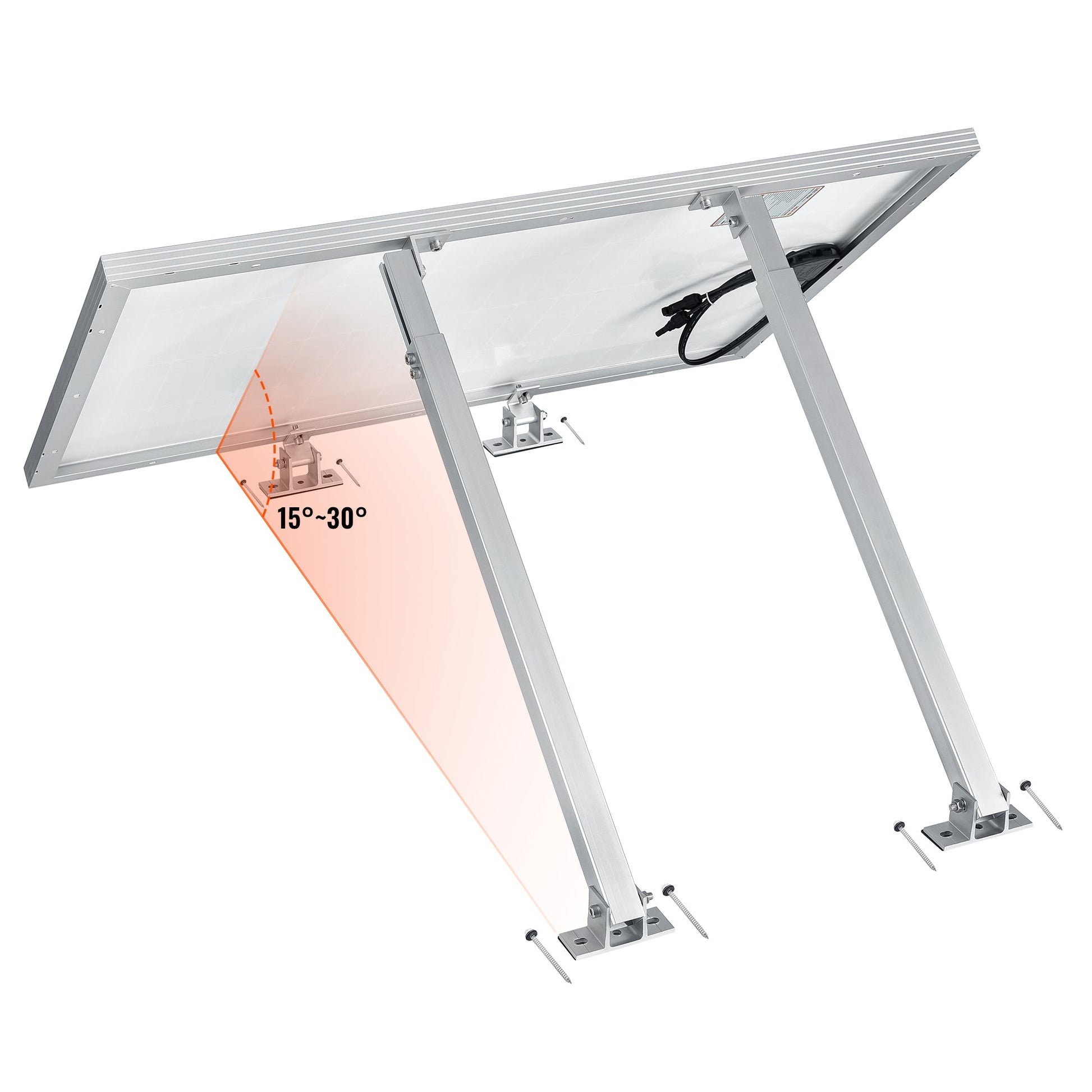

Rich Solar's adjustable tilt mount raises a solar panel on front and telescoping rear legs, designed for Rich Solar MEGA series panels. The RS-TM4 tilts 15–30° with 14.2 in legs, and the RS-TM6 tilts 30–60° with 26.0 in legs.

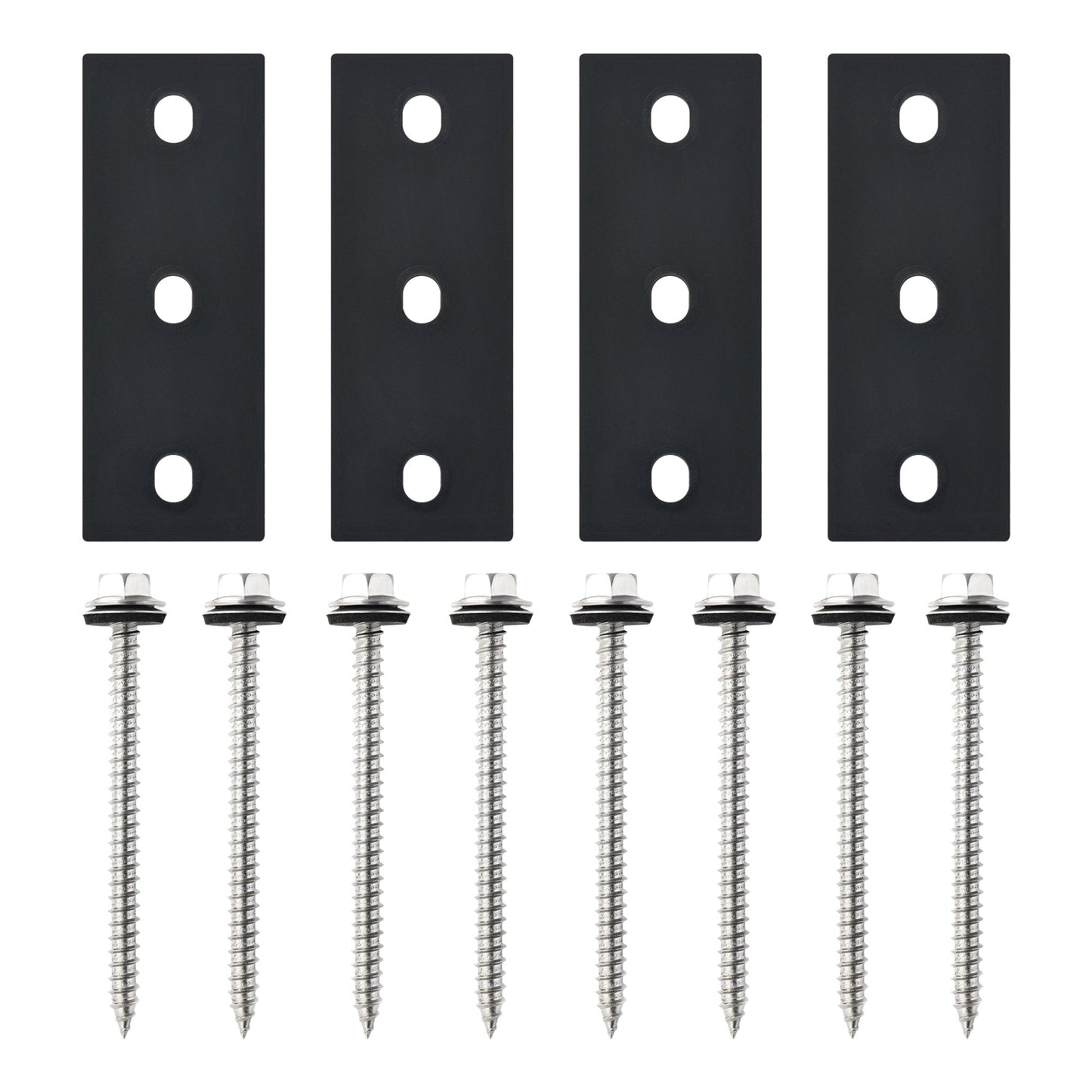

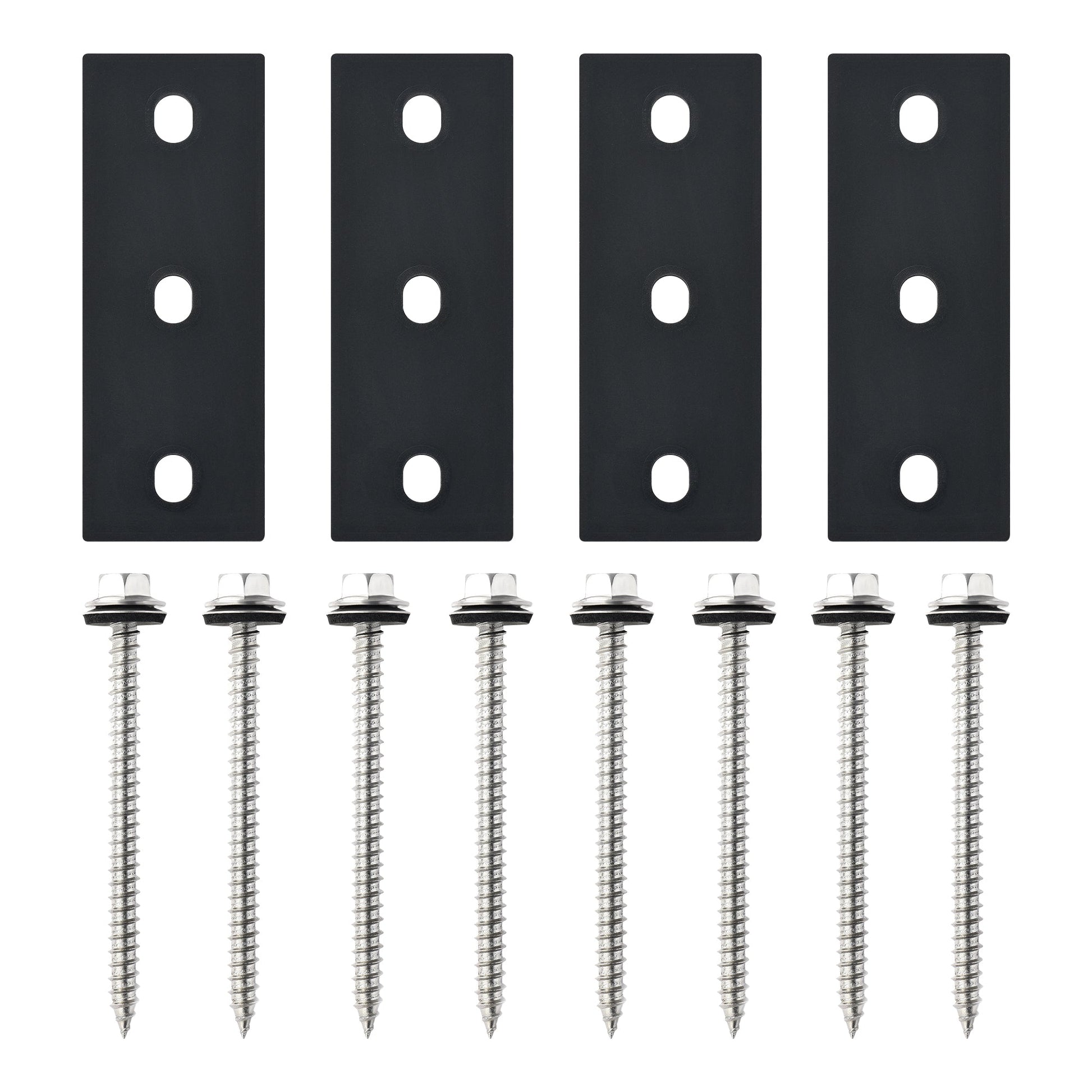

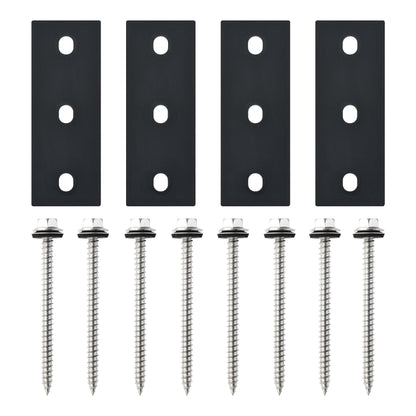

Preassembled bolts attach the aluminum alloy legs to the panel frame, locking bolts hold the chosen angle, and the included ST6.3 × 3 1/8 in (80 mm) screws and rubber washers fix it to flat surfaces and roofs.

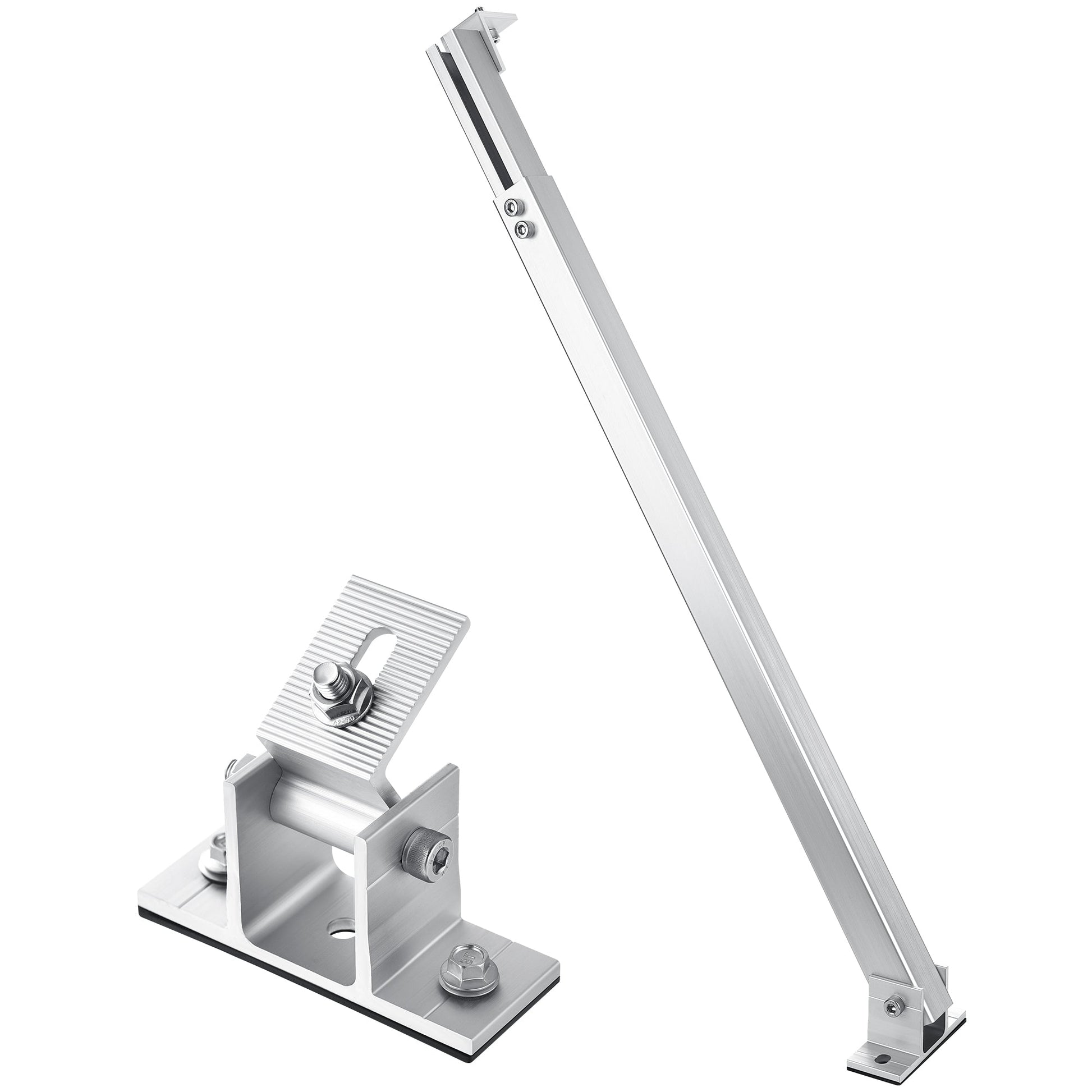

Adjustable tilt with telescoping rear legs
Telescoping rear legs set the panel angle, and locking bolts hold the selected tilt position.

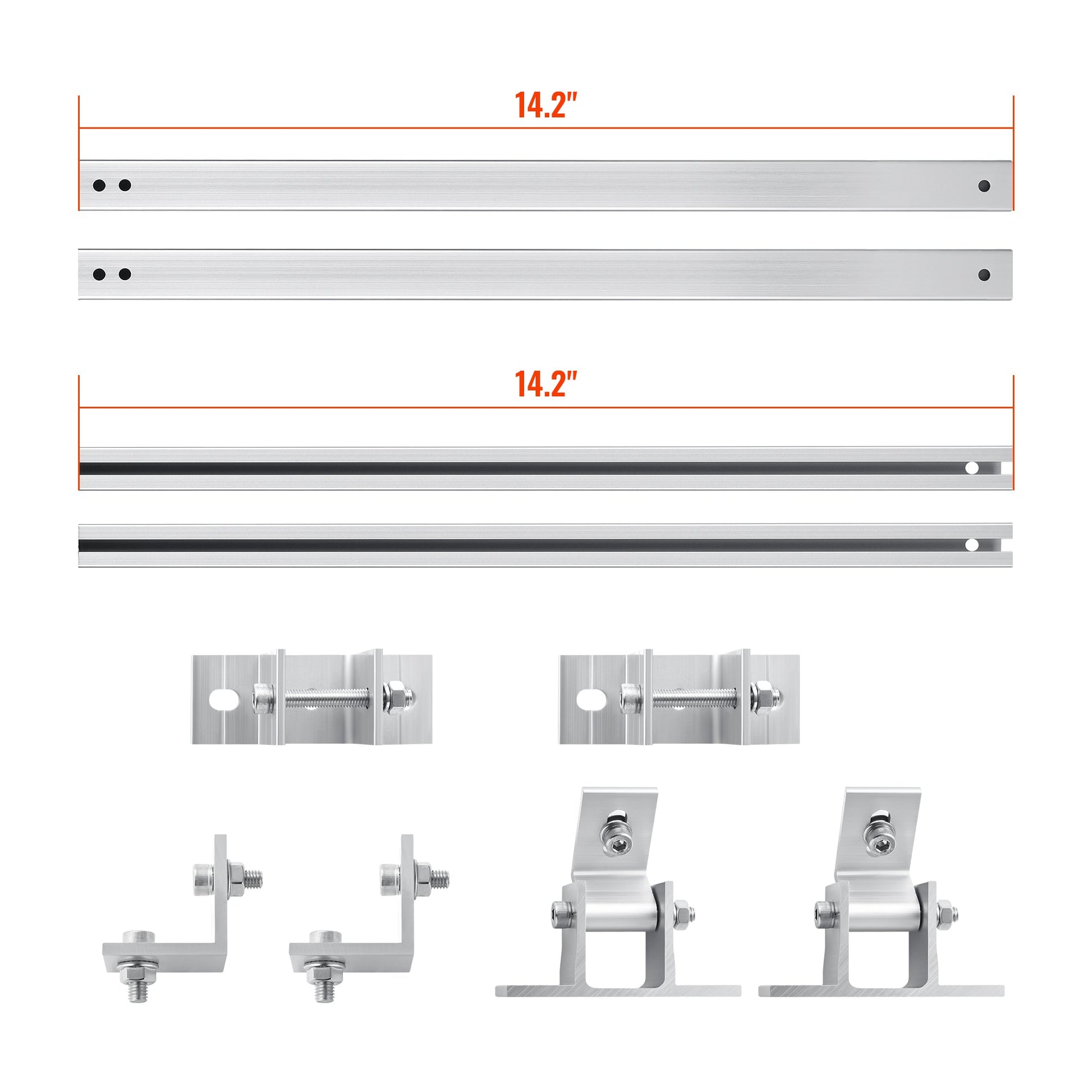

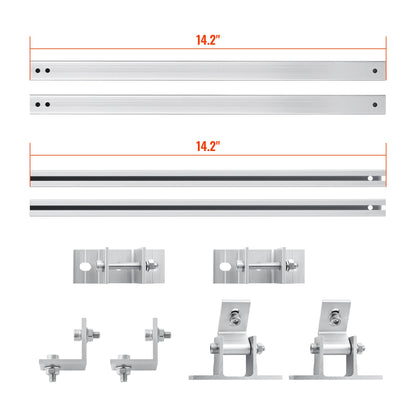

- RS-TM4: 15–30° with 14.2 in legs

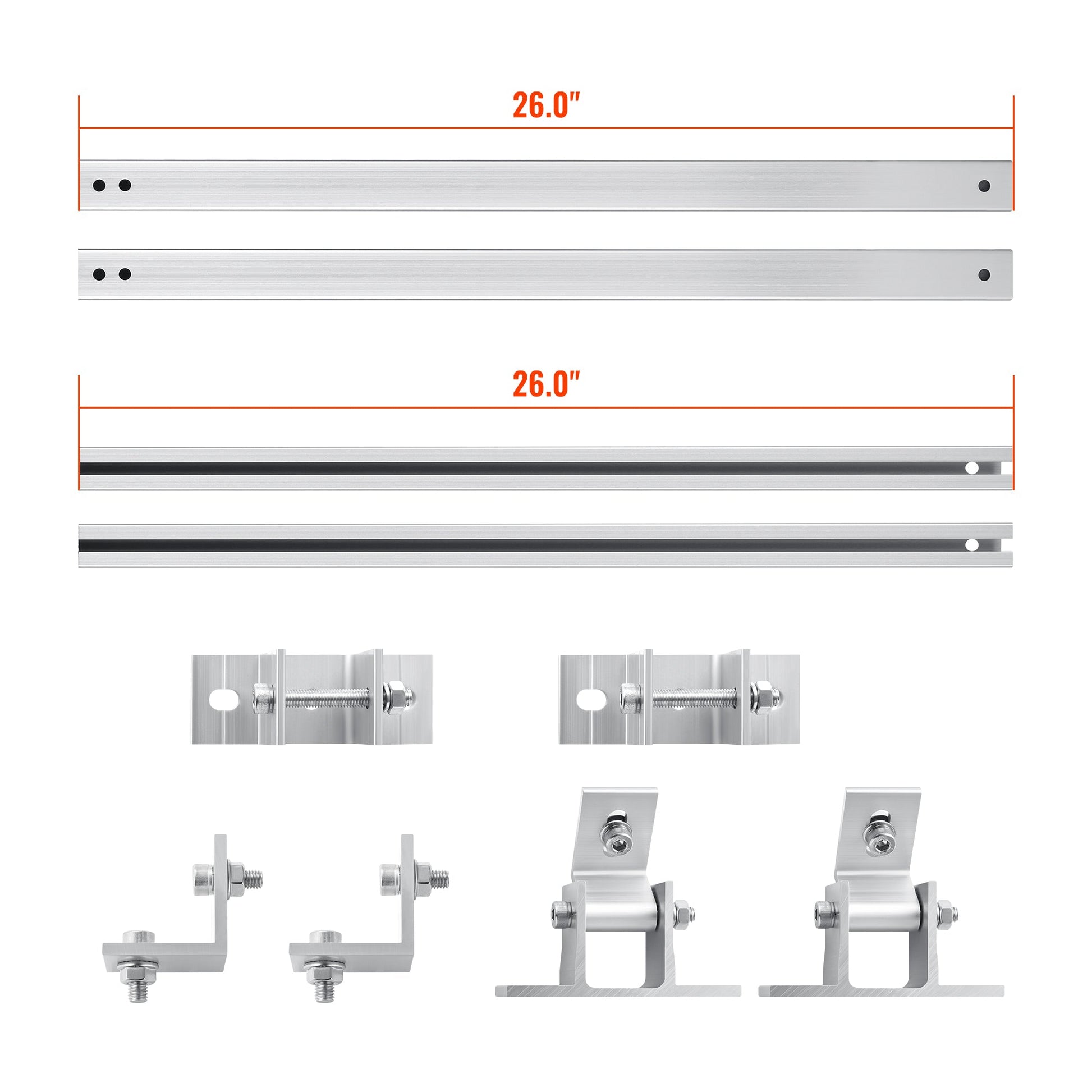

- RS-TM6: 30–60° with 26.0 in legs

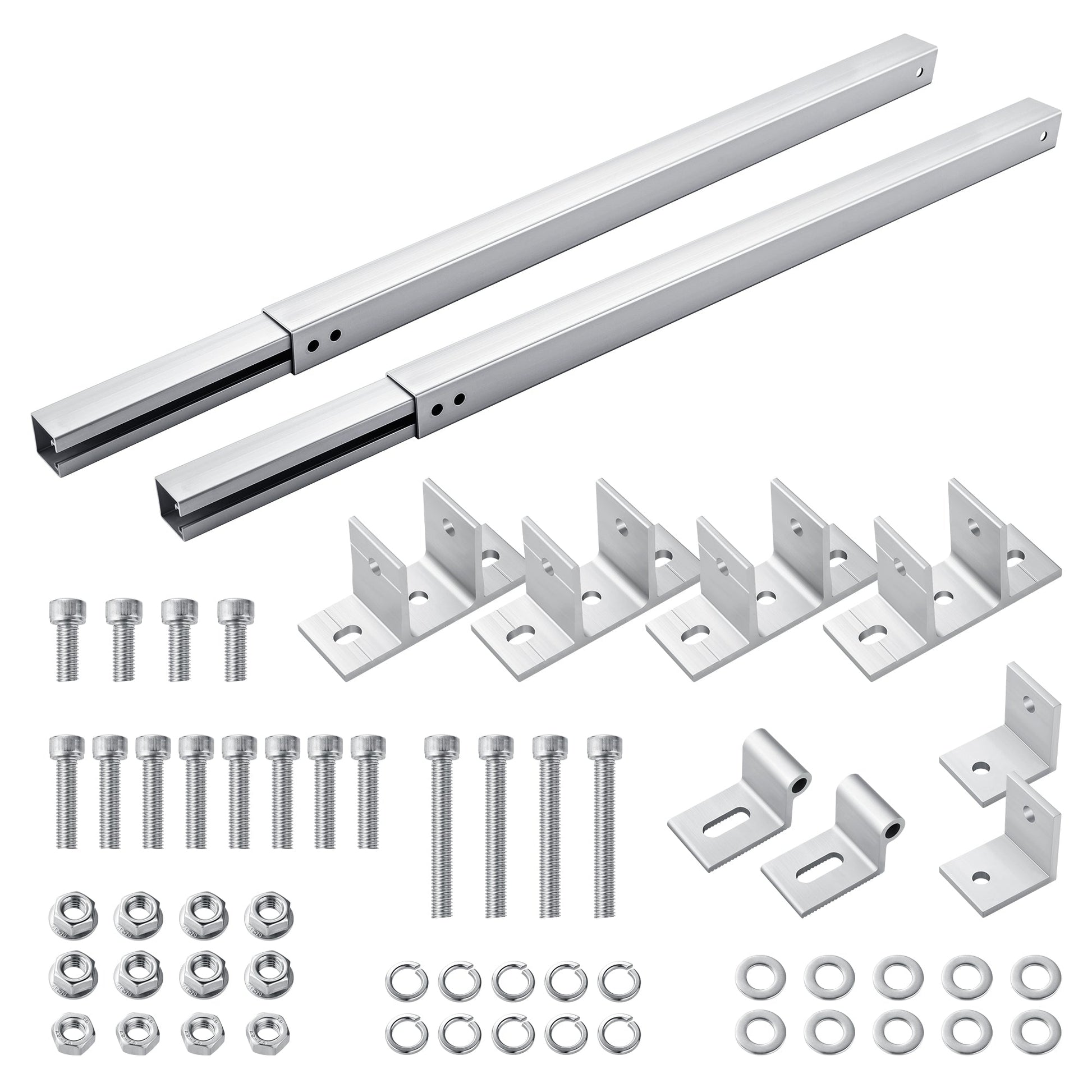

Preassembled bolts and included hardware

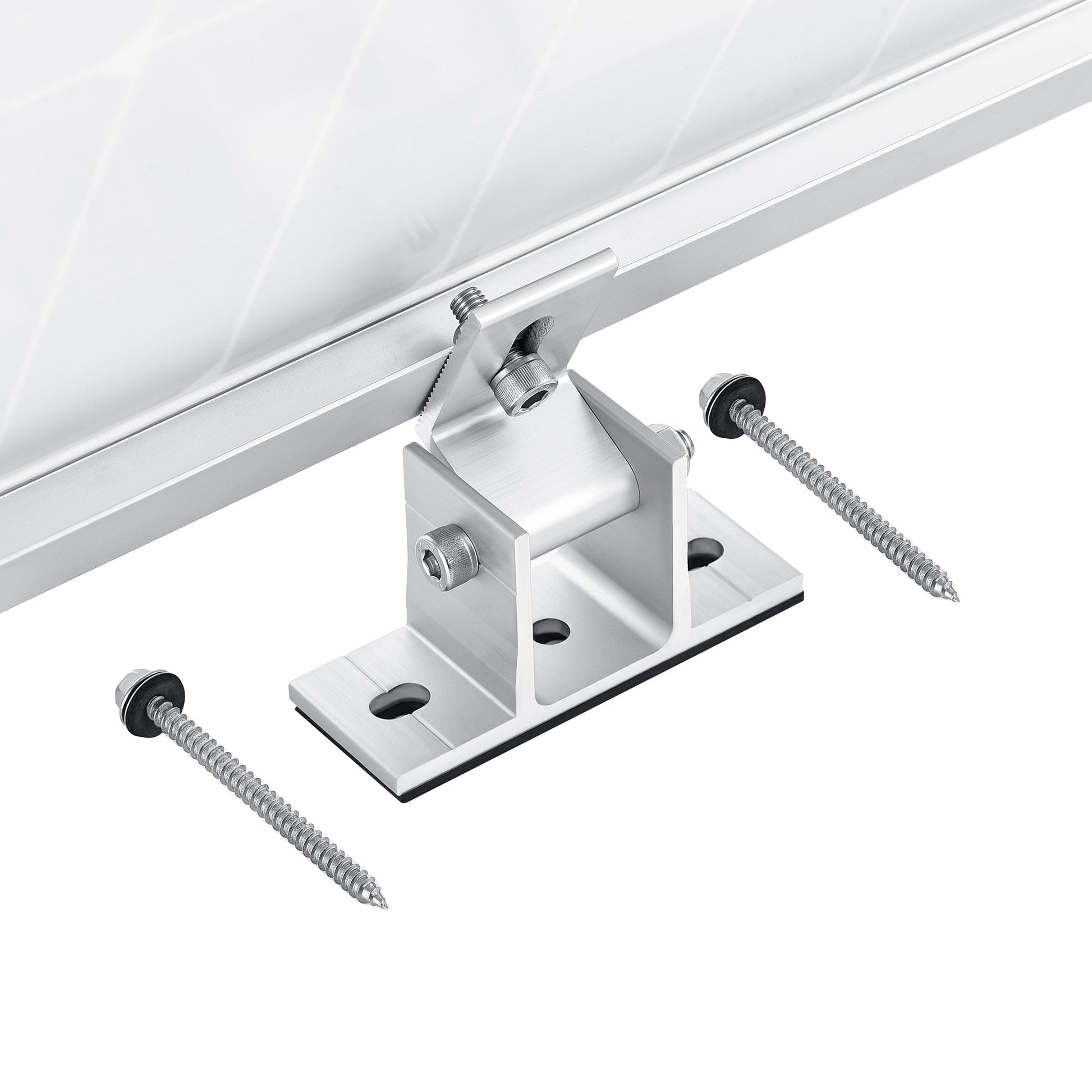

Preassembled bolts attach the legs to the panel frame, and mounting screws with rubber washers fix the legs to the surface.
- ST6.3 × 3 1/8 in (80 mm) mounting screws
- For flat surfaces and roofs
- Aluminum alloy construction
Specs, images and product claims on this page come from Rich Solar's Adjustable Tilt Mount product page and October 2026 manual. Last checked Oct 30, 2026.
Specifications
From Rich Solar's published specifications for model RS-TM4.
Mount
| Tilt range | RS-TM4: 15–30°; RS-TM6: 30–60° |
|---|---|
| Leg length | RS-TM4: 14.2 in; RS-TM6: 26.0 in |
| Material | Aluminum alloy |
| Mounting configuration | Front & rear legs |
| Rear leg adjustment | Telescoping, with locking bolts |
| Designed for | Rich Solar MEGA series solar panels |
Installation & warranty
| Mounting method | Bolted / screw-mounted |
|---|---|
| Compatible surfaces | Flat surfaces and roofs |
| Mounting screw size | ST6.3 × 3 1/8 in (80 mm) |
| Tool required | M8 hex key |
| Warranty | 1-year |
| Model / SKU | RS-TM4 / RS-TM6 |
