1 / 4Hover to zoom · click to enlargeSolar Kit 3000W 24V Inverter 120V Output Lithium Battery 800 Watt Solar Panel SGKT-3PRO
Ships from SunGoldPower's U.S. warehouse
- Free shipping, no minimumTo the lower 48 states and Washington, D.C.
- Authorized SunGoldPower dealerFull manufacturer warranty and support.
- Component warranties3-yr inverter, 5-yr batteries, 25-yr panel output.
- 30-day returnsOn new, unused items.
Shipping & handling
- Orders are processed within 1–3 business days.
- Parcel items typically arrive 3–7 business days after shipping. Freight items (panels, batteries, inverters and kits) typically arrive 5–14 business days after shipping.
- Rich Solar and SunGoldPower products ship free to the lower 48 states and Washington, D.C., with no minimum. Lensun shipping is based on weight and shown at checkout.
- Freight deliveries need an appointment and a signature, and are delivered curbside.
Returns & refunds
Request a return within 30 days of delivery. Items must be new, unused, not installed, and in their original packaging.
- Contact us first for a Return Merchandise Authorization (RMA). Returns sent without one are refused.
- For a change-of-mind return, you pay return shipping and a 15% restocking fee is deducted from your refund.
- Damaged on arrival? Report it within 3 business days of delivery and we arrange a replacement or full refund.
Warranty
SunGoldPower's kit page lists a 3-year warranty on the 3000W inverter and a 5-year warranty on the 24V batteries. The 200W panels carry a 25-year output warranty and, per the panel data sheet, a 5-year workmanship warranty. Coverage starts on the purchase date and is for the original buyer.
Need help choosing?
Not sure this fits your system? Email support@sunenergydepot.com with what you want to power, or use the chat in the corner, and we will help you choose.
A 3kW, 24V solar kit for RVs, off-grid homes and backup power

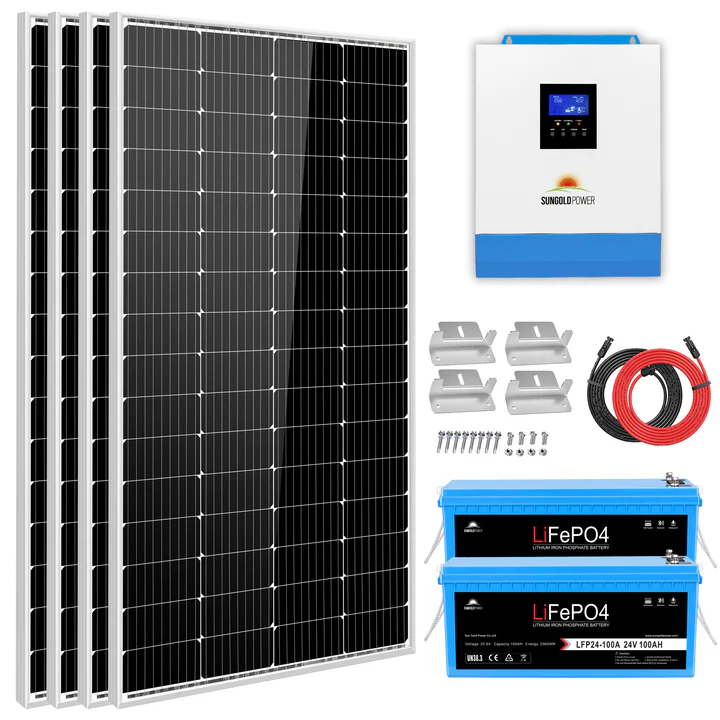

The SGKT-3PRO is SunGoldPower's 3000W, 24V solar kit with 120V output. It includes a 3000W all-in-one solar inverter charger, two 24V 100Ah LiFePO4 batteries with Bluetooth (5.12kWh total) and four 200W monocrystalline panels (800W).
SunGoldPower describes it for RVs, off-grid homes and emergency backup. Mounting Z-brackets, a 50 ft solar extension cable, PV and DC breakers and 4 AWG cables are included, and the system can be extended later with more panels or batteries.
A 3kW, 24V kit for RVs and backup power
SunGoldPower describes this kit for RVs, off-grid homes and emergency backup, and it can be extended with more panels or batteries.
- 800W solar array (4 × 200W)
- 5.12kWh of LiFePO4 storage (2 × 24V 100Ah)
- Z-brackets, breakers and cables included

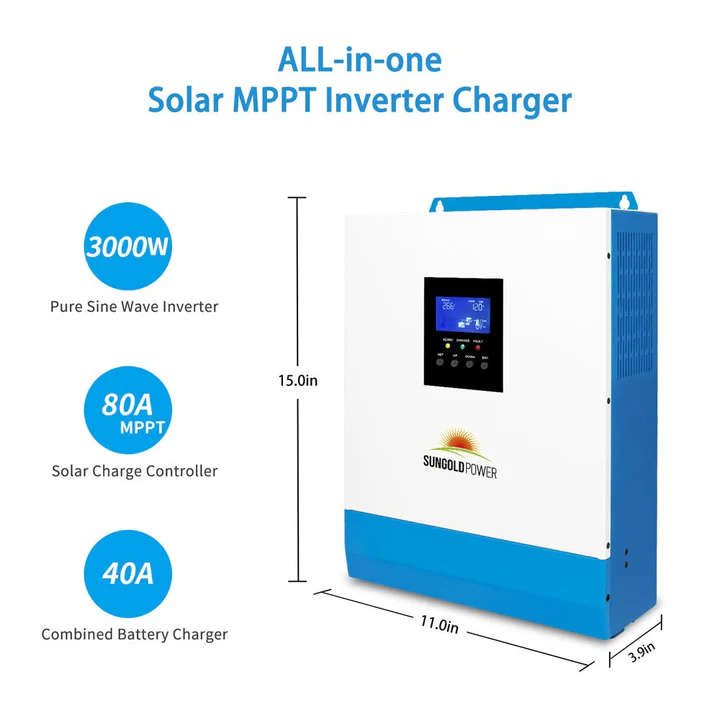

3000W all-in-one solar inverter charger
The SPH302480A combines a 120V pure sine wave inverter, an MPPT solar charger and an AC charger in one unit.
- 6,000VA peak power
- Up to 4,000W PV input, 450V max open-circuit voltage
- Up to 80A combined solar + AC charging
- MPPT efficiency up to 99.9%

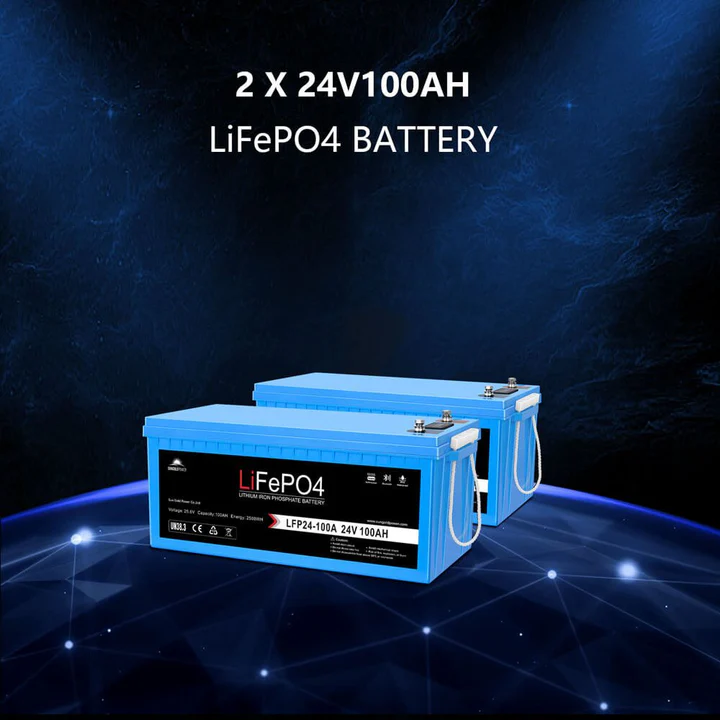

Two 24V 100Ah self-heating LiFePO4 batteries
Each 25.6V battery stores 2,560Wh and has an LCD display, Bluetooth monitoring, self-heating and an IP65 rating.
- 100A max continuous charge current
- 4,000+ cycle life
- 5-year battery warranty

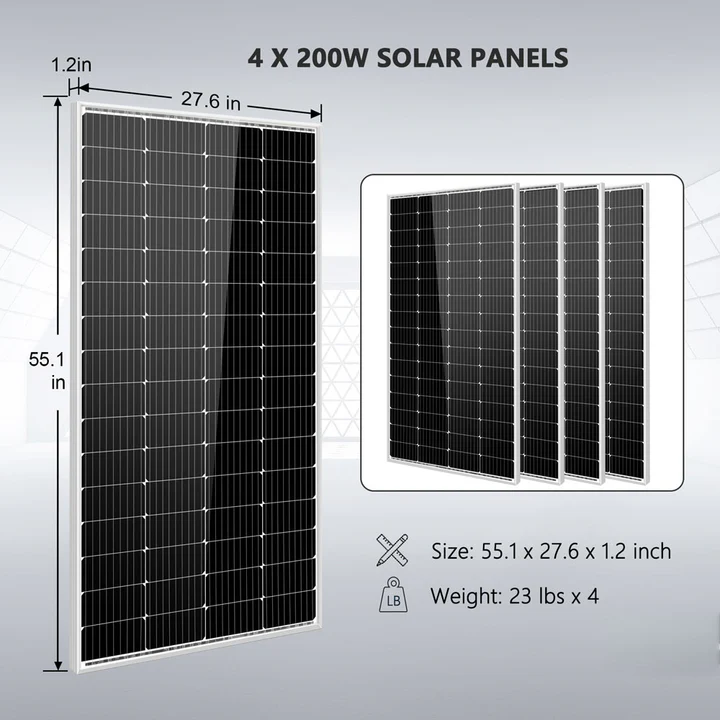

Four 200W monocrystalline panels
The SG200WM panels reach 20.41% module efficiency and come with output cables and MC4 connectors.
- IP65 junction box, IP67 connectors
- Rated for 2400 Pa wind load
- 25-year output warranty
Specs, images and product claims on this page come from SunGoldPower's SGKT-3PRO kit page, component manuals and data sheets. Last checked Oct 30, 2026.
Specifications
From SunGoldPower's published specifications for model SGKT-3PRO.
System
| Continuous output | 3000W |
|---|---|
| AC output | 120V, 50/60Hz |
| DC system voltage | 24V |
| Solar array | 800W (4 × 200W) |
| Battery storage | 5.12kWh (2 × 25.6V 100Ah LiFePO4) |
| Max solar input | 4,000W |
Inverter
| Model | SPH302480A, 3000W 24V |
|---|---|
| Peak power | 6,000VA |
| Waveform | Pure sine wave |
| Max PV open-circuit voltage | 450V |
| MPPT voltage range | 120–400V |
| Max charge current | 80A (solar + AC) |
| Efficiency | Max > 92% (MPPT 99.9%) |
| Motor load | 2HP |
| Communication | USB / CAN / RS485 / dry contact; Wi-Fi/GPRS module optional |
| Dimensions / weight | 14.9 × 11.0 × 4.1 in (378 × 280 × 103 mm), 17.6 lb (8 kg) |
| Certifications | CE (IEC62109-1/-2), FCC, SAA |
Battery
| Model | LFP-24V-100A LiFePO4 (× 2) |
|---|---|
| Per battery | 25.6V, 100Ah, 2,560Wh |
| Voltage window | 21.6V to 29.2V |
| Max continuous charge current | 100A |
| Peak discharge current | 200A ± 3A (10s) |
| Cycle life | ≥ 4,000 |
| Features | Self-heating, IP65, LCD and Bluetooth |
| Dimensions / weight | 20.7 × 9.4 × 8.7 in, 45 lb |
Solar panels
| Model | SG200WM mono (× 4) |
|---|---|
| Max power | 200W (±3%) |
| Vmp / Imp | 36.16V / 5.53A |
| Voc / Isc | 43.39V / 5.86A |
| Module efficiency | 20.41% |
| Dimensions / weight | 55.1 × 27.6 × 1.2 in, 23.32 lb |
| Warranty | Inverter 3-year; batteries 5-year; panels 25-year output, 5-year workmanship |
| Model / SKU | SGKT-3PRO |
