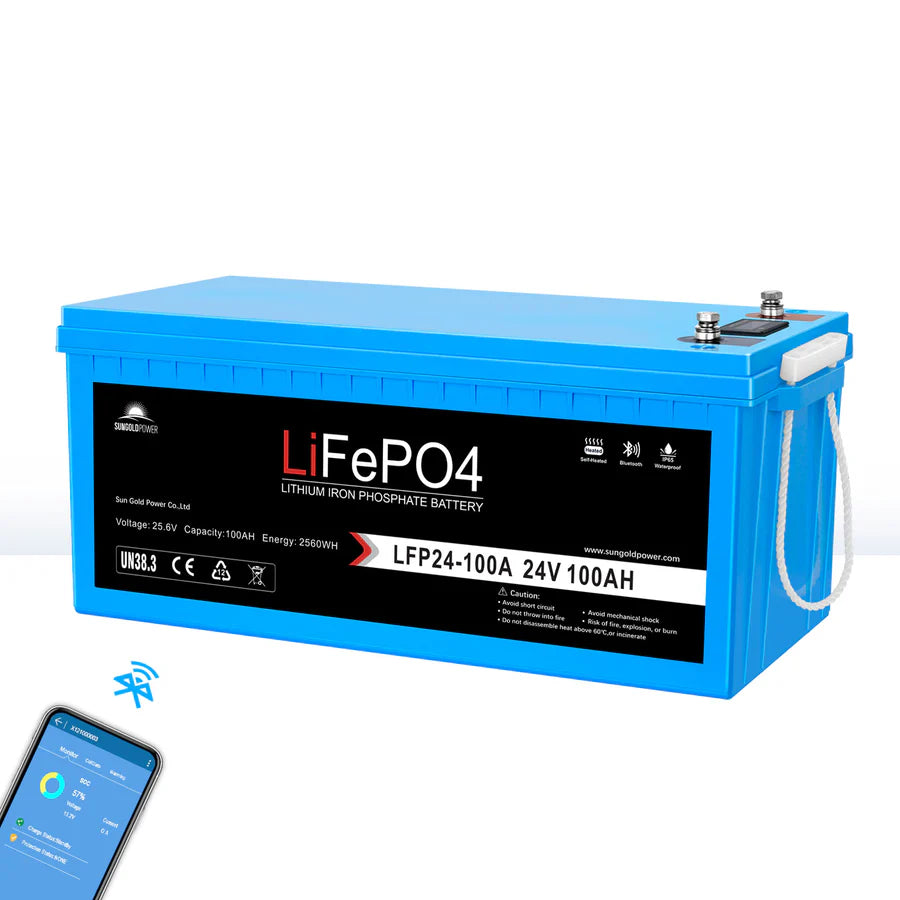

A 24-volt, 100Ah lithium battery with self-heating and Bluetooth
SunGoldPower's 25.6V 100Ah LiFePO4 battery stores 2,560Wh and is rated for 4,000+ cycles at 80% depth of discharge. A built-in 100A BMS, an IP65 case and a self-heating function make it a fit for 24V solar systems, RVs, caravans and boats.
You can check voltage and state of charge on the built-in LCD or over Bluetooth with the SGP Battery app. For more capacity, up to four batteries can be connected in parallel.

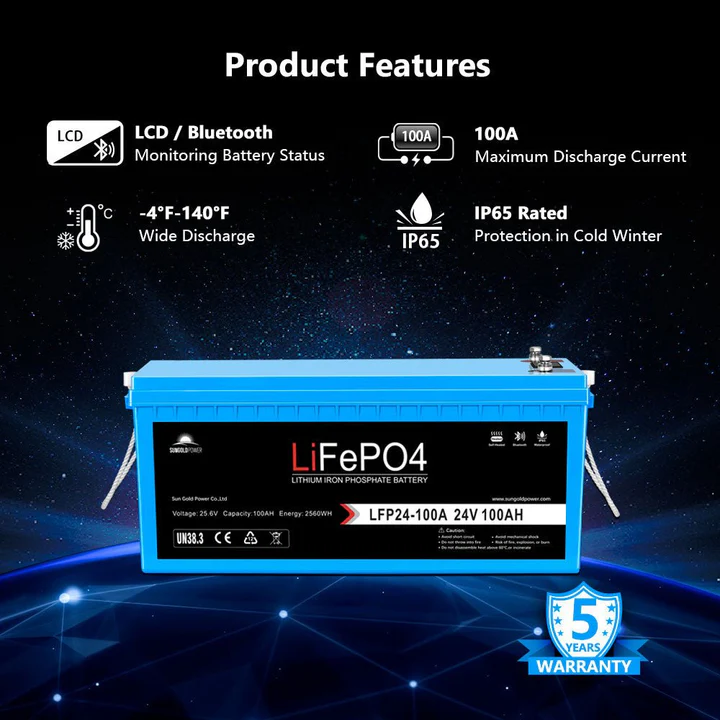

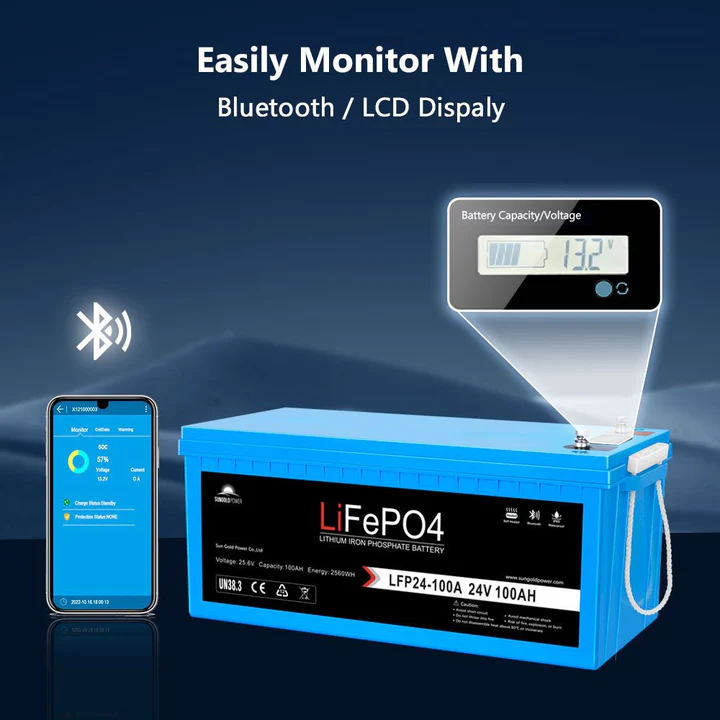

Bluetooth and LCD monitoring
Check voltage and state of charge on the built-in LCD, or follow charge, discharge, capacity, temperature and voltage on your phone over Bluetooth.
- Free SGP Battery app for iOS and Android

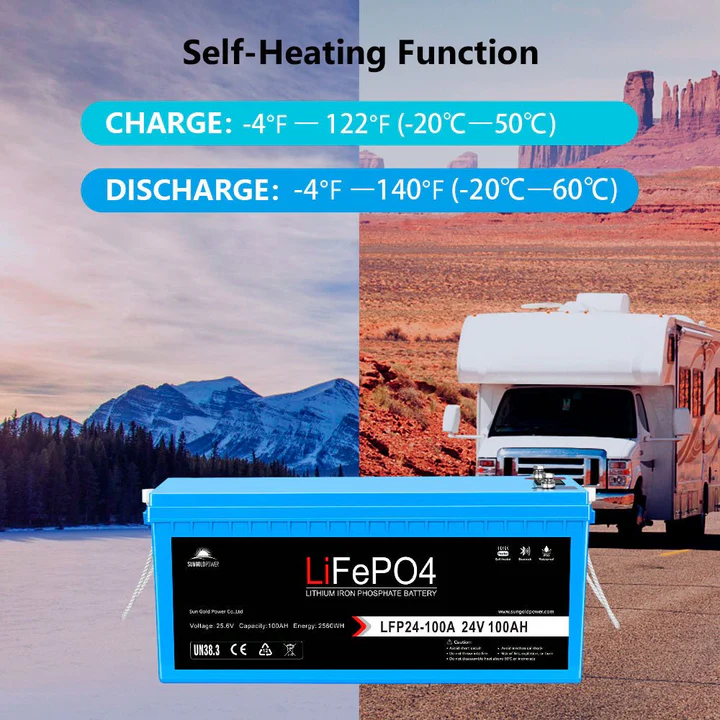

Self-heating function
Heating switches on automatically when the core temperature drops below 33.8°F (1°C) and stops at 42.8°F (6°C), so the battery keeps charging in cold weather.
Built-in 100A BMS, IP65 rated
The battery management system protects against over-charge, over-discharge, over-current, short circuits and high temperature.
- IP65 rated ABS case
- Automotive-grade Grade A LiFePO4 cells

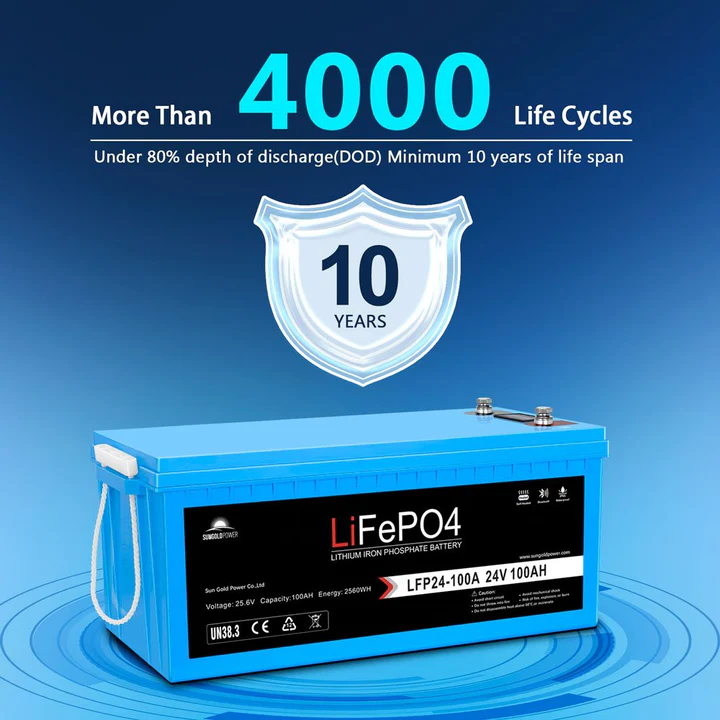

4,000+ cycles and a 5-year warranty
SunGoldPower rates the battery for 4,000+ cycles at 80% depth of discharge and more than 10 years of life.

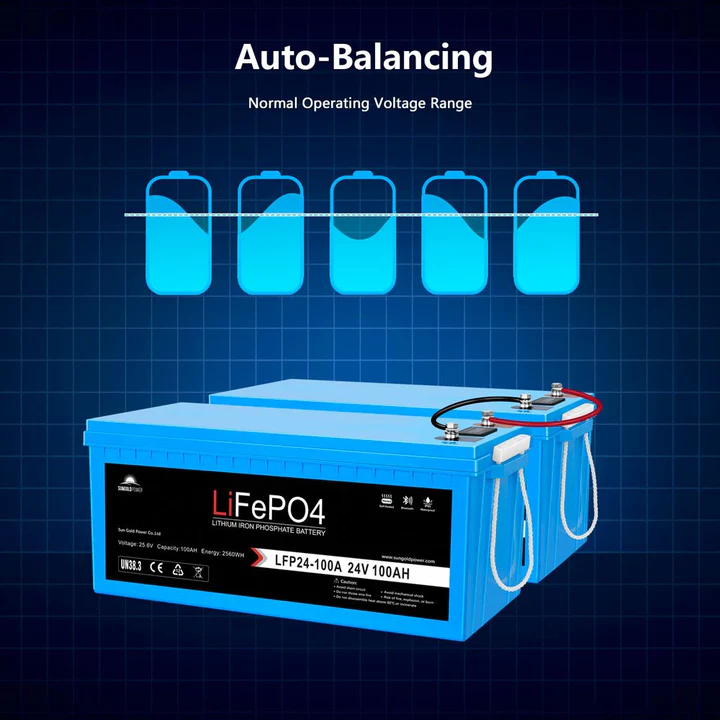

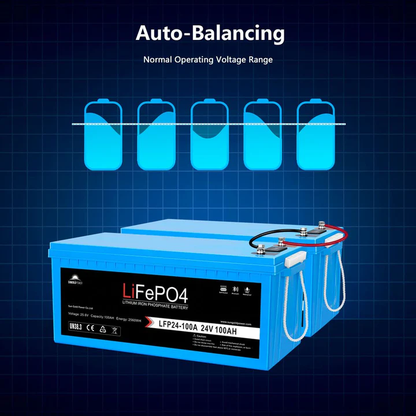

Auto-balancing for parallel banks
Connect up to four batteries in parallel for more capacity; the auto-balancing function makes the connection safer.
- Up to 4 in parallel
- Do not connect in series and parallel at the same time
Specs, images and product claims on this page come from SunGoldPower's 24V 100Ah LiFePO4 product page and data sheet. Last checked Oct 30, 2026.
Specifications
From SunGoldPower's published specifications for model LFP24-100A.
Battery
| Nominal voltage | 25.6V |
|---|---|
| Nominal capacity | 100Ah |
| Energy | 2,560Wh |
| Cell chemistry | LiFePO4 |
| Efficiency | ≥ 99.5% |
| Cycle life | ≥ 4,000 (0.2C, 77°F, 80% DoD) |
Charge & discharge
| Voltage window | 21.6V to 29.2V |
|---|---|
| Max continuous charge current | 100A |
| Recommended charge current | 50A |
| Recommended discharge current | 50A |
| Peak discharge current | 200A ± 3A (10s) |
| BMS | 100A built in |
Environment
| Charge temperature | -4°F to 113°F |
|---|---|
| Discharge temperature | -4°F to 131°F |
| Self-heating | On below 33.8°F (1°C), off at 42.8°F (6°C) |
| Ingress protection | IP65 |

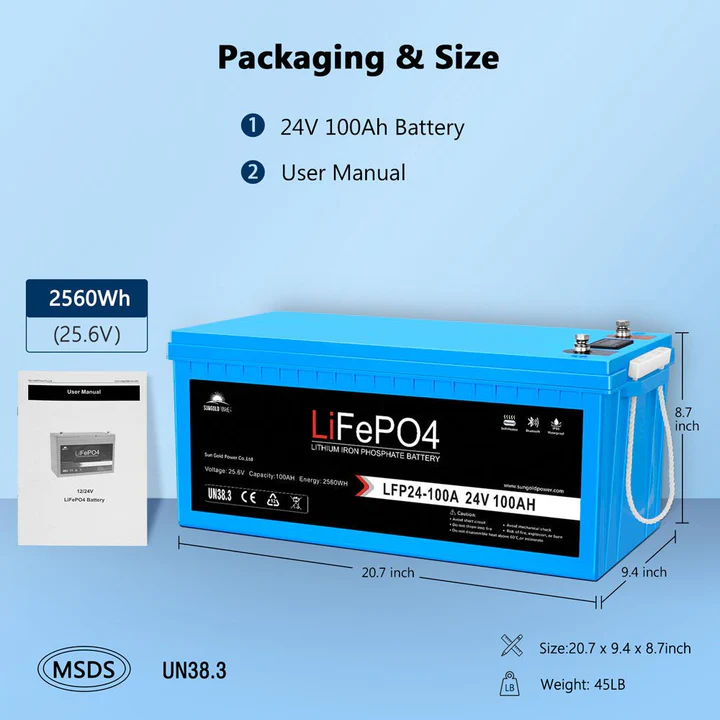

Physical & monitoring
| Dimensions | 20.7 × 9.4 × 8.7 in |
|---|---|
| Weight | 45 lb |
| Terminals | M8 |
| Case | ABS |
| Monitoring | LCD display and Bluetooth |
| Recommended connection | Parallel, up to 4 |
| Warranty | 5-year |
| Model / SKU | LFP-24V-100A (LFP24-100A) |
