1 / 5Hover to zoom · click to enlargeOff-Grid Solar Kit 8000W 48VDC 120V/240V LiFePO4 10.24KWH Lithium Battery 8 x 450 Watts Solar Panels SGR-8K10E
Ships from SunGoldPower's U.S. warehouse
- Free shipping, no minimumTo the lower 48 states and Washington, D.C.
- Authorized SunGoldPower dealerFull manufacturer warranty and support.
- Component warranties3-yr inverter, 10-yr batteries, 12-yr panels.
- 30-day returnsOn new, unused items.
Shipping & handling
- Orders are processed within 1–3 business days.
- Parcel items typically arrive 3–7 business days after shipping. Freight items (panels, batteries, inverters and kits) typically arrive 5–14 business days after shipping.
- Rich Solar and SunGoldPower products ship free to the lower 48 states and Washington, D.C., with no minimum. Lensun shipping is based on weight and shown at checkout.
- Freight deliveries need an appointment and a signature, and are delivered curbside.
Returns & refunds
Request a return within 30 days of delivery. Items must be new, unused, not installed, and in their original packaging.
- Contact us first for a Return Merchandise Authorization (RMA). Returns sent without one are refused.
- For a change-of-mind return, you pay return shipping and a 15% restocking fee is deducted from your refund.
- Damaged on arrival? Report it within 3 business days of delivery and we arrange a replacement or full refund.
Warranty
SunGoldPower's kit page lists a 3-year warranty on the 8000W inverter and a 10-year warranty on the SG48100P batteries. The 450W panels carry a 12-year product warranty and a 30-year linear power warranty. Coverage starts on the purchase date and is for the original buyer.
Need help choosing?
Not sure this fits your system? Email support@sunenergydepot.com with what you want to power, or use the chat in the corner, and we will help you choose.
An 8kW, 120/240V kit with 10.24kWh of storage
The SGR-8K10E is SunGoldPower's 8000W, 48V off-grid solar kit with 120V/240V split-phase output. It includes an 8000W inverter, two 51.2V 100Ah LiFePO4 server rack batteries (10.24kWh) and eight 450W bifacial N-type panels (3,600W).
SunGoldPower says the array generates about 14.4kWh per day under 4 hours of full sun. The inverter has Wi-Fi monitoring, up to six can run in parallel, and mounting Z-brackets, breakers and cables are included.
Off-grid power for mid-sized homes and cabins
SunGoldPower describes this kit for mid-sized off-grid homes and remote cabins. The 8000W split-phase inverter runs most 120V and 240V appliances.
- 3,600W solar array (8 × 450W)
- 10.24kWh of storage (2 × 5.12kWh batteries)
- Wi-Fi remote monitoring and auto generator start
Three ways to charge
SunGoldPower shows approximate times to recharge the 10.24kWh battery by solar, AC power or both together. Actual times vary with sunlight, temperature and battery condition.
- Solar only: about 3.8 hours (max 3,600W)
- AC only: about 2.4 hours (max 100A)
- Solar + AC: about 1.45 hours

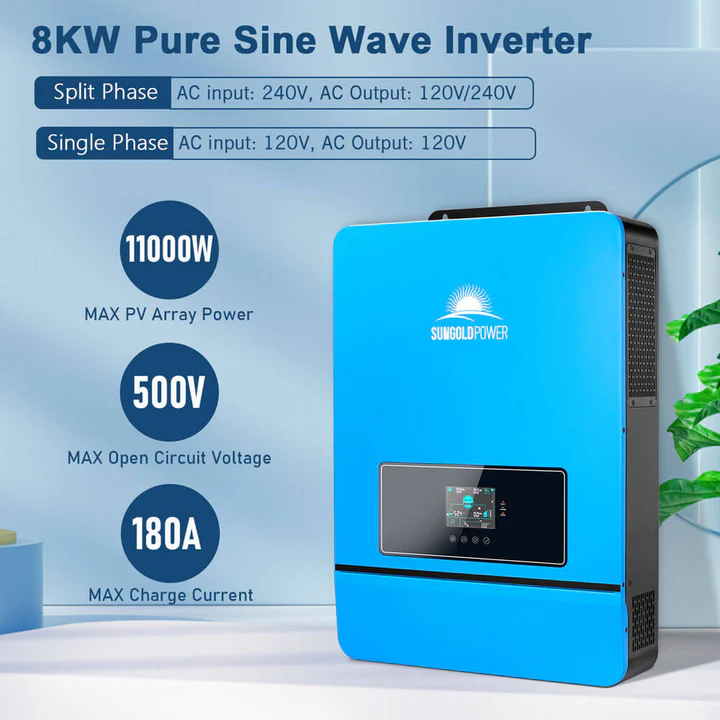

8000W split-phase inverter
The inverter outputs 120V single-phase or 120/240V split-phase, and up to six can be connected in parallel for up to 48,000W.
- Dual MPPT, up to 11,000W of PV input
- Up to 180A combined solar + AC charging
- UL1741 listed by ETL

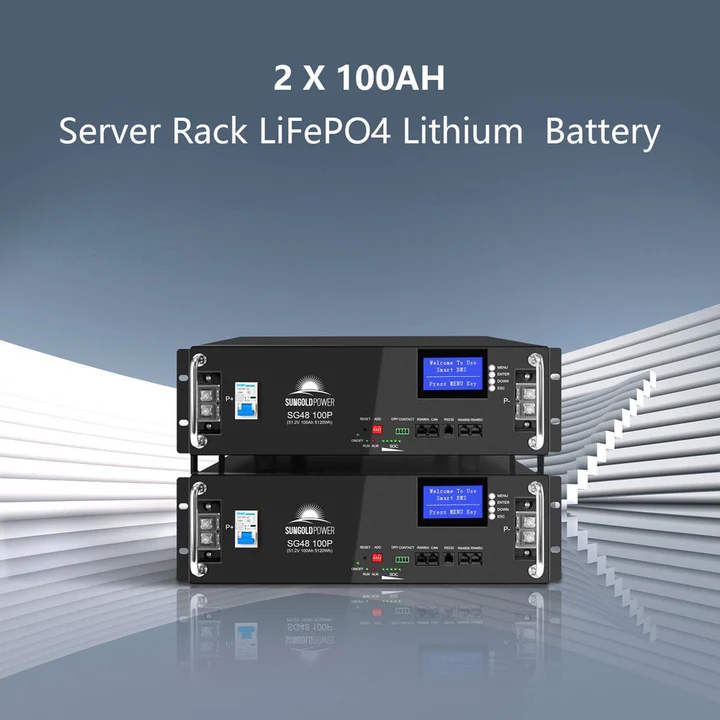

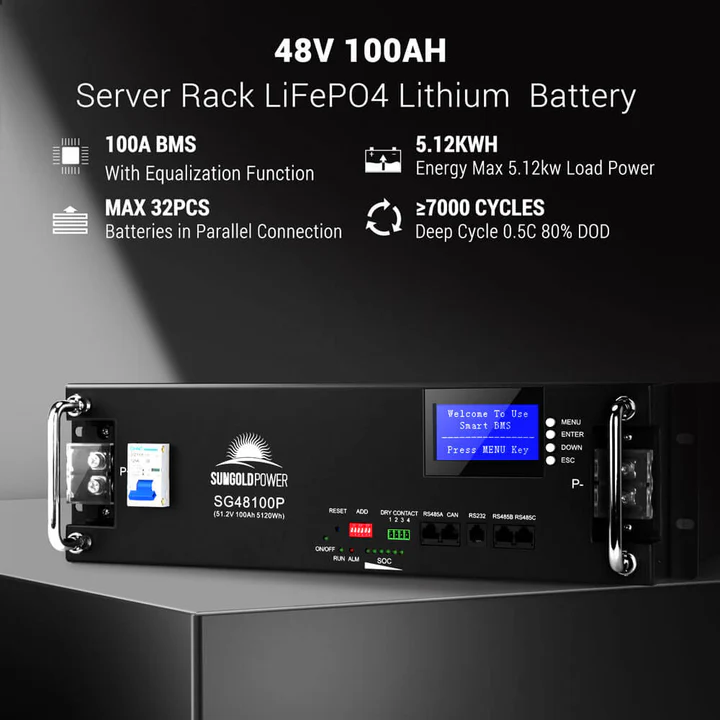

Two 5.12kWh server rack batteries
Each SG48100P is a 51.2V 100Ah LiFePO4 battery rated for 7,000+ cycles, with up to 63 units in parallel and RS485 communication with the inverter.
- UL1973 and UL9540A certified
- Automotive-grade cells
- LCD display; RS232 / RS485 / CAN
450W bifacial N-type panels
Eight 450W bifacial N-type monocrystalline panels give 3,600W of PV capacity, with UL61730 certification.
- 30.08V Vmp and 14.97A Imp per panel
- 12-year product and 30-year linear power warranty
Specs, images and product claims on this page come from SunGoldPower's SGR-8K10E kit page, component manuals and data sheets. Last checked Oct 31, 2026.
Specifications
From SunGoldPower's published specifications for model SGR-8K10E.
System
| Continuous output | 8000W |
|---|---|
| AC output | 120V/240V split phase |
| DC system voltage | 48V |
| Solar array | 3,600W (8 × 450W) |
| Battery storage | 10.24kWh (2 × 51.2V 100Ah LiFePO4) |
| Max solar input | 11,000W |
| Monitoring | Wi-Fi |
Inverter
| Model | SPH8048P, 8000W 48V split phase |
|---|---|
| Peak power | 16,000W |
| AC output | 120V single-phase / 120/240V split-phase, 50/60Hz |
| Waveform | Pure sine wave |
| MPPT inputs | 2, 22A each |
| Max PV open-circuit voltage | 500V |
| MPPT operating range | 125–425V (kit chart) |
| Max charge current | 180A (PV or hybrid); 100A from grid/generator |
| Max efficiency | 92% (MPPT 99.9%) |
| Transfer time | 10ms typical |
| Parallel | Up to 6 units (48,000W) |
| Dimensions / weight | 24.4 × 17.5 × 5.1 in (620 × 445 × 130 mm), 59.5 lb (27 kg) |
| Certification | UL1741 listed by ETL (kit chart) |
Battery
| Model | SG48100P server rack LiFePO4 (× 2) |
|---|---|
| Per battery | 51.2V, 100Ah, 5.12kWh |
| Max continuous charge current | 100A |
| Discharge cut-off voltage | 43.2V |
| Cycle life | ≥ 7,000 |
| Communication | RS232 / RS485 / CAN |
| Parallel | Up to 63 batteries |
| Dimensions / weight | 19.3 × 18.9 × 5.5 in, 93 lb |
| Certifications | UL1973, UL9540A (kit page) |
Solar panels
| Model | SGN-450-BDG5 bifacial N-type (× 8) |
|---|---|
| Max power | 450W (0 / +5W) |
| Vmp / Imp | 30.08V / 14.97A |
| Voc / Isc | 35.03V / 16.05A |
| Module efficiency | 22.5% |
| Dimensions / weight | 69.37 × 44.65 × 1.38 in, 53.35 lb |
| Loads | 5400 Pa front, 2400 Pa rear |
| Certifications | UL61730 (ETL), CEC listed |
| Warranty | Inverter 3-year; batteries 10-year; panels 12-year product, 30-year linear power |
| Model / SKU | SGR-8K10E |
