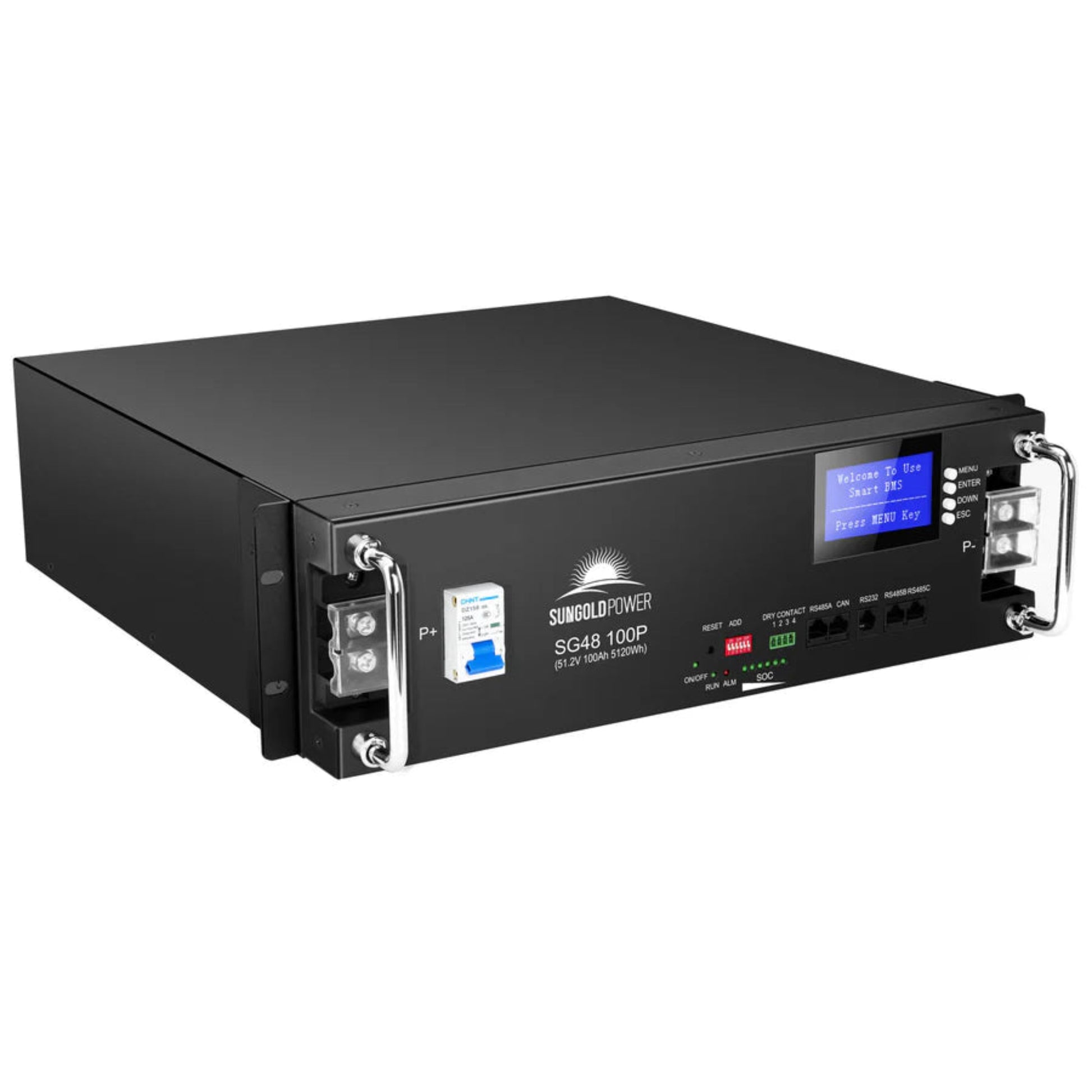

1 / 6Hover to zoom · click to enlarge51.2V 100AH Server Rack LiFePO4 Lithium Battery SG48100P
Ships from SunGoldPower's U.S. warehouse
- Free shipping, no minimumTo the lower 48 states and Washington, D.C.
- Authorized SunGoldPower dealerFull manufacturer warranty and support.
- 10-year warrantyBacked by SunGoldPower.
- 30-day returnsOn new, unused items.
Shipping & handling
- Orders are processed within 1–3 business days.
- Parcel items typically arrive 3–7 business days after shipping. Freight items (panels, batteries, inverters and kits) typically arrive 5–14 business days after shipping.
- Rich Solar and SunGoldPower products ship free to the lower 48 states and Washington, D.C., with no minimum. Lensun shipping is based on weight and shown at checkout.
- Freight deliveries need an appointment and a signature, and are delivered curbside.
Returns & refunds
Request a return within 30 days of delivery. Items must be new, unused, not installed, and in their original packaging.
- Contact us first for a Return Merchandise Authorization (RMA). Returns sent without one are refused.
- For a change-of-mind return, you pay return shipping and a 15% restocking fee is deducted from your refund.
- Damaged on arrival? Report it within 3 business days of delivery and we arrange a replacement or full refund.
Warranty
SunGoldPower's product page and data sheet list a 10-year warranty for this battery, starting on the date of purchase. Coverage is for the original buyer and excludes misuse, modification and unauthorized repair.
Need help choosing?
Not sure this fits your system? Email support@sunenergydepot.com with what you want to power, or use the chat in the corner, and we will help you choose.

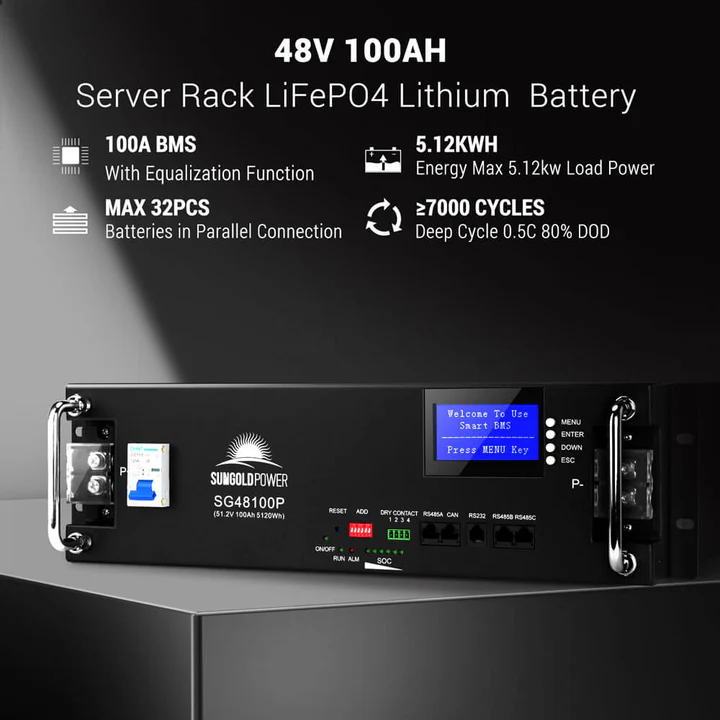

A 51.2-volt, 5.12kWh server rack battery for home solar storage
The SG48100P is SunGoldPower's 51.2V 100Ah server rack LiFePO4 battery. It stores 5.12kWh, is rated for 7,000+ cycles with a 15-year design life, and comes with a 10-year warranty and UL1973 certification.
The BMS communicates over RS232, RS485 and CAN and works with most inverters, including SunGoldPower, Growatt, Deye and Victron. Up to 63 batteries can run in parallel, and the front-panel LCD shows voltage and state of charge.
Built-in LCD display
The front-panel LCD shows battery voltage and state of charge at a glance.
Intelligent BMS
The battery management system monitors cell voltage, current and temperature and protects against overcharge, deep discharge, overload, overheating and short circuit.
- Front-panel breaker
- G-sensor anti-theft function
- Plastic parts rated UL94 V-0
Up to 63 batteries in parallel
The modular design scales to 63 units in parallel, up to 322.56kWh, and the BMS talks to most inverters on the market.
- RS232, RS485 and CAN communication
- Works with SunGoldPower, Growatt, Deye, Victron and more
7,000+ cycles and a 10-year warranty
Automotive LFP cells are rated for 7,000+ cycles, with a 15-year design life.
- UL1973 battery pack
- CE and UN38.3
Built for home solar storage
Store solar energy and use it when you need it, or keep it ready as backup power for home and small commercial systems.
- Charge during the day, discharge at peak times
Specs, images and product claims on this page come from SunGoldPower's SG48100P product page and June 2026 data sheet. Last checked Oct 30, 2026.
Specifications
From SunGoldPower's published specifications for model SG48100P.
Battery
| Battery type | LiFePO4 |
|---|---|
| Nominal voltage | 51.2V |
| Rated capacity | 100Ah |
| Nominal energy | 5.12kWh |
| Cycle life | ≥ 7,000 |
| Design life | 15 years |
| SOC working range | 0–100% |
Charge & discharge
| Recommended charging voltage | 54.5V |
|---|---|
| Charging limit voltage | 57.6V |
| Discharge cut-off voltage | 43.2V |
| Standard charge / discharge current | 50A |
| Max continuous charge current | 100A |
| Max continuous discharge current | 100A |
| Charge cut-off current | 5A |
| Charging current limit function | 20A |
Environment
| Charging temperature | 32°F to 113°F |
|---|---|
| Discharging temperature | -4°F to 140°F |
| Storage temperature | 14°F to 113°F |
| Humidity | ≤ 95% |
| Thermal management | Natural heat dissipation |
| Ingress protection | IP20 |
Physical & certification

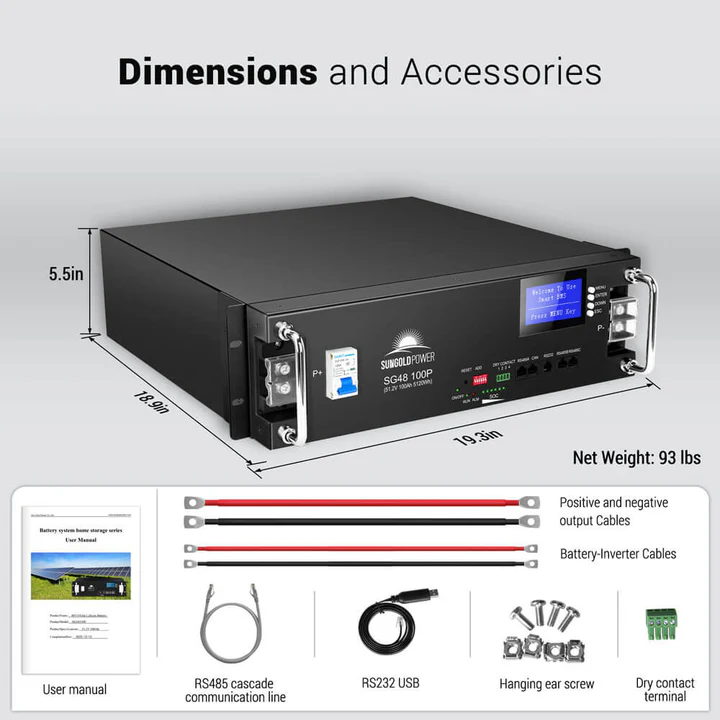

| Dimensions | 19.3 × 18.9 × 5.5 in |
|---|---|
| Weight | About 93 lb |
| Case | Black Q235A |
| Display | LCD |
| Communication | RS232 / RS485 / CAN |
| Parallel | Up to 63 batteries |
| Anti-theft | G-sensor |
| Certifications | CE, UN38.3, UL1973, UL9540A |
| Warranty | 10-year |
| Model / SKU | SG48100P |
