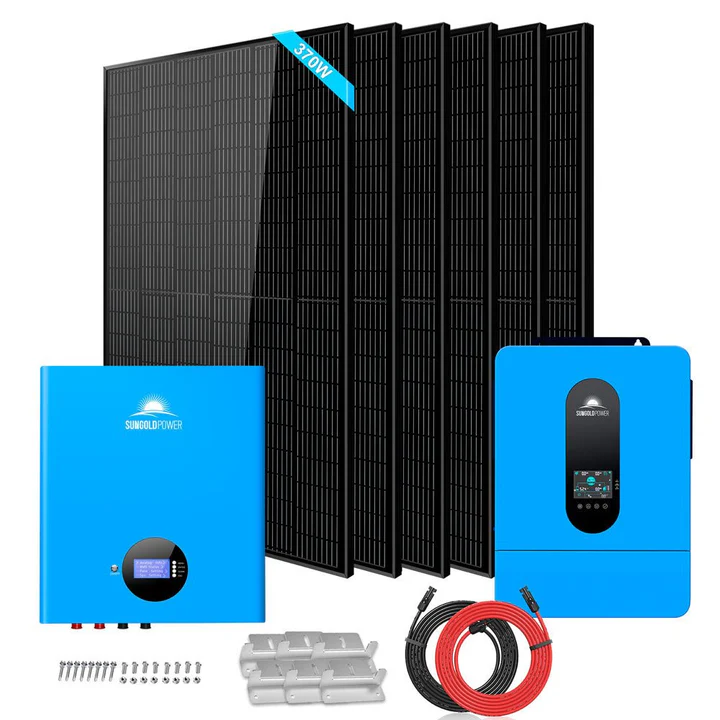

A 6.5kW split-phase off-grid starter kit with 5.12kWh of storage
The SGM-655M is SunGoldPower's 6500W, 48V off-grid solar kit with 120V or 120/240V split-phase output. It combines the SPH6548P inverter, one 51.2V 100Ah wall-mounted LiFePO4 battery (5.12kWh) and six 370W monocrystalline panels (2,220W).
SunGoldPower pitches it as a starter package for an off-grid cabin or shop. Mounting Z-brackets, breakers and cables are included. The inverter has two MPPT inputs that accept up to 10,000W of solar, up to six units can run in parallel, and more batteries and panels can be added later.
A 6.5kW split-phase starter system
SunGoldPower sizes this kit as a starter package for an off-grid cabin or shop, with 5.12kWh of storage and a 2,220W array.
- Mounting Z-brackets, breakers and cables included
- Step up to 10.24kWh with a second battery (SGM-6510M)

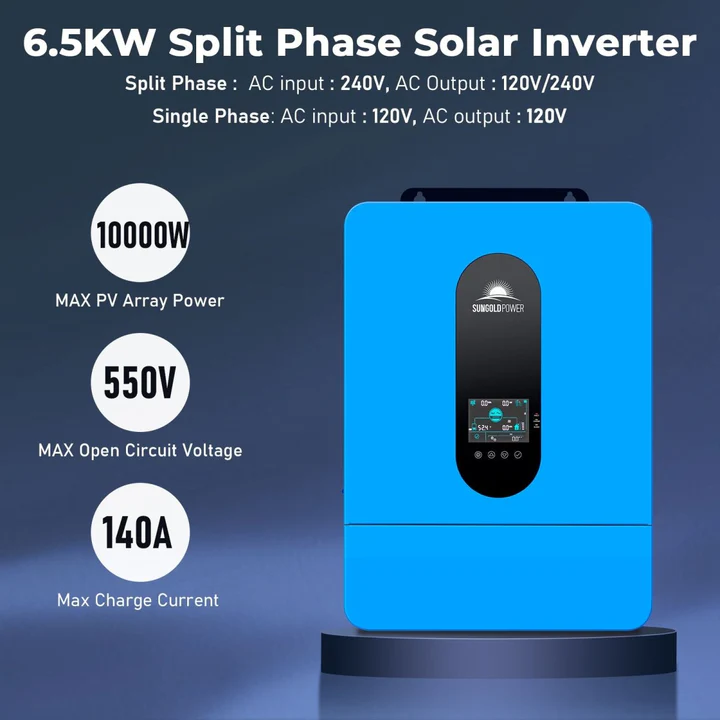

6500W split-phase inverter with two MPPTs
The SPH6548P delivers 120V or 120/240V split-phase pure sine wave power and charges from solar, the grid or a generator.
- 13,000VA peak power
- Two MPPT inputs, up to 10,000W of PV (5,000W + 5,000W)
- Up to 140A combined solar + AC charging
- Up to 6 units in parallel, including 3-phase

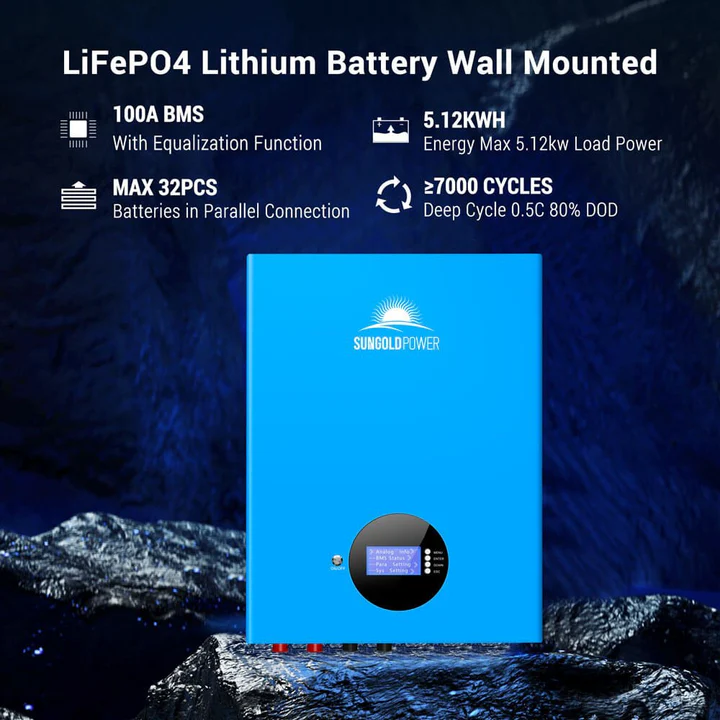

A 5.12kWh wall-mounted LiFePO4 battery
One SG48100M 51.2V 100Ah battery stores 5.12kWh and communicates over RS232, RS485 or CAN.
- 7,000+ cycle life
- Up to 63 batteries in parallel
- 10-year battery warranty

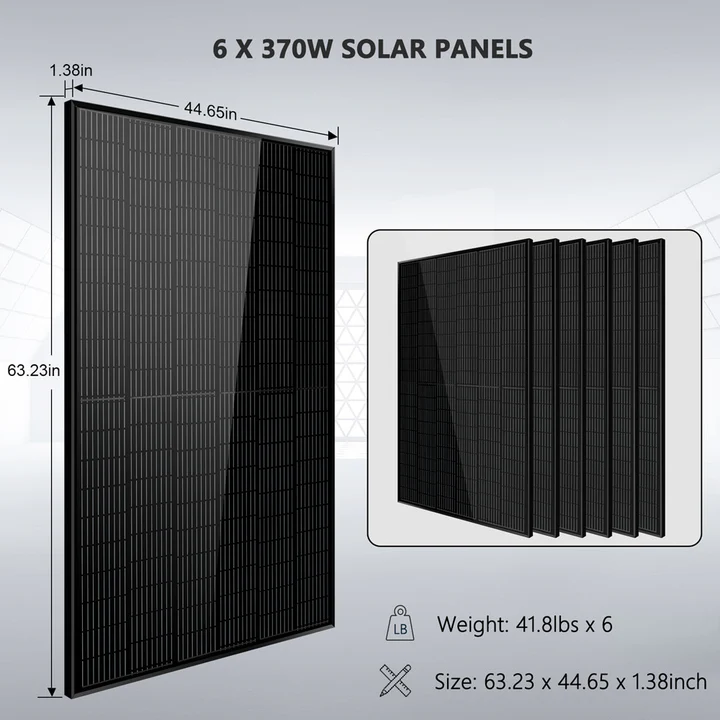

Six 370W monocrystalline panels
The 2,220W array uses SG370WM panels with 20.31% module efficiency and an IP68 junction box.
- UL61730 and CEC listed
- 12-year material and workmanship warranty
- 25-year performance warranty
Specs, images and product claims on this page come from SunGoldPower's SGM-655M kit page, component manuals and data sheets. Last checked Oct 30, 2026.
Specifications
From SunGoldPower's published specifications for model SGM-655M.
System
| Continuous output | 6500W |
|---|---|
| AC output | 120V / 240V split-phase |
| DC system voltage | 48V |
| Solar array | 2,220W (6 × 370W) |
| Battery storage | 5.12kWh (1 × 51.2V 100Ah LiFePO4) |
| Max solar input | 10,000W (5,000W + 5,000W) |
Inverter
| Model | SPH6548P, 6500W 48V split phase |
|---|---|
| Peak power | 13,000VA |
| AC output | 120V single-phase / 120/240V split-phase, 50/60Hz |
| Waveform | Pure sine wave |
| MPPT inputs | 2, up to 5,000W + 5,000W |
| Max PV open-circuit voltage | 550V per input |
| MPPT voltage range | 150–450V |
| Max charge current | 140A solar + AC (80A from grid/generator) |
| Max efficiency | 93% (MPPT 99.9%) |
| Transfer time | 10ms typical |
| Parallel | Up to 6 units |
| Communication | RS485 / CAN / USB / dry contact; Wi-Fi module optional |
| Dimensions / weight | 23 × 16.2 × 5.2 in, 42 lb |
| Protection | IP20, indoor use |
Battery
| Model | SG48100M wall-mounted LiFePO4 |
|---|---|
| Per battery | 51.2V, 100Ah, 5.12kWh |
| Max charge voltage | 57.6V |
| Discharge cut-off voltage | 43.2V |
| Max continuous charge current | 100A |
| Cycle life | ≥ 7,000 |
| Communication | RS232 / RS485 / CAN |
| Parallel | Up to 63 batteries |
| Dimensions | 23 × 16.5 × 6 in |
Solar panels
| Model | SG370WM mono (× 6) |
|---|---|
| Max power | 370W (±3%) |
| Vmp / Imp | 33.2V / 11.15A |
| Voc / Isc | 40.17V / 11.81A |
| Module efficiency | 20.31% |
| Dimensions / weight | 63.23 × 44.65 × 1.38 in, 41.8 lb |
| Certifications | UL61730, CEC listed |
| Warranty | Inverter 3-year; batteries 10-year; panels 12-year workmanship, 25-year performance |
| Model / SKU | SGM-655M |
