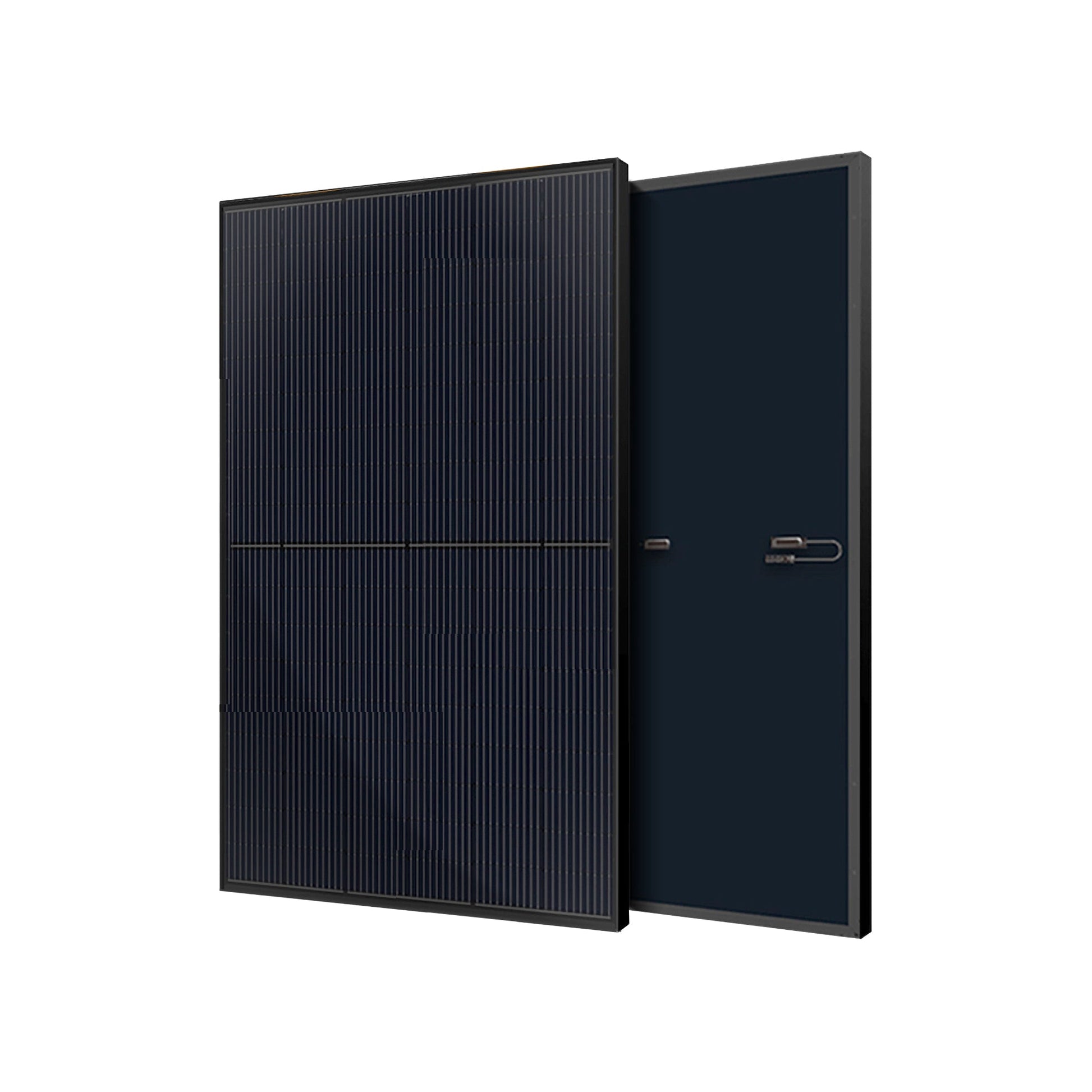

1 / 5Hover to zoom · click to enlargeMEGA 400 - 400 Watt Solar Panel
Ships from Rich Solar's U.S. warehouse
- Free shipping, no minimumTo the lower 48 states and Washington, D.C.
- Authorized Rich Solar dealerFull manufacturer warranty and support.
- 25-year output warrantyBacked by Rich Solar.
- 30-day returnsOn new, unused items.
Shipping & handling
- Orders are processed within 1–3 business days.
- Parcel items typically arrive 3–7 business days after shipping. Freight items (panels, batteries, inverters and kits) typically arrive 5–14 business days after shipping.
- Rich Solar and SunGoldPower products ship free to the lower 48 states and Washington, D.C., with no minimum. Lensun shipping is based on weight and shown at checkout.
- Freight deliveries need an appointment and a signature, and are delivered curbside.
Returns & refunds
Request a return within 30 days of delivery. Items must be new, unused, not installed, and in their original packaging.
- Contact us first for a Return Merchandise Authorization (RMA). Returns sent without one are refused.
- For a change-of-mind return, you pay return shipping and a 15% restocking fee is deducted from your refund.
- Damaged on arrival? Report it within 3 business days of delivery and we arrange a replacement or full refund.
Warranty
Rich Solar's warranty page covers rigid MEGA panels with a 25-year power output warranty and a 10-year workmanship warranty, prorated after the first three years.
Need help choosing?
Not sure this fits your system? Email support@sunenergydepot.com with what you want to power, or use the chat in the corner, and we will help you choose.
A 24-volt, 400-watt panel for grid-tie and off-grid systems
The MEGA 400 is Rich Solar's 400-watt, 24-volt rigid panel. Its 108 monocrystalline cells with 10 busbars reach up to 23.2% cell efficiency, and the 0 to +5W power tolerance means you get at least the rated output.

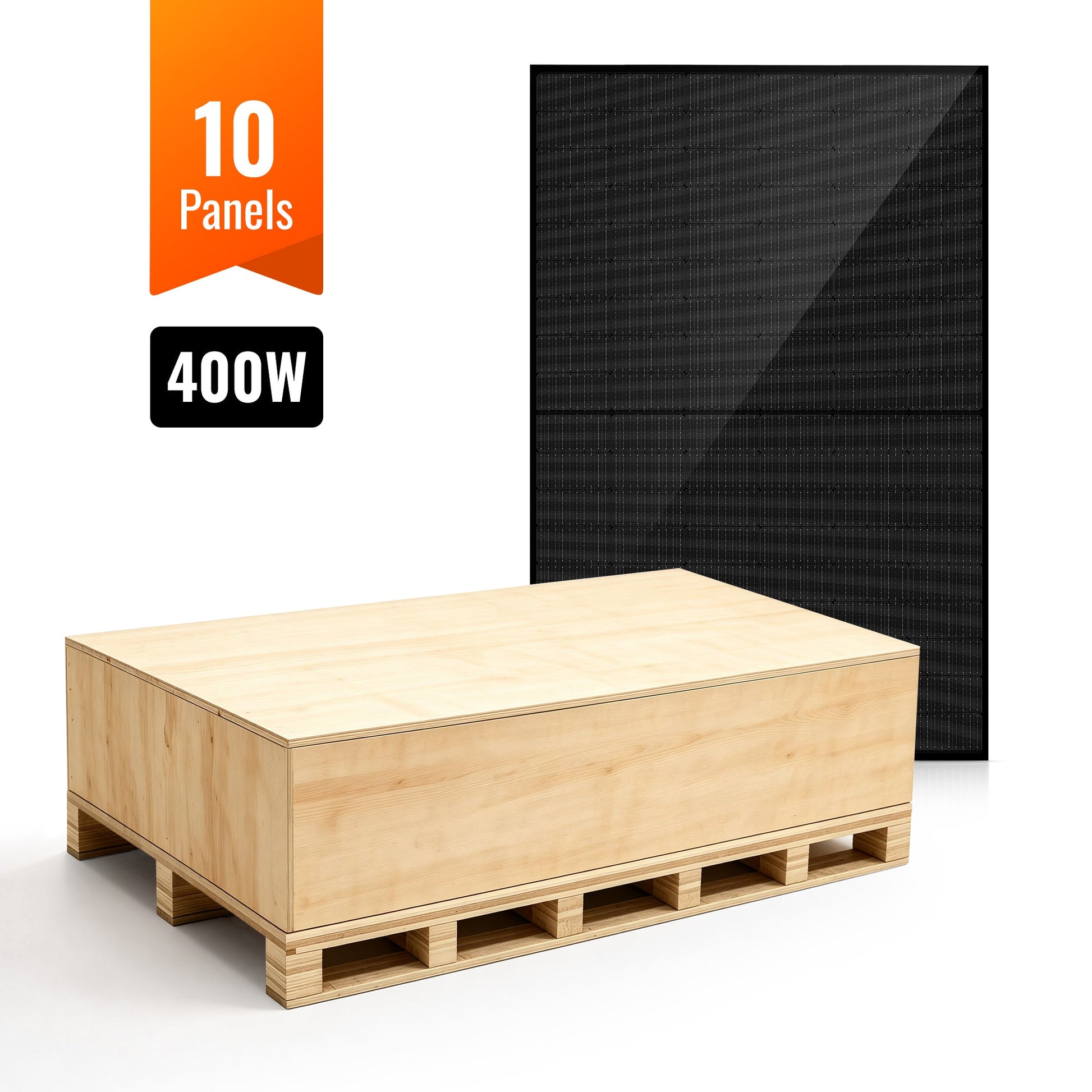

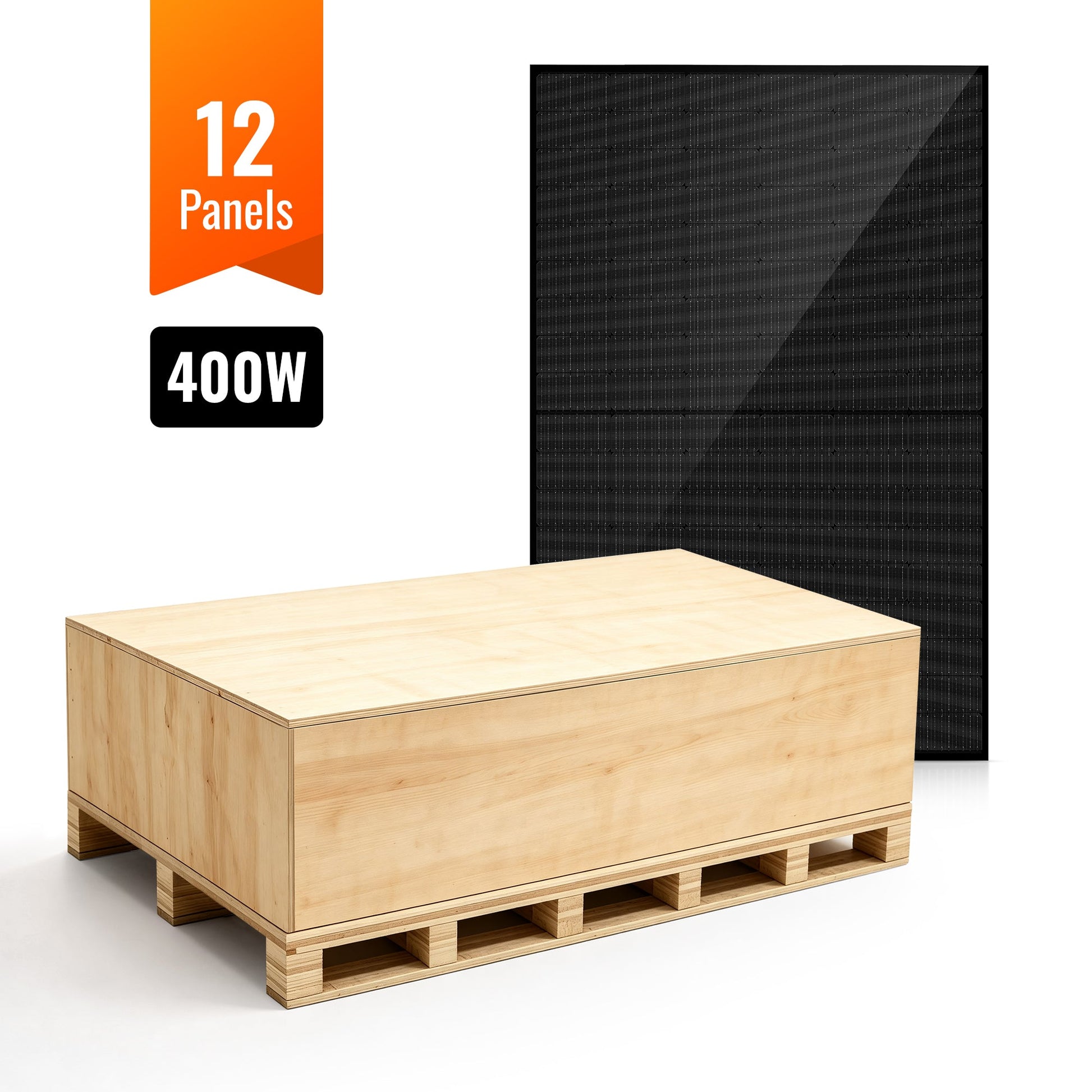

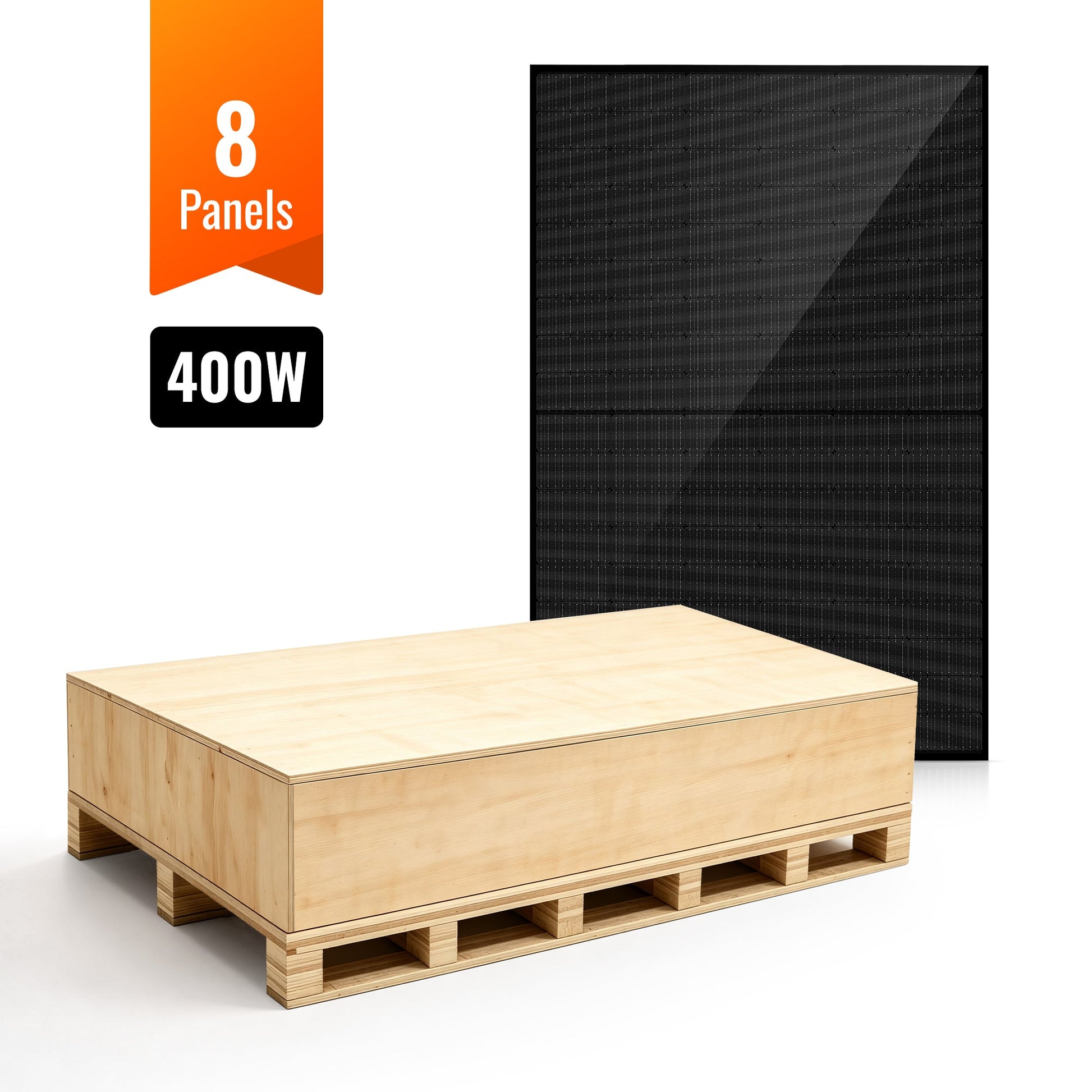

It works with on-grid and off-grid inverters and is rated for a 1500VDC maximum system voltage. The anodized aluminum frame has 8 pre-drilled holes for Z-bracket, tilt, pole or ground mounts. Rich Solar ships the MEGA 400 by pallet only, and we offer packs of 8, 10 or 12 panels.
Maximum efficiency
Multi-busbar monocrystalline cells improve light trapping and current collection, reaching up to 23.2% cell efficiency.
- 3.2 mm high-transmission, AR-coated tempered glass
- Strong output on cloudy days, mornings and evenings
- Low temperature coefficient of Pmax: -0.34%/°C
Easy installation
Plug-and-play solar connectors support both series and parallel configurations.
- Lightweight, corrosion-resistant anodized aluminum frame
- 8 pre-drilled holes for Z-brackets, tilt, pole or ground mounts
- Works with mainstream optimizers, inverters and mounting systems
Proven reliability
Non-destructive cell cutting helps minimize micro-cracks, and the panel is PID-resistant and 100% EL-inspected.
- Rated for 5,400 Pa snow and 2,400 Pa wind loads
- Built for salt, ammonia, sand, heat and high humidity
- Tested for UV, thermal cycling and humidity freeze
Specs, images and product claims on this page come from Rich Solar's MEGA 400 product page and July 2026 spec sheet. Last checked Oct 30, 2026.
Specifications
From Rich Solar's published specifications for model RS-M400-8.
Electrical
| Maximum power (Pmax) | 400W |
|---|---|
| Power tolerance | 0 to +5W |
| Max power voltage (Vmp) | 31.0V |
| Max power current (Imp) | 12.9A |
| Open circuit voltage (Voc) | 37.1V |
| Short circuit current (Isc) | 13.7A |
| Maximum series fuse rating | 25A |
| Module efficiency | 20.48% |
| Maximum system voltage | 1500 VDC |
Cells & temperature
| Cell type | Monocrystalline, 10 busbars |
|---|---|
| Maximum cell efficiency | 23.2% |
| Cells | 108 (6 × 9 × 2) |
| Cell size | 7.2 × 3.6 in (182 × 91 mm) |
| Temp. coefficient of Pmax | -0.34%/°C |
| Temp. coefficient of Voc | -0.26%/°C |
| Temp. coefficient of Isc | 0.045%/°C |
| NMOT | 44°C ± 2°C |
| Operating temperature | -40°F to 185°F |
Physical
| Dimensions | 67.8 × 44.7 × 1.2 in (1722 × 1134 × 30 mm) |
|---|---|
| Weight | 45.2 lb (20.5 kg) |
| Glass | 3.2 mm high-transmission, AR-coated tempered glass |
| Backsheet | Black |
| Frame | Anodized aluminum alloy |
| Mounting | 8 pre-drilled holes |
| Junction box | IP68, 3 diodes |
| Cable | 12 AWG (4.0 mm²), 47.24 in (1200 mm) |
| Connector | Solar connectors, IP67 |
Durability & warranty
| Snow load | 5,400 Pa |
|---|---|
| Wind load | 2,400 Pa |
| Certification | UL 61730, IEC 61215, CSA C22.2 (UL file E547316) |
| Shipping | Pallet only |
| Warranty | 25-year power output, 10-year workmanship (prorated) |
| Model / SKU | RS-M400 |
What's in the box
Package contents as listed by Rich Solar.
Documents & certificates
Official files from Rich Solar.
Customer reviews
Reviews from Sun Energy Depot customers, collected by Judge.me.
Pairs well with
Other parts you may need for a MEGA 400 setup.
Rich Solar
