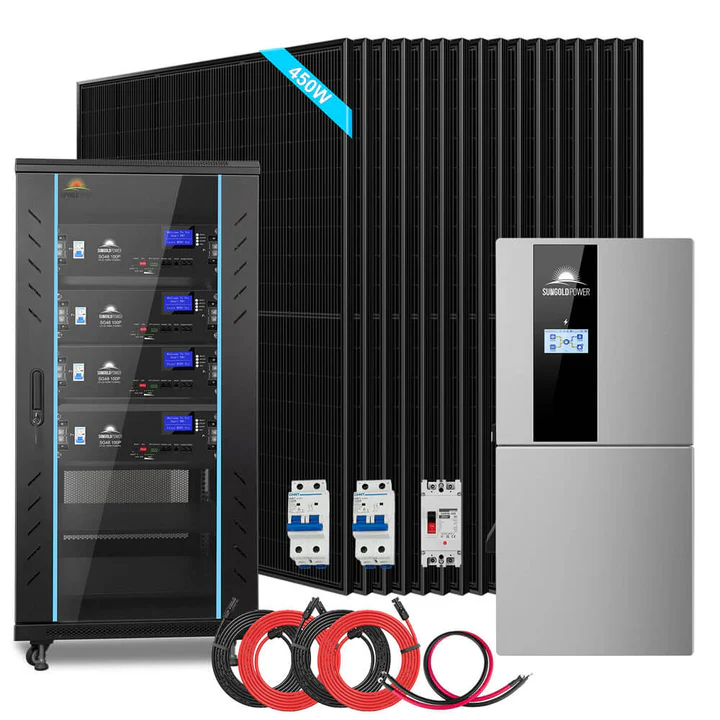

An 11.4kW split-phase hybrid kit with 20.48kWh of storage
The SGH-11N2E is SunGoldPower's 11.4kW, 48V split-phase hybrid solar kit. It combines the SGN-11K15PRO hybrid inverter, four SG48100P 51.2V 100Ah server rack LiFePO4 batteries (20.48kWh) in an enclosed battery cabinet, and sixteen 450W bifacial N-type panels (7,200W).
The system can run off-grid, hybrid or grid-tied: it powers loads from solar, can export surplus to the grid and stores energy to offset bills or provide backup during outages. Breakers, PV extension cables and 2/0 AWG battery cables are included.
Off-grid, hybrid or grid-tied
The kit can power the home from solar, send surplus to the grid and store energy to offset bills or cover outages.
- 7,200W solar array (16 × 450W)
- 20.48kWh of LiFePO4 storage in an enclosed cabinet
- Breakers, PV extension cables and 2/0 AWG cables included

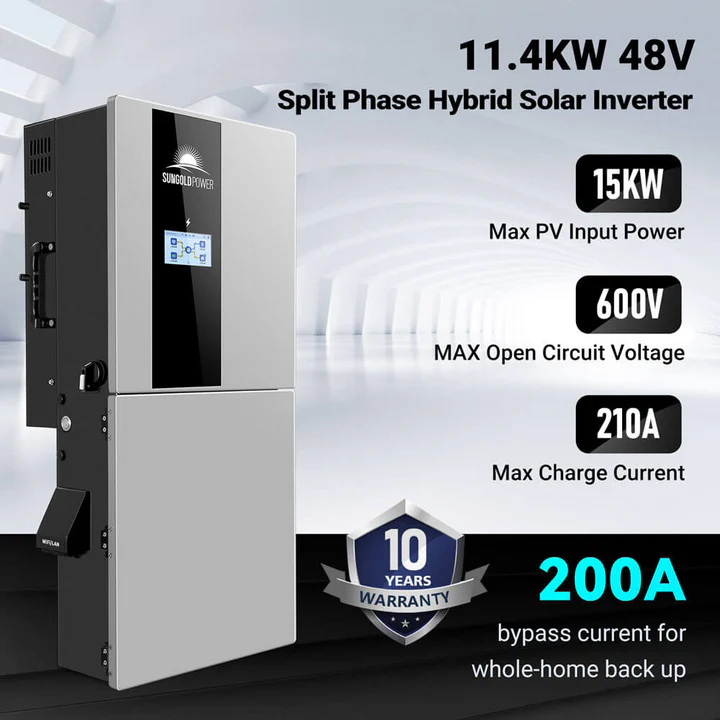

11.4kW split-phase hybrid inverter
The SGN-11K15PRO has three MPPT inputs and outputs 120/240V split-phase or 120/208V power.
- Up to 15,000W of PV input, 600V max
- 210A battery charge and discharge
- 200A grid pass-through, 100A generator port
- Up to 9 units in parallel

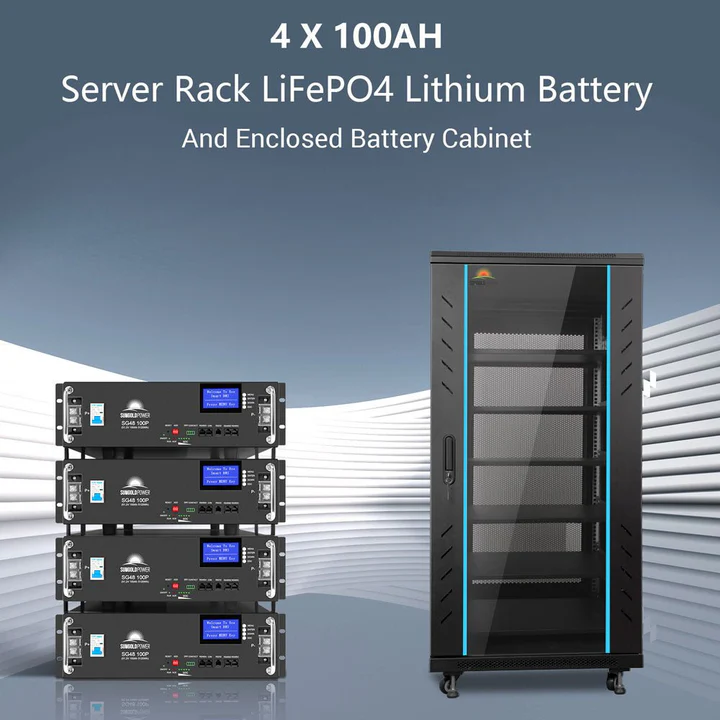

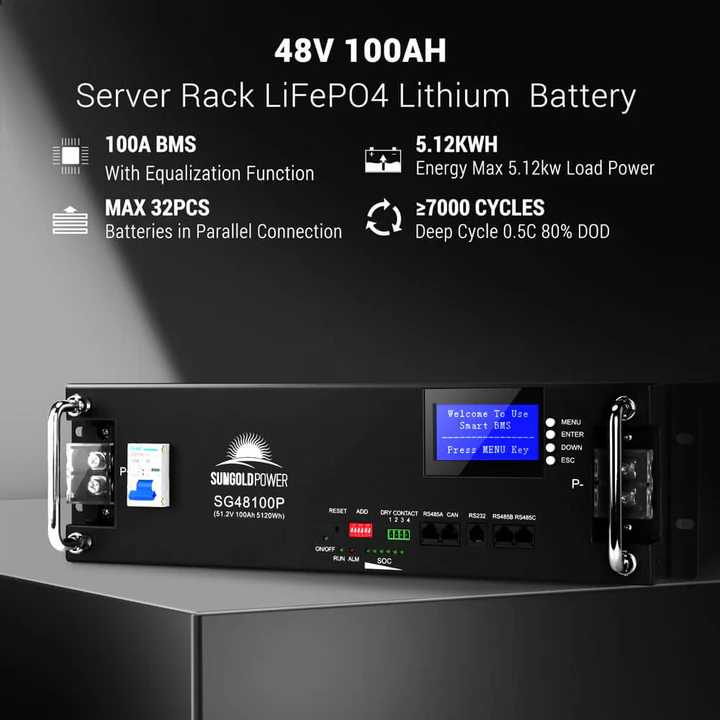

Four 5.12kWh server rack batteries
Four SG48100P 51.2V 100Ah LiFePO4 batteries come with an enclosed battery cabinet and communicate over RS232, RS485 or CAN.
- 7,000+ cycle life
- UL1973 certified
- 10-year battery warranty

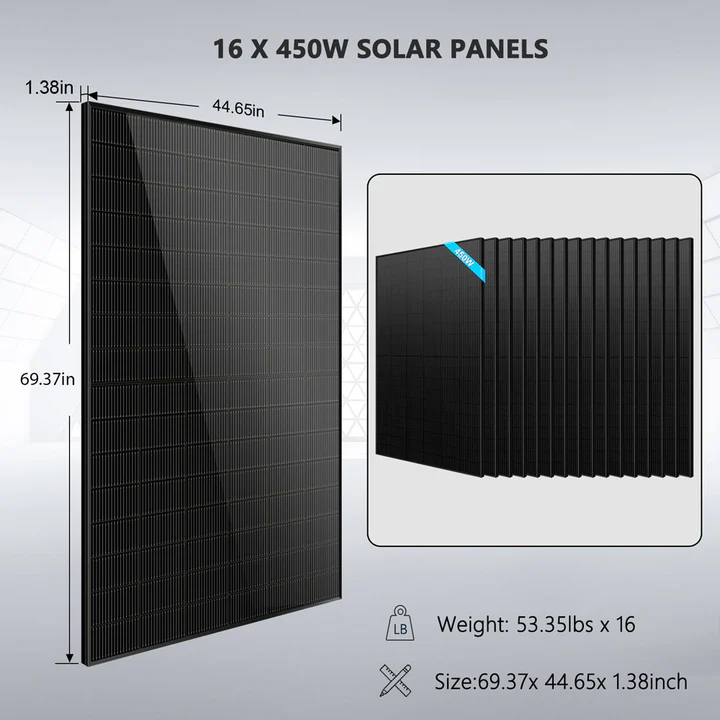

Sixteen 450W bifacial N-type panels
The SGN-450-BDG5 dual-glass panels reach 22.5% module efficiency and can harvest extra energy from the rear side.
- Rated for 5400 Pa snow and 2400 Pa wind loads
- UL61730 certified by ETL, CEC listed
- 12-year product warranty, 30-year linear power warranty
Specs, images and product claims on this page come from SunGoldPower's SGH-11N2E kit page, component manuals and data sheets. Last checked Oct 30, 2026.
Specifications
From SunGoldPower's published specifications for model SGH-11N2E.
System
| AC output | 11,400W, 120/240V split phase |
|---|---|
| DC system voltage | 48V (51.2V nominal) |
| Solar array | 7,200W (16 × 450W) |
| Battery storage | 20.48kWh (4 × 51.2V 100Ah LiFePO4) |
| Max solar input | 15,000W |
| Operating modes | Off-grid, hybrid or grid-tied |
Inverter
| Model | SGN-11K15PRO, 11.4kW 48V split phase hybrid |
|---|---|
| Peak output | 150% for 10 s |
| AC output voltage | 120/240V split phase; 120/208V (2/3 phase) |
| MPPT inputs | 3 (30A / 22A / 22A) |
| Max PV voltage | 600V |
| MPPT operating range | 70–540V |
| Max battery charge/discharge | 210A / 210A |
| Grid pass-through | 200A |
| Generator port | 100A / 24,000W |
| CEC efficiency | 96.5% |
| Transfer time | 10ms typical |
| Parallel | Up to 9 units (kit chart) |
| Enclosure / weight | NEMA 3R, 17.6 × 35.5 × 10.6 in, 103.6 lb |
| Certifications | UL 1741, CSA C22.2, UL 1699B, UL1741SA/SB, IEEE1547, FCC Part 15 B |
Battery
| Model | SG48100P server rack LiFePO4 (× 4) |
|---|---|
| Per battery | 51.2V, 100Ah, 5.12kWh |
| Max continuous charge current | 100A |
| Discharge cut-off voltage | 43.2V |
| Cycle life | ≥ 7,000 |
| Communication | RS232 / RS485 / CAN |
| Dimensions / weight | 19.3 × 18.9 × 5.5 in, 93 lb |
| Certifications | UL1973, UL9540A (kit chart) |
| Cabinet | Enclosed battery cabinet included |
Solar panels
| Model | SGN-450-BDG5 bifacial N-type (× 16) |
|---|---|
| Max power | 450W (0 / +5W) |
| Vmp / Imp | 30.08V / 14.97A |
| Voc / Isc | 35.03V / 16.05A |
| Module efficiency | 22.5% |
| Dimensions / weight | 69.37 × 44.65 × 1.38 in, 53.35 lb |
| Loads | 5400 Pa front, 2400 Pa rear |
| Certifications | UL61730 (ETL), CEC listed |
| Warranty | Inverter 10-year (kit page); batteries 10-year; panels 12-year product, 30-year linear power |
| Model / SKU | SGH-11N2E |
