1 / 5Hover to zoom · click to enlargeComplete Off-Grid Solar Kit 8000W 48V 120V/240V Output 10.24KWH Lithium Battery 5400 Watt Solar Panel SGK-8MAX
Ships from SunGoldPower's U.S. warehouse
- Free shipping, no minimumTo the lower 48 states and Washington, D.C.
- Authorized SunGoldPower dealerFull manufacturer warranty and support.
- Component warranties3-yr inverter, 5-yr batteries, 12-yr panels.
- 30-day returnsOn new, unused items.
Shipping & handling
- Orders are processed within 1–3 business days.
- Parcel items typically arrive 3–7 business days after shipping. Freight items (panels, batteries, inverters and kits) typically arrive 5–14 business days after shipping.
- Rich Solar and SunGoldPower products ship free to the lower 48 states and Washington, D.C., with no minimum. Lensun shipping is based on weight and shown at checkout.
- Freight deliveries need an appointment and a signature, and are delivered curbside.
Returns & refunds
Request a return within 30 days of delivery. Items must be new, unused, not installed, and in their original packaging.
- Contact us first for a Return Merchandise Authorization (RMA). Returns sent without one are refused.
- For a change-of-mind return, you pay return shipping and a 15% restocking fee is deducted from your refund.
- Damaged on arrival? Report it within 3 business days of delivery and we arrange a replacement or full refund.
Warranty
SunGoldPower's kit page lists a 3-year warranty on the 8000W inverter, a 5-year warranty on the 12V 200Ah batteries, and a 12-year material and workmanship warranty with a 25-year output warranty on the 450W panels. Coverage starts on the purchase date and is for the original buyer.
Need help choosing?
Not sure this fits your system? Email support@sunenergydepot.com with what you want to power, or use the chat in the corner, and we will help you choose.
An 8kW, 120/240V off-grid kit for whole-home loads

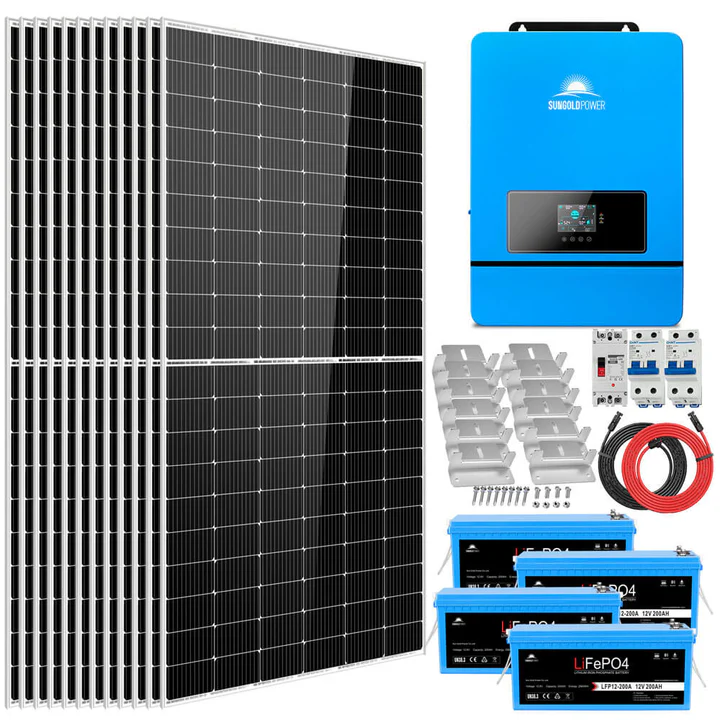

The SGK-8MAX is SunGoldPower's 8000W, 48V off-grid solar kit with 120V/240V split-phase output. It includes an 8000W solar inverter, four 12V 200Ah LiFePO4 batteries with Bluetooth (10.24kWh) and twelve 450W monocrystalline panels (5,400W).
SunGoldPower describes it for off-grid homes and emergency backup, with enough capacity for larger appliances such as air conditioners, washers and water pumps. Mounting Z-brackets, breakers and cables are included, up to six inverters can run in parallel, and more panels or batteries can be added later.
An 8kW split-phase system for whole-home loads
SunGoldPower describes this kit for off-grid homes, solar systems and emergency backup, powering larger appliances such as air conditioners, washers, refrigerators and water pumps.
- 5,400W solar array (12 × 450W)
- 10.24kWh of LiFePO4 storage (4 × 12V 200Ah)
- Z-brackets, breakers and cables included

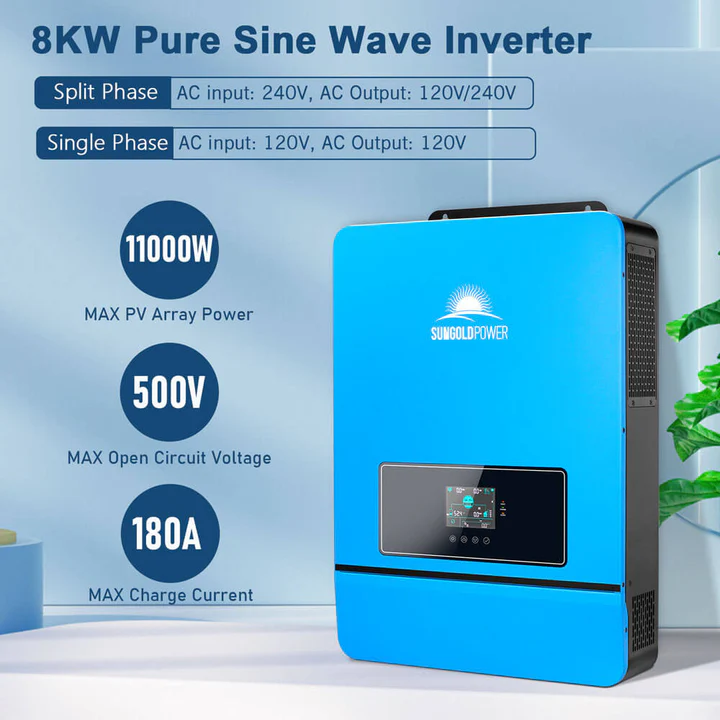

8000W split-phase solar inverter
The SPH8048P outputs 120V or 120/240V split-phase pure sine wave power and has two MPPT solar inputs.
- 16,000W peak power
- Up to 11,000W of PV input, 500V max open-circuit voltage
- Up to 180A battery charging
- Up to 6 units in parallel

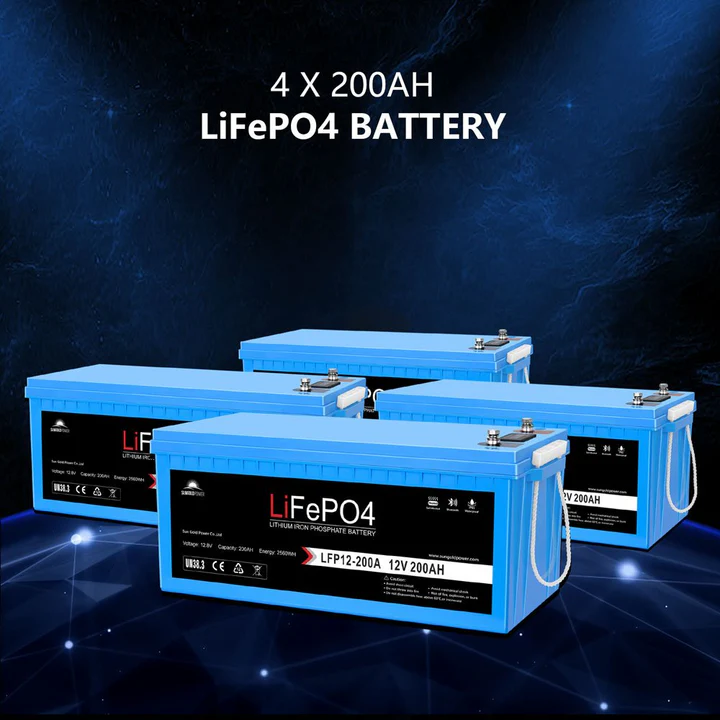

Four 12V 200Ah self-heating LiFePO4 batteries
The 12.8V 200Ah batteries store 2,560Wh each and have LCD displays, Bluetooth monitoring, self-heating and IP65 protection.
- 150A max continuous charge current per battery
- 4,000+ cycle life
- 5-year battery warranty

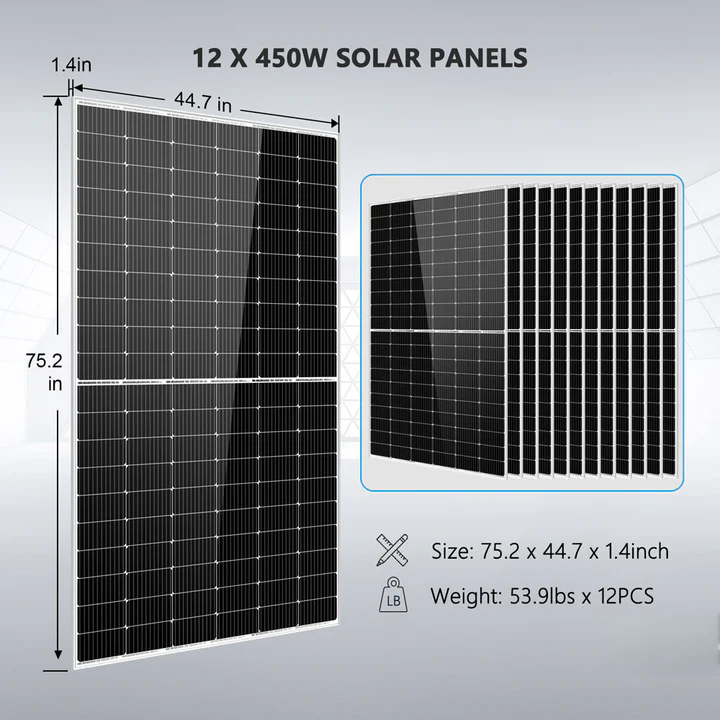

Twelve 450W monocrystalline panels
The SG450WM PERC panels reach 20.79% module efficiency and use an IP68 junction box.
- UL 61730 and CEC listed
- 12-year material and workmanship warranty
- 25-year output warranty
Specs, images and product claims on this page come from SunGoldPower's SGK-8MAX kit page, component manuals and data sheets. Last checked Oct 30, 2026.
Specifications
From SunGoldPower's published specifications for model SGK-8MAX.
System
| Continuous output | 8000W |
|---|---|
| AC output | 120V/240V split phase |
| DC system voltage | 48V |
| Solar array | 5,400W (12 × 450W) |
| Battery storage | 10.24kWh (4 × 12.8V 200Ah LiFePO4) |
| Max solar input | 11,000W |
Inverter
| Model | SPH8048P, 8000W 48V split phase |
|---|---|
| Peak power | 16,000W |
| AC output | 120V single-phase / 120/240V split-phase, 50/60Hz |
| Waveform | Pure sine wave |
| MPPT inputs | 2, 22A each |
| Max PV open-circuit voltage | 500V |
| MPPT operating range | 125–425V (kit chart) |
| Max charge current | 180A (PV or hybrid); 100A from grid/generator |
| Max efficiency | 92% (MPPT 99.9%) |
| Transfer time | 10ms typical |
| Parallel | Up to 6 units |
| Dimensions / weight | 24.4 × 17.5 × 5.1 in (620 × 445 × 130 mm), 59.5 lb (27 kg) |
| Certification | UL1741 listed by ETL (kit chart) |
Battery
| Model | LFP-12V-200A LiFePO4 (× 4) |
|---|---|
| Per battery | 12.8V, 200Ah, 2,560Wh |
| Voltage window | 10.8V to 14.6V |
| Max continuous charge current | 150A |
| Peak discharge current | 245A |
| Cycle life | ≥ 4,000 |
| Features | Self-heating, IP65, LCD and Bluetooth |
| Dimensions / weight | 19.7 × 9.4 × 9.1 in, 48.5 lb |
Solar panels
| Model | SG450WM mono PERC (× 12) |
|---|---|
| Max power | 450W (±3%) |
| Vmp / Imp | 34.2V / 13.16A |
| Voc / Isc | 41.72V / 13.82A |
| Module efficiency | 20.79% |
| Dimensions | 75.16 × 44.65 × 1.38 in |
| Certifications | UL 61730, CEC listed |
| Warranty | Inverter 3-year; batteries 5-year; panels 12-year workmanship, 25-year output |
| Model / SKU | SGK-8MAX |
What's in the box
Package contents as listed by SunGoldPower.
Documents & certificates
Official files from SunGoldPower.
Customer reviews
Reviews from Sun Energy Depot customers, collected by Judge.me.
Pairs well with
Other parts you may need for a Complete Off-Grid Solar Kit 8000W 48V 120V/240V Output 10.24KWH Lithium Battery 5400 Watt Solar Panel SGK-8MAX setup.
