1 / 7Hover to zoom · click to enlarge48V 100AH Server Rack Lithium Battery with Self-Heating SGH48100T
Ships from SunGoldPower's U.S. warehouse
- Free shipping, no minimumTo the lower 48 states and Washington, D.C.
- Authorized SunGoldPower dealerFull manufacturer warranty and support.
- 10-year warrantyBacked by SunGoldPower.
- 30-day returnsOn new, unused items.
Shipping & handling
- Orders are processed within 1–3 business days.
- Parcel items typically arrive 3–7 business days after shipping. Freight items (panels, batteries, inverters and kits) typically arrive 5–14 business days after shipping.
- Rich Solar and SunGoldPower products ship free to the lower 48 states and Washington, D.C., with no minimum. Lensun shipping is based on weight and shown at checkout.
- Freight deliveries need an appointment and a signature, and are delivered curbside.
Returns & refunds
Request a return within 30 days of delivery. Items must be new, unused, not installed, and in their original packaging.
- Contact us first for a Return Merchandise Authorization (RMA). Returns sent without one are refused.
- For a change-of-mind return, you pay return shipping and a 15% restocking fee is deducted from your refund.
- Damaged on arrival? Report it within 3 business days of delivery and we arrange a replacement or full refund.
Warranty
SunGoldPower's product page lists a 10-year warranty for this battery, starting on the date of purchase. Coverage is for the original buyer and excludes misuse, modification and unauthorized repair.
Need help choosing?
Not sure this fits your system? Email support@sunenergydepot.com with what you want to power, or use the chat in the corner, and we will help you choose.
A 48-volt, 5.12kWh self-heating server rack battery for cold climates
The SGH48100T is SunGoldPower's 51.2V 100Ah server rack LiFePO4 battery with built-in self-heating. It stores 5.12kWh, is rated for 7,000+ cycles with a 15-year design life, and carries a 10-year warranty and UL1973 certification.
Heating switches on automatically between -13°F and 41°F and brings the pack up to 53.6°F so it can charge in freezing weather. The 3U pack talks to most inverters over RS485 and CAN, and up to 32 batteries can run in parallel.

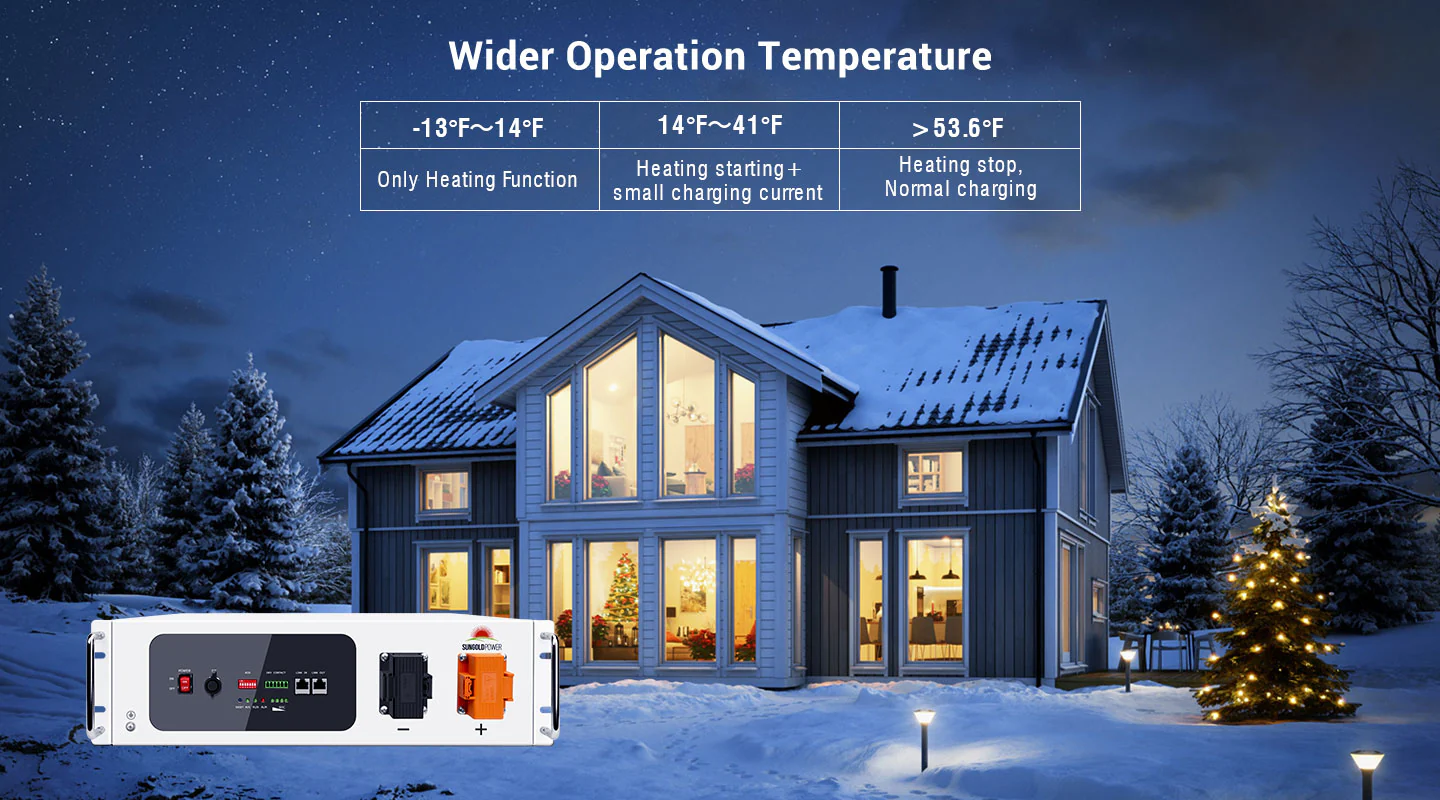

Self-heating for cold climates
Heating switches on automatically between -13°F and 41°F and raises the pack to 53.6°F (12°C), so the system is ready to charge in freezing weather.
- -13°F to 14°F: heating only
- 14°F to 41°F: heating plus a small charging current
- Above 53.6°F: heating stops, normal charging
7,000+ cycles and a 10-year warranty
Tier 1 automotive LFP cells are rated for more than 7,000 cycles, with a 15-year design life.
- Smart BMS with low-temperature charging protection
- UL1973 certificate
Up to 32 batteries in parallel
Connect up to 32 batteries in parallel for about 164kWh of storage.
- RS232/RS485 to PC over USB
- RS485 or CAN to the inverter
Works with most inverters
The BMS communicates over RS485 and CAN Bus with the matching cables.
- Growatt, Deye, Sol-Ark, SunGoldPower, Luxpower
- EG4, Victron Energy, Schneider, SMA, Solis and more

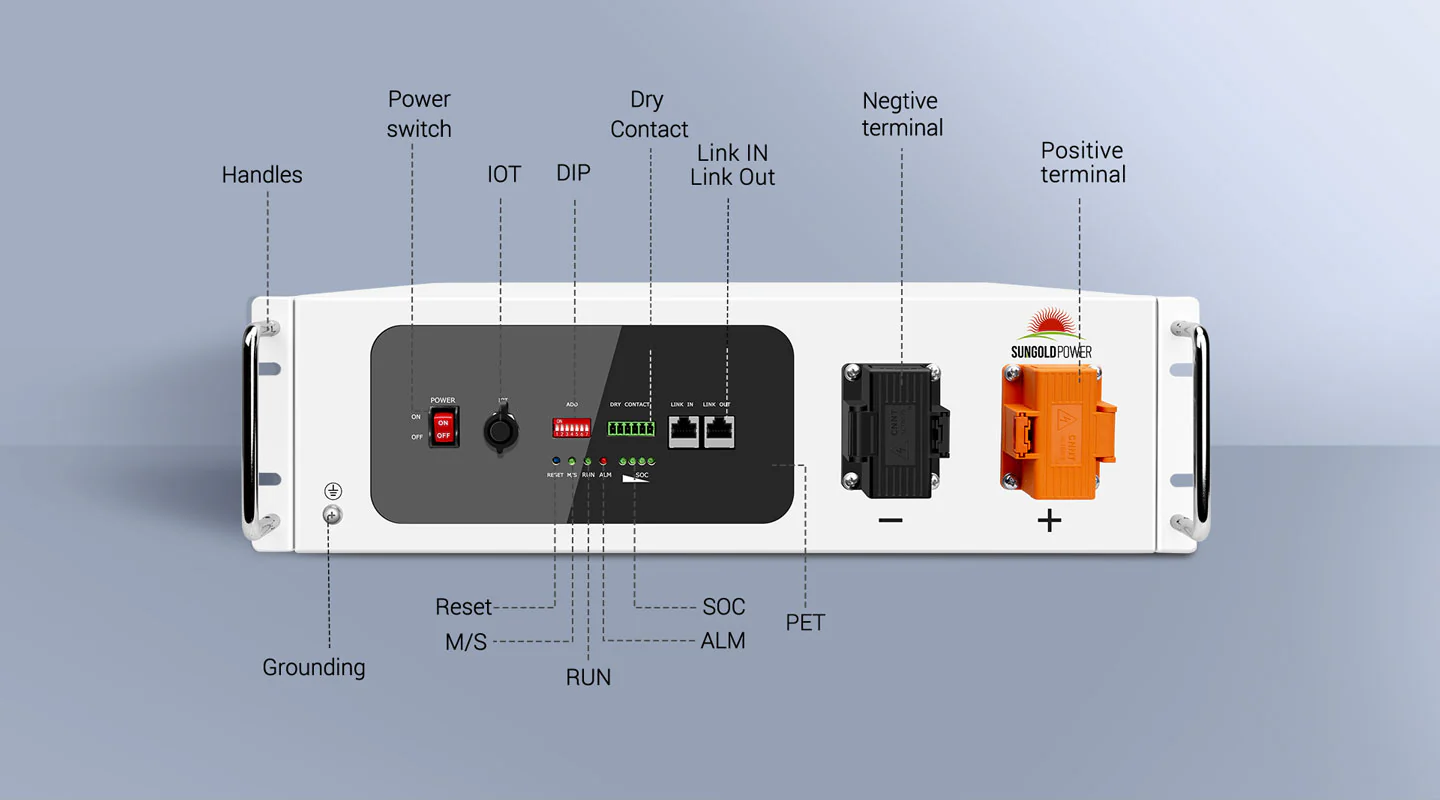

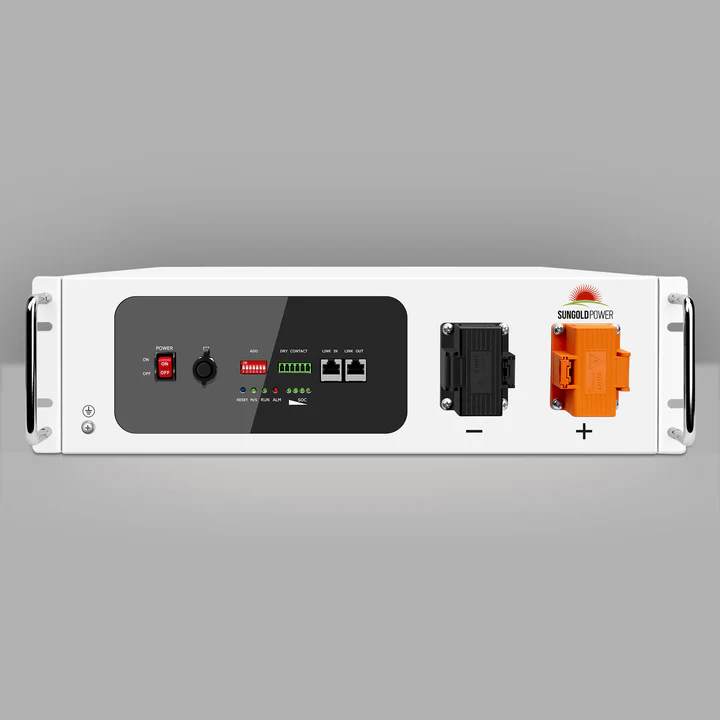

Compact 3U rack pack
The 3U pack is compact, easy to install and maintenance-free, with its switches, ports and terminals on the front panel.
- Power switch, DIP switch and dry contact
- Link in / link out ports and grounding point
Specs, images and product claims on this page come from SunGoldPower's SGH48100T product page and specification chart. Last checked Oct 30, 2026.
Specifications
From SunGoldPower's published specifications for model SGH48100T.
Battery
| Chemistry | LiFePO4 |
|---|---|
| Nominal voltage | 51.2V |
| Nominal capacity (0.2C) | 100Ah |
| Nominal energy (0.2C) | 5.12kWh |
| Cycle life | 7,000+ |
| Design life | 15 years |
Charge & discharge
| Voltage range | 44.8V to 57.6V |
|---|---|
| Charge voltage | 56.0V |
| Float charge voltage | 54.6V |
| Standard charge current | ≤ 50A |
| Max charge current | 70A |
| Standard discharge current | ≤ 50A |
| Max discharge current | 100A (initial temp. ≤ 86°F) |
| Peak discharge current | 101–119A for 5 min; 120–200A for 15 s |
Environment & heating
| Charge temperature | 14°F to 122°F |
|---|---|
| Discharge temperature | -4°F to 122°F |
| Heating starts | -13°F to 41°F (current > 0.08C) |
| Heating stops | At 53.6°F (12°C) |
| Recommended storage | 59°F to 95°F, 5–75% RH |
Physical & certification
| Dimensions | 19.3 × 17.3 × 5.2 in (490 × 441 × 133 mm) |
|---|---|
| Weight | 103 lb (about 47 kg) |
| Form factor | 3U rack |
| Communication | RS485 / CAN |
| Parallel | Up to 32 batteries |
| Certification | UL1973 |
| Warranty | 10-year |
| Model / SKU | SGH48100T |

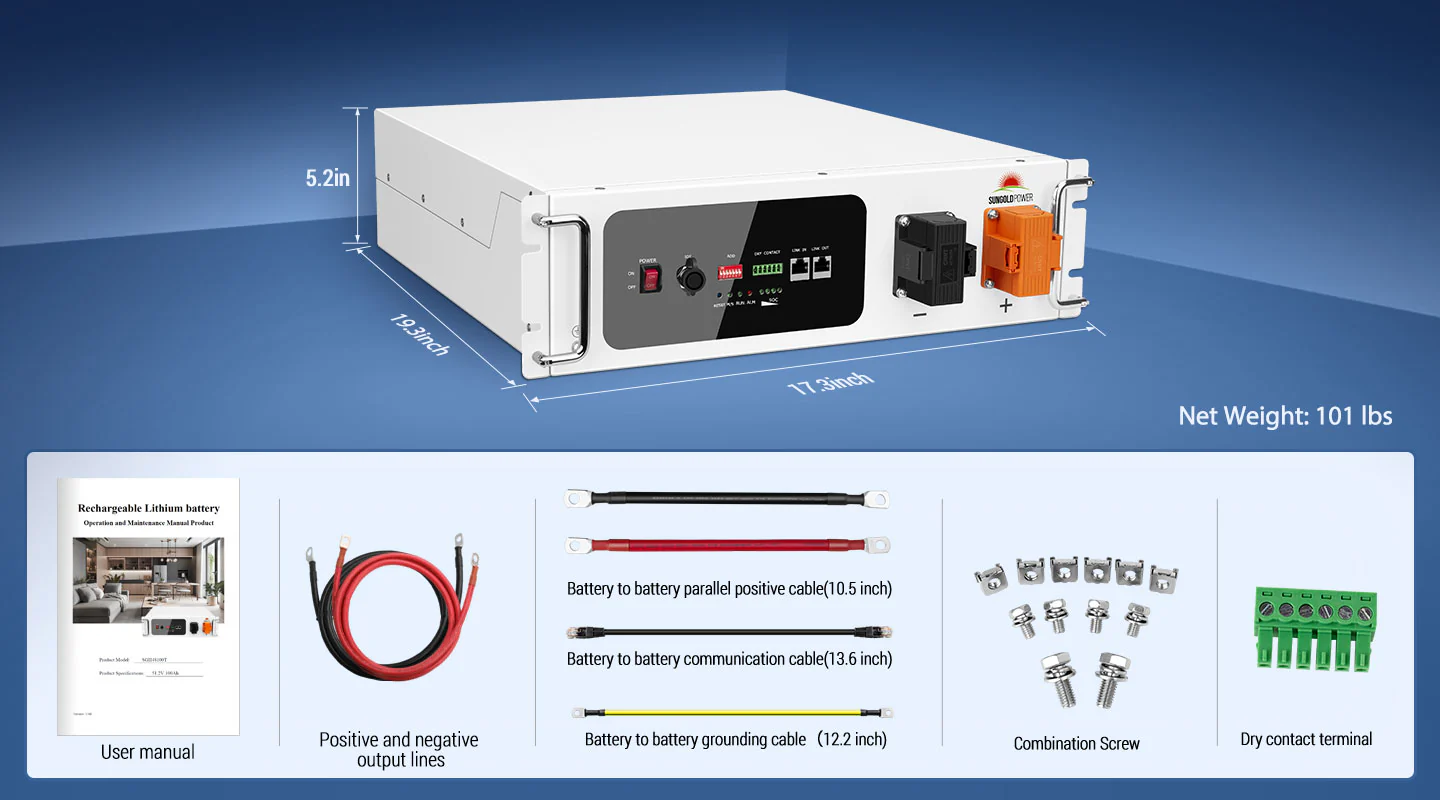

What's in the box
