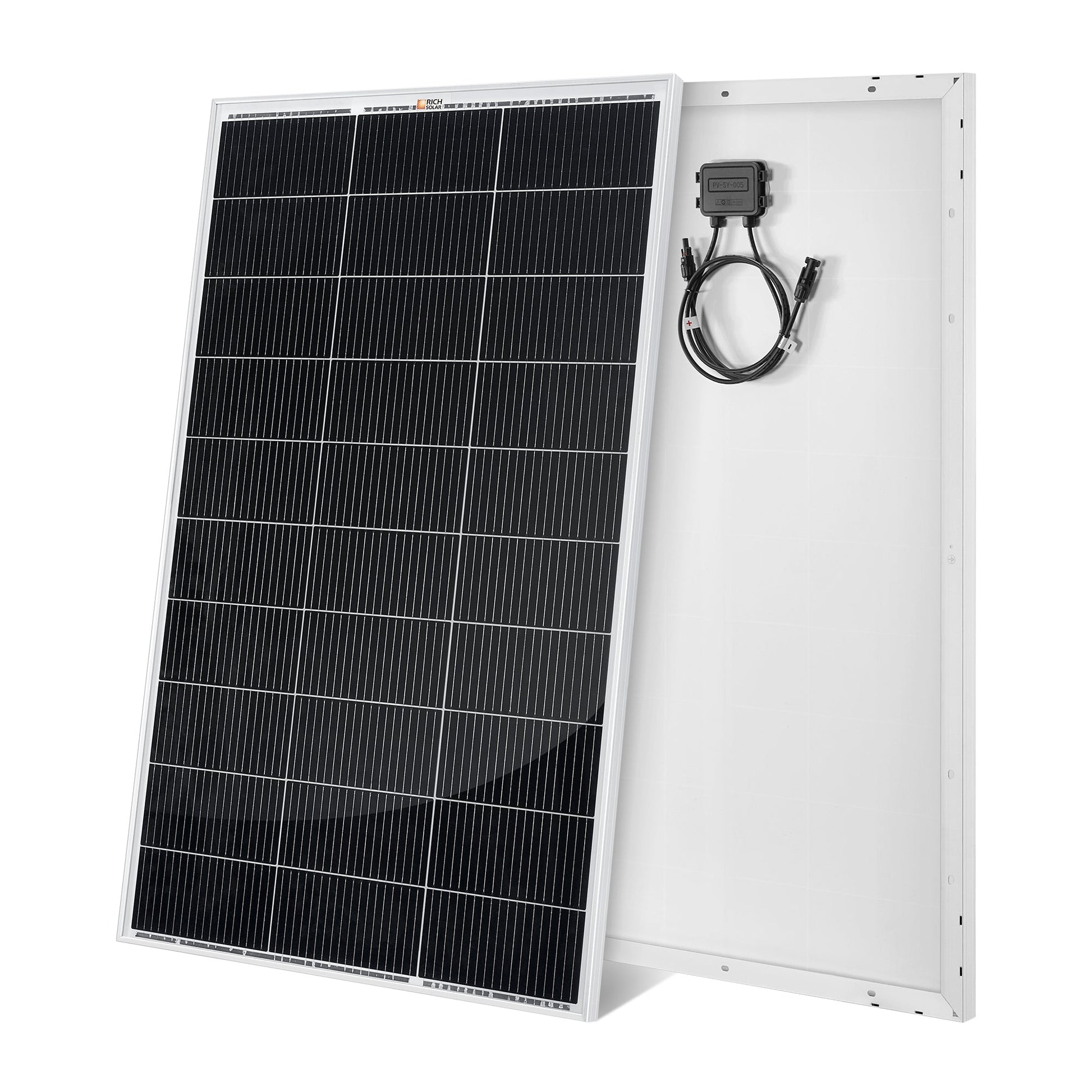

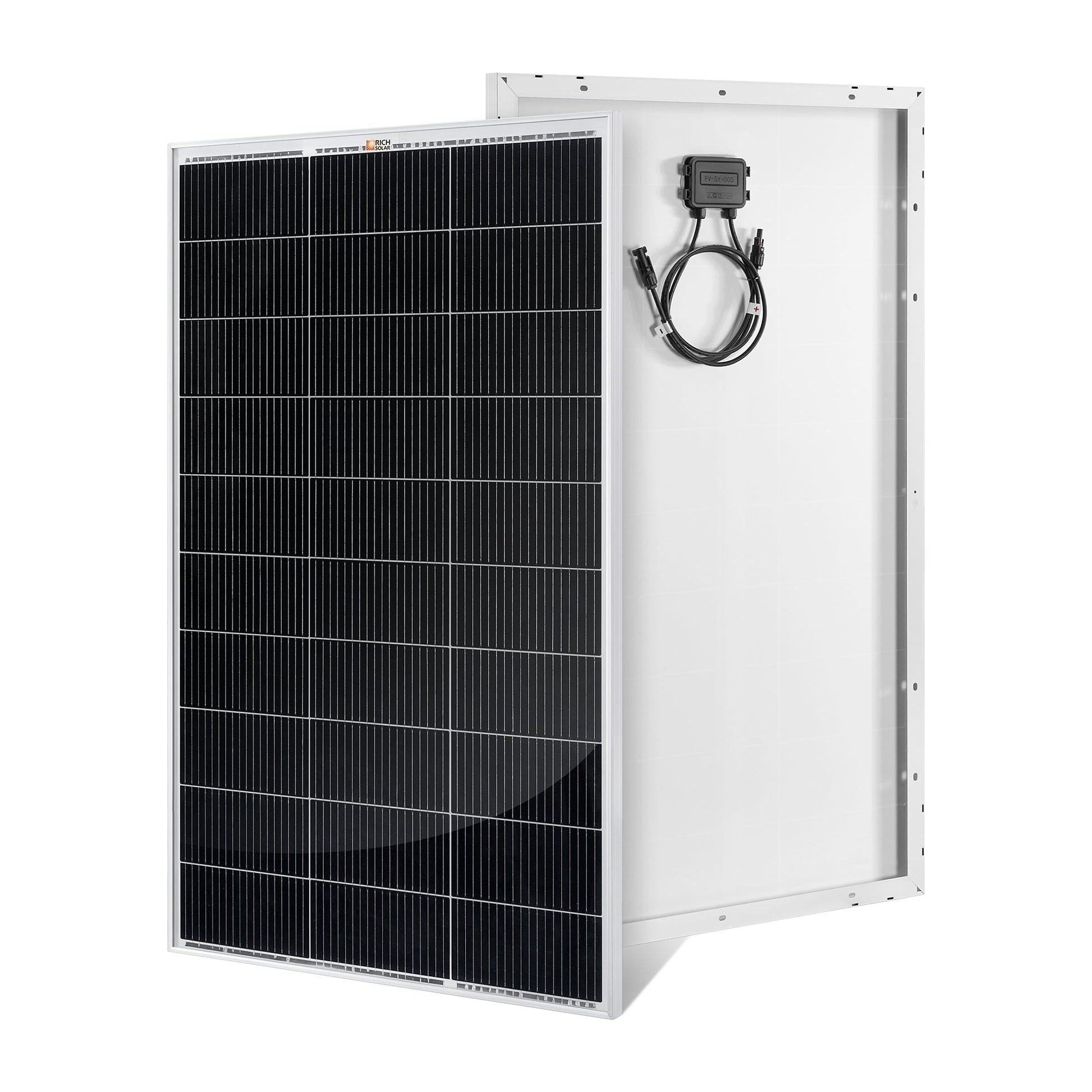

MEGA 150 - 150 Watt Solar Panel

MEGA 150 - 150 Watt Solar Panel

$135.99
$169.99 $135.99
Sale Sold out
Shipping calculated at checkout.

The MEGA 150 uses N-Type TOPCon cells to pull more power out of the same roof space — useful when you have a fixed area to work with and want every watt of it. Eighteen busbars spread current more evenly across the cell, which helps output hold up when part of the panel falls into shade.

Why this panel

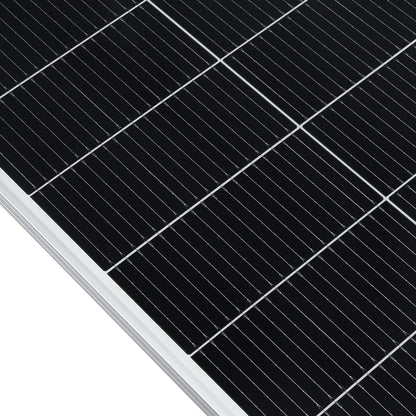

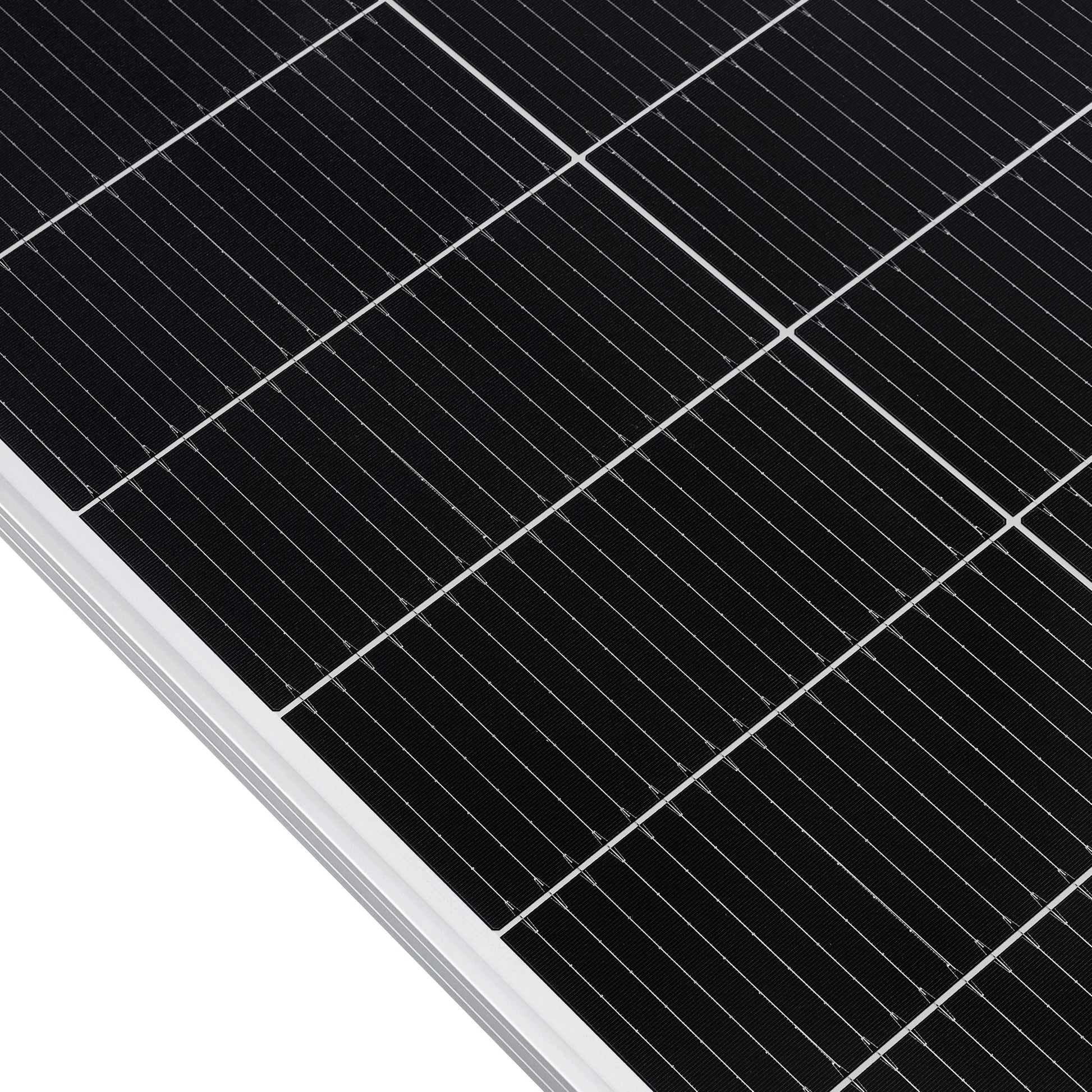

  • 18-busbar N-Type TOPCon cells reaching up to 25.3% efficiency
  • A 30-cell layout delivers a reliable 150W, with 0 to +5W tolerance so you never get less than rated
  • Strong output in cloudy conditions and at dawn and dusk
  • 3.2 mm anti-reflective tempered glass maximizes light capture and takes weather in stride
  • Rated for 5400 Pa snow and 2400 Pa wind loading
  • PID-resistant and double EL-inspected to catch microcracks before they ship
  • Tested for UV exposure, thermal cycling, and humidity freeze
  • Certified to UL 61730, IEC 61215, and CSA C22.2

Mounting and wiring

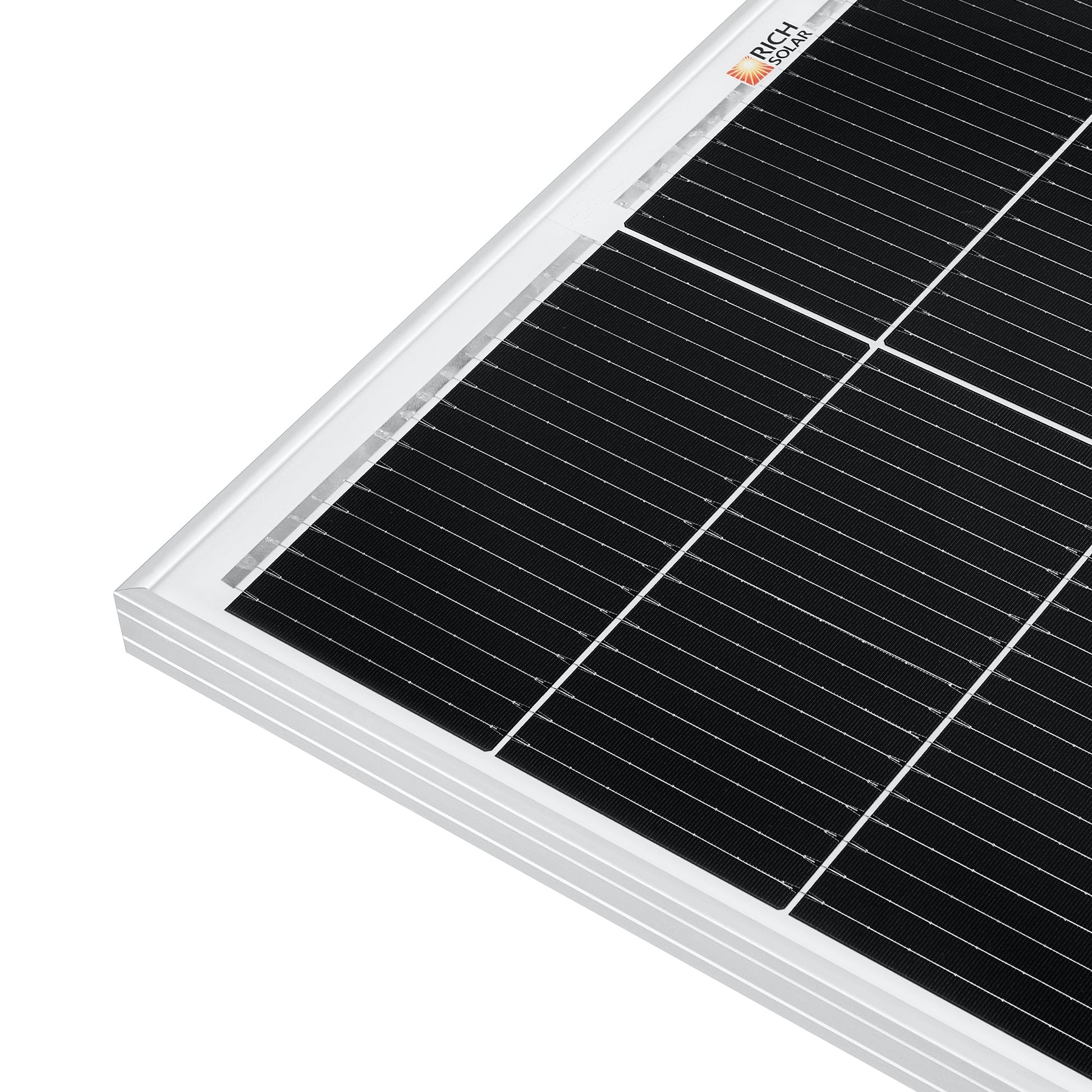

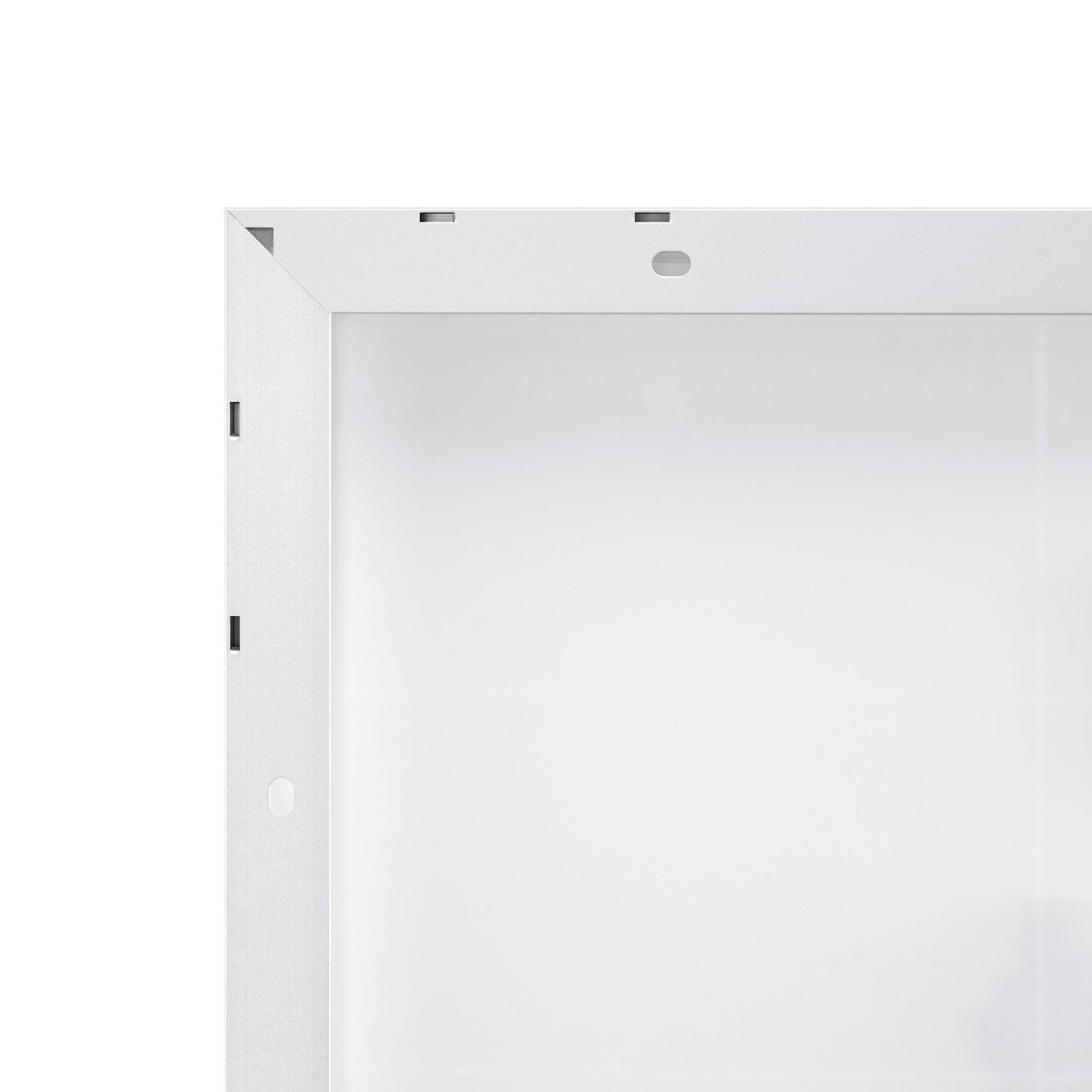

  • Anodized aluminum frame — lightweight, rigid, corrosion-resistant

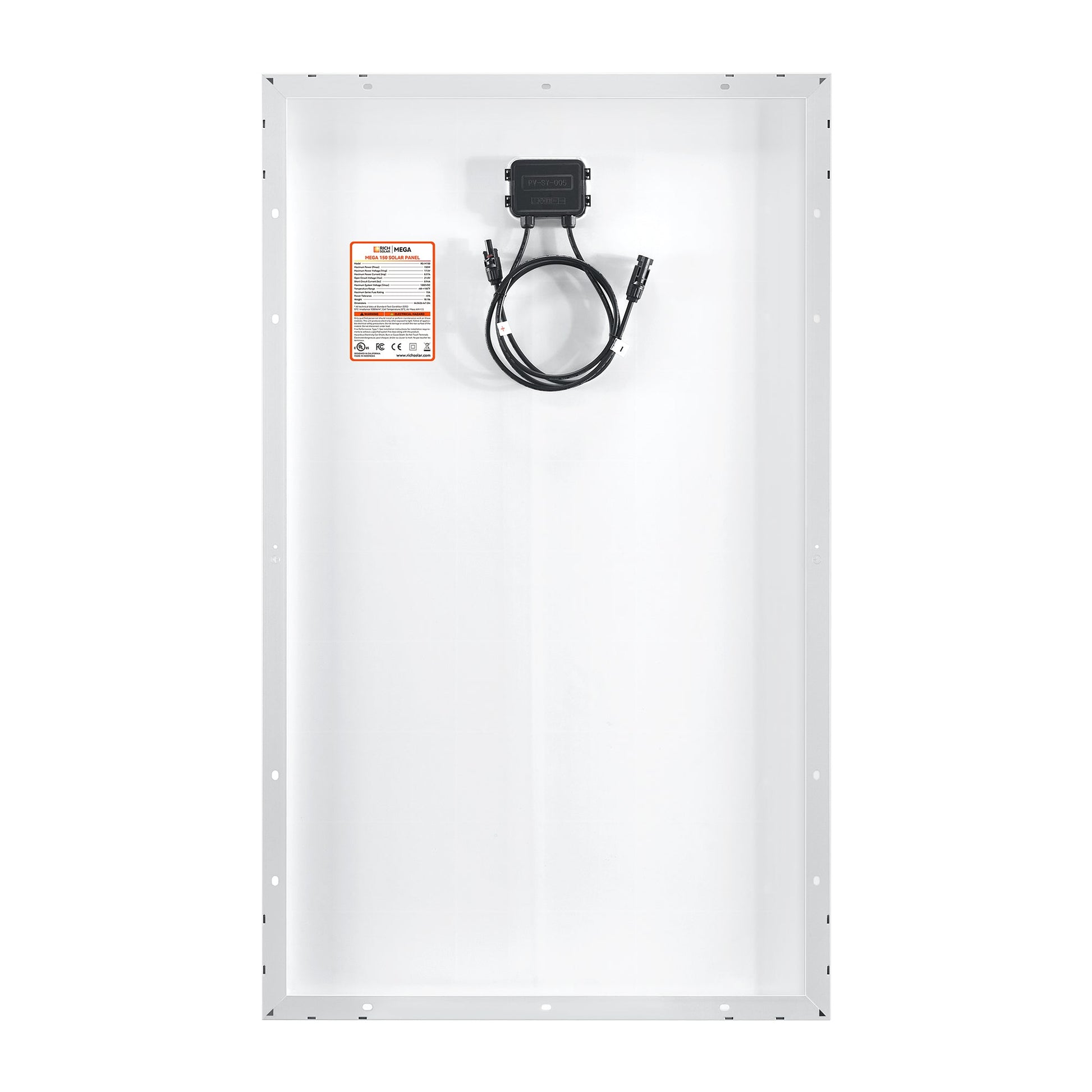

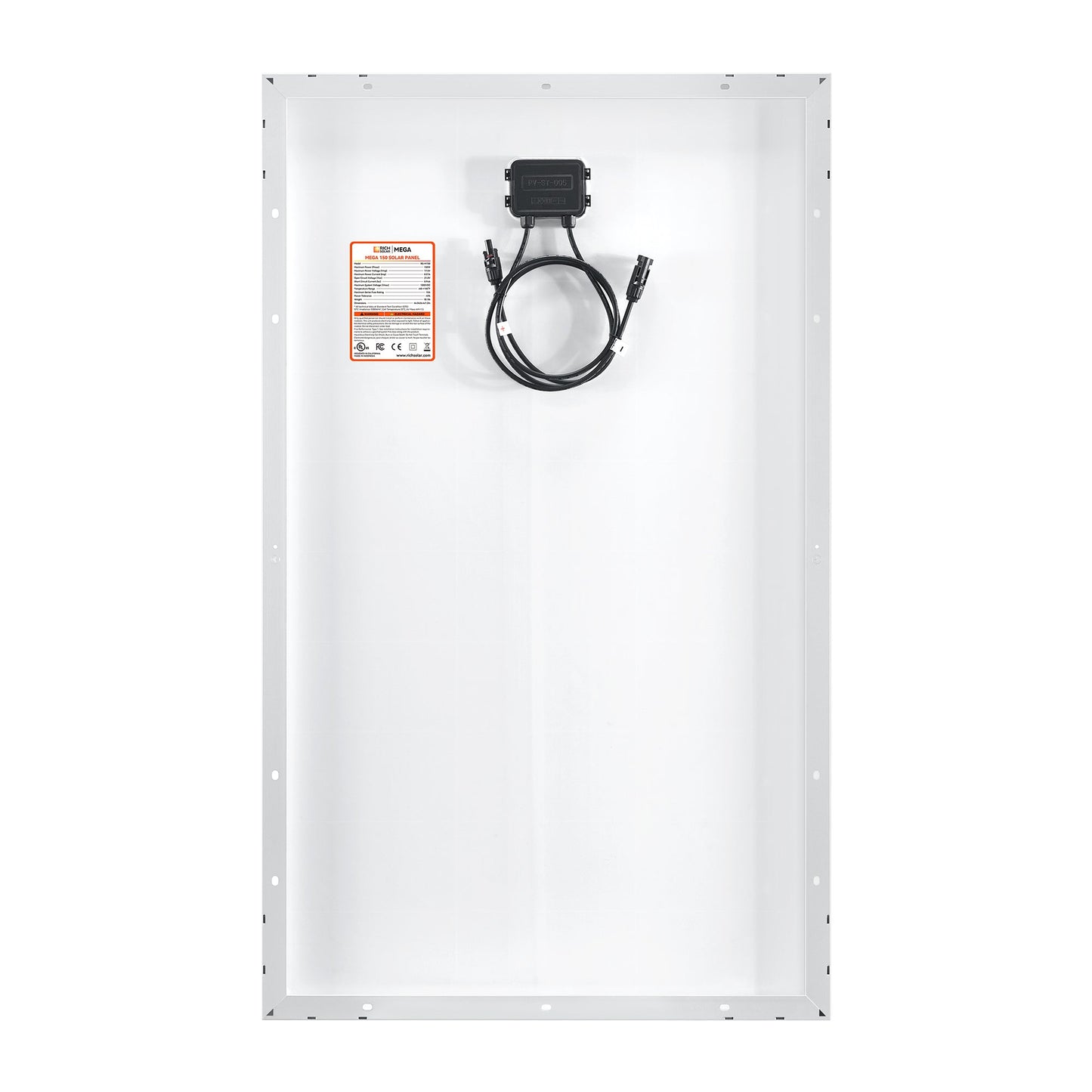

  • Fourteen pre-drilled holes for Z-brackets, tilt mounts, pole, or ground racking

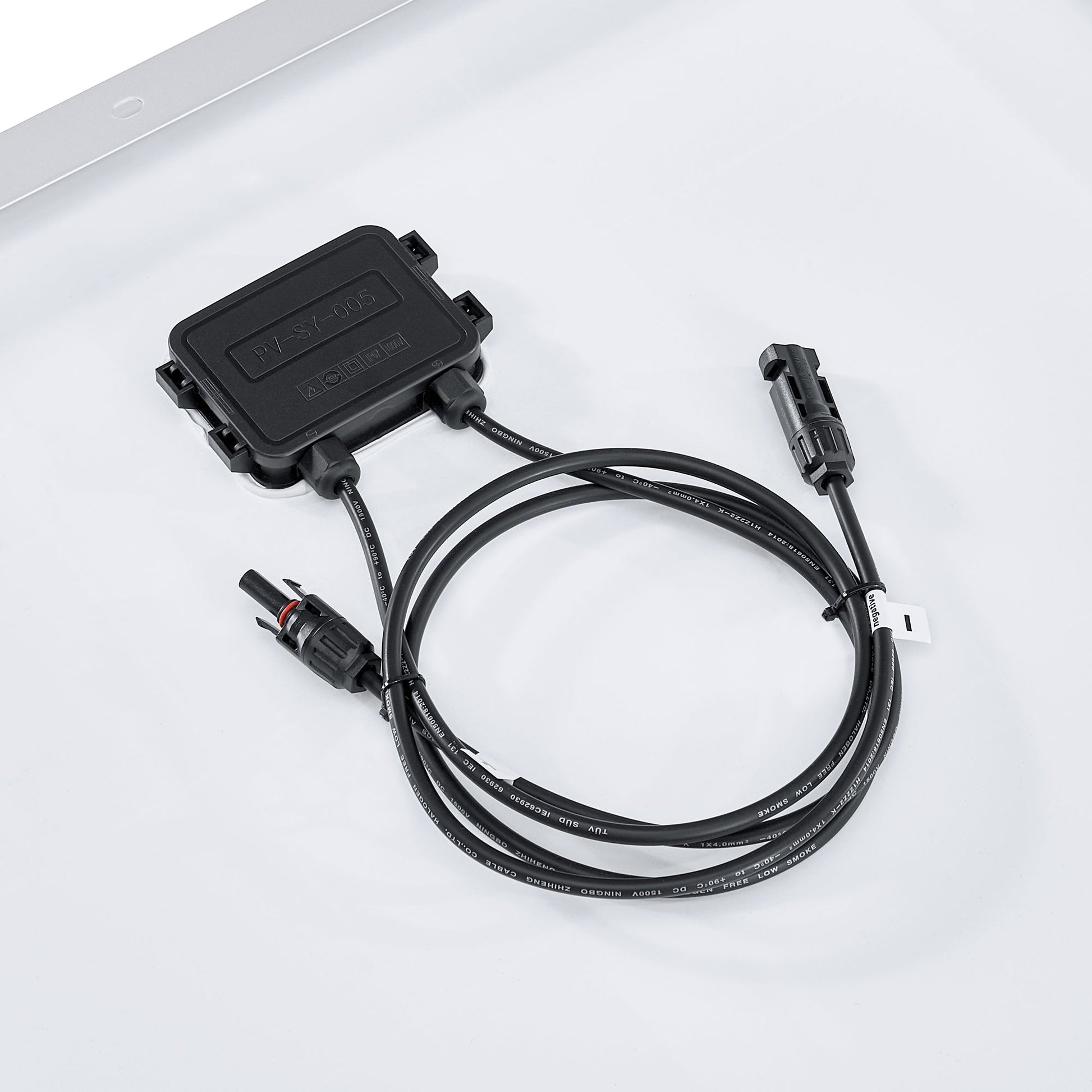

  • Three-foot 12 AWG MC4 leads pre-attached
  • Compatible with both on-grid and off-grid inverters

Warranty

  • 25-year power output warranty
  • 10-year workmanship warranty
View full details

Let's get into the details.

What's Included

  • 1x MEGA 150 150 Watt Solar Panel
  • Pre-attached panel leads (pair): 12 AWG, 3 ft each
  • IP67-rated waterproof junction box (built in)
  • IP67-rated waterproof MC4 solar connectors

Technical Specifications

  • Maximum Power (Pmax): 150W
  • Maximum Power Voltage (Vmp): 17.5V
  • Maximum Power Current (Imp): 8.57A
  • Open Circuit Voltage (Voc): 21.8V
  • Short Circuit Current (Isc): 8.94A
  • Maximum System Voltage (Vmax): 1000VDC
  • Maximum Series Fuse Rating: 10A
  • Cell Type: 18-busbar N-Type TOPCon, up to 25.3% efficiency
  • Operating Temperature: -40°F to +185°F
  • Panel Weight: 18.1 lb

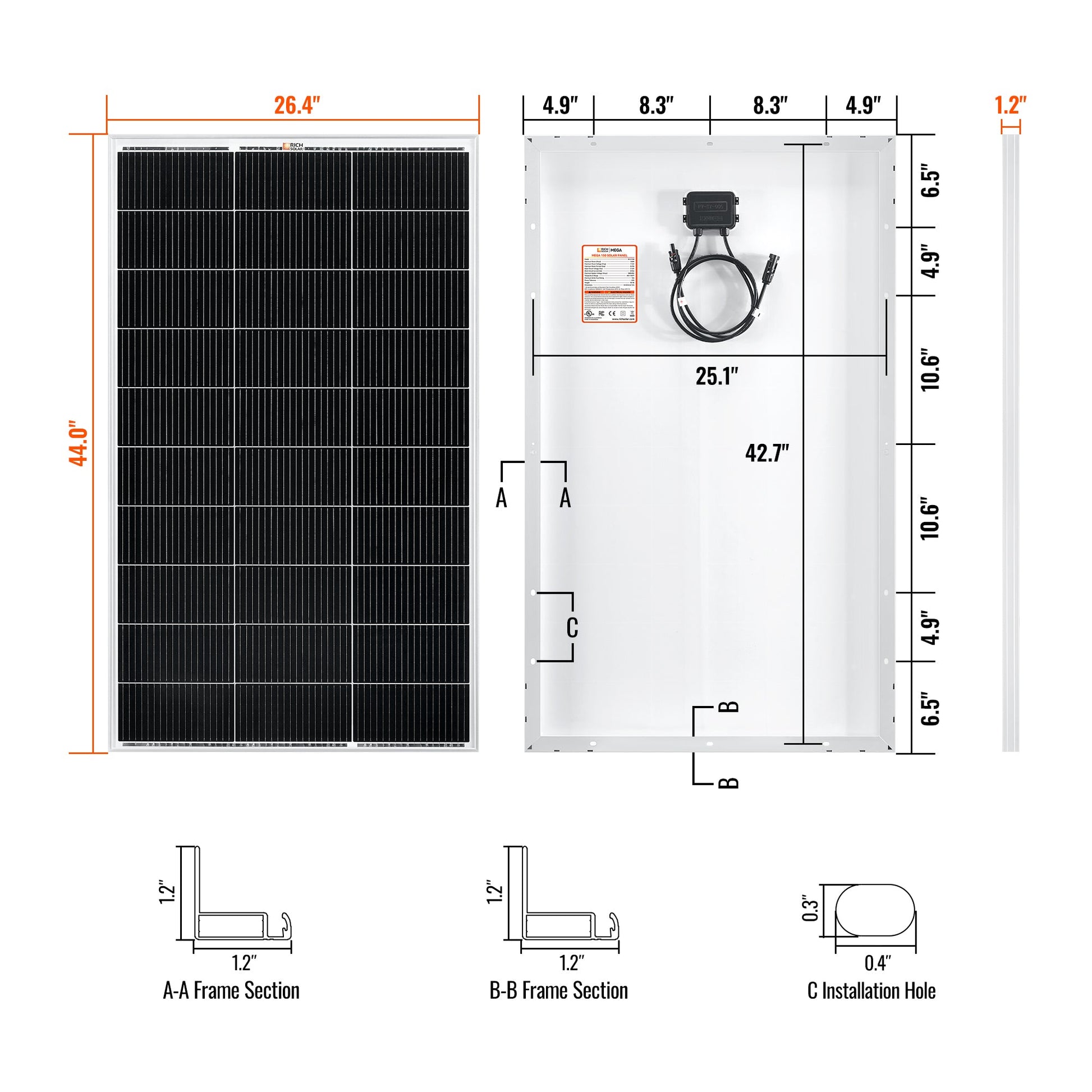

  • Dimensions: 44.0 x 26.4 x 1.2 in

Ideal Applications

  • RVs & Motorhomes
  • Cabins & Tiny Homes
  • Boats & Marine
  • Off-Grid Power Systems
  • Space-Constrained Roof Installs
  • DIY Solar Builds

Shipping Details

  • Shipping Locations: Orders ship primarily within the United States and Canada. Contact us for international shipping availability.
  • Processing Time: Orders are processed within 3–5 business days.
  • Delivery Time: Most orders arrive within 6–10 business days after processing. Delays may occur due to carrier or logistical issues.
  • Free Shipping: Complimentary shipping is available within the contiguous United States. Additional fees may apply for remote areas ($50–$200).
  • Carriers Used: Major carriers including DHL, FedEx, UPS, USPS, and regional freight partners. Expedited shipping may be available at additional cost.
  • Freight Orders: Delivery appointments and signatures may be required.
  • Address Changes: Shipping addresses cannot be modified once the order has shipped.
  • Damaged Shipments: If your order arrives damaged, contact the carrier immediately to file a claim and retain all packaging materials.
  • Important Notes: Orders require a valid street address. Expedited shipping cannot be delivered to PO Boxes. Shipments cannot be rerouted once
