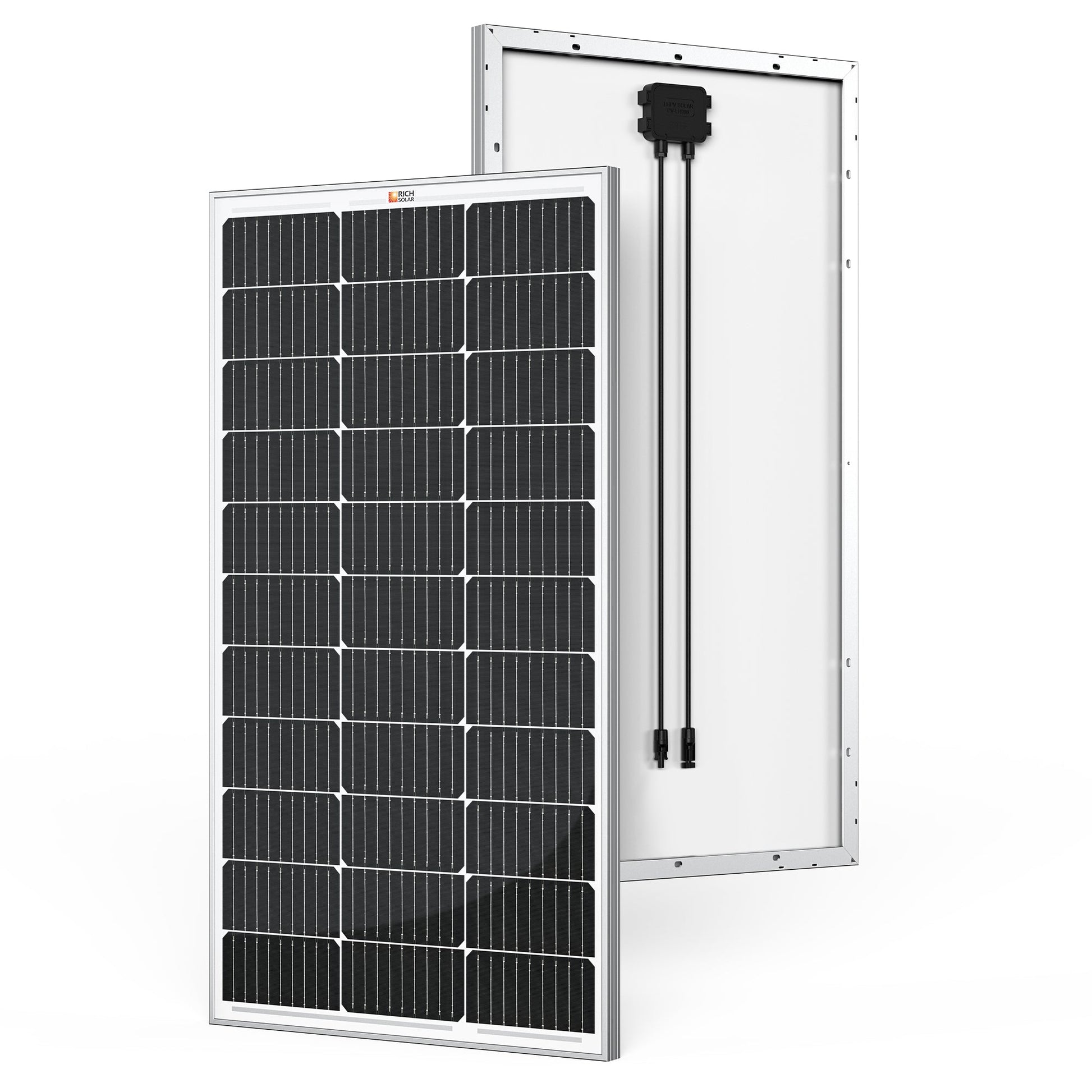

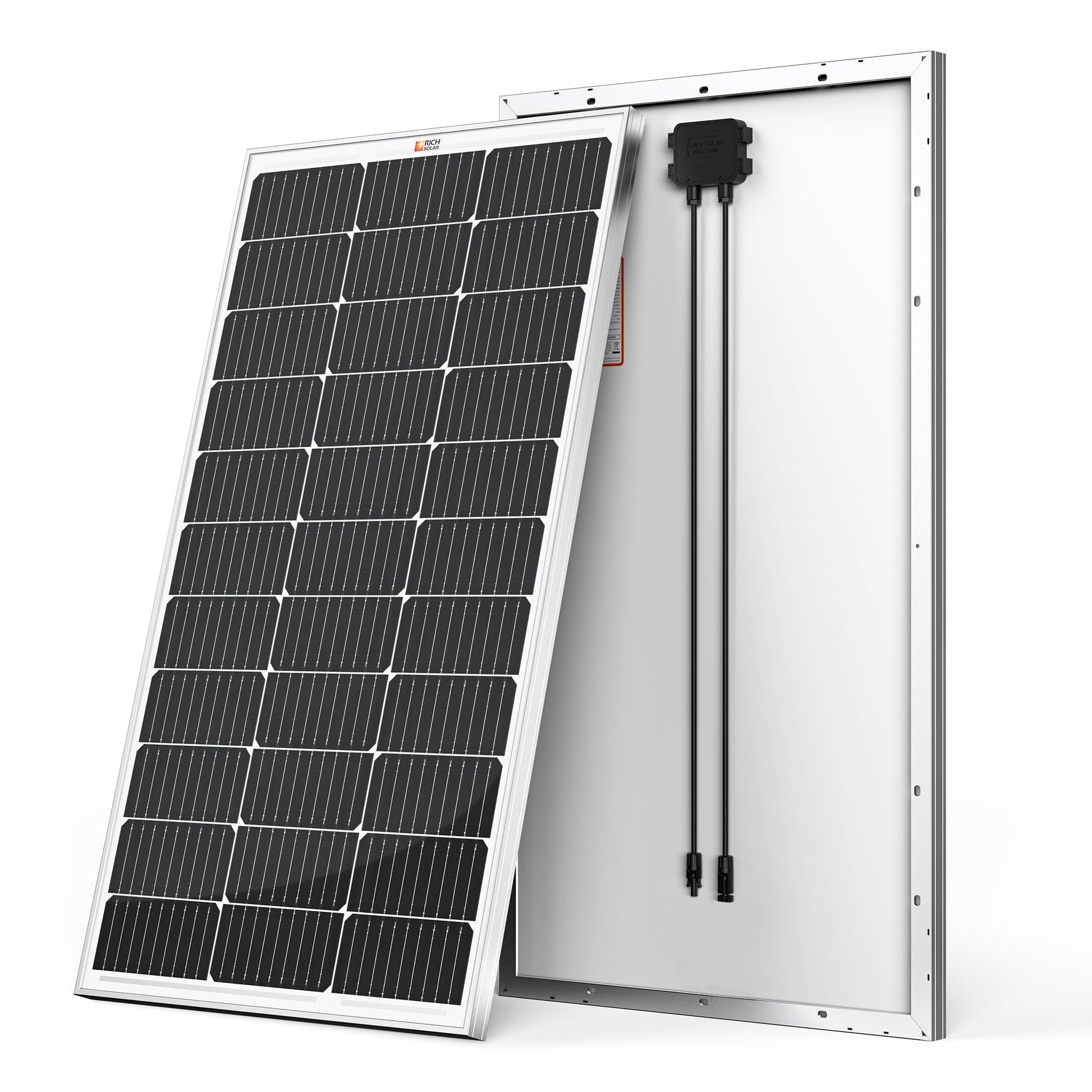

MEGA 100 - 100 Watt Solar Panel

MEGA 100 - 100 Watt Solar Panel

$95.99
$119.99 $95.99
Sale Sold out
Shipping calculated at checkout.

The MEGA 100 is the workhorse of the 12-volt lineup — the panel that ends up on more RV roofs and cabin racks than anything else Rich Solar builds. It handles heat, humidity, and salt air without complaint.

Why this panel

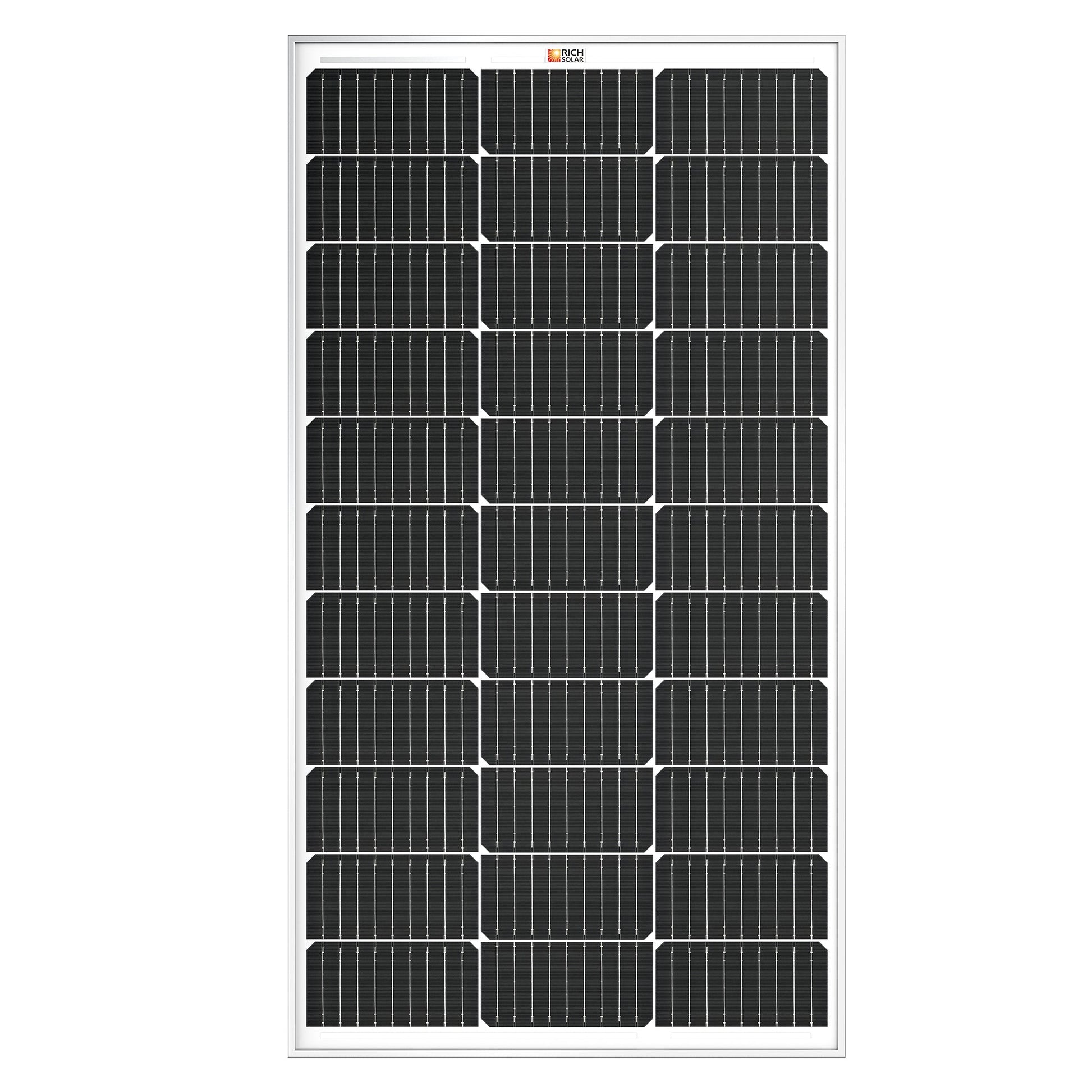

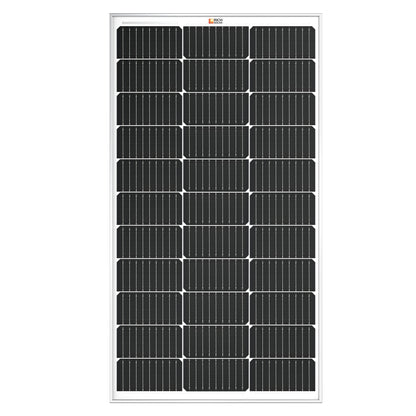

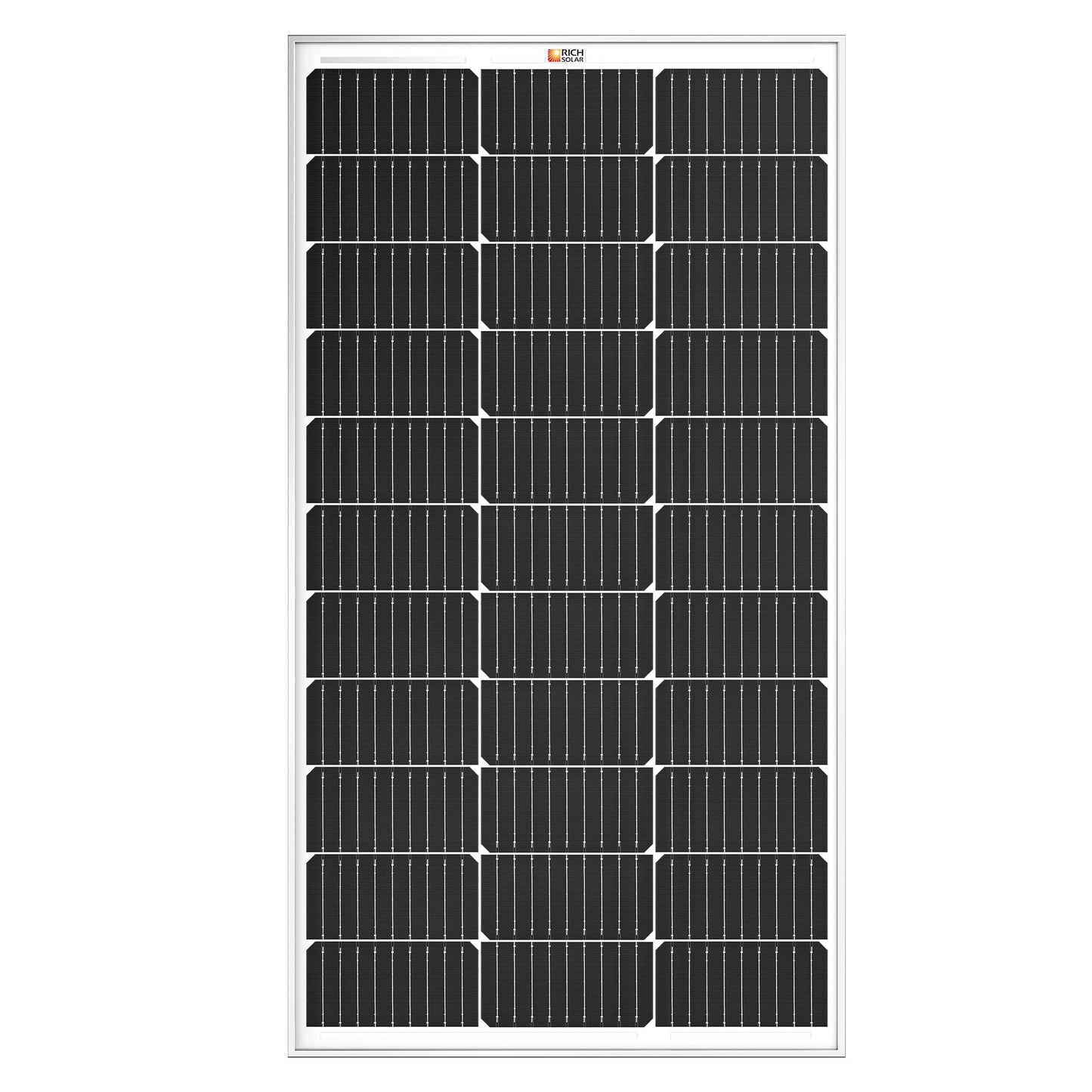

  • Nine-busbar monocrystalline cells reach 22.6% efficiency
  • A 33-cell layout delivers a consistent 100W, guaranteed at 0 to +5W tolerance
  • Strong low-light output means useful charging on grey days and in shoulder hours
  • 3.2 mm anti-reflective tempered glass over a TPT backsheet for long outdoor life
  • Built to shrug off salt, ammonia, sand, high heat, and humidity
  • Rated for 2400 Pa wind and 5400 Pa snow loading
  • 100% EL inspected and PID resistant
  • Certified to UL 61730, IEC 61215, and CSA C22.2

Mounting and wiring

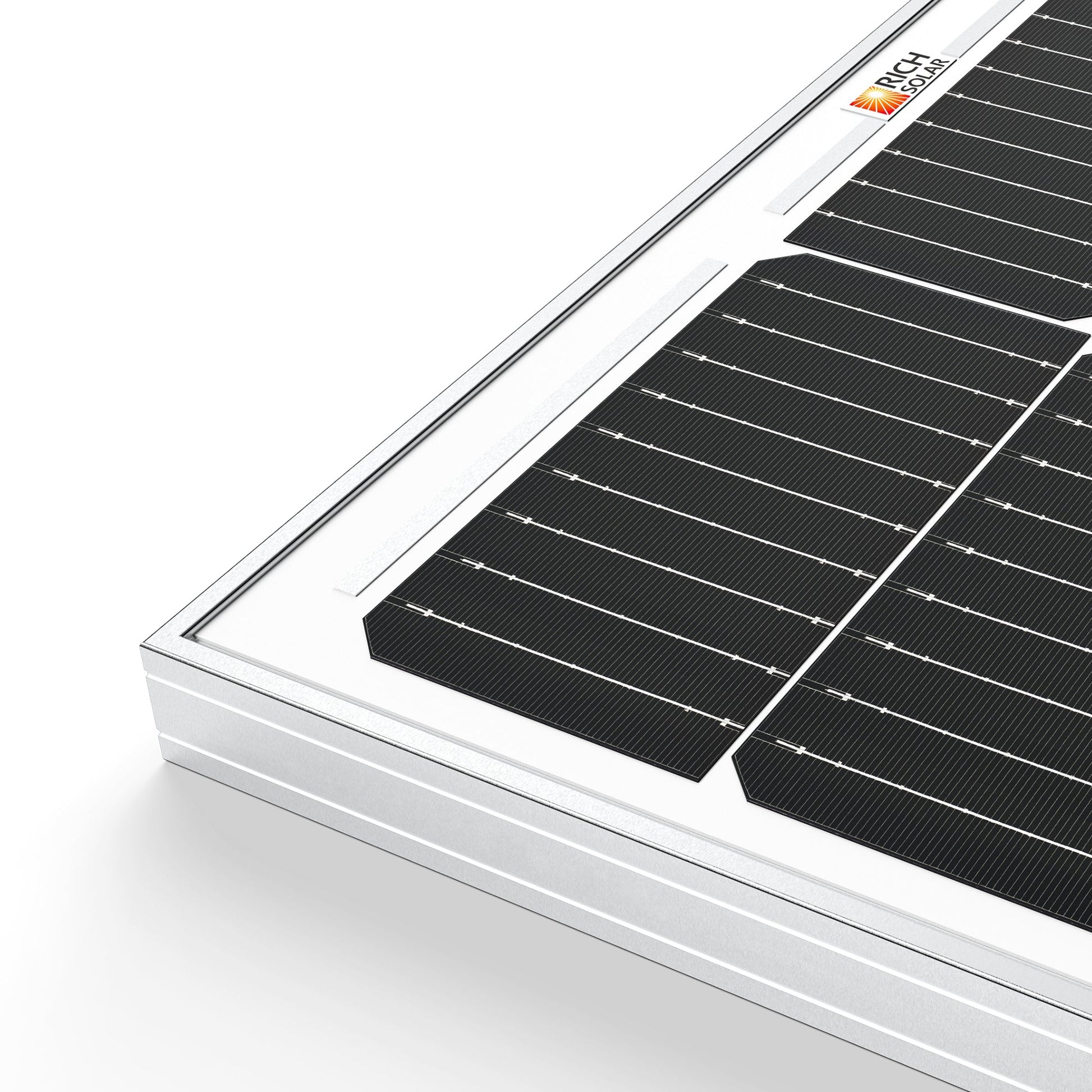

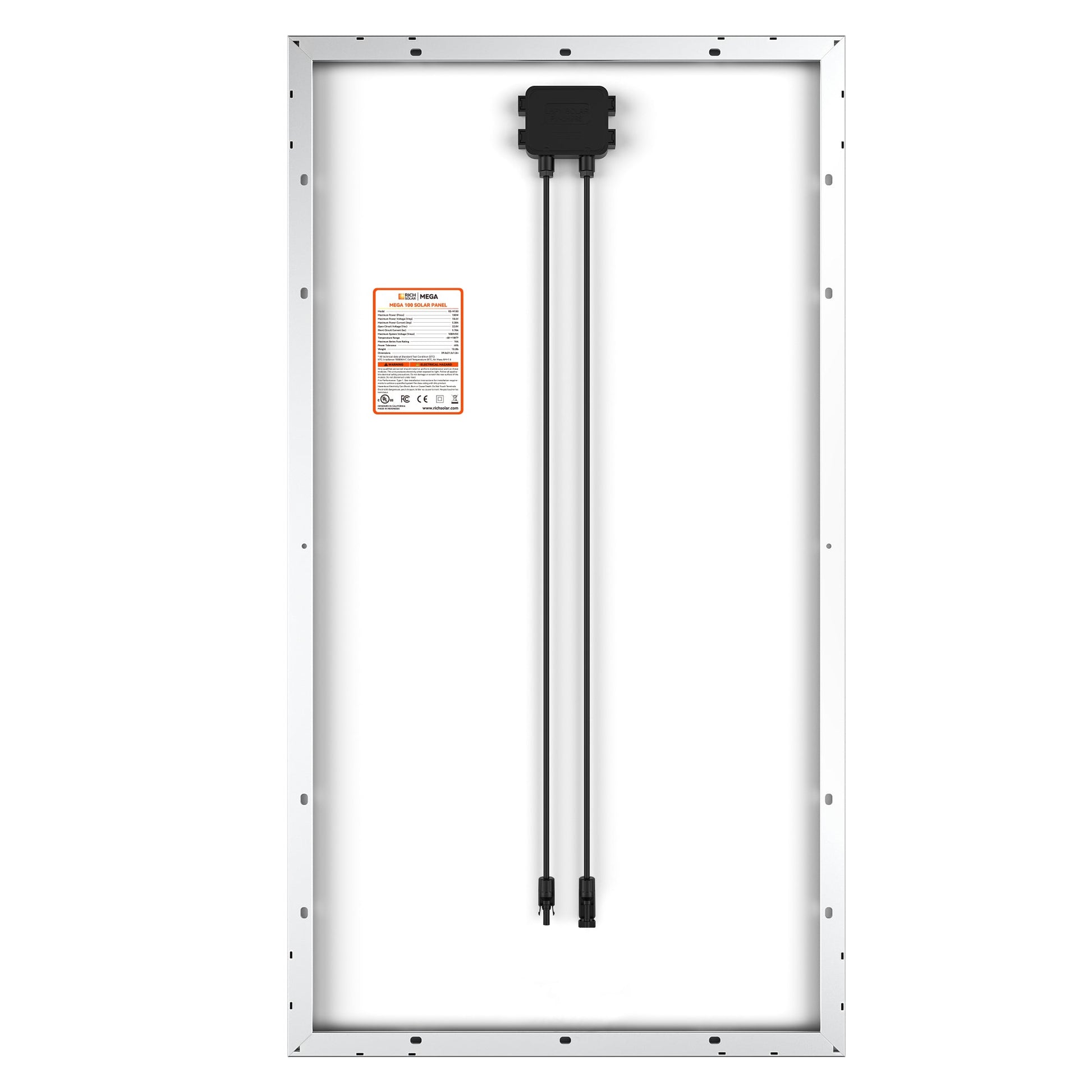

  • Anodized aluminum frame — light, rigid, and corrosion-resistant
  • Fourteen pre-drilled holes for Z-brackets, tilt mounts, pole, or ground mounting
  • Three-foot 12 AWG MC4 leads pre-attached
  • Compatible with both on-grid and off-grid inverters

Warranty

  • 25-year power output warranty
  • 10-year workmanship warranty
View full details

Let's get into the details.

What's Included

  • 1x MEGA 100 100 Watt Solar Panel
  • Pre-attached panel leads (pair): 12 AWG, 3 ft each

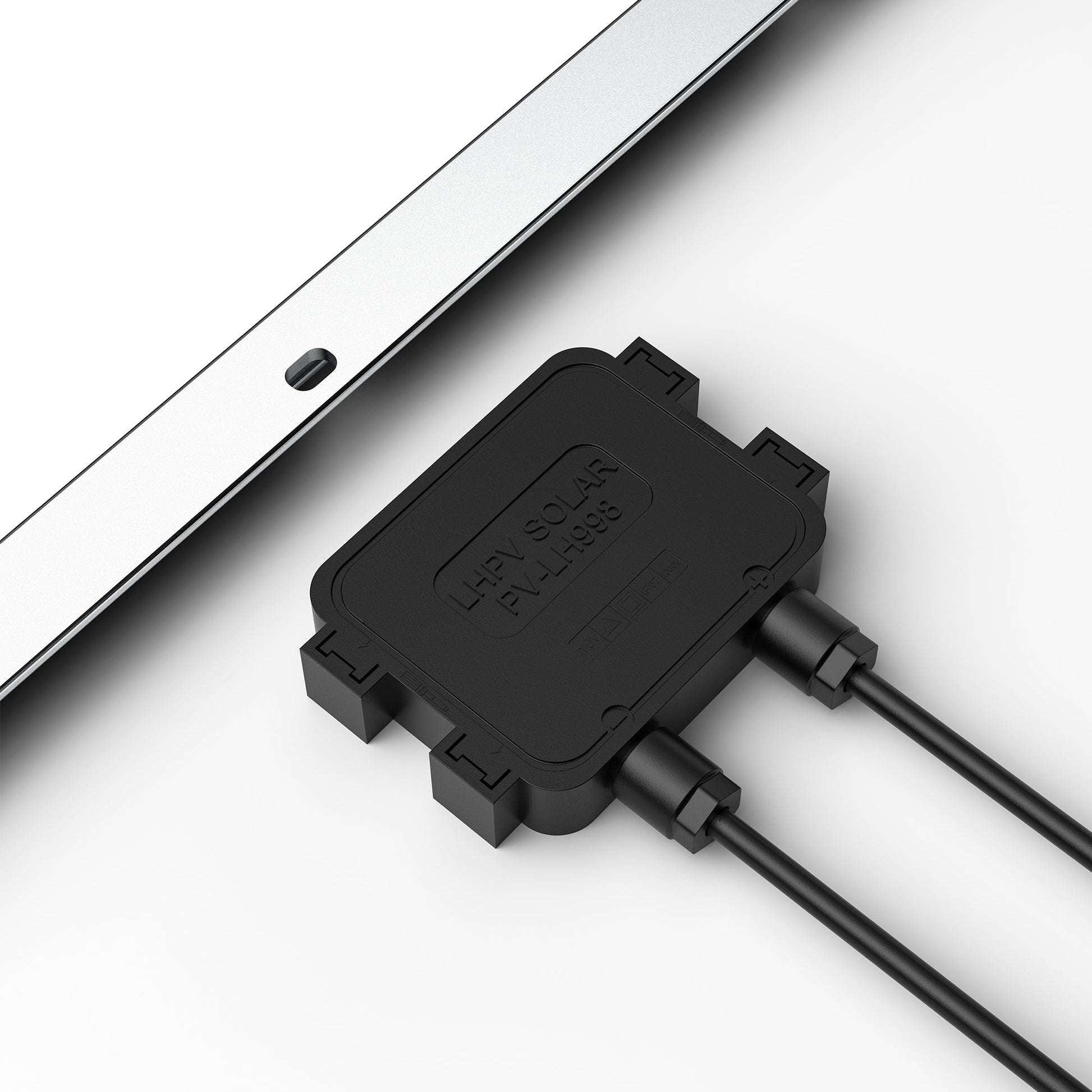

  • IP67-rated waterproof junction box (built in)
  • IP67-rated waterproof MC4 solar connectors

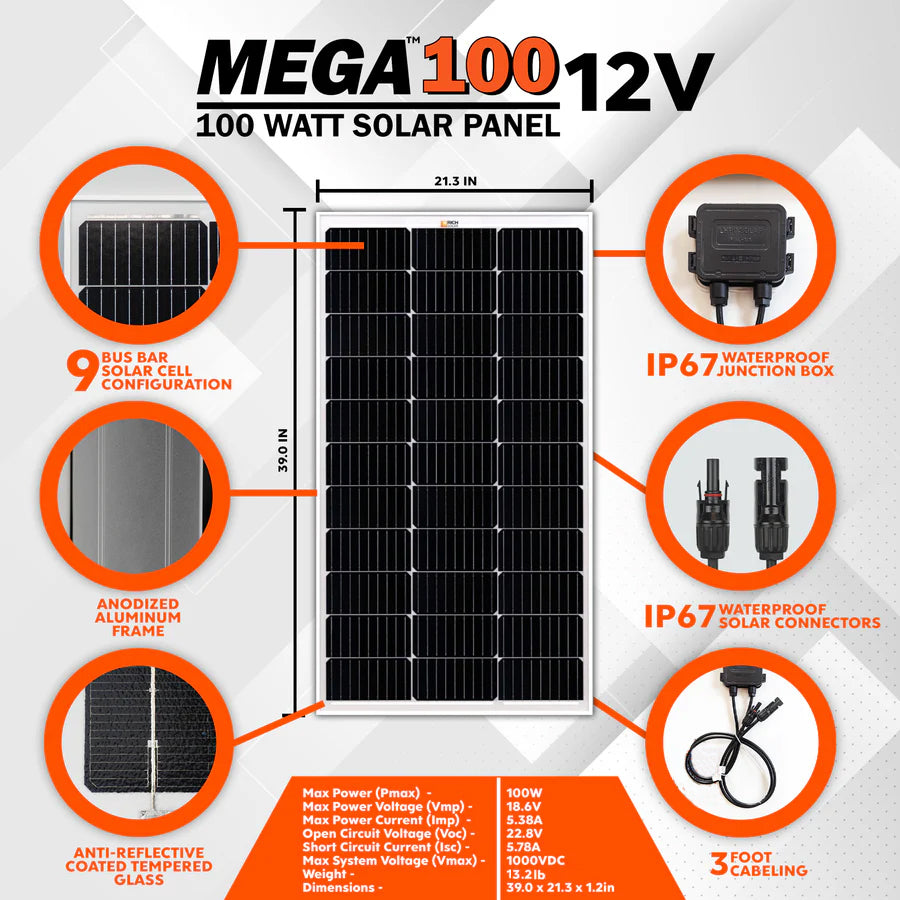

Technical Specifications

  • Maximum Power (Pmax): 100W
  • Maximum Power Voltage (Vmp): 18.6V
  • Maximum Power Current (Imp): 5.38A
  • Open Circuit Voltage (Voc): 22.8V
  • Short Circuit Current (Isc): 5.78A
  • Maximum System Voltage (Vmax): 1000VDC
  • Maximum Series Fuse Rating: 10A
  • Cell Efficiency: Up to 22.6%
  • Operating Temperature: -40°F to +185°F
  • Panel Weight: 13.2 lb

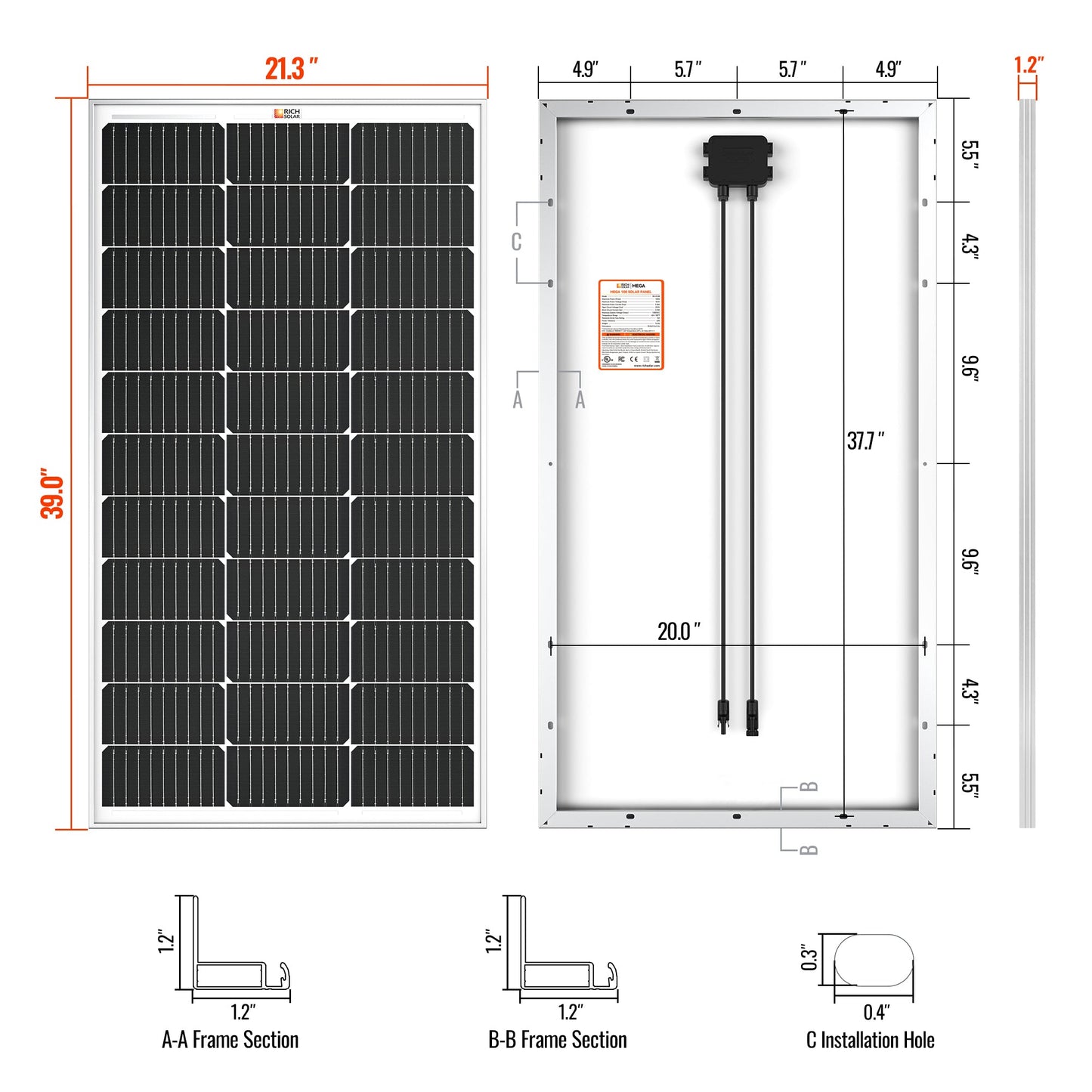

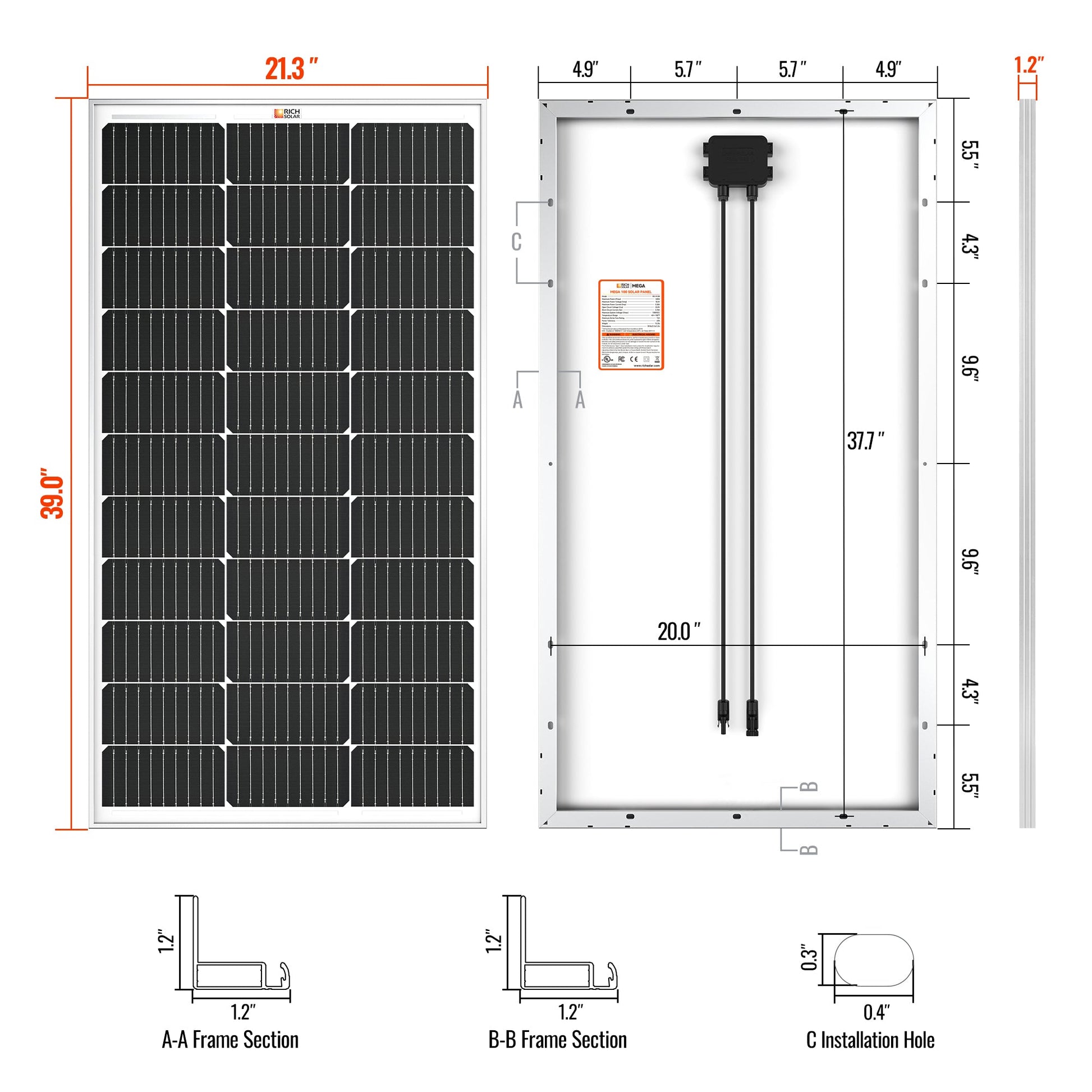

  • Dimensions: 39.0 x 21.3 x 1.2 in

Ideal Applications

  • RVs & Motorhomes
  • Vans & Truck Campers
  • Marine & Boats
  • Cabins & Tiny Homes
  • Off-Grid Power Systems
  • DIY Solar Builds

Shipping Details

  • Shipping Locations: Orders ship primarily within the United States and Canada. Contact us for international shipping availability.
  • Processing Time: Orders are processed within 3–5 business days.
  • Delivery Time: Most orders arrive within 6–10 business days after processing. Delays may occur due to carrier or logistical issues.
  • Free Shipping: Complimentary shipping is available within the contiguous United States. Additional fees may apply for remote areas ($50–$200).
  • Carriers Used: Major carriers including DHL, FedEx, UPS, USPS, and regional freight partners. Expedited shipping may be available at additional cost.
  • Freight Orders: Delivery appointments and signatures may be required.
  • Address Changes: Shipping addresses cannot be modified once the order has shipped.
  • Damaged Shipments: If your order arrives damaged, contact the carrier immediately to file a claim and retain all packaging materials.
  • Important Notes: Orders require a valid street address. Expedited shipping cannot be delivered to PO Boxes. Shipments cannot be rerouted once

Manual/Documentation

MEGA 100 Specification Sheet
UL Certificate of Compliance
