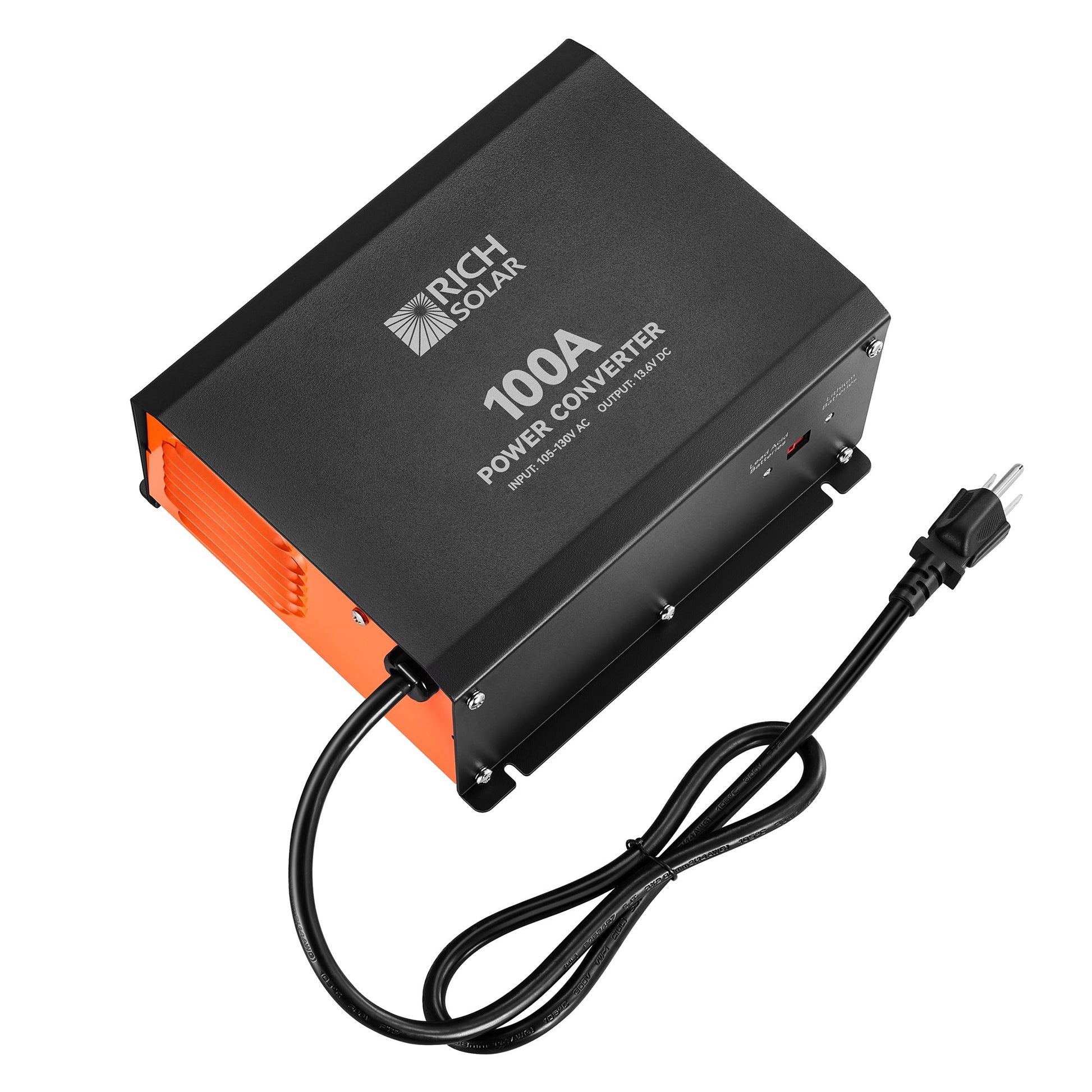

100 Amp Power Converter - 100A 120V AC to 12V DC Converter Charger

This is the box that keeps a house battery topped up and the 12 volt circuits alive while you are plugged into shore power. It suits two situations: replacing a tired converter in an older trailer, or filling the gap in a build that has no AC-to-DC charging at all. At 100 amps it has enough headroom to charge a large lithium bank while the usual 12 volt loads keep running.

Why this converter

• 100 amps of continuous DC output, roughly 1,460 watts, drawn from a standard 120 volt circuit at no more than 15 amps AC.
• Three selectable no-load output voltages, approximately 14.6 V, 13.6 V and 13.2 V, so it can be matched to a lithium bank's absorption voltage or left lower for lead-acid float duty.
• Efficiency is rated above 85 percent. That is reasonable for a unit this size, but it also means something in the region of 200 watts is shed as heat at full output, which is why the cooling arrangement matters.

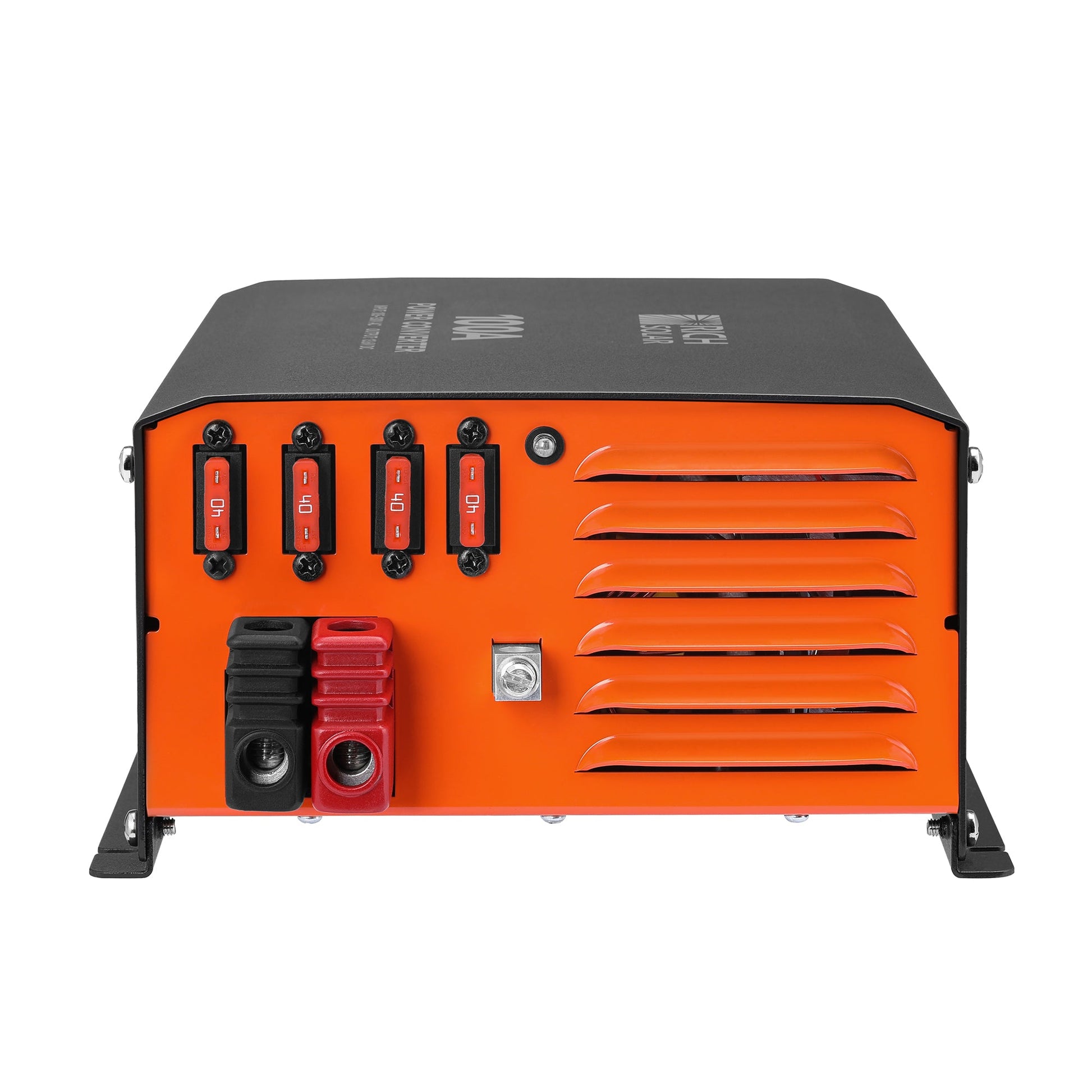

• Fan speed is proportional rather than on/off, so it stays quiet at light loads instead of cycling audibly in a small living space.
• Protection covers reverse polarity, overload and thermal shutdown.
• Certified to UL 458 and CSA C22.2, the standards inspectors look for in mobile power conversion equipment.

Installation

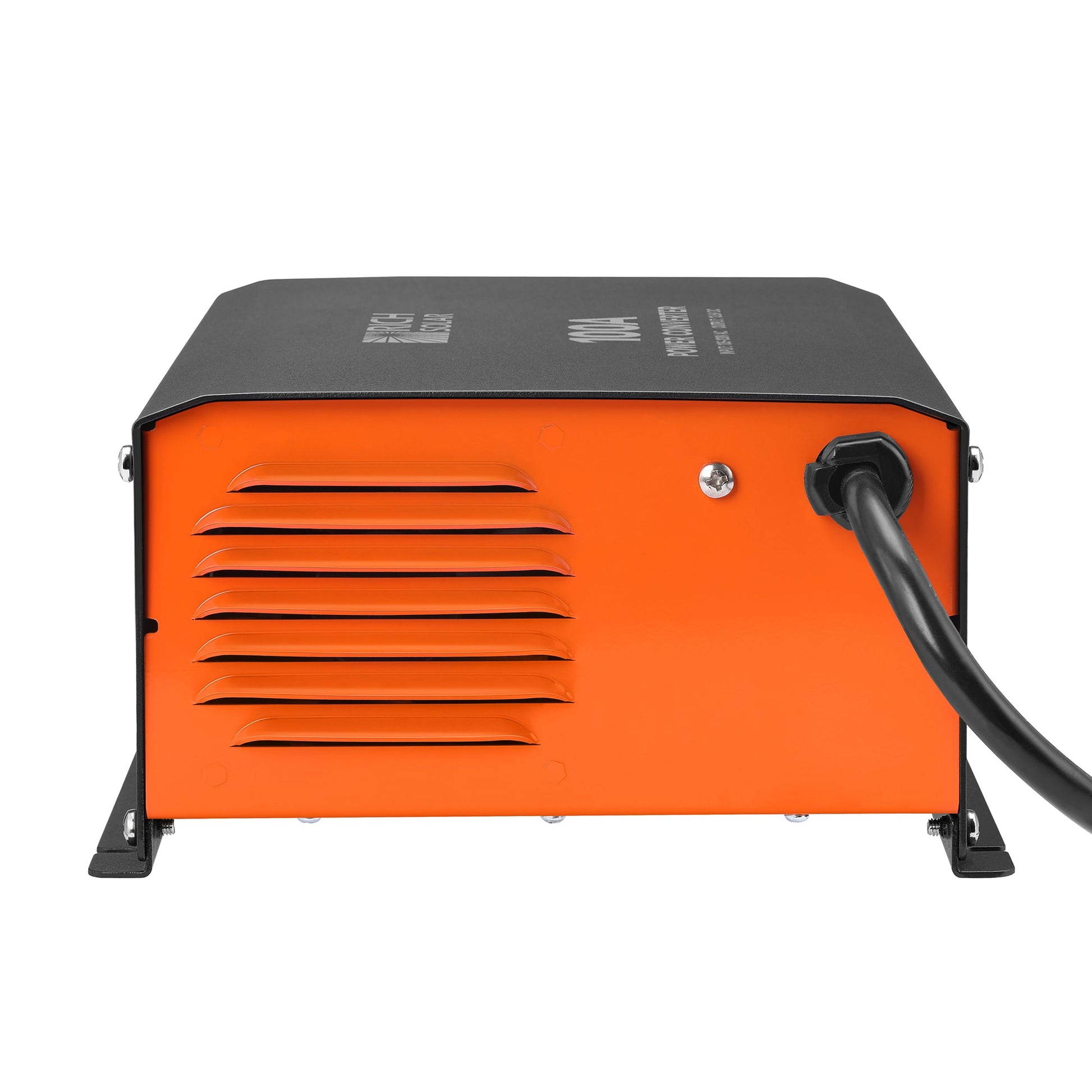

• Wired as a direct swap for a conventional RV converter: 120 V AC in on its own 15 amp circuit, DC out to the distribution bus.

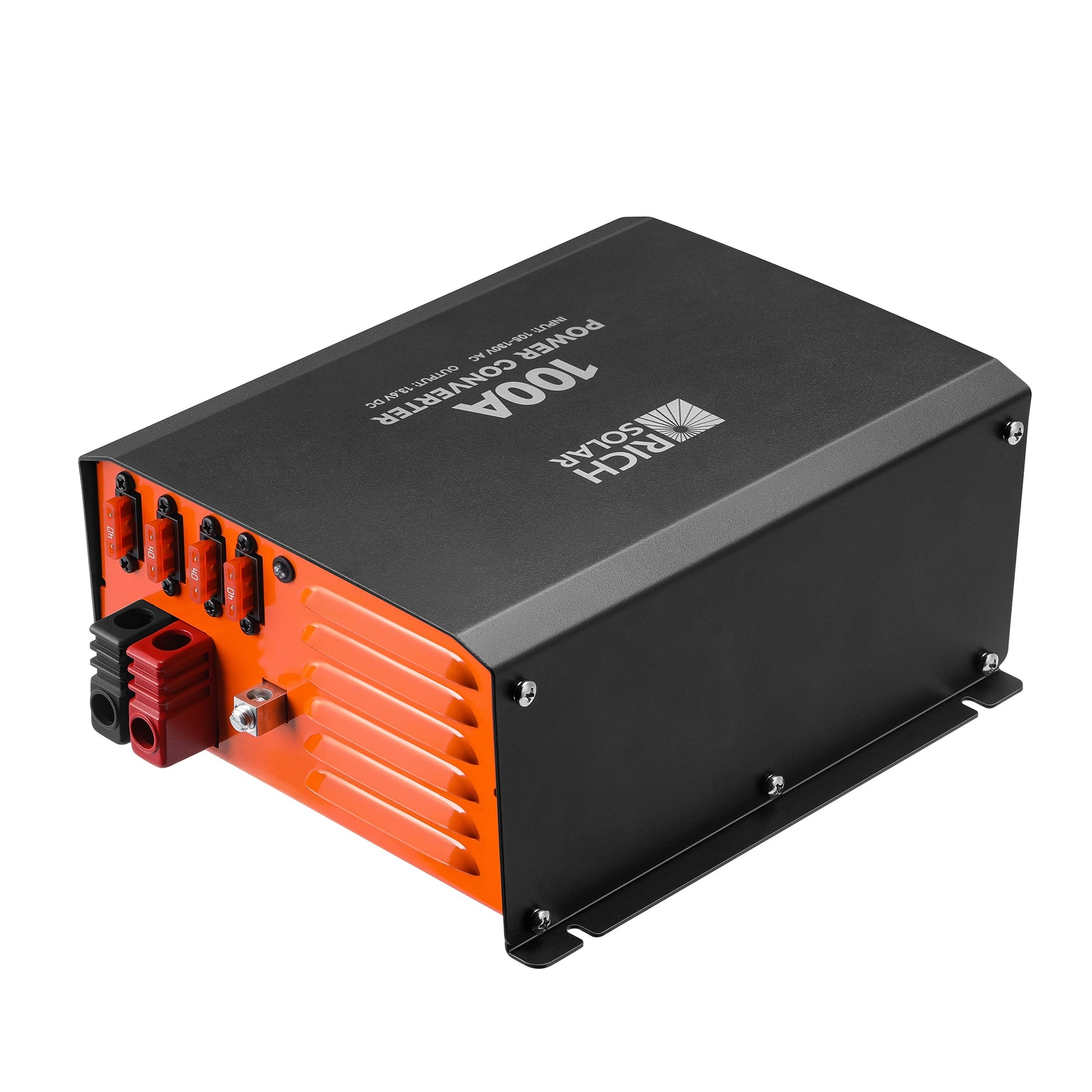

• At 100 amps the DC run needs cable and overcurrent protection sized for that current. Reusing the leads from a smaller converter is not safe.

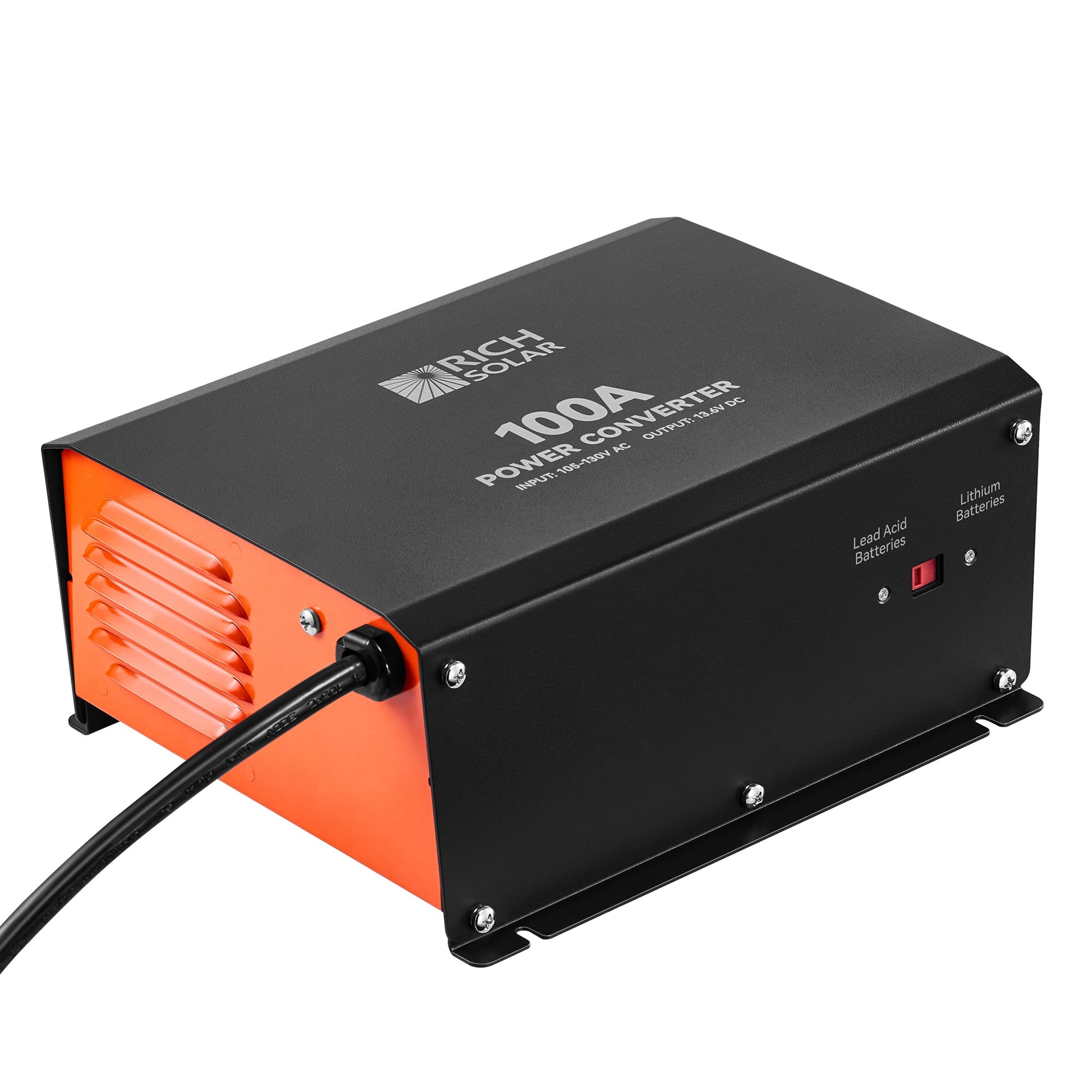

• Mount it where the fan has clear air on both sides. Sustained high output produces real heat, and a cramped bay will drive it into thermal limiting.
• Rich Solar publishes one user manual covering both the 80 A and 100 A converters. Follow its terminal and grounding instructions rather than a generic wiring guide.

Warranty

• Covered by Rich Solar's standard limited warranty. Rich Solar does not publish a term for this specific item on its product page, so confirm the current period with them rather than assuming it matches the panel warranties.
• California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
